| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | CM-MA-ANT-3-E5 |
| Manufacturer No: | MA-ANT-3-E5 |
| Delivery: | In Stock: 7-10 Days |
 |

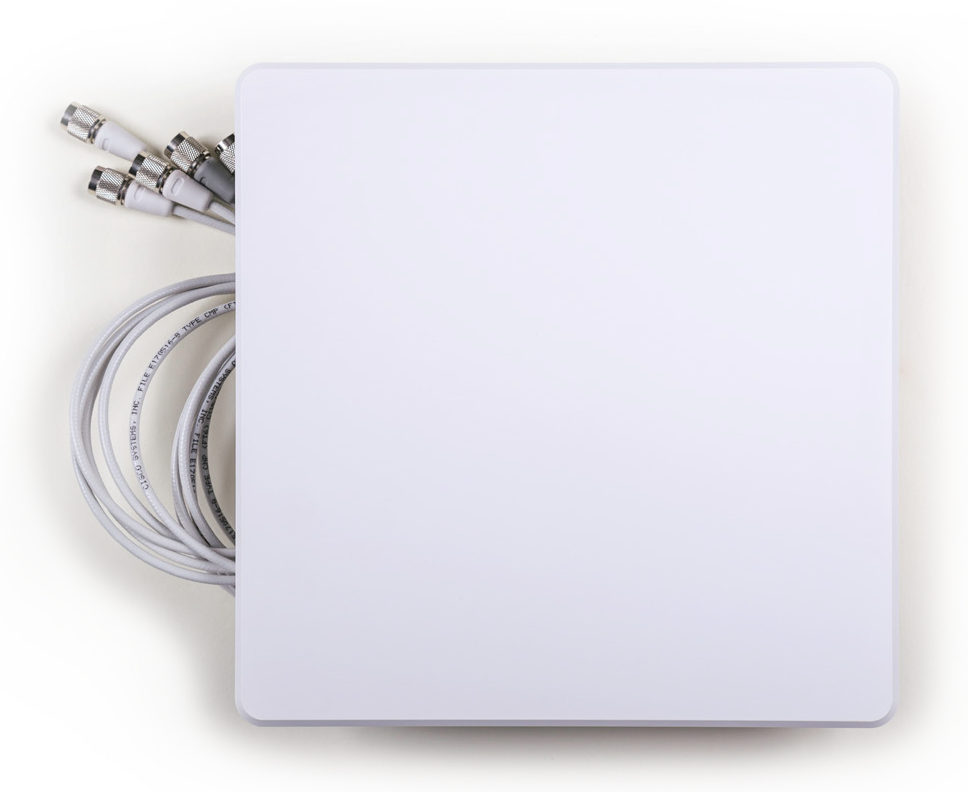

The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low-density applications and wall-mounted or ceiling-mounted below 25 ft in high-density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users.
| Electrical | |
| Antenna type: | Wide Patch |
| Frequency range: | 2.400-2.500, 5.150-5.875 GHz |
| Gain (per antenna element): | 7 dBi (2.4) / 6.3 dBi (5) |
| Polarisation: | Linear, +/- 45° |
| Half-power beamwidth/horizontal: | 60° / 60° |
| Half-power beamwidth/vertical: | 60° / 60° |
| Physical and Environmental | |
| Dimensions: | 10.83” x 10.83” 0.93” (275 mm x 275 mm x 23.5 mm) |
| Weight: | 38.8 oz (1.1 kg) |
| Material: | PC-ABS |
| Temperature: | 32 °F to 104 °F (0 °C to 40 °C) |
| Humidity: | 5% - 93% |
| Connector: | RP-TNC |
| Miscellaneous |
| Certified for use with MR42E: MA-ANT-3-E5 |
| Certified for use with MR53E: MA-ANT-3-E6 |
| 1 year hardware warranty included |
As per Cisco's UK policy we are unable to ship any Cisco products to any address other than a company registered address as shown on Companies House.
The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low-density applications and wall-mounted or ceiling-mounted below 25 ft in high-density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users.
| Electrical | |
| Antenna type: | Wide Patch |
| Frequency range: | 2.400-2.500, 5.150-5.875 GHz |
| Gain (per antenna element): | 7 dBi (2.4) / 6.3 dBi (5) |
| Polarisation: | Linear, +/- 45° |
| Half-power beamwidth/horizontal: | 60° / 60° |
| Half-power beamwidth/vertical: | 60° / 60° |
| Physical and Environmental | |
| Dimensions: | 10.83” x 10.83” 0.93” (275 mm x 275 mm x 23.5 mm) |
| Weight: | 38.8 oz (1.1 kg) |
| Material: | PC-ABS |
| Temperature: | 32 °F to 104 °F (0 °C to 40 °C) |
| Humidity: | 5% - 93% |
| Connector: | RP-TNC |
| Miscellaneous |
| Certified for use with MR42E: MA-ANT-3-E5 |
| Certified for use with MR53E: MA-ANT-3-E6 |
| 1 year hardware warranty included |
As per Cisco's UK policy we are unable to ship any Cisco products to any address other than a company registered address as shown on Companies House.
