| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | CM-MA-ANT-3-F6 |
| Manufacturer No: | MA-ANT-3-F6 |
| Delivery: | In Stock: 3-5 Days |
 |

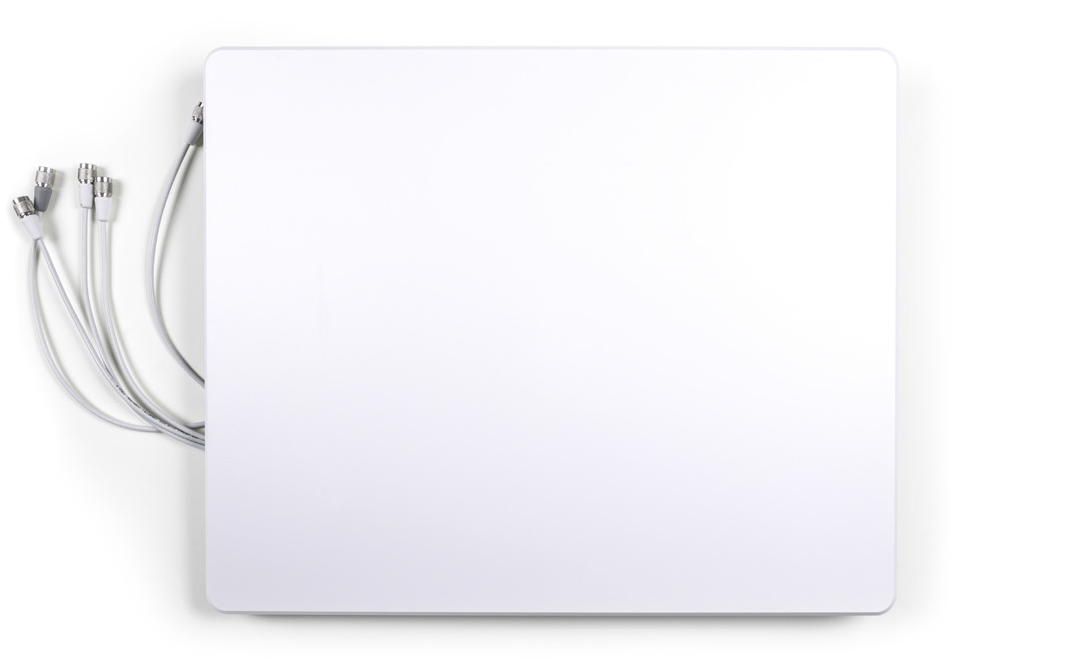

The Narrow Patch antenna is ideal for high ceiling (25+ ft) aesthetic consensus installations in high-density applications and where APs are covering high-density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers.
Technical Specifications
| Electrical | |
| Antenna type: | Narrow Patch |
| Frequency range: | 2.400-2.500, 5.150-5.875 GHz |
| Gain (per antenna element): | F5: 11.2 dBi (2.4) / 10.8 dBi (5) F6: 11.2 dBi (2.4) / 10.8 dBi (5) |
| Polarisation: | Linear, +/- 45° |
| Half-power beamwidth/horizontal: | 30° / 30° |
| Half-power beamwidth/vertical: | 30° / 30° |
| Physical and Environmental | |
| Dimensions: | F5: 25.98” x 20.87” 5.12” (660 mm x 530 mm x 130 mm) F6: 25.98” x 20.87” 5.12” (660 mm x 530 mm x 130 mm) |
| Weight: | F5: 6.9 lbs (110.4 oz) F6: 7.1 lbs (113.6 oz) |
| Material: | PC-ABS |
| Temperature: | 32 °F to 104 °F (0 °C to 40 °C) |
| Humidity: | 5% - 93% |
| Connector: | RP-TNC |
| Miscellaneous |
| Certified for use with MR42E: MA-ANT-3-F5 |
| Certified for use with MR53E: MA-ANT-3-F6 |
| 1 year hardware warranty included |
