| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | CM-MA-ANT-C1-A |
| Manufacturer No: | MA-ANT-C1-A |
| Delivery: | In Stock: 3-5 Days |
 |

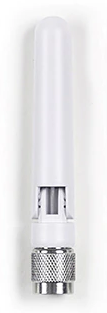

The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have APs installed on walls or uneven surfaces. This antenna is bendable. The price shown is for a single unit; the Dipole antenna can be purchased in units of one, five or six.
Technical Specifications
| Electrical | |
| Antenna type: | Dipole |
| Frequency range: | 2.400-2.500, 5.150-5.875 GHz |
| Gain: | 3 dBi (2.4)/5.7 dBi (5) |
| Polarisation: | Linear, Vertical/Horizontal |
| Half-power beamwidth/horizontal: | omni |
| Half-power beamwidth/vertical: | 40° |
| Physical and Environmental | |
| Dimensions: | 89.3 mm x 14.5 mm (3.51” x 0.57”) |
| Weight: | 20.19 g (0.71 oz) |
| Material: | PC-ABS |
| Temperature: | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity: | 5%-95% |
| Width: | 800mm |
| Connector: | RP-TNC |
| Miscellaneous |
| Certified for use with MR42E: MA-ANT-3-B5 (5 pack) |
| Certified for use with MR53E/MR46E: MA-ANT-3-B6 (6 pack) |
| One-year hardware warranty included |
As per Cisco's UK policy we are unable to ship any Cisco products to any address other than a company registered address as shown on Companies House.
The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have APs installed on walls or uneven surfaces. This antenna is bendable. The price shown is for a single unit; the Dipole antenna can be purchased in units of one, five or six.
Technical Specifications
| Electrical | |
| Antenna type: | Dipole |
| Frequency range: | 2.400-2.500, 5.150-5.875 GHz |
| Gain: | 3 dBi (2.4)/5.7 dBi (5) |
| Polarisation: | Linear, Vertical/Horizontal |
| Half-power beamwidth/horizontal: | omni |
| Half-power beamwidth/vertical: | 40° |
| Physical and Environmental | |
| Dimensions: | 89.3 mm x 14.5 mm (3.51” x 0.57”) |
| Weight: | 20.19 g (0.71 oz) |
| Material: | PC-ABS |
| Temperature: | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity: | 5%-95% |
| Width: | 800mm |
| Connector: | RP-TNC |
| Miscellaneous |
| Certified for use with MR42E: MA-ANT-3-B5 (5 pack) |
| Certified for use with MR53E/MR46E: MA-ANT-3-B6 (6 pack) |
| One-year hardware warranty included |
As per Cisco's UK policy we are unable to ship any Cisco products to any address other than a company registered address as shown on Companies House.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
