Zyxel Unmanaged Switches

The ZyXEL GS-108S v2 8-Port Desktop Gigabit Ethernet Media Switch can easily connect multiple media devices to home networks at blazing-fast Gigabit simultaneously. Moreover, the newly designed GS-108S v2 allow smooth video streaming and online gaming activities.

Features:

Smooth multimedia streaming and gaming through QoS ports with 3-level prioritisation
Bi-colour LED indicators for Ethernet port status
Plug-and-play, stylish design fitting all home environments
Multimedia streaming with blazing-fast Gigabit connection
Green Ethernet for energy saving


Plug-and-play, stylish design

With easy plug-and-play, you can connect the GS-108S v2 to media players, game consoles and smart TVs to your home network without any configuration effort. With its stylish modern look and streamlined design, the GS-108S v2 fits nicely into any home décor.



Smooth multimedia streaming and gaming

The ZyXEL GS-108S v2 features QoS ports for you to assign high, medium or low priorities for your preferred network applications. For instance, if you are a movie enthusiast, you can connect media players or smart TVs to the high-priority ports for smooth video streaming and the best home 3D streaming experience. If you prefer lag-free online gaming, simply connect the game console through the high-priority QoS port and assign media players, PC and other network devices to the medium- or low-priority QoS ports according to your need.



Blazing-fast Gigabit speed

The GS-108S v2 10/100/1000 Mbps switch is designed for reliable high-performance media networks 10 times faster than Fast Ethernet connections. It perfectly fulfills the demands for multimedia streaming and online gaming.

Adjust power usage Smartly adjusts power consumption by detecting the link status and the length of connected Ethernet cables. When the GS-108S v2 detects no active data transmission, the device automatically enters the power-saving mode to avoid energy waste.

Detect cable length The GS-108S v2 can detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the Ethernet cable length is, the less power it consumes.

ZyXEL's GS-105B 10/100/1000 Mbps desktop switch is designed for reliable high-performance networks. Thanks to the non-blocking switching fabric in full-duplex mode, the maximum speed can reach up to 2000 Mbps per port. With these features, the transmission efficiency can be boosted dramatically.

With the N-way auto-negotiation function, the GS-105B automatically connects to its network counterparts with the highest possible network speed and activates duplex mode automatically. All it takes to enliven your network is just plugging in the cable, and no manual configuration is required.

The stylish compact metal housing fits any working environment. GS-105B comes with different port configurations for affordable and reliable SOHO network expansion needs.

Features:

5 auto-sensing 10/100/1000 Mbps full-duplex, auto MDI/MDI-X ports
Full wire-speed store-and-forward technology support
True plug-and-play installation
Up to 2000 Mbps bandwidth per port
Compact stylish design


Optimised for smooth VoIP and data exchange

The GS-105B v3 has 3 QoS ports with an assigned high- and medium priority mechanism to enhance the stability of VoIP and data exchange. Just connect network devices such as IP phones, PCs, laptops or network storages to the high-priority or medium-priority ports of your choice, you can then enjoy smooth VoIP communication and data transfer at the same time



Fast, reliable wired connectivity

Without any manual configuration, the GS-105B v3 can boost data transfer speed for connected network devices such as IP phones, network storages, PCs and laptops to the network at blazing-fast Gigabit speed.

Adjust power usage Smartly adjusts power consumption by detecting the link status and the length of connected Ethernet cables. When the GS-105B v3 detects no active data transmission, the device automatically enters the power-saving mode to avoid energy waste.

Detect cable length The GS-105B v3 can detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the Ethernet cable length is, the less power it consumes.

ZyXEL's GS-108B v3 10/100/1000 Mbps desktop switch is designed for reliable high-performance networks. Thanks to the non-blocking switching fabric in full-duplex mode, the maximum speed can reach up to 2000 Mbps per port. With these features, the transmission efficiency can be boosted dramatically.

With the N-way auto-negotiation function, the GS-108B v3 automatically connects to its network counterparts with the highest possible network speed and activates duplex mode automatically. All it takes to enliven your network is just plugging in the cable, and no manual configuration is required.

The stylish compact metal housing fits any working environment. GS-108B comes with different port configurations for affordable and reliable SOHO network expansion needs.

Features:

8 auto-sensing 10/100/1000 Mbps full-duplex, auto MDI/MDI-X ports
Full wire-speed store-and-forward technology support
True plug-and-play installation
Up to 2000 Mbps bandwidth per port
Compact stylish design


Optimised for smooth VoIP and data exchange

The GS-108B v3 has 3 QoS ports with an assigned high- and medium priority mechanism to enhance the stability of VoIP and data exchange. Just connect network devices such as IP phones, PCs, laptops or network storages to the high-priority or medium-priority ports of your choice, you can then enjoy smooth VoIP communication and data transfer at the same time



Fast, reliable wired connectivity

Without any manual configuration, the GS-108B v3 can boost data transfer speed for connected network devices such as IP phones, network storages, PCs and laptops to the network at blazing-fast Gigabit speed.

Adjust power usage Smartly adjusts power consumption by detecting the link status and the length of connected Ethernet cables. When the GS-108B v3 detects no active data transmission, the device automatically enters the power-saving mode to avoid energy waste.

Detect cable length The GS-108B v3 can detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the Ethernet cable length is, the less power it consumes.

Unmanaged PoE+ Switches Are Now Within Reach For SMBs & SOHOs

The Zyxel GS1005HP 5-port Gigabit PoE+ switch supports 802.3af and 802.3at PoE+.

It’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points.

Product Diagram


Plug-and-play 5-port Gigabit switch with 4-port PoE+ connectivity
60 Watts of total output on 4 Gigabit PoE+ ports
Support 802.3af/802.3at a maximum total power budget of 30 watts per port
Easy PoE budget management with power max LED indicator
Advanced energy-savings at work and Fanless, noiseless design
More comprehensive smart features included
Rugged metal housing with wall mount possibility
Equipped with 5 Gigabit Ethernet Ports

The GS1005HP is equipped with 5 gigabit Ethernet ports, 4 of which are PoE + ports that can deliver up to 60W of total PoE budget. The GS1005HP can easily connect with PoE ready devices to your network with plug-and-play design



Support 4 Ports of Smart PoE+ 802.3af/802.3at

The GS1005HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones



Easy PoE Budget Management

The GS1005HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device is automatically dropped with no impact on the other devices that are powered through the switch.



Compact Housing & Silent Operation

The GS1005HP features a fanless design that ensures noiseless operation and greater reliability over time. The compact, rugged metal housing also provides the possibility of wall mounting.



Advanced Energy-Savings at Work

The GS1005HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

More Smart Features

Receive additional advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!

Unmanaged PoE+ Switches Are Now Within Reach For SMBs & SOHOs.

The Zyxel GS1008HP 8-port Gigabit PoE+ switch supports 802.3af and 802.3at PoE+.

It’s the right choice for small or remote offices deploying IP cameras, VoIP phone systems or wireless access points.

Product Diagram


Plug-and-play 8-port Gigabit switch with 8-port PoE+ connectivity
60 Watts of total output on 8 Gigabit PoE+ ports
Support 802.3af/802.3at a maximum total power budget of 30 watts per port
Easy PoE budget management with power max LED indicator
Advanced energy-savings at work and Fanless, noiseless design
More comprehensive smart features included
Rugged metal housing with wall mount possibility
Equipped with 8 Gigabit Ethernet Ports

GS1008HP is equipped with 8 gigabit Ethernet ports, all of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1008HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance.



Support 8 Ports of Smart PoE+ 802.3af/802.3at

GS1008HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones



Easy PoE Budget Management

GS1008HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device is automatically dropped with no impact on the other devices that are powered through the switch.



Compact Housing & Silent Operation

GS1008HP features a fanless design that ensures noiseless operation and greater reliability over time. The compact, rugged metal housing also provides the possibility of wall mounting.



More Smart Features

Receive additional advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!

Advanced Energy-Savings at Work

GS1008HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

Design For Surveillance
Crafted for CCTV, Zyxel introduces the brand-new GS1300 unmanaged switch for surveillance applications.

New outlook

Coated in titanium grey, the GS1300 excels with an eye-catching identity dedicated for surveillance Switch. On top of the conventional unmanaged switch, GS1300 comes with special design for CCTV adoption.



Easy for long-distance deployment

The GS1300 series overcomes the 100 meter limitation of Ethernet, and fulfills the need to deploy IP camera or powered devices using existing Cat 5e cable to distant locations. By toggling the DIP switch to turn on the extended-range mode, instantly achieve distant deployments up to 250 meters. Save your money and effort with simply one PoE Switch.




High power budget, intuitive front panel design

The GS1300 series includes 3 models with a range of large power budgets from 130 W to 250 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status.



Best fit for surveillance installation

Without the use of an adaptor, the internal power supply design is suitable for mounting onto server racks allowing more freedom and utilization of space.




Technical Specification

  GS1300-10HP GS1300-18HP GS1300-26HP Model Product name 8-port GbE Unmanaged PoE Switch with GbE Uplink 16-port GbE Unmanaged PoE Switch with GbE Uplink 24-port GbE Unmanaged PoE Switch with GbE Uplink Switch class Unmanaged Unmanaged Unmanaged Port Density Total port count 10 18 26 100/1000 Mbps 9 17 24 Gigabit SFP 1 1 2 Configurable extended range ports 2 4 4 PoE PoE ports 8 16 24 Total PoE budget (watt) 130 170 250 PoE 802.3at Yes Yes Yes Performance Switching capacity (Gbps) 20 36 52 Forwarding rate (Mpps) 14.8 26.7 38.7 Packet buffer (byte) 525 K 525 K 525 K MAC address table 8 K 8 K 8 K Power Input 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz Max. power consumption (watt) 155.8 205.7 301.9 Physical Specifications Dimensions (WxDxH)(mm/in.) 267 x 162 x 44 /
10.51 x 6.38 x 1.73 330 x 230 x 44 /
12.99 x 9.06 x 1.73 441 x 270 x 44 /
17.36 x 10.63 x 1.73 Weight (kg/lb.) 1.65/3.64 2.31/5.09 3.57/7.87 Included accessories Power cord, Wall-mount kit, Rack mounting kit Power cord, Rack mounting kit Power cord, Rack mounting kit Environmental Specifications Operating Temperature
-20°C to 50°C
-4°F to 122°F

Humidity
5% to 95%
(non-condensing) Temperature
-20°C to 50°C
-4°F to 122°F

Humidity
5% to 95%
(non-condensing) Temperature
-20°C to 50°C
-4°F to 122°F

Humidity
5% to 95%
(non-condensing) Storage Temperature
-40°C to 70°C
-40°F to 158°F

Humidity
5% to 95%
(non-condensing) Temperature
-40°C to 70°C
-40°F to 158°F

Humidity
5% to 95%
(non-condensing) Temperature
-40°C to 70°C
-40°F to 158°F

Humidity
5% to 95%
(non-condensing) MTBF (hr) 394,567 378,972 347,760 Heat dissipation (BTU/hr) 531.278 701.437 1,029.479 Acoustic noise @ 25°C (dBA) 44 48 48

Overview
Upgrade Network to Multi-Gig MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.

Plug-n-Play, Enjoy High Speed Network Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.

Use your existing cables The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!

Fanless Design For True Silent Operation MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.

Flexible Deployment In Your Room The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.

Overview
Plug and play connectivity Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Whisper quiet operation The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Energy saving The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

Overview
Plug and play connectivity Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Whisper quiet operation The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Energy saving The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

Overview
Plug and play connectivity Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.

Whisper quiet operation The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Energy saving The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

Support PoE+ The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.

Double Your Network Speed with the Zyxel XMG-105HP Unmanaged Switch with 10G Uplink

Features:

Plug-and-play to Upgrade Your Network to WiFi 6/6E

The XMG-100 Series of 2.5G switches includes 5- and 8-port models with or without PoE options. These switches are equipped with multi-gig ports supported up to 2.5G and can easily be connected to the latest 2.5G–capable network devices including WiFi 6/6E APs, 2.5G CPE, 2.5G storage, 4K/8K TV, PC with 2.5G NIC and gaming consoles. This streamlined plug-and-play technology enables high-performance networking and a smoother home entertainment or multi-media creation experience.

Extra 10G Port to Streamline Large File Transfers

The 10-Gigabit SFP+ model increases the network speed for quicker uploads and downloads through a NAS and server, allowing content creators or self-media individuals to work more efficiently. Large files, such as high-resolution videos or images, can be transferred in significantly less time, saving valuable production hours.

Single Cable for Both Power and Data

PoE models come with either 4 or 8 uninterrupted PoE++ (60W) ports and a budget-friendly PoE budget of 70W or 100W – deploying PoE devices like WiFi 6/6E APs, PTZ cameras and IoT devices has never been easier.

2.5G Super-Fast Speeds Without Re-cabling

You can use your current Cat 5e cables to increase your home networking speed from 1Gbps to 2.5Gbps, eliminating the need for any costly re-cabling.

Silent Operation and Flexible Deployment

The XMG-100 Series has a robust and fanless design for stable and silent operation, and is perfect for noise-free environments in the home or studio. Its compact design offers the flexibility to place the switch on a desktop or mount it on a wall.

Accelerate your Networking Experience

The XMG-100 Series offers home or SOHO users who need lag-free and non-intermittent network services for their online gaming or multimedia streaming services, a faster, more secure connection.

Key Specifications:

Port Density

Total port count: 6 (5 x 2.5GBASE-T, 1 x 1G SFP/10G SFP+)
PoE

IEEE 802.3bt (PoE++, 60 W): 4 ports
Total PoE budget: 70 W
Performance

Switching capacity: 45 Gbps
Forwarding rate: 33.5 Mpps
Packet buffer: 1 MB
MAC address table: 4 K
Jumbo frame: 12 K bytes
Power

Input: 100 - 240 V AC, 50/60 Hz
Power supply: External
Power consumption: Max 90 W, Min 1.62 W
Physical Specifications

Dimensions (WxDxH): 160 x 110 x 26 mm / 6.30 x 4.33 x 1.02 in.
Weight: 0.492 kg / 1.09 lb.

Double Your Network Speed with the Zyxel XMG-108HP Unmanaged Switch with 10G Uplink

Features:

Plug-and-play to Upgrade Your Network to WiFi 6/6E

The XMG-100 Series of 2.5G switches includes 5- and 8-port models with or without PoE options. These switches are equipped with multi-gig ports supported up to 2.5G and can easily be connected to the latest 2.5G–capable network devices including WiFi 6/6E APs, 2.5G CPE, 2.5G storage, 4K/8K TV, PC with 2.5G NIC and gaming consoles. This streamlined plug-and-play technology enables high-performance networking and a smoother home entertainment or multi-media creation experience.

Extra 10G Port to Streamline Large File Transfers

The 10-Gigabit SFP+ model increases the network speed for quicker uploads and downloads through a NAS and server, allowing content creators or self-media individuals to work more efficiently. Large files, such as high-resolution videos or images, can be transferred in significantly less time, saving valuable production hours.

Single Cable for Both Power and Data

PoE models come with either 4 or 8 uninterrupted PoE++ (60W) ports and a budget-friendly PoE budget of 70W or 100W – deploying PoE devices like WiFi 6/6E APs, PTZ cameras and IoT devices has never been easier.

2.5G Super-Fast Speeds Without Re-cabling

You can use your current Cat 5e cables to increase your home networking speed from 1Gbps to 2.5Gbps, eliminating the need for any costly re-cabling.

Silent Operation and Flexible Deployment

The XMG-100 Series has a robust and fanless design for stable and silent operation, and is perfect for noise-free environments in the home or studio. Its compact design offers the flexibility to place the switch on a desktop or mount it on a wall.

Accelerate your Networking Experience

The XMG-100 Series offers home or SOHO users who need lag-free and non-intermittent network services for their online gaming or multimedia streaming services, a faster, more secure connection.

Key Specifications:

Port Density

Total port count: 9 (8 x 2.5GBASE-T, 1 x 1G SFP/10G SFP+)
PoE

IEEE 802.3bt (PoE++, 60 W): 8 ports
Total PoE budget: 100 W
Performance

Switching capacity: 60 Gbps
Forwarding rate: 44.6 Mpps
Packet buffer: 1 MB
MAC address table: 4 K
Jumbo frame: 12 K bytes
Power

Input: 100 - 240 V AC, 50/60 Hz
Power supply: External
Power consumption: Max 120 W, Min 2.74 W
Physical Specifications

Dimensions (WxDxH): 240 x 105 x 27mm/9.45 x 4.13 x 1.06 in.
Weight: 0.715 kg / 1.58 lb.

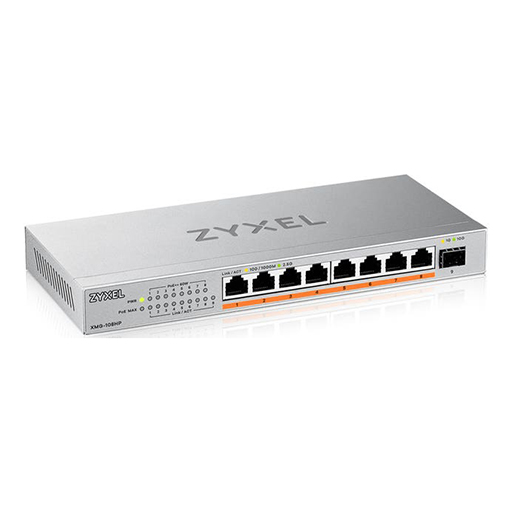

The Zyxel XMG-108 8-Port Unmanaged 2.5GbE Access Switch is designed to upgrade and expand networks and provide a higher speed and better performance. It is ideal for home, SOHO, or small office users who need more bandwidth for their network with demands coming from online gaming activities, multimedia streaming services or faster wireless network connectivity. All ports are equipped with 2.5 Gigabit Ethernet speed, allowing easy network speed upgrade. In addition, the XMG-108 offers an extra SFP+ slot for high-bandwidth network uplink or access to a Network Attached Storage (NAS) device.

Key Features

8 full speed 2.5G Ethernet ports for WiFi 6/6E router or AP connections.
1 10G SFP+ for NAS or Uplink connectivity.
Increase home networking speed up to x2.5 without extra cabling costs.
Plug-and-play, no configuration required.
Silent, stable, and power-efficient operation.
Easy to use and quick to install.
Desktop and wall mount.
Auto-MDI/MDIX in all ports.
Loop detection
Move to blazing-fast Multi-Gig network immediately

The XMG-108 is equipped with Multi-Gig ports, supporting up to 2.5G with auto-negotiation for 3-speed (100M/1G/2.5G). Optimise performance for your network devices including WiFi 6/6E AP, 2.5G CPE, 2.5G NAS/Servers, 4K streaming, desktops with 2.5G NIC, gaming consoles, VR gaming, and more.

Extra 10G connectivity for flexible home or office applications

This switch features one 10-Gigabit SFP+ port for high-bandwidth network uplink or access to a NAS device. It’s perfect for the multimedia design workplace or advanced home networking setup.

Silent Multi-Gig operation

The XMG-108 is built with a fanless and sturdy hardware design to ensure silent and stable operation at all times. It is perfect for noise-free working environments in homes or offices.

Plug-and-play to boost 2.5X network speed

Easily connect the XMG-108 to the latest 2.5G-capable network devices and instantly enjoy high performance networking and smoother home entertainment experience such as Buffer-Free 4K streaming or lag-free LAN party with its simplified plug-and-play technology. In addition, you can use your current CAT5e cables to increase your home networking speed from current 1 Gbps to 2.5 Gbps without additional cabling fees.

*For complete specifications see the documentation tab above.
