Veracity CAMSWITCH Mobile PoE Switches

Low voltage POE Plus switches for 12/24V applications CAMSWITCH Mobile is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source.

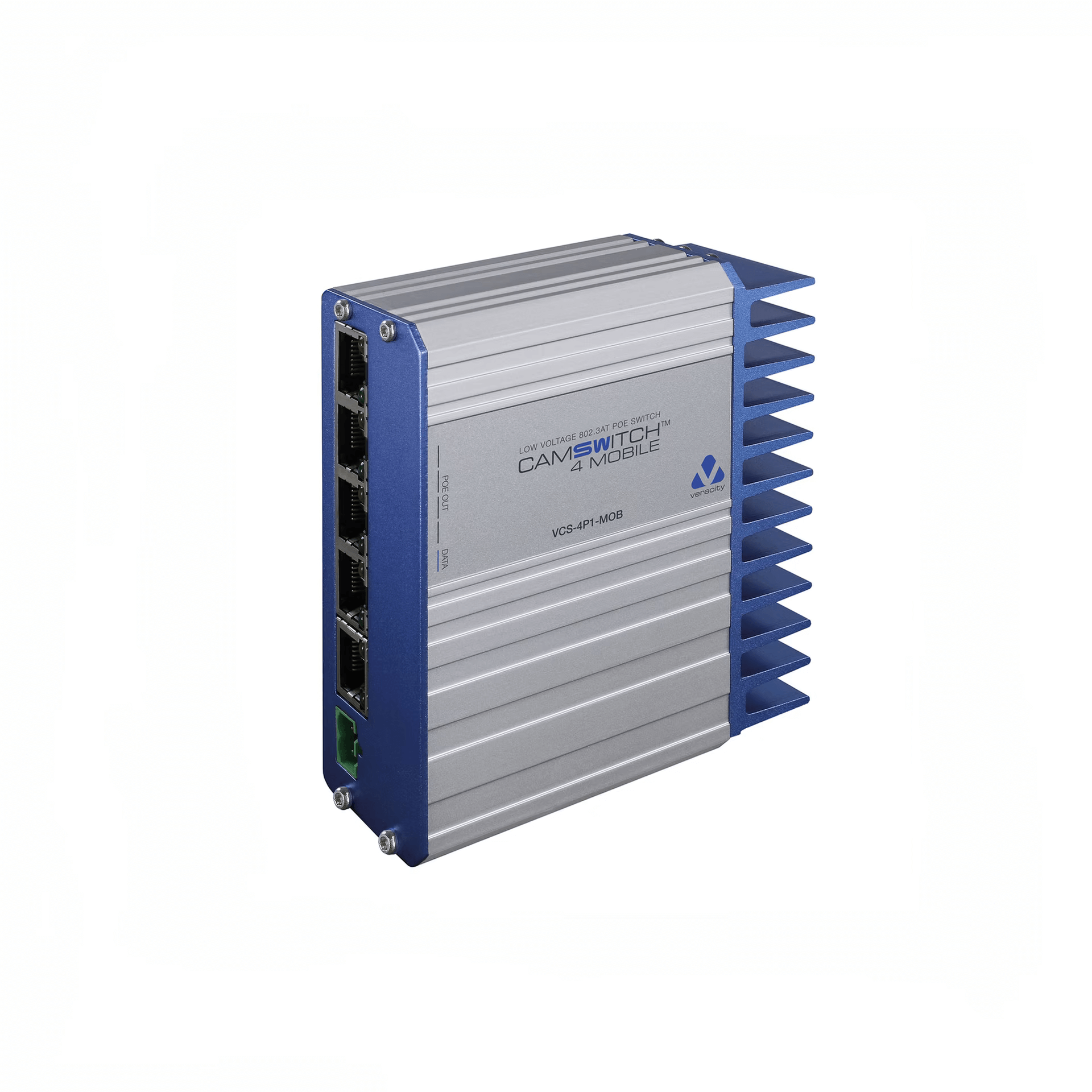

CAMSWITCH 4 Mobile features 4 802.3at POE ports, 1 non-POE port, and a versatile DC power input.

Compact and powerful

CAMSWITCH Mobile delivers up to 80 watts of IEEE802.3af / 802.3at compatible POE power to POE devices from a DC voltage as low as 8 volts, providing continuous operation during engine cranking or low battery scenarios.  Ports may also be used for non-POE equipment such as mobile NVRs.

Installer friendly

CAMSWITCH Mobile's internal 10/100 Ethernet switch is entirely self-configuring to speed, duplex and cable type, and POE is automatically detected and enabled.  No user configuration is required, and optional mounting brackets are included.



Key techinal features:

Network:

5/10 port unmanaged 10/100 switch
Auto-configuring for speed (10BASE-T or 100BASE-TX) and duplex
Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
VCS-8P2-Mob supports VLAN trunking
Power:

Unit power 3W
DC input: 8-40V DC, 2.5-13A
Battery circuit fuse required
POE outputs: IEEE802.3af / IEEE802.3at compatible
Total device power budget up to 80 watts (see manual)
Non-isolated POE, use with IEEE compliant devices only
 Dimensions:

W: 110m / 131mm with side clips
D: 100mm
H: 40mm
Weight 290g (VCS-4P1-Mob) / 350g (VCS-8P2-Mob)
Applications:

Transportation

12 and 24 volt bus, train and car power supplies can all be converted to POE power.

Solar and battery power

CAMSWITCH Mobile is ideal for solar powered wireless systems and temporary installations.

OEM / custom

The versatile CAMSWITCH platform can be customised to your needs.  Enquire with Veracity for more details.

Legacy

Re-use legacy low voltage power supplies.  Contact Veracity for 24V AC applications.

Low voltage POE Plus switches for 12/24V applications CAMSWITCH Mobile is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source.

CAMSWITCH 8 Mobile features 8 802.3at POE ports, 2 non-POE ports, and a versatile DC power input.

Compact and powerful

CAMSWITCH Mobile delivers up to 80 watts of IEEE802.3af / 802.3at compatible POE power to POE devices from a DC voltage as low as 8 volts, providing continuous operation during engine cranking or low battery scenarios.  Ports may also be used for non-POE equipment such as mobile NVRs.

Installer friendly

CAMSWITCH Mobile's internal 10/100 Ethernet switch is entirely self-configuring to speed, duplex and cable type, and POE is automatically detected and enabled.  No user configuration is required, and optional mounting brackets are included.




Key techinal features:

Network:

5/10 port unmanaged 10/100 switch
Auto-configuring for speed (10BASE-T or 100BASE-TX) and duplex
Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
VCS-8P2-Mob supports VLAN trunking
Power:

Unit power 3W
DC input: 8-40V DC, 2.5-13A
Battery circuit fuse required
POE outputs: IEEE802.3af / IEEE802.3at compatible
Total device power budget up to 80 watts (see manual)
Non-isolated POE, use with IEEE compliant devices only
 Dimensions:

W: 110m / 131mm with side clips
D: 100mm
H: 40mm
Weight 290g (VCS-4P1-Mob) / 350g (VCS-8P2-Mob)
Applications:

Transportation

12 and 24 volt bus, train and car power supplies can all be converted to POE power.

Solar and battery power

CAMSWITCH Mobile is ideal for solar powered wireless systems and temporary installations.

OEM / custom

The versatile CAMSWITCH platform can be customised to your needs.  Enquire with Veracity for more details.

Legacy

Re-use legacy low voltage power supplies.  Contact Veracity for 24V AC applications.
