The Ruckus ICX8200-24XP2-E2-G is an enterprise-class multigigabit access-layer switch designed for next-generation campus and branch networks. Built to support Wi-Fi 6/6E deployments, IoT growth and PoE-heavy edge designs, it combines high-speed multigigabit access ports with 25GbE uplinks, delivering a scalable and future-ready foundation for organisations that need performance, power and operational simplicity at the edge.
Key Features of Ruckus ICX8200-24XP2-E2-G
24-port multigigabit PoE++ access-layer switch
8 x 1/2.5/5/10Gbps RJ-45 PoE++ ports
16 x 1/2.5Gbps RJ-45 PoE++ ports
6 x 25GbE SFP28 uplink or stacking ports
Ruckus ICX8200 series chassis
Non-TAA configuration
Optimised for Wireless-First Campus Networks
The ICX8200-24XP2-E2-G is purpose-built for modern wireless-first and IoT-driven environments. Its multigigabit access ports are optimised for Wi-Fi 6/6E access points and other high-performance endpoints, ensuring sufficient bandwidth without requiring immediate recabling.
High-Density Multigigabit PoE++ Access
With 24 PoE++ RJ-45 ports, including support for 1/2.5/5/10Gbps on selected ports, the switch delivers both high bandwidth and high power to edge devices. This simplifies deployment by eliminating the need for separate power infrastructure and supports dense endpoint environments with confidence.
25GbE Uplinks for Scalable Aggregation
Six 25GbE SFP28 ports provide substantial uplink and stacking capacity, offering a cleaner growth path than traditional 10GbE designs. This helps prevent bottlenecks where access switches feed distribution or core layers with sustained east-west and north-south traffic.
Advanced L2/L3 Features and VXLAN Support
As part of the Ruckus ICX8200 family, the switch supports advanced Layer 2 and Layer 3 features, including IPv4 and IPv6 routing, OSPF, VRRP, VRF and policy-based routing. VXLAN support enables modern network segmentation and enhanced data privacy for enterprise campus designs.
Resilient Design with Enterprise Support
The ICX8200-24XP2-E2-G supports hot-swappable power supplies and fans on applicable configurations, enhancing availability in access-layer deployments. It includes three years of remote TAC support and is backed by a limited lifetime warranty, providing long-term value and operational confidence.
Balanced Choice for Scalable Enterprise Access
Offering a practical balance of access-port density, PoE power and 25GbE uplink capacity, the Ruckus ICX8200-24XP2-E2-G is ideal for organisations standardising on Ruckus switching. It supports growth without overbuilding, making it well suited for campus closets, branch aggregation points and high-performance enterprise edge deployments.

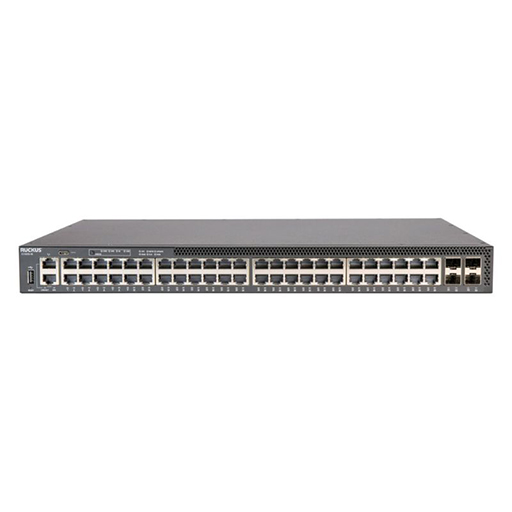

The Ruckus ICX8200-48NP2-E-G is a high-density enterprise access-layer switch designed to consolidate wired connectivity, PoE power delivery and high-speed uplinks in demanding edge environments. Built on the Ruckus ICX8200 platform, it combines multigigabit PoE++ access ports with 25GbE uplinks, making it well suited for campus closets, branch aggregation and high-device-count floors where predictable performance, power efficiency and future-ready bandwidth are essential.
Key Features of Ruckus ICX8200-48NP2-E-G
48-port multigigabit PoE++ access switch
8 x 25G SFP28 uplink or stacking interfaces
8 x 1/2.5/5/10Gbps RJ-45 PoE++ ports
40 x 1/2.5/5Gbps RJ-45 PoE++ ports
Single power supply configuration
Four-fan cooling design
Ruckus ICX8200 switching platform
Non-TAA configuration
High-Density Multigigabit Access
The ICX8200-48NP2-E-G delivers 48 multigigabit PoE++ RJ-45 ports, enabling organisations to connect and power bandwidth-intensive devices such as Wi-Fi access points, IP cameras, phones and IoT endpoints. Support for 1, 2.5, 5 and 10Gbps speeds allows optimal use of existing cabling while scaling performance where required.
25GbE Uplinks for Bottleneck-Free Aggregation
Eight 25GbE SFP28 uplinks provide ample headroom for aggregation or stacking, helping eliminate network bottlenecks as access-layer traffic grows. This uplink capacity supports future expansion and ensures consistent performance for high-density edge deployments.
PoE++ Power for Modern Endpoints
With PoE++ (802.3bt) support, the switch can deliver high power levels directly over Ethernet, reducing reliance on local power adapters and simplifying endpoint placement. This makes it ideal for PoE-heavy environments where power and data need to be delivered efficiently from a single infrastructure layer.
Efficient, Straightforward Deployment
Featuring a single power supply and a four-fan cooling design, the ICX8200-48NP2-E-G is optimised for straightforward enterprise access-layer deployments. Hot-swappable power supply and fans support serviceability while maintaining reliable thermal performance in busy wiring closets.
Designed for Campus and Branch Networks
As part of the Ruckus ICX8200 family, this model is well suited to campus closets, branch aggregation points and high-device-count floors. It offers a balanced mix of port density, PoE capability and uplink speed for organisations standardising on Ruckus switching and planning for long-term network growth.
The Ruckus ICX8200-48NP2-E2-G is a high-performance, enterprise-class access-layer switch purpose-built for next-generation campus, branch and IoT networks. Designed to support Wi-Fi 6/6E/7 deployments and PoE-heavy environments, it combines multigigabit edge connectivity, 25GbE uplinks and built-in resiliency to deliver scalable, future-ready networking without compromising reliability.
Key Features of Ruckus ICX8200-48NP2-E2-G
48 multigigabit RJ-45 PoE++ access ports
8 × 25G SFP28 uplink or stacking ports
Dual hot-swappable power supplies
Four hot-swappable fan modules
Advanced L2/L3 features on the Ruckus ICX8200 platform
Non-TAA configuration for global campus deployments
Built for Next-Generation Campus Networks
The ICX8200 series is designed specifically for wireless-first and IoT-driven campus environments. With support for multigigabit edge speeds, the ICX8200-48NP2-E2-G ensures seamless connectivity for modern endpoints such as Wi-Fi 6/6E/7 access points, IP cameras, phones and smart building devices.
High-Density Multigigabit PoE++ Access
Featuring 48 PoE++ RJ-45 ports supporting 1/2.5/5/10Gbps on selected ports and 1/2.5/5Gbps on the remainder, the switch delivers both high bandwidth and high power. With PoE+ (802.3at) and PoE++ (802.3bt) support, it can power next-generation access points and PoE devices without external injectors.
25GbE Uplinks and Market-Leading Stacking
Up to eight 25GbE SFP28 ports provide exceptional uplink capacity for aggregation or high-speed stacking. This eliminates bottlenecks at the access layer and enables future-proof connectivity to distribution and core layers, while supporting large stacks of up to 12 switches.
Advanced Layer 3 Routing and Network Services
The ICX8200-48NP2-E2-G delivers advanced IPv4 and IPv6 routing capabilities including static routing, RIP, OSPF, VRRP, VRF, GRE, PIM and policy-based routing. VXLAN support enables enhanced segmentation and data privacy for modern campus designs.
High Availability by Design
Redundant, load-sharing hot-swap power supplies and fan modules provide enhanced availability in environments where uptime is critical. This resilience makes the switch well suited for wiring closets, distribution layers and branch deployments with limited maintenance windows.
Enterprise Support and Long-Term Value
Each ICX8200 model includes three years of remote TAC support and is backed by a limited lifetime warranty. Combined with its scalable, “pay-as-you-grow” architecture, the ICX8200-48NP2-E2-G is a strong choice for organisations planning long-term campus network evolution.

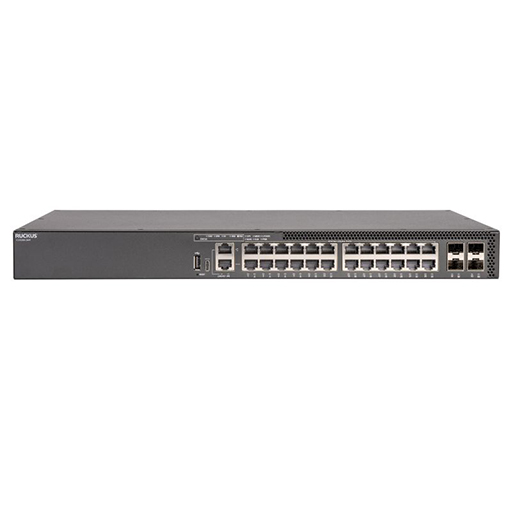

The Ruckus ICX8200-24XP2-E-G is an enterprise-class access-layer switch designed to deliver multigigabit connectivity, high PoE++ power density and fast 25GbE uplinks in compact edge deployments. Built on the Ruckus ICX8200 platform, it is well suited to campus closets and branch environments that need to power and connect modern Wi-Fi access points, cameras and other high-performance endpoints without over-complicating the network design.
Key Features of Ruckus ICX8200-24XP2-E-G
24-port multigigabit PoE++ access switch
8 x 1/2.5/5/10Gbps RJ-45 PoE++ ports
16 x 1/2.5Gbps RJ-45 PoE++ ports
6 x 25GbE SFP28 uplink or stacking ports
Single power supply with hot-swappable design
Dual hot-swappable fan modules
Ruckus ICX8200 enterprise switching platform
Non-TAA configuration
High-Density Multigigabit Access
The ICX8200-24XP2-E-G provides 24 multigigabit PoE++ RJ-45 ports, enabling organisations to connect and power bandwidth-intensive devices such as Wi-Fi 6/6E access points, IP cameras and IoT equipment. Support for 1, 2.5, 5 and 10Gbps speeds allows efficient use of existing cabling while scaling performance at the edge.
25GbE Uplinks for Future-Ready Growth
Six 25GbE SFP28 ports deliver high-capacity uplink or stacking connectivity, providing a clear upgrade path beyond traditional 10GbE designs. This uplink bandwidth helps prevent congestion as access-layer traffic increases and simplifies aggregation into distribution or core networks.
PoE++ Power for Modern Endpoints
With a total PoE budget of up to 880W when paired with an RPS24 power supply, the switch supports PoE++ (802.3bt) for powering next-generation access points and devices directly over Ethernet. This reduces the need for external power adapters and streamlines endpoint deployment.
Reliable, Serviceable Hardware Design
The ICX8200-24XP2-E-G includes a hot-swappable power supply and dual hot-swappable fans, supporting straightforward maintenance and minimising downtime. This makes it suitable for enterprise access-layer environments where reliability and ease of service are important.
Enterprise Support and Long-Term Value
Each switch includes three years of remote technical support and is backed by a limited lifetime warranty. Combined with the scalable ICX8200 architecture, this provides long-term value for organisations standardising on Ruckus switching across campus and branch networks.

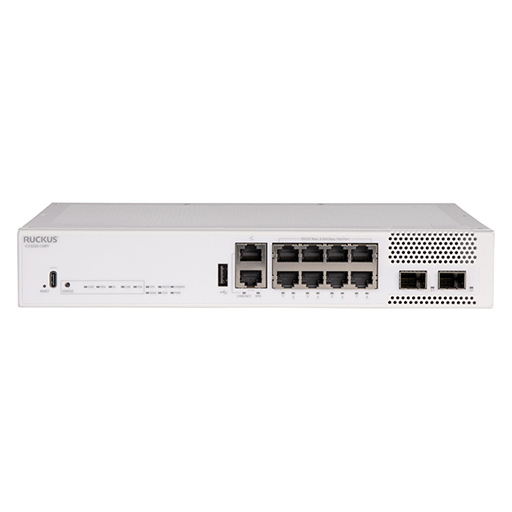

The Ruckus ICX8200-C08PF switch offers compact enterprise-class performance with advanced security and power features, tailored for modern wired access networks. Designed to support Wi-Fi 6/6E deployments and IoT expansion, this switch combines high PoE budget with simplified management, making it an ideal choice for growing edge environments.
Key Features
8 x 10/100/1000 Mbps PoE+ ports with 2 x 1/10 GbE uplink ports
Up to 240W of PoE budget to support wireless APs, cameras, and IoT devices
Enterprise-class security with advanced policy capabilities
Stacking support for simplified scalability and management, with an aggregate bandwidth of 240 Gbps
Enhanced visibility and control with RUCKUS Cloud and SmartZone options
Redundant power supply options for added resiliency
Powerful Compact Design
The ICX8200-C08PF delivers robust performance in a compact form factor, ideal for space-constrained edge and access deployments. Its fanless design ensures silent operation, making it suitable for classrooms, retail, and branch offices.
Future-Ready Connectivity
Equipped with multi-gigabit uplinks and high PoE capacity, this switch is prepared to handle next-generation access points and a growing range of smart devices. The flexible stacking architecture allows seamless expansion as network needs evolve.
Advanced Security and Control
With comprehensive security features including dynamic segmentation and advanced policy enforcement, the ICX8200-C08PF safeguards network traffic and simplifies access control for users and devices.
Flexible Management Options
Manage the switch through RUCKUS Cloud, on-premises SmartZone, or stand-alone modes, enabling tailored operations to match diverse deployment needs. Simplified automation and monitoring reduce operational complexity and maintenance overhead.
The Ruckus ICX8200-24 is a versatile, high-performance 24-port 1 Gigabit Ethernet switch designed to meet the evolving needs of enterprise and campus edge networks. Combining strong performance, advanced Layer 3 capabilities, and robust scalability, it offers a reliable foundation for modern connectivity. Its compact design and extensive feature set make it an ideal solution for organizations seeking dependable, flexible, and future-ready network infrastructure.
Key Features:
24x 1G RJ-45 ports for user and device access, plus 4x 1/10/25G SFP28 uplink/stacking ports for flexible expansion and high-speed backbone connections
High non-blocking switching capacity and fast packet forwarding to support demanding workloads
Stacking support for up to 12 units with 1.2 Tbps aggregate bandwidth, enabling simplified scaling and high resiliency
Long-distance stacking capability up to 10 km, ideal for distributed campus environments
VXLAN support for advanced network segmentation and secure overlays
Comprehensive Layer 3 routing features, including IPv4 and IPv6 support
Flexible management options suitable for diverse deployment strategies
Performance & Connectivity
The ICX8200-24 delivers a strong non-blocking switching capacity with high throughput, ensuring consistent performance in high-density environments. With 24 ports of 1G connectivity and 4 SFP28 uplinks supporting up to 25G speeds, this switch allows seamless integration into core, distribution, or access layers, addressing growing data demands and providing reliable, high-speed connections throughout the network.
Scalability & Resiliency
Designed to evolve with your network, the ICX8200-24 supports stacking of up to 12 switches, achieving a total aggregate bandwidth of 1.2 Tbps. This provides simplified management and unified control while maintaining high performance and redundancy. Long-distance stacking up to 10 km enables flexible deployment options across multiple locations or campus buildings without sacrificing centralized control.
Advanced Routing & Segmentation
Equipped with robust Layer 3 routing capabilities, the ICX8200-24 enables dynamic traffic management and optimized routing paths. VXLAN support allows for efficient network segmentation, providing secure, isolated environments for different user groups or applications. These features make it well-suited for advanced enterprise networks requiring fine-grained control and scalability without added complexity.
Management
The ICX8200-24 supports a wide range of management approaches to fit diverse operational needs. It can be managed through on-premises systems, controller-based solutions, or cloud-based platforms, providing flexibility for IT teams to choose the most suitable model. This ensures streamlined configuration, monitoring, and maintenance, enhancing operational efficiency and supporting future network growth.

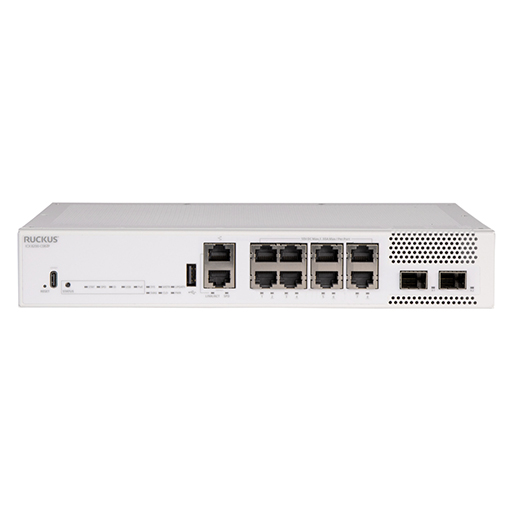

Ruckus ICX8200-C08ZP 8 Port Multigig PoE Switch Overview
The Ruckus ICX8200-C08ZP is a compact, high-performance multigigabit PoE++ edge switch designed for demanding enterprise and IoT environments. With 8 multigigabit RJ-45 PoE++ ports, two 25 GbE SFP28 uplinks/stacking ports, and a fanless design, it delivers robust connectivity, future-ready performance, and flexible deployment in a sleek form factor.
Key Features:
8x RJ-45 multigigabit (100M/1G/2.5G/5G/10G) PoE++ ports (up to 90 W per port)
2x 25 GbE SFP28 uplinks/stacking—high speed campus backbone
240 W PoE budget with single fixed PSU
Fanless, desktop-class build for quiet operation
Layer 2/Layer 3 routing—including static, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
VXLAN support enabling advanced segmentation
Stackable up to 12 switches (via 25 GbE links), with an aggregate bandwidth of 600 Gbps
Rich management: CLI, SNMP v1/2c/3, SSH, RUCKUS SmartZone, Cloud, Unleashed
Enterprise-class resiliency
Compact & Fanless Design
The desktop-sized chassis (27 x 10.6 x 10.2 cm, ~3.23 kg) fits into constrained spaces while operating silently—ideal for offices, classrooms, or labs. The fanless cooling relies on convection airflow, reducing noise and maintenance needs.
High-Power PoE++ Capability
All eight multigigabit ports support 802.3bt PoE++, delivering up to 90 W per port and a total budget of 240 W enabling power-hungry devices like Wi-Fi 6/6E/7 APs, PTZ cameras, and IoT hubs without external injectors.
Multigigabit Edge + 25 GbE Backbone
Mixing 2.5/5/10G on access ports and 25 GbE on uplinks/stacking ensures seamless aggregation and scalability. Stack up to 12 units with up to 600 Gbps stacking bandwidth, ideal for robust campus fabric.
Advanced Networking Features
The switch includes full L3 routing (IPv4/IPv6), OSPF, VRRP, PBR, GRE, PIM, and VXLAN for micro-segmentation—making it suitable for SDN-style deployments.
Flexible Management & Security
Manageable via CLI, SNMP, SSH or through RUCKUS SmartZone, Cloud, or controllerless Unleashed platforms. Supports flow control, MAC filtering, VLANs, sFlow, MRP, RSTP/STP, and DDos protection for secure and scalable networks.
Enterprise-Grade Warranty & Support
Ships with a limited lifetime hardware warranty and 3 years of remote TAC support—reflecting confident deployment in enterprise environments.

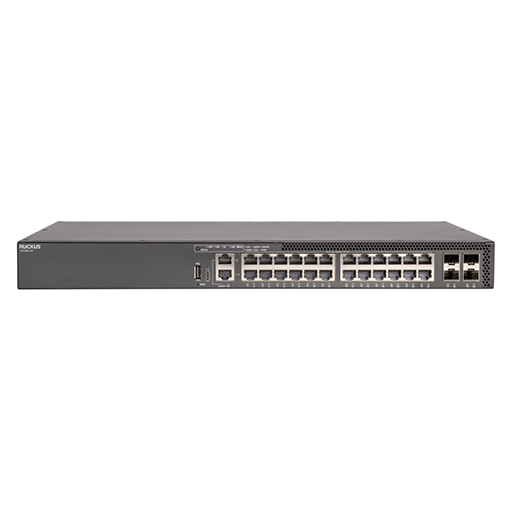

The Ruckus ICX8200-24P is a stackable enterprise-class access switch featuring 24 1G PoE+ ports and 4 high-speed uplink or stacking ports. Built for modern campus and IoT deployments, it delivers exceptional performance, advanced scalability, and reliable power delivery in a compact design.
Key Features
24 x 10/100/1000 Mbps RJ-45 PoE+ ports with a total PoE budget of 370 W
4 x 1/10/25 GbE SFP28 ports for flexible uplinks or stacking
High switching capacity and strong forwarding performance
Supports stacking up to 12 units with 1.2 Tbps aggregate bandwidth
Advanced Layer 2 and Layer 3 capabilities for diverse network architectures
VXLAN support for network segmentation and enhanced security
Hybrid port mode for Software-Defined Networking integration
Robust PoE+ power for wireless access points, cameras, and phones
Energy-efficient design with advanced monitoring and automation options
Comprehensive security including ACLs, segmentation, and policy controls
Performance & Scalability
With strong switching capacity and high forwarding rates, the ICX8200-24P supports heavy traffic demands effortlessly. Its stacking capability allows up to 12 units with an impressive 1.2 Tbps aggregate bandwidth, providing a flexible and expandable backbone for growing campus and enterprise networks.
Power & PoE Capabilities
All 24 ports offer PoE+ support, backed by a 370 W total budget to power access points, surveillance cameras, and VoIP devices. This ensures efficient deployment with simplified power and cabling requirements.
Management & Security
The ICX8200-24P supports a wide range of management options through controller-based and cloud-based solutions. Security features include ACLs, VLAN segmentation, VXLAN, and robust authentication capabilities to enforce consistent policies and protect critical assets.
Physical & Environmental
With its compact 1U rack-mount form factor, integrated power supply, multiple console and management ports, the switch fits easily into diverse enterprise environments. Quiet operation and compliance with modern environmental standards ensure reliable performance in various deployment scenarios.
Support & Warranty
Protected by comprehensive technical support and a strong warranty, the ICX8200-24P offers long-term reliability and operational peace of mind.
The Ruckus ICX8200-48 is a high-performance 48-port 1 Gigabit Ethernet switch engineered for scalable, reliable campus and data center networking. Designed to support growing enterprise demands, it features advanced stacking, Power over Ethernet capabilities, and comprehensive Layer 2 and Layer 3 functionalities.
Key Features
48x 1G Ethernet RJ-45 ports with PoE/PoE+ support
4x 10/25 GbE SFP28 uplink/stacking ports
Stackable up to 12 units with 8x 25 GbE ports per stack
Up to 1480W PoE power budget with dual hot-swappable power supplies
Advanced Layer 2 and Layer 3 switching features including OSPF, VRRP, and VXLAN
Comprehensive security with role-based access and MACsec support
Flexible management via SmartZone, RUCKUS Cloud, or CLI
Performance and Scalability
Delivers up to 296 Gbps switching capacity and supports high forwarding rates, enabling robust handling of enterprise traffic loads with scalable stacking options.
Power and Redundancy
Features dual hot-swappable power supplies and fans to ensure continuous operation and high availability in critical network environments.
Advanced Networking Features
Supports comprehensive Layer 2 and Layer 3 protocols, including VXLAN, MPLS, and enhanced multicast capabilities, suited for complex network topologies.
Management and Security
Offers multiple management interfaces and enhanced security protocols such as MACsec encryption and role-based access control for secure and efficient network administration.

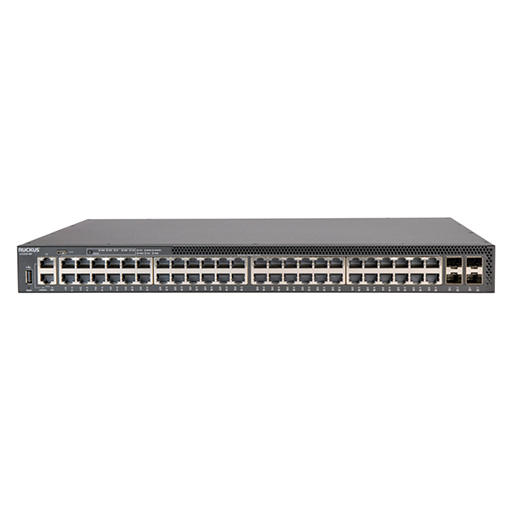

The Ruckus ICX8200-48P is a high-performance, stackable edge access switch offering 48 x 1 GbE PoE+ ports and 4x 25 GbE uplink/stacking ports, delivering enterprise-grade resiliency, scalability, and manageability for modern campus deployments.
Key Features:
48x 10/100/1000 Mbps RJ-45 PoE+ ports with generous PoE budget
4x 1/10/25 GbE uplink/stacking ports supporting high switching capacity and forwarding performance
Stackable up to 12 units with high aggregated stacking bandwidth
Comprehensive L2/L3 feature set for flexible network designs
Multiple management options including console, out-of-band, and USB access
Support for various centralized and cloud-based management platforms
Performance & Capacity
The ICX8200-48P delivers strong switching capacity and forwarding rates, making it ideal for high-density deployments and backbone aggregation.
Scalability & Stacking
Designed to scale with growing network demands, it supports stacking up to 12 switches with resilient bandwidth and flexible deployment options.
Advanced Networking Features
Equipped with advanced Layer 3 protocols and segmentation capabilities, the switch supports versatile network architectures and traffic control.
Power over Ethernet Capabilities
Provides ample PoE+ power across all ports to support a wide range of connected devices such as access points, cameras, and IP phones.
Management Options
Flexible management through console, web interface, and integration with on-premises or cloud-based platforms for simplified operations.
Reliability & Support
Built for high reliability and designed to support long-term, demanding deployments with robust hardware and software stability.

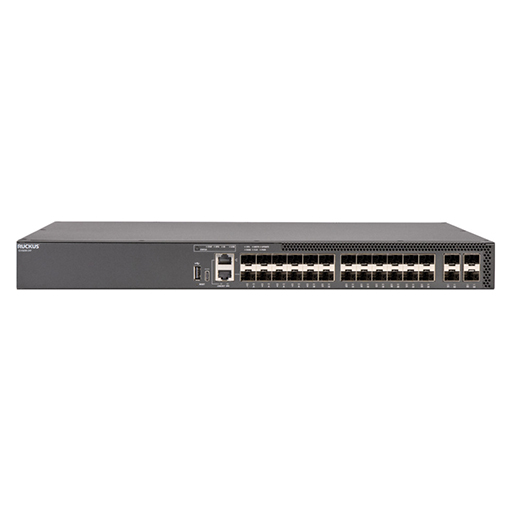

The Ruckus ICX8200-24F is an enterprise-class stackable access switch designed to meet the demands of next-generation wireless-first and IoT campus networks. With 24 Gigabit Ethernet SFP ports and 4 25 GbE SFP28 ports for uplinks or stacking, it offers a maximum switching capacity of 248 Gbps and aggregate stack bandwidth of up to 1.2 Tbps. This switch is optimized for performance, scalability, and security, making it an ideal choice for modern network infrastructures.
Key Features
24 x 1G SFP fiber ports for flexible connectivity
4 x 25 GbE SFP28 ports for high-speed uplinks and stacking
Maximum switching capacity of 248 Gbps
Aggregate stack bandwidth of up to 1.2 Tbps
Supports stacking of up to 12 switches
Advanced Layer 3 routing capabilities including Static, RIP, OSPF, and more
VXLAN support for network segmentation and data privacy
Comprehensive management options: SmartZone, RUCKUS Cloud, Unleashed, and Analytics
Enhanced availability with redundant, load-sharing power supplies and fans on specific models
3 years remote TAC support included with every ICX 8200 model
Limited lifetime warranty
Performance
With a maximum switching capacity of 248 Gbps and an aggregate stack bandwidth of up to 1.2 Tbps, the ICX8200-24F ensures high data throughput for critical applications. Its stacking capability allows for seamless scalability, accommodating growing network demands.
Connectivity
The switch features 24 x 1G SFP fiber ports and 4 x 25 GbE SFP28 ports, providing flexible connectivity options for various network architectures. This versatility supports both high-density deployments and future-proofing for emerging technologies.
Security
Advanced security features such as VXLAN support, Layer 3 routing protocols, and comprehensive management options ensure robust data protection and network segmentation, safeguarding sensitive information across the network.
Management
The ICX8200-24F offers multiple management platforms, including SmartZone, RUCKUS Cloud, Unleashed, and Analytics, providing flexibility to manage the network according to organizational preferences and requirements.
Warranty & Support
Each ICX8200 model comes with 3 years of remote TAC support and a limited lifetime warranty, offering peace of mind and ensuring long-term reliability and support for your network infrastructure.

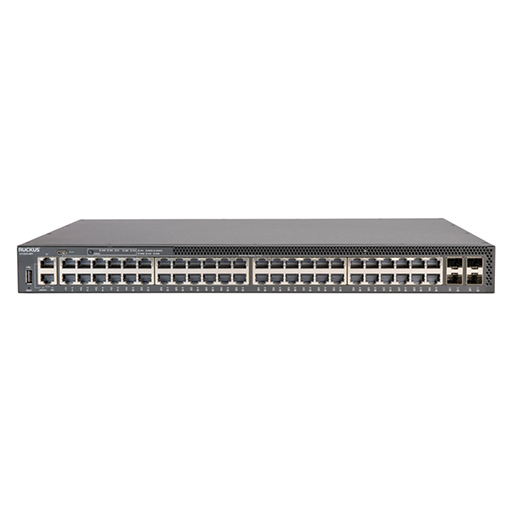

The Ruckus ICX8200-48FP is a powerful 48 port 1 GbE PoE+ access switch designed for modern campus networks, offering high-performance stacking, robust PoE support, and enterprise-grade Layer-2/3 features in a compact 1U form factor.
Key Features:
48x 10/100/1000 Mbps RJ-45 PoE+ ports (802.3at), total PoE budget up to 740 W
4x 1/10/25 GbE SFP28 uplink/stacking ports for high-speed scalability
Stackable up to 12 units with non-blocking shared-memory architecture
Layer-2/3 routing (IPv4/IPv6, static, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR)
VXLAN support for advanced segmentation and secure overlays
Multiple management modes: SmartZone, RUCKUS Cloud, Unleashed, CLI, and SNMP
4 GB DRAM and 16 MB SPI + 8 GB eMMC flash for robust operations
Fan-cooled, front-to-back airflow; dual-redundant PSU support on higher models
Includes 3-year remote TAC support and limited lifetime warranty
Regulatory compliance: CE, FCC Class-A, RoHS, WEEE, UL/CSA, EN/IEC?62368
Performance & Stacking
Non-blocking shared memory architecture delivers up to 296Gb/s switching capacity, while 4x 25 GbE SFP28 ports support stacking uplinks—enabling up to 12-switch stacks with 1.2 Tb/s aggregate bandwidth, ideal for high-density Wi-Fi 6/6E/7 environments.
PoE Power Delivery
Each of the 48 RJ-45 ports delivers PoE+ (30W), with a total budget of 740 W on the -48FP model. Power-hungry devices like APs, cameras, and phones are fully supported without external midspans.
Advanced Layer 2/3 & Security
Supports enterprise routing protocols (OSPF, RIP, VRRP, PBR) and VXLAN for network segmentation. Ideal for campus and IoT deployments demanding isolation, QoS, and resilient routing.
Management & Support
Manageable via CLI, RUCKUS SmartZone controller, RUCKUS Cloud or Unleashed for flexibility across on-prem, cloud, or controller-less environments. Includes 3 year TAC and limited lifetime warranty.
Hardware & Reliability
Compact 1U chassis with front-to-back forced airflow, 4?GB DDR4 RAM, dual-boot SPI and eMMC flash, and support for dual PSUs in higher-end variants. Operates between 0-45°C and up to 10,000ft altitude.
The Ruckus ICX8200-24ZP is a 24-port multigigabit PoE++ switch designed for high-density access environments. It features 2.5 GbE RJ-45 on every port, a 740 W PoE budget, and four 25 GbE SFP28 uplink/stacking ports, providing powerful connectivity and robust layer-2/3 intelligence.
Key Features:
24x 100/1000/2500 Mbps RJ-45 PoE++ ports, 90 W per port, 740 W total budget
4x 1/10/25 GbE SFP28 ports for uplink or stacking
Non-blocking 320 Gb/s switching capacity, up to 12-unit stack (1.2 Tb/s)
Layer-3 routing including STATIC, RIP, and OSPF
VXLAN, VRF, IPv6 support
Stacking, sFlow, OpenFlow hybrid mode, and energy-efficient Ethernet (EEE)
Fan-cooled design with front-to-back airflow
Performance & Connectivity
Delivers full-speed performance across 24 multigigabit PoE++ ports with four 25 GbE uplink/stacking ports, enabling high-capacity connectivity and scalability.
PoE and Power Management
Supports up to 90 W per port with a total budget of 740 W, suitable for powering high-demand devices such as advanced wireless access points and IoT endpoints.
Layer-2/3 Intelligence
Provides advanced routing protocols and network virtualization technologies for versatile, efficient traffic management and network segmentation.
Stacking & Scalability
Allows stacking of up to 12 units, providing a scalable, high-bandwidth solution to support growing network demands.
Environmental & Physical
Compact 1U form factor with fan-cooled, front-to-back airflow design for quiet, efficient operation in typical enterprise environments.
Management & Support
Compatible with multiple management platforms for flexible network control and includes enterprise-grade support features.
The Ruckus ICX8200-48PF2-E delivers robust enterprise-class switching with advanced security, high PoE power, and simplified management, making it a strong foundation for modern network demands. This model supports demanding devices while ensuring scalability and seamless integration with existing network infrastructure.
Key Features
48 x 1 GbE RJ-45 PoE+ ports with up to 740W power budget
6 x 10 GbE SFP+ uplink ports for high-speed connectivity
Dual redundant hot-swappable power supplies and fans
Advanced Layer 3 routing capabilities with static, RIP, OSPF, and BGP support
Comprehensive security features including MACsec, dynamic ARP inspection, and DHCP snooping
Easy management through RUCKUS SmartZone, standalone CLI, or Web UI
Support for VXLAN and VRF for network segmentation and flexibility
Powerful Performance
Designed for mid-size enterprise edge deployments, the ICX8200-48PF2-E provides consistent wired connectivity to support high-density Wi-Fi, surveillance cameras, and IoT devices. It ensures high throughput and low latency for mission-critical applications.
Flexible Uplink Options
Equipped with 6 x 10 GbE SFP+ uplink ports, this switch supports diverse network topologies and allows seamless scaling of network bandwidth as business needs grow.
Enhanced Security and Resilience
The switch integrates robust security functions such as MACsec encryption, port security, and dynamic ARP inspection to safeguard against network threats. Dual hot-swappable PSUs and fans ensure uninterrupted operation and high availability.
Simplified Management and Automation
With support for advanced automation protocols and centralized management via RUCKUS SmartZone and Cloud, network administration becomes efficient and streamlined, reducing operational overhead.
The Ruckus ICX8200-24FX delivers enterprise-class performance in a compact, stackable 1U form factor. Featuring 16 SFP+ 10 Gb/s downlink ports and 8 SFP28 ports for uplinks or stacking, it offers flexible deployment options at the access or distribution layer. Purpose-built for high-density environments such as Wi-Fi 6/6E/7 campus networks and IoT-ready infrastructures, it combines advanced Layer 2/3 features, VXLAN support, and redundant design elements for high availability.
Key Features:
16x 1/10 GbE SFP+ fiber downlink ports
8x 1/10/25 GbE SFP28 ports for uplinks or stacking
Non-blocking shared-memory architecture with high switching capacity and stacking bandwidth
Advanced Layer-3 routing (IPv4/IPv6, static, RIP; optional OSPF, VRRP, VRF, GRE, PIM, PBR)
VXLAN support for network segmentation and privacy
Stack up to 12 switches with 8 SFP28 ports per unit
Redundant design: load-sharing power supplies (optional), front-to-back cooling, low noise operation
Performance & Scalability
The 1U chassis offers high switching throughput with non-blocking shared-memory design, delivering line rate performance. With high stacking bandwidth, the ICX8200-24FX supports seamless growth in dense environments.
Flexibility & Connectivity
Equipped with a mix of SFP+ and SFP28 ports, this model caters to fiber-heavy deployments. Uplink flexibility ensures compatibility with 10G or 25G networks, simplifying integration with core and aggregation layers.
Layer 3 & Network Segmentation
Supports full Layer 3 routing for both IPv4 and IPv6. With licensing, advanced routing protocols and VXLAN can be enabled for enhanced network segmentation.
High Availability & Management
Optional redundant power supplies and front-to-back cooling maintain uptime. Management options include console, out-of-band Ethernet, CLI, SNMP, and integration with RUCKUS management platforms.
Physical & Environmental Specs
The switch measures approximately 1.7" x 17.3" x 11" and weighs around 3.8 kg. It supports quiet operation and stacking up to 12 units.
The RUCKUS ICX 8200-48F is a powerful 48-port multigigabit fiber switch designed to deliver exceptional performance and flexibility for advanced campus and enterprise edge deployments. Engineered for high-bandwidth applications and dense connectivity environments, this model ensures your network stays robust and adaptable well into the future.
Key Features
48 x 1/10 GbE SFP+ fiber ports for versatile high-speed connectivity
Up to 8 x 25 GbE uplink ports supporting high-capacity aggregation
Stacking support for up to 12 switches to simplify network scaling
Advanced Layer 3 features and policy-based automation capabilities
Comprehensive security with MACsec 256-bit encryption
Future-ready design optimized for campus core and edge applications
High-Density Fiber Connectivity
The ICX 8200-48F delivers 48 SFP+ fiber ports, providing reliable high-speed connections to support demanding data center, aggregation, or campus backbone requirements.
Robust Uplink and Stacking Flexibility
With up to 8 dedicated 25 GbE uplink ports and stacking support for up to 12 switches, the ICX 8200-48F ensures seamless scalability and simplified architecture for expanding networks.
Advanced Security and Automation
Incorporating MACsec encryption and dynamic policy-based automation, this model helps secure critical data and enables efficient network management, reducing operational complexities.
Optimized for Future Growth
Built to accommodate future advancements in campus networking and high-density fiber deployments, the ICX 8200-48F is designed to support evolving business needs without costly upgrades.
