| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEICX8200-48PF |
| Manufacturer No: | ICX8200-48PF |
| Delivery: | In Stock: 1-2 Days |
 |

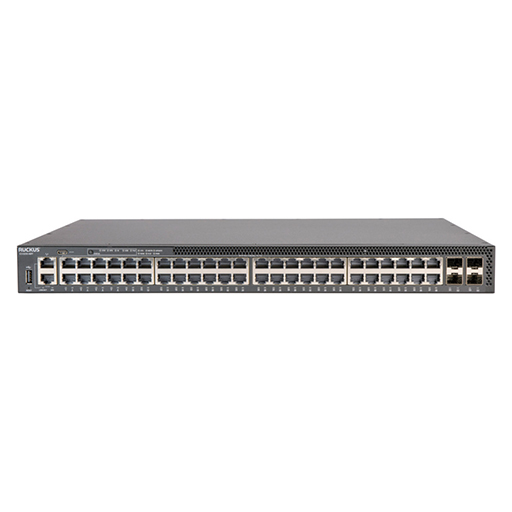

The Ruckus ICX8200-48FP is a powerful 48 port 1 GbE PoE+ access switch designed for modern campus networks, offering high-performance stacking, robust PoE support, and enterprise-grade Layer-2/3 features in a compact 1U form factor.
Non-blocking shared memory architecture delivers up to 296Gb/s switching capacity, while 4x 25 GbE SFP28 ports support stacking uplinks—enabling up to 12-switch stacks with 1.2 Tb/s aggregate bandwidth, ideal for high-density Wi-Fi 6/6E/7 environments.
Each of the 48 RJ-45 ports delivers PoE+ (30W), with a total budget of 740 W on the -48FP model. Power-hungry devices like APs, cameras, and phones are fully supported without external midspans.
Supports enterprise routing protocols (OSPF, RIP, VRRP, PBR) and VXLAN for network segmentation. Ideal for campus and IoT deployments demanding isolation, QoS, and resilient routing.
Manageable via CLI, RUCKUS SmartZone controller, RUCKUS Cloud or Unleashed for flexibility across on-prem, cloud, or controller-less environments. Includes 3 year TAC and limited lifetime warranty.

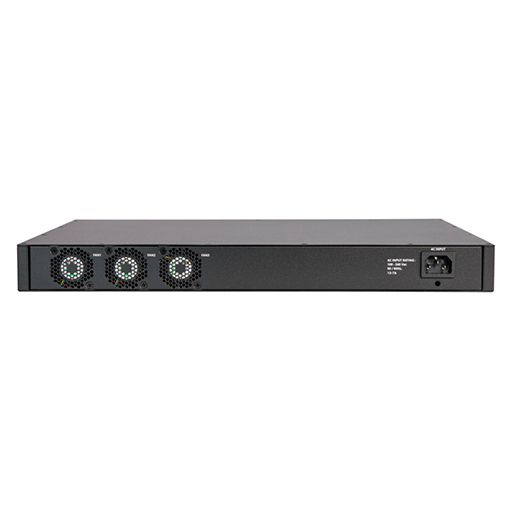

Compact 1U chassis with front-to-back forced airflow, 4?GB DDR4 RAM, dual-boot SPI and eMMC flash, and support for dual PSUs in higher-end variants. Operates between 0-45°C and up to 10,000ft altitude.
The Ruckus ICX8200-48FP is a powerful 48 port 1 GbE PoE+ access switch designed for modern campus networks, offering high-performance stacking, robust PoE support, and enterprise-grade Layer-2/3 features in a compact 1U form factor.
Non-blocking shared memory architecture delivers up to 296Gb/s switching capacity, while 4x 25 GbE SFP28 ports support stacking uplinks—enabling up to 12-switch stacks with 1.2 Tb/s aggregate bandwidth, ideal for high-density Wi-Fi 6/6E/7 environments.
Each of the 48 RJ-45 ports delivers PoE+ (30W), with a total budget of 740 W on the -48FP model. Power-hungry devices like APs, cameras, and phones are fully supported without external midspans.
Supports enterprise routing protocols (OSPF, RIP, VRRP, PBR) and VXLAN for network segmentation. Ideal for campus and IoT deployments demanding isolation, QoS, and resilient routing.
Manageable via CLI, RUCKUS SmartZone controller, RUCKUS Cloud or Unleashed for flexibility across on-prem, cloud, or controller-less environments. Includes 3 year TAC and limited lifetime warranty.
Compact 1U chassis with front-to-back forced airflow, 4?GB DDR4 RAM, dual-boot SPI and eMMC flash, and support for dual PSUs in higher-end variants. Operates between 0-45°C and up to 10,000ft altitude.
