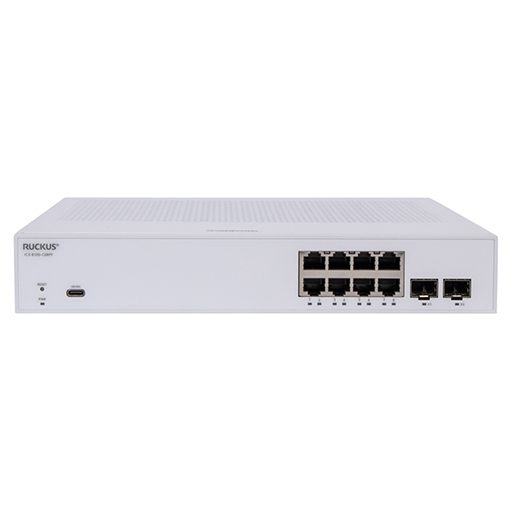

The ICX8100-C08PF, a part of the RUCKUS ICX 8100 series, is an 8-port 1G compact access switch engineered for small-scale deployments that require high performance and PoE+ power delivery in a space-saving, fanless design. Ideal for quiet or space-constrained environments, it provides enterprise-class features without unnecessary complexity or cost.
Key Features
8 x 1 GbE ports with PoE+ support (up to 30W per port)
Up to 2 x 10GbE SFP+ uplink ports for high-speed connections
Compact, fanless design for silent operation
Flexible management options: cloud-based, on-premises, CLI, or web-based
PoE power budget up to 240W with integrated power supply
Enterprise-grade Layer 2 capabilities with robust security
Compact and Silent for Flexible Deployments
The ICX8100-C08PF is designed to fit tight spaces while delivering powerful networking capabilities. Its fanless design ensures completely silent operation, making it perfect for office desktops, classrooms, hospitality suites, or retail areas where noise must be minimized.
Flexible Management to Suit Any Team
Offering a wide range of management options, the ICX8100-C08PF supports cloud-based AI-driven management, on-premises controllers, CLI, and a web-based standalone interface. This flexibility allows IT teams of any size to deploy, monitor, and adjust their networks easily and confidently, even with limited technical resources.
High-Performance Uplinks and Efficient Edge Connectivity
Equipped with up to two 10GbE SFP+ uplink ports, the ICX8100-C08PF provides high-speed links to aggregation or core switches, supporting smooth data flow and future scalability. The switch’s compact size and uplink versatility make it ideal for distributed edge deployments and converged networks.
Model Variants and Scalability
The ICX 8100 series offers diverse models to address varying deployment needs. The ICX8100-C08PF focuses on delivering enterprise-grade features in a compact, fanless, PoE+-enabled form factor. It is especially suitable for locations requiring fewer ports but strong power delivery and reliability.
Performance and Switching Strength
The ICX8100-C08PF delivers up to 64 Gbps switching capacity and a forwarding rate up to 48 Mpps. Supporting 32K MAC addresses, 4,095 VLANs, and jumbo frames up to 9,216 bytes, it ensures smooth performance even in smaller yet demanding edge environments.
Advanced Security and Network Protection
The ICX8100-C08PF includes comprehensive security features such as 802.1X port-based authentication, MAC authentication, RADIUS/TACACS+, DHCP snooping, dynamic ARP inspection, and DoS protection. Encrypted management protocols like SSHv2 and SCP further strengthen the device against security threats.
Layer 2 Access Excellence
Designed as a Layer 2 access switch, the ICX8100-C08PF supports robust features including spanning tree protocols (RSTP, MSTP), VLANs, IGMP and MLD snooping for multicast traffic optimization, link aggregation, loop detection, and private VLANs. Its streamlined Layer 2 focus makes it an ideal edge or access switch where simplicity and reliability are essential.
Value-Driven Power and Simplicity
With an optimized PoE power budget of up to 240W, the ICX8100-C08PF efficiently powers connected devices without extra infrastructure investments. Its enterprise-grade performance at an affordable price offers organizations a dependable solution that balances functionality, simplicity, and cost-efficiency.
Standards Compliance
The ICX8100-C08PF complies with key industry standards, including IEEE 802.3af/at (PoE/PoE+), 802.1Q (VLAN), and 802.3az (Energy Efficient Ethernet). This ensures seamless integration into existing networks and long-term support for evolving infrastructure needs.

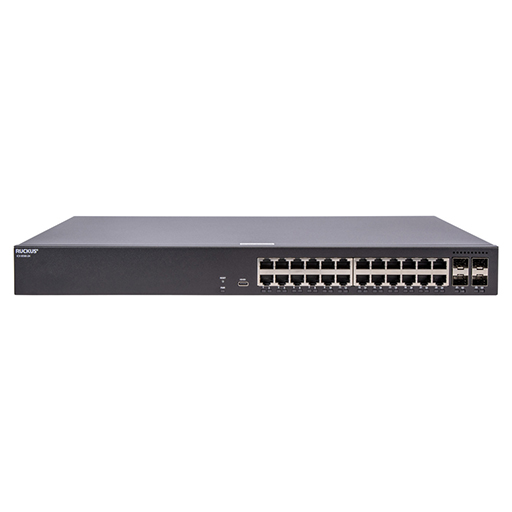

The ICX8100-24, a part of the RUCKUS ICX 8100 series, delivers enterprise-grade switching capabilities tailored for demanding network environments. Designed for simplicity, silent operation, and versatile deployment, it empowers organizations to build high-performance access networks without unnecessary complexity.
Key Features
Flexible AI-driven, converged wired and wireless management options
Fanless, silent models ideal for noise-sensitive areas
Comprehensive PoE+ support up to 30W per port with generous power budgets
High scalability and strong price-to-performance ratio
Rich security features including 802.1X, DHCP snooping, and ARP inspection
Built for cost-conscious organizations without sacrificing performance or security
Enterprise-Class Connectivity for Any Environment
The RUCKUS ICX 8100 is designed to deliver enterprise-class connectivity to businesses of any size without additional complexity or cost. Whether managing a hotel, multi-dwelling residential property, or an educational institution, this family of switches provides the reliability and scalability needed to support modern connectivity demands—without paying for features you don’t need.
Flexible Management Options
With flexible management options, including on-premises controllers, AI-driven cloud-based management, command line interface (CLI), and a web-based standalone interface, IT teams of all sizes can easily configure, monitor, and optimize their network. Whether requiring hands-on control or simple plug-and-play operation, the ICX 8100 adapts seamlessly to different operational needs, making it an ideal solution for organizations with limited IT resources.
Port and Uplink Options
The ICX 8100 series offers configurations ranging from 8 to 48 Gigabit Ethernet ports and up to four 10GbE SFP+ uplinks, providing ample bandwidth for aggregation and high-speed backbone connectivity. This versatility supports a broad range of deployment scenarios, from small edge installations to large-scale access networks.
Model Variants
Available variants include non-PoE fanless designs (ICX 8100-24/48), PoE+ models supporting various power budgets (ICX 8100-24P/48P/48PF), and compact fanless PoE+ models (ICX 8100-C08PF/C16PF), enabling deployment in both space-constrained and high-demand environments.
Performance and Capacity
Engineered to handle intensive traffic, the ICX 8100 offers up to 176 Gbps switching capacity and a forwarding rate up to 132 Mpps. It supports up to 32K MAC addresses and 4,095 VLANs, with jumbo frames up to 9,216 bytes, ensuring seamless support for data-intensive applications and high client density.
Advanced Security
The ICX 8100 integrates advanced security capabilities, including 802.1X authentication, MAC-based authentication, RADIUS/TACACS+ integration, DHCP snooping, ARP inspection, and encrypted management protocols such as SSHv2 and SCP. These features strengthen network protection while simplifying compliance in regulated environments.
Layer 2 Networking Capabilities
Supporting comprehensive Layer 2 features, the ICX 8100 includes advanced spanning tree protocols (MST, RSTP), VLAN segmentation, IGMP/MLD snooping for multicast optimization, link aggregation, loop detection, and private VLANs. It focuses on robust Layer 2 access without Layer 3 routing, maintaining simplicity and cost efficiency.
Reliable, Cost-Conscious Design
Designed for organizations seeking enterprise-level performance at an affordable price, the ICX 8100 delivers a balanced approach without unnecessary expenses. Its feature set ensures strong performance, security, and scalability, making it especially suitable for hospitality, education, and multi-dwelling residential deployments.
Standards Compliance
Engineered for broad interoperability, the ICX 8100 complies with IEEE standards including 802.3af/at (PoE), 802.1Q (VLAN), 802.3az (Energy Efficient Ethernet), and more, ensuring seamless integration into modern network infrastructures.

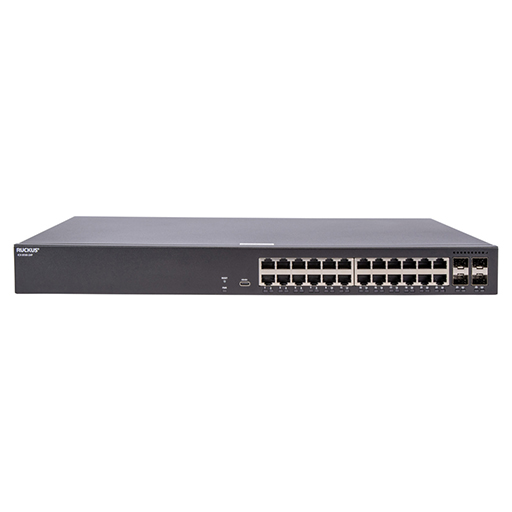

The ICX8100-24P, a part of the RUCKUS ICX 8100 series, is a 24-port 1G access switch designed to deliver high-performance connectivity with PoE+ support for modern enterprise networks. Purpose-built for demanding access deployments, it offers silent operation, robust security, and versatile management without added complexity or cost.
Key Features
24 x 1 GbE ports with PoE+ support (up to 30W per port)
Up to 4 x 10GbE SFP+ uplink ports for high-speed backbone connectivity
Flexible management options: cloud-based, on-premises, or standalone
Generous PoE budget up to 740W with integrated power supply
Silent, fanless operation for noise-sensitive environments (model dependent)
Advanced Layer 2 features with comprehensive security capabilities
Enterprise-Class Connectivity with PoE+ Flexibility
The ICX8100-24P is designed to power modern access networks, supporting high-density Wi-Fi, IP phones, and surveillance systems with robust PoE+ capabilities. Ideal for hospitality, education, and multi-dwelling residential environments, it combines enterprise-class reliability with simplified deployment and management.
Flexible and Scalable Management
Offering multiple management options, including AI-driven cloud-based, on-premises controllers, CLI, and a web-based standalone interface, the ICX8100-24P adapts to varying IT skill sets and operational requirements. This flexibility makes it a strong choice for organizations with lean IT teams looking for simplicity without sacrificing control.
Port and Uplink Versatility
Equipped with 24 Gigabit Ethernet ports and up to four 10GbE SFP+ uplinks, the ICX8100-24P ensures high-speed connections to aggregation or core layers. With robust PoE+ support (up to 30W per port), it can power access points, cameras, and other devices without the need for separate power cabling, reducing deployment complexity.
Model Variants and Deployment Options
The ICX 8100 series includes multiple variants to support diverse needs. The ICX8100-24P offers a generous PoE budget of up to 740W, allowing it to power a full suite of edge devices. Other family options include non-PoE and compact models, enabling precise alignment with environmental and space constraints.
Performance and Switching Capabilities
Delivering up to 176 Gbps switching capacity and a forwarding rate up to 132 Mpps, the ICX8100-24P handles heavy data traffic with ease. Support for 32K MAC addresses, 4,095 VLANs, and jumbo frames up to 9,216 bytes ensures strong performance for high-density and data-intensive applications.
Robust Security
Equipped with a comprehensive suite of security features, the ICX8100-24P supports 802.1X authentication, MAC authentication, RADIUS/TACACS+, DHCP snooping, ARP inspection, and DoS attack prevention. Encrypted management protocols such as SSHv2 and SCP provide additional protection for sensitive configurations and data flows.
Layer 2 Access Features
The ICX8100-24P focuses on powerful Layer 2 capabilities, supporting spanning tree protocols (MSTP, RSTP), VLAN segmentation, IGMP and MLD snooping for multicast efficiency, link aggregation, loop detection, and private VLANs. Its focus on Layer 2 access simplifies design and improves operational efficiency, especially in large edge networks.
Cost-Effective Power and Performance
Built to meet the needs of cost-conscious organizations, the ICX8100-24P balances advanced performance and enterprise-grade power delivery at an accessible price point. It offers an optimized feature set designed to avoid unnecessary costs, supporting organizations as they scale their networks while keeping budgets under control.
Standards Compliance
Compliant with essential industry standards, including IEEE 802.3af/at (PoE/PoE+), 802.1Q (VLAN), and 802.3az (Energy Efficient Ethernet), the ICX8100-24P ensures seamless integration with existing infrastructure and supports long-term interoperability across diverse deployments.

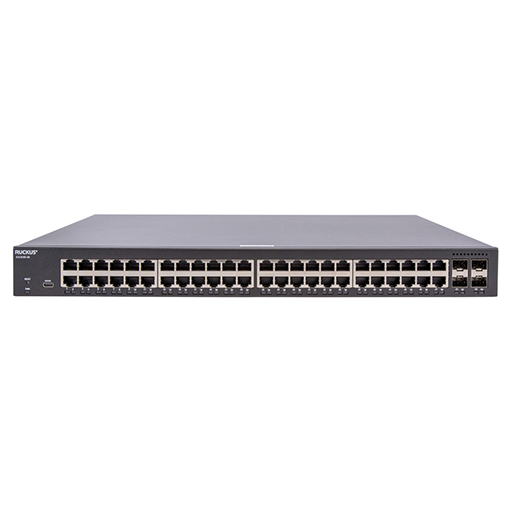

The ICX8100-48, a part of the RUCKUS ICX 8100 series, is a 48-port 1G enterprise-class access switch designed to deliver high-performance connectivity with simplicity and flexibility. This model is purpose-built to support demanding wired access deployments, providing silent operation and a range of advanced features without unnecessary complexity or cost.
Key Features
48 x 1 GbE ports with up to 4 x 10GbE SFP+ uplink ports
Flexible AI-driven, cloud-based or on-premises management options
Fanless, silent design ideal for noise-sensitive environments
High scalability and optimized price-to-performance ratio
Robust security features including 802.1X, MAC authentication, and dynamic ARP inspection
Enterprise-class performance with simplified deployment and management
Enterprise-Ready Design
The ICX8100-48 is designed to provide enterprise-class connectivity for organizations of all sizes. From hospitality and education to multi-dwelling units, this model delivers the reliability and scalability necessary to meet modern connectivity needs—without paying for features that aren’t required.
Flexible Management Choices
Offering unparalleled flexibility, the ICX8100-48 supports on-premises controllers, AI-driven cloud-based management, CLI, and an intuitive web-based interface. This adaptability enables IT teams to select the management method that aligns with their operational preferences and staffing resources.
Port and Uplink Flexibility
Equipped with 48 fixed 1 GbE access ports and up to four 10GbE SFP+ uplink ports, the ICX8100-48 delivers high-bandwidth connectivity to aggregation or core switches. This combination supports growth and evolving traffic requirements while preserving investment protection.
Model Variants and Deployment Options
The ICX 8100 family includes a broad range of models to suit various deployment needs. Variants include non-PoE fanless designs like the ICX8100-48, PoE+ models supporting up to 740W power budgets (ICX8100-48P/48PF), and compact fanless PoE+ models for space-constrained environments. Each model supports quiet operation, making them ideal for office spaces and classrooms.
Performance and Switching Capabilities
The ICX8100-48 offers a switching capacity of up to 176 Gbps and a forwarding rate of up to 132 Mpps. With support for 32K MAC addresses, 4,095 VLANs, and jumbo frames up to 9,216 bytes, it is capable of handling dense client environments and high-throughput applications without bottlenecks.
Advanced Security
Security features include 802.1X port-based authentication, MAC-based authentication, dynamic ARP inspection, DHCP snooping, and support for RADIUS and TACACS+ servers. Encrypted management protocols like SSHv2 and SCP ensure secure device access and configuration, protecting critical infrastructure from threats.
Layer 2 Network Features
The ICX8100-48 supports robust Layer 2 features such as advanced spanning tree protocols (RSTP, MSTP), VLAN segmentation, IGMP and MLD snooping for multicast optimization, link aggregation (LACP), loop detection, and private VLANs. It is focused exclusively on Layer 2 access switching without Layer 3 routing, simplifying deployment and reducing operational costs.
Cost-Effective and Future-Proof
Targeted at organizations seeking a balance between advanced performance and operational simplicity, the ICX8100-48 provides enterprise-class features at an affordable price point. It is designed to accommodate future growth and evolving network demands without overcomplicating network design or exceeding budgets.
Standards Compliance
Fully compliant with key industry standards, including IEEE 802.3af/at (PoE for other variants), 802.1Q (VLAN), 802.3az (Energy Efficient Ethernet), and more. This ensures seamless integration with existing network infrastructure and supports long-term interoperability and efficiency.

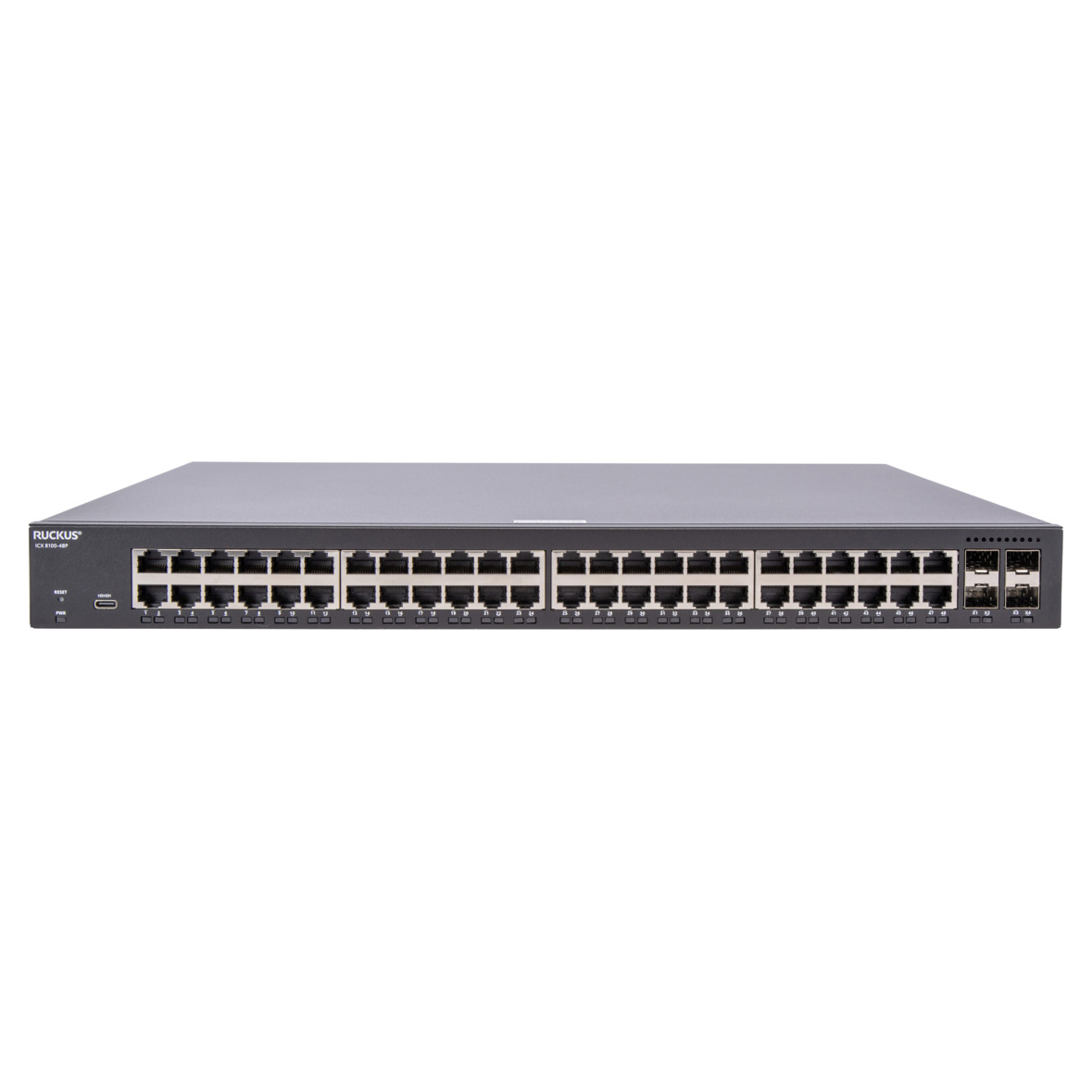

The ICX8100-48P, a part of the RUCKUS ICX 8100 series, is a 48-port 1G access switch designed to provide high-density connectivity and robust PoE+ power delivery in modern enterprise environments. Combining advanced Layer 2 features with flexible management and strong security, it delivers performance and simplicity without added cost or complexity.
Key Features
48 x 1 GbE ports with PoE+ support (up to 30W per port)
Up to 4 x 10GbE SFP+ uplink ports for high-speed backbone connections
Flexible management: cloud-based, on-premises, or standalone
PoE power budget up to 740W with integrated power supply
Advanced Layer 2 access features with robust security
Optimized for high-density Wi-Fi, surveillance, and IP telephony deployments
Enterprise-Class PoE+ Connectivity
The ICX8100-48P is engineered for environments that demand both high port density and PoE+ power delivery. Supporting up to 30W per port and a total budget of up to 740W, this switch can power a wide range of devices, including wireless access points, IP cameras, and VoIP phones, reducing cabling complexity and infrastructure costs.
Flexible Management Options
The ICX8100-48P supports a versatile set of management methods, including AI-driven cloud-based solutions, on-premises controllers, CLI, and an intuitive web-based interface. This flexibility enables organizations to select the approach that aligns with their operational preferences and IT resources, making it ideal for both small teams and larger enterprises.
High-Speed Uplink and Scalability
Equipped with up to four 10GbE SFP+ uplink ports, the ICX8100-48P offers robust uplink capacity to aggregation or core switches, supporting bandwidth-intensive applications and future expansion. This uplink flexibility ensures smooth performance even as network demands grow.
Model Variants and Deployment Adaptability
The ICX 8100 family offers a range of models designed to meet varied deployment scenarios. The ICX8100-48P provides the ideal balance of port density and PoE+ power, while other models include non-PoE options and compact, fanless designs for quieter or space-constrained environments.
Performance and Switching Capabilities
Delivering a switching capacity of up to 176 Gbps and forwarding rates up to 132 Mpps, the ICX8100-48P is designed to handle demanding edge workloads. With support for 32K MAC addresses, 4,095 VLANs, and jumbo frames up to 9,216 bytes, it ensures efficient handling of large volumes of data and high-density user environments.
Comprehensive Security Suite
The ICX8100-48P includes extensive security features such as 802.1X port-based authentication, MAC authentication, RADIUS/TACACS+, DHCP snooping, dynamic ARP inspection, and DoS protection. Encrypted management protocols like SSHv2 and SCP provide an additional layer of security for device configurations and operations.
Advanced Layer 2 Access Capabilities
With support for spanning tree protocols (RSTP, MSTP), VLAN segmentation, IGMP and MLD snooping, link aggregation, loop detection, and private VLANs, the ICX8100-48P excels as a powerful Layer 2 access switch. It is optimized for simplified design and efficient performance without Layer 3 routing, making it ideal for dedicated access deployments.
Cost-Effective Power and Performance
The ICX8100-48P delivers enterprise-level functionality at a competitive price point. Designed for organizations needing extensive device connectivity and power without overspending, it supports reliable, scalable growth in networks serving hospitality, education, and high-density office environments.
Standards Compliance
Fully compliant with critical industry standards, including IEEE 802.3af/at (PoE/PoE+), 802.1Q (VLAN), and 802.3az (Energy Efficient Ethernet). This ensures easy integration into existing infrastructures and supports future-proof deployment strategies across diverse environments.
