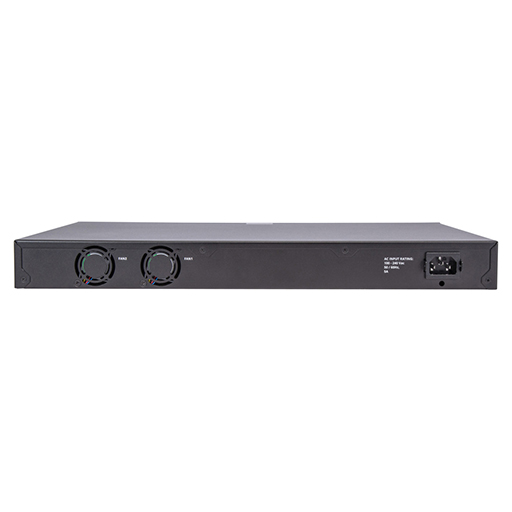

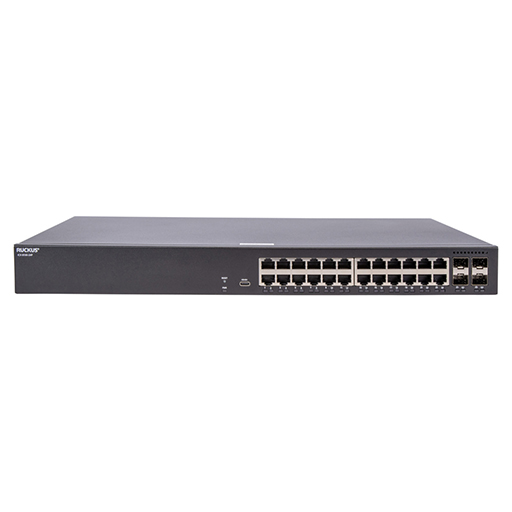

The ICX8100-24P, a part of the RUCKUS ICX 8100 series, is a 24-port 1G access switch designed to deliver high-performance connectivity with PoE+ support for modern enterprise networks. Purpose-built for demanding access deployments, it offers silent operation, robust security, and versatile management without added complexity or cost.
The ICX8100-24P is designed to power modern access networks, supporting high-density Wi-Fi, IP phones, and surveillance systems with robust PoE+ capabilities. Ideal for hospitality, education, and multi-dwelling residential environments, it combines enterprise-class reliability with simplified deployment and management.
Offering multiple management options, including AI-driven cloud-based, on-premises controllers, CLI, and a web-based standalone interface, the ICX8100-24P adapts to varying IT skill sets and operational requirements. This flexibility makes it a strong choice for organizations with lean IT teams looking for simplicity without sacrificing control.
Equipped with 24 Gigabit Ethernet ports and up to four 10GbE SFP+ uplinks, the ICX8100-24P ensures high-speed connections to aggregation or core layers. With robust PoE+ support (up to 30W per port), it can power access points, cameras, and other devices without the need for separate power cabling, reducing deployment complexity.
The ICX 8100 series includes multiple variants to support diverse needs. The ICX8100-24P offers a generous PoE budget of up to 740W, allowing it to power a full suite of edge devices. Other family options include non-PoE and compact models, enabling precise alignment with environmental and space constraints.
Delivering up to 176 Gbps switching capacity and a forwarding rate up to 132 Mpps, the ICX8100-24P handles heavy data traffic with ease. Support for 32K MAC addresses, 4,095 VLANs, and jumbo frames up to 9,216 bytes ensures strong performance for high-density and data-intensive applications.
Equipped with a comprehensive suite of security features, the ICX8100-24P supports 802.1X authentication, MAC authentication, RADIUS/TACACS+, DHCP snooping, ARP inspection, and DoS attack prevention. Encrypted management protocols such as SSHv2 and SCP provide additional protection for sensitive configurations and data flows.
The ICX8100-24P focuses on powerful Layer 2 capabilities, supporting spanning tree protocols (MSTP, RSTP), VLAN segmentation, IGMP and MLD snooping for multicast efficiency, link aggregation, loop detection, and private VLANs. Its focus on Layer 2 access simplifies design and improves operational efficiency, especially in large edge networks.
Built to meet the needs of cost-conscious organizations, the ICX8100-24P balances advanced performance and enterprise-grade power delivery at an accessible price point. It offers an optimized feature set designed to avoid unnecessary costs, supporting organizations as they scale their networks while keeping budgets under control.
Compliant with essential industry standards, including IEEE 802.3af/at (PoE/PoE+), 802.1Q (VLAN), and 802.3az (Energy Efficient Ethernet), the ICX8100-24P ensures seamless integration with existing infrastructure and supports long-term interoperability across diverse deployments.
The ICX8100-24P, a part of the RUCKUS ICX 8100 series, is a 24-port 1G access switch designed to deliver high-performance connectivity with PoE+ support for modern enterprise networks. Purpose-built for demanding access deployments, it offers silent operation, robust security, and versatile management without added complexity or cost.
The ICX8100-24P is designed to power modern access networks, supporting high-density Wi-Fi, IP phones, and surveillance systems with robust PoE+ capabilities. Ideal for hospitality, education, and multi-dwelling residential environments, it combines enterprise-class reliability with simplified deployment and management.
Offering multiple management options, including AI-driven cloud-based, on-premises controllers, CLI, and a web-based standalone interface, the ICX8100-24P adapts to varying IT skill sets and operational requirements. This flexibility makes it a strong choice for organizations with lean IT teams looking for simplicity without sacrificing control.
Equipped with 24 Gigabit Ethernet ports and up to four 10GbE SFP+ uplinks, the ICX8100-24P ensures high-speed connections to aggregation or core layers. With robust PoE+ support (up to 30W per port), it can power access points, cameras, and other devices without the need for separate power cabling, reducing deployment complexity.
The ICX 8100 series includes multiple variants to support diverse needs. The ICX8100-24P offers a generous PoE budget of up to 740W, allowing it to power a full suite of edge devices. Other family options include non-PoE and compact models, enabling precise alignment with environmental and space constraints.
Delivering up to 176 Gbps switching capacity and a forwarding rate up to 132 Mpps, the ICX8100-24P handles heavy data traffic with ease. Support for 32K MAC addresses, 4,095 VLANs, and jumbo frames up to 9,216 bytes ensures strong performance for high-density and data-intensive applications.
Equipped with a comprehensive suite of security features, the ICX8100-24P supports 802.1X authentication, MAC authentication, RADIUS/TACACS+, DHCP snooping, ARP inspection, and DoS attack prevention. Encrypted management protocols such as SSHv2 and SCP provide additional protection for sensitive configurations and data flows.
The ICX8100-24P focuses on powerful Layer 2 capabilities, supporting spanning tree protocols (MSTP, RSTP), VLAN segmentation, IGMP and MLD snooping for multicast efficiency, link aggregation, loop detection, and private VLANs. Its focus on Layer 2 access simplifies design and improves operational efficiency, especially in large edge networks.
Built to meet the needs of cost-conscious organizations, the ICX8100-24P balances advanced performance and enterprise-grade power delivery at an accessible price point. It offers an optimized feature set designed to avoid unnecessary costs, supporting organizations as they scale their networks while keeping budgets under control.
Compliant with essential industry standards, including IEEE 802.3af/at (PoE/PoE+), 802.1Q (VLAN), and 802.3az (Energy Efficient Ethernet), the ICX8100-24P ensures seamless integration with existing infrastructure and supports long-term interoperability across diverse deployments.
