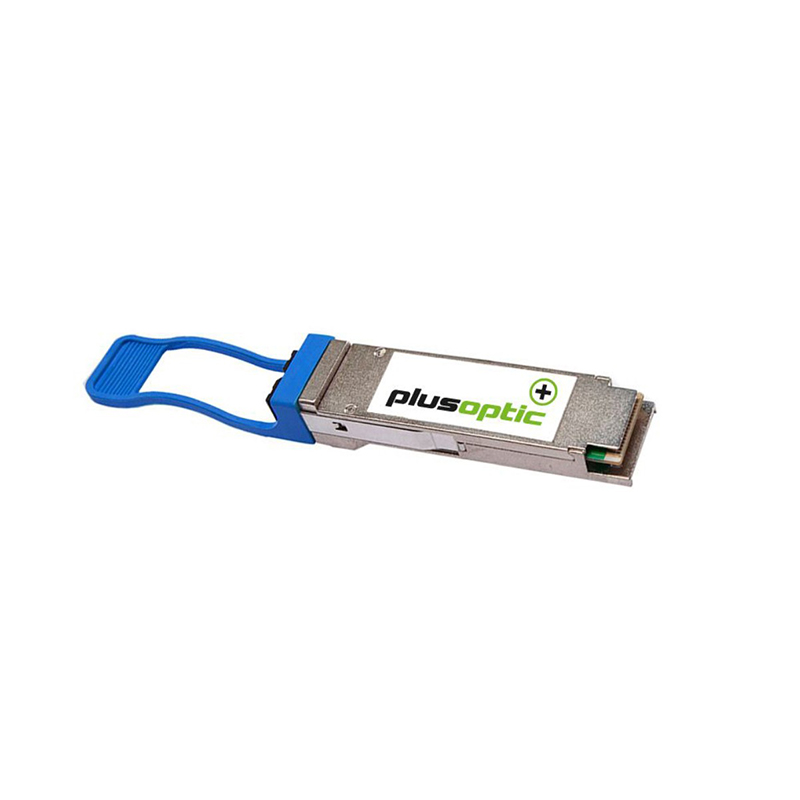

The PlusOptic QSFP-40G-LR4-CIS provides high-speed 40Gb Ethernet connectivity over single-mode fibre networks. Featuring a duplex LC connector and QSFP+ form factor, it supports long-distance fibre links of up to 10 kilometres, making it suitable for connecting compatible Cisco switches, routers, and data centre equipment across extended network routes.
Key Features of PlusOptic QSFP-40G-LR4-CIS
Supports 40Gb Ethernet connectivity.
Fully compliant with Cisco QSFP-40G-LR4-S, QSFP-40GE-LR4.
Operates over single-mode fibre (SMF).
Supports transmission distances up to 10 kilometres.
LC optical connector.
Uses four optical lanes with CWDM wavelength technology.
Long-Distance 40Gb Connectivity
Supporting fibre connections of up to 10 kilometres, this QSFP+ transceiver provides reliable communication between network devices located across data centres, campuses, and extended fibre routes.
High-Bandwidth Network Performance
Delivering 40Gb Ethernet speeds, this optical module supports demanding applications including switch uplinks, core networking, and high-volume data transfers between compatible equipment.
The PlusOptic QSFP-40G-SR4-CIS transceiver provides high-speed 40Gb Ethernet connectivity across multimode fibre networks. Featuring an MTP/MPO connector and QSFP+ form factor, it supports short-range optical links of up to 150 metres, making it suitable for connecting compatible Cisco switches, servers, and storage systems within data centres and high-performance network environments.
Key Features of PlusOptic QSFP-40G-SR4-CIS
Supports 40Gb Ethernet connectivity.
Operates over multimode fibre (MMF).
Supports transmission distances up to 150 metres.
MTP/MPO-12 optical connector.
850nm VCSEL optical technology.
Supports Digital Optical Monitoring (DOM).
High-Speed 40Gb Ethernet
Providing fast network communication, this QSFP+ transceiver supports 40Gb Ethernet links for applications requiring high bandwidth between compatible switches, servers, and storage equipment.
Short-Range Multimode Connectivity
Supporting multimode fibre distances of up to 150 metres, this module is suitable for data centre connections, switch-to-switch links, and other short-distance optical network applications.
The PlusOptic QSFP4x10-PLR4-CIS transceiver provides flexible 40Gb Ethernet connectivity with support for four separate 10Gb optical channels over single-mode fibre. Featuring an MTP/MPO interface and QSFP+ form factor, it supports long-distance links of up to 10 kilometres, making it suitable for connecting compatible Cisco switches, routers, and network equipment across extended fibre connections.
Key Features of PlusOptic QSFP4x10-PLR4-CIS
Supports 40Gb Ethernet connectivity through 4 x 10Gb optical lanes.
Operates over single-mode fibre (SMF).
Supports transmission distances up to 10 kilometres.
Supports 4x10G breakout applications.
1310nm wavelength operation.
Flexible 40G to 4x10G Connectivity
Supporting four independent 10Gb optical channels, this QSFP+ transceiver allows compatible network ports to connect with multiple 10Gb interfaces through suitable MTP/MPO breakout cabling.
Long-Distance Single-Mode Fibre Links
With support for distances of up to 10 kilometres over single-mode fibre, this module provides reliable communication between network locations that require extended fibre reach.
*Images used for illustrative purposes only; product may differ in appearance

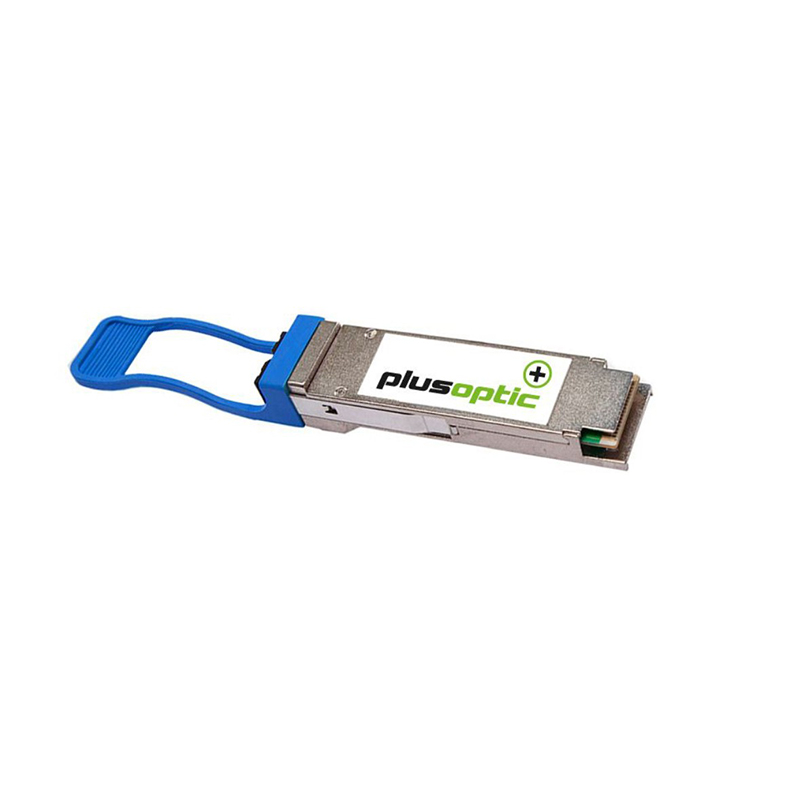

The PlusOptic QSFP4x10-SR4-CIS transceiver provides high-speed fibre connectivity with support for four independent 10Gb optical channels from a single 40Gb QSFP+ interface. Featuring an MTP/MPO connector and multimode fibre support, it enables connections of up to 400 metres, making it suitable for data centres, switch uplinks, and high-bandwidth network links using compatible Cisco equipment.
Key Features of PlusOptic QSFP4x10-SR4-CIS
Supports 40Gb Ethernet connectivity through 4 x 10Gb optical lanes.
Operates over multimode fibre (MMF).
Supports transmission distances up to 400 metres.
MTP/MPO-12 optical connector.
850nm VCSEL optical technology.
Supports 4x10G breakout connectivity.
Supports Digital Optical Monitoring (DOM).
Flexible 40G to 4x10G Networking
Allowing a single 40Gb QSFP+ port to connect with four separate 10Gb interfaces, this transceiver supports flexible network configurations using compatible MTP/MPO breakout cabling.
High-Speed Multimode Fibre Links
Supporting multimode fibre connections of up to 400 metres, this module provides fast optical communication for data centres, server environments, and short-range network connections.
*Images used for illustrative purposes only; product may differ in appearance
The PlusOptic QSFP-40G-LR4-HP HP Compatible QSFP+ 40G SMF 10KM LC transceiver provides high-speed 40Gb Ethernet connectivity over single-mode fibre networks. Featuring a duplex LC connector and QSFP+ form factor, it supports long-distance optical links of up to 10 kilometres, making it suitable for connecting compatible HP networking equipment across data centres, campuses, and extended fibre routes.
Key Features of PlusOptic QSFP-40G-LR4-HP
Supports 40Gb Ethernet connectivity.
HP compatible (JH232A).
Operates over single-mode fibre (SMF).
Supports transmission distances up to 10 kilometres.
LC optical connector.
Supports Digital Optical Monitoring (DOM).
Long-Distance Fibre Communication
Supporting single-mode fibre connections of up to 10 kilometres, this transceiver provides high-speed communication between network devices located across data centres, campuses, and remote fibre locations.
High-Speed 40Gb Ethernet
Delivering 40Gb Ethernet performance, this QSFP+ module supports bandwidth-intensive applications including switch uplinks, core networking, and data centre interconnections.

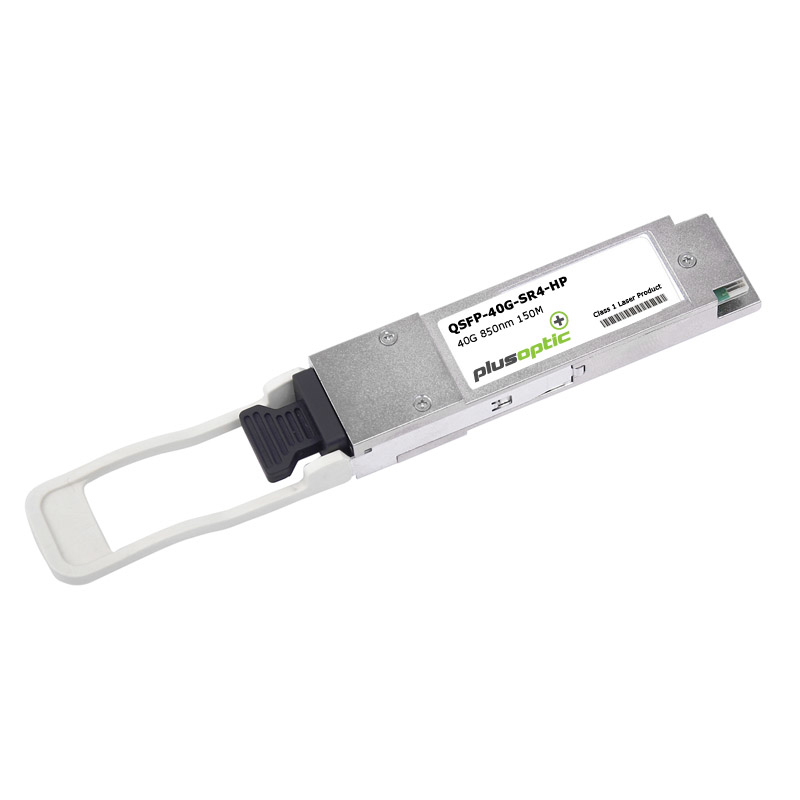

The PlusOptic QSFP-40G-SR4-HP transceiver provides high-speed 40Gb Ethernet connectivity over multimode fibre. Featuring an MTP/MPO connector and QSFP+ form factor, it supports optical links of up to 150 metres, making it suitable for connecting compatible HP networking equipment within data centres, server rooms, and other high-bandwidth networking environments. The transceiver features an optical transmitter with a four-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, supported by a four-channel input buffer, laser driver, diagnostic monitoring, and integrated control and bias circuitry for consistent optical transmission.
Key Features of PlusOptic QSFP-40G-SR4-HP
Supports 40Gb Ethernet connectivity.
HP / Aruba compatible (JG325A, JH231A).
Operates over multimode fibre (MMF).
Supports transmission distances up to 100m (OM3 MMF) / 150m (OM4 MMF).
MTP/MPO optical connector.
850nm VCSEL optical technology.
Supports Digital Optical Monitoring (DOM).
High-Speed 40Gb Connectivity
Providing 40Gb Ethernet communication, this QSFP+ transceiver supports fast data transfer between compatible switches, servers, and storage platforms for bandwidth-intensive network traffic.
Reliable Multimode Fibre Links
Supporting multimode fibre connections of up to 150 metres, this module is suitable for rack-to-rack communication, switch uplinks, and short-range optical networking within the same facility.
