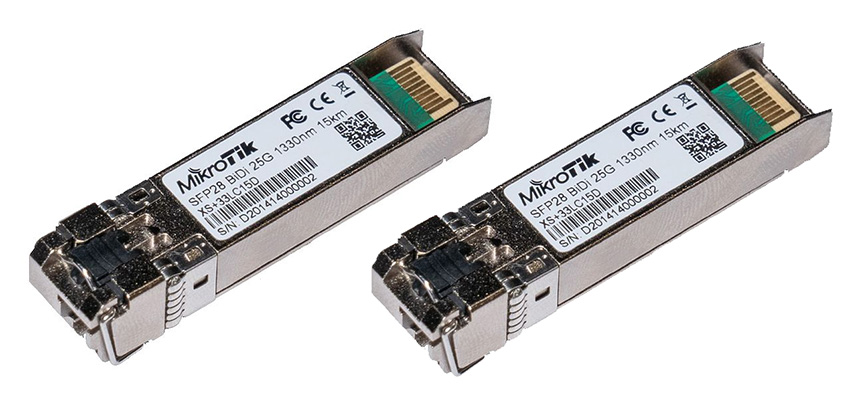

The Mikrotik XS+2733LC15D kit contains two single mode SFP/SFP+/SFP28 modules designed to be used as a pair to achieve operating data rates up to 25Gbps thanks to the newly added SFP28 support.
This module kit can be used for distances up to 15km on a single optical cable.
XS+2733LC15D Specifications:
Connector: Single LC UPC
Data Rate: 1G / 10G / 25G
Distance: 15 km
Format: SFP / SFP+ / SFP28
Mode: Single mode
Wavelength: 1270nm + 1330nm
The MikroTik CWDM-MUX8A is a passive MUX/DEMUX (Multiplexer/Demultiplexer) unit, which allows you to combine up to eight fibre links into one, to simplify and reduce the cost of fibre back-haul installations. At the remote location, the 8 combined lines are then separated back into singles. This is an upgraded version - featuring a handy EXP/1310 expansion port.
The Coarse Wavelength-Division Multiplexing (CWDM) technology offers a solution which will increase the capacity of existing fibre infrastructure by enabling multiple channels/wavelengths over the same fibre cabling and will reduce costs of a new fibre optic deployment.
You can use a single optical fibre cable to create up to eight independent 1.25Gbps SFP (up to 40km) or 10Gbps SFP+ (up to 10km) links, offering a more affordable alternative to installing more fibre or leasing additional fibres. You can even use 1.25Gbps modules and 10Gbps modules at the same time.
Click on the link below to see MikroTik's SFP Module Compatibility List:
SFP Module Compatibility List
Q+85MP01D - 40 Gbps 850nm optical QSFP+ module
This is an optical module with MTP/MPO connector for 12-fibre array that requires Female-Female Type-B polarity MTP/MPO optical cable, which offers 4 independent full-duplex channels with up to 10 Gbps per channel bandwidth and aggregate bandwidth of 40 Gbps.
The Q+85MP01D can provide a connection up to 100m on OM3 Multimode fibre (MMF) and 150m on OM4 MMF. It can operate well in temperatures up to 70°C and has multiple, built-in, diagnostic functions including optical power monitoring.
It has been designed to meet the harshest conditions, including temperature, humidity and EMI interference, all these features combined make the Q+85MP01D an excellent choice for your QSFP+ devices.
Q+85MP01D Specifications:
Product Code: Q+85MP01D
Data Rate: 40Gbps
Distance: 150m
Mode: Multi Mode
Wavelength: 850nm
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List
Q+BC0003-S+ - 40 Gbps QSFP+ break-out cable to 4x10G SFP+
The Mikrotik 40 Gbps break out QSFP+ cable Q+BC0003-S+ cable (DAC) will let you enjoy all the benefits of our new switch with the 40 Gbps ports without upgrading your whole network setup. You can connect the CRS326-24S+2Q+RM to 4 other 10G SFP+ devices in a breeze, since the QSFP+ and SFP+ modules are integrated.
The cable is 3 meters long, which should be enough for most setups.
Q+BC0003-S+ Specifications:
Cable length: 3m
Connector: QSFP+ to SFP+
Data Rate: 40Gbps
Tested ambient temperature: 0°C to +70°C
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List
RBFTC11 - fibre to Copper converter, Outdoor case, 12-57V PoE with 802.3af/at support
The MikroTik fibre-to-Copper Converter, RBFTC11 is unlike many other media converters available on market as it has an outdoor waterproof case with lock screw. Unit has 12-57V PoE with 802.3af/at support (with unshielded cross cable).
It supports 10/100/1000Mps Ethernet, you can use it when converting between different speeds on optical and copper, eg 10/100 ethernet to Gigabit optical SFP.
RBFTC11 Specifications:
10/100 Ethernet ports: None
10/100/1000 Ethernet ports: 1
Input Voltage: 12-57V
Max power consumption: 3 W
Number of DC inputs: 0
Number of SIM slots: 0
Number of USB ports: 0
PoE in802.3af/at
SFP ports: 1
SFP+ ports: None
Storage size: 1 KB
Wireless 1 Number of chains: 0
Input Voltage 12-57 V
Operating Temperature: -40°C to +70°C
Tested ambient temperature: -40°C to +70°C
Comes with PoE injector and power supply.
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List
S+85DLC03D - SFP+ Module 10G Multi Mode 300m 850nm
S+85DLC03D is a 10G SFP+ transceiver with a LC connector, 850nm, for up to 300 meter Multi Mode fibre connections.
S+85DLC03D Specifications:
Licence level: 0
Wireless 1 Number of chains: 0
Data rate: 10G
Distance: 300m
Mode: MM
Wavelength: 850nm
Connector: LC
Format: SFP+
Also compatible with non-MikroTik SFP devices.
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List
MikroTik 5 meter SFP+ 1/10Gbps Active Optics direct attach cable (DAC). The S+AO0005 provides a highly cost-effective way to connect two SFP/SFP+ devices that are co-located within a rack or adjacent racks.
The S+AO0005 works with all MikroTik products with an SFP/SFP+ port, including the new RB4011 series.
The 4011 series is not compatible with MikroTiks passive direct attach cables S+DA0001 and S+DA0003.
S+AO0005 Specifications:
Cable length: 5m
Connector: SFP+ to SFP+
Data Rate: 1G / 10G
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List
S+C47DLC10D - SFP+ CWDM module 10G 10km 1470nm
MikroTik SFP+ CWDM module 10G SM 10km 1470nm Dual LC-connector DDM
Tested ambient temperature: 0°C to 70°C
S+C49DLC10D - SFP+ CWDM module 10G 10km 1490nm
MikroTik SFP+ CWDM module 10G SM 10km 1490nm Dual LC-connector DDM
Tested ambient temperature: 0°C to 70°C
S+RJ10 - 6-speed RJ-45 Copper Module for up to 10 Gbps
This unique module from MikroTik opens up a whole world of high speed connectivity possibilities. Offering up to 10 Gbps speeds over regular twisted-pair cables to your existing or new SFP+ equipped devices.
Any MikroTik device that has an SFP+ port can now be used without the need to retrofit any optical fibre, just plug in the RJ10 and make your network ready for the next generation of RJ45 hardware.
Can only be used in SFP+ ports
Based on Marvell 88X3310P
S+RJ10 Specifications:
Licence level: 0
Size of RAM: 0 KB
Storage size: 256 KB
Wireless 1 Number of chains: 0
Connector: RJ45
Data Rate: 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
Distance: up to 200m
Power consumption: 2.4 W max (10GBASE-T, 30 m link)
Click on the links below for S+RJ10 General Guidance & MikroTik's SFP Module Compatibility List:
S+RJ10 General Guidance
Module Compatibility List

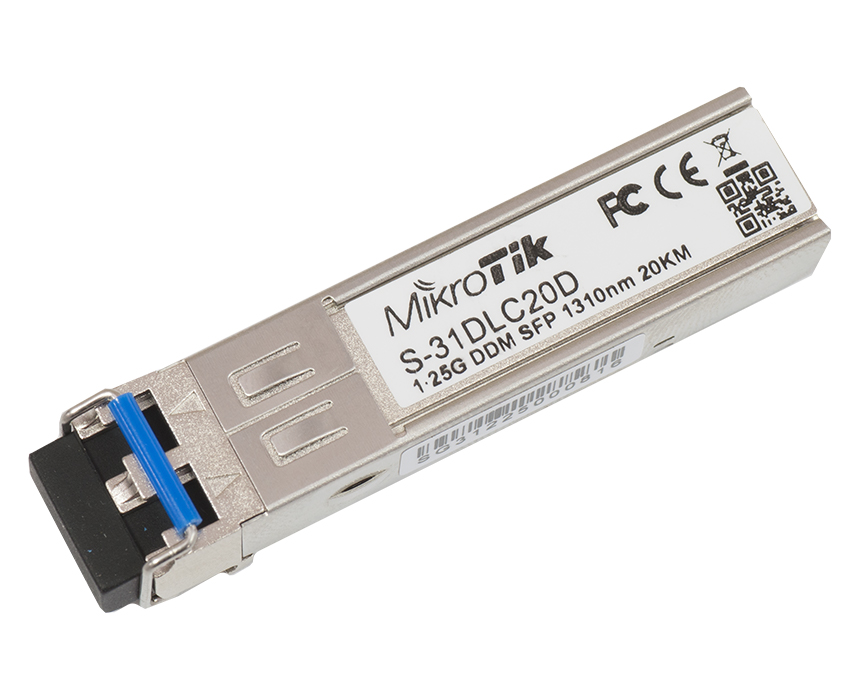

S-31DLC20D - 1000BASE-EX SFP Single Mode Module 1.25G SM 20km 1310nm DDM
The MikroTik S-31DLC20D is a 1.25G SFP transceiver with a 1310nm Dual LC connector, for up to 20 kilometre Single Mode fibre connections, with DDM.
Units are tested and compatible with RB260GS,RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN, CCR1016-12G-BU CCR1016-12G and CCR1036-12G-4S.
Units are also compatible with non-MikroTik SFP devices as well.
S-31DLC20D Specifications:
Wavelength: 1310nm
Distance: 20KM
Mode: SM
GigE Standard: 1000BASE-EX
Data Rate: 1.25G
Connector: Dual LC
Format: SFP
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List

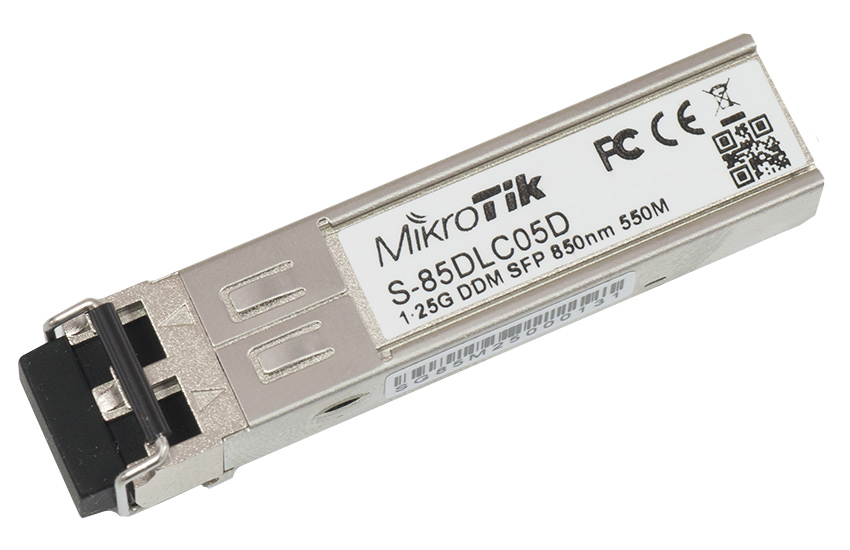

The MikroTik S-85DLC05D is a 1.25G SFP transceiver with a 850nm Dual LC connector, for up to 550 meter Multi Mode fibre connection, with DDM*
Units are tested and compatible with RB260GS, RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN, CCR1016-12G-BU CCR1016-12G and CCR1036-12G-4S.
S-85DLC05D Specifications:
Data Rate: 1.25G
Distance: 550M
Wavelength: 850nm
GigE Standard: 1000BASE-SX
Mode: MM
Connector: Dual LC
Format: SFP
Units are also compatible with non-MikroTik SFP devices.
*DDM/DOM Digital Diagnostic Monitoring/Digital Optical Monitoring - This technology allows the operator to monitor the parameters of fibre optic transceivers like optical input/output power, temperature, laser bias current, and transceiver supply voltage etc, in realtime.
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List

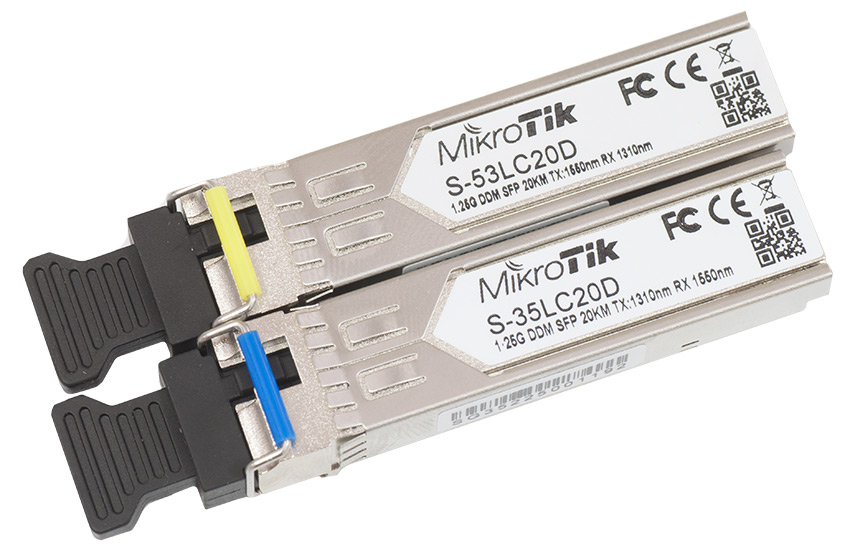

S-35/53LC20D - a pair of 1.25G Single Mode optical SFP transceivers that work for connections up to 20km and support DDM*
S-35LC20D - TX 1310nm/RX 1550nm
S-53LC20D - RX 1310nm/TX 1550nm
Units are tested and compatible with RB260GS, RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN CCR1036-12G-4S.
S-35/53LC20D Specifications:
Mode: SM
Data Rate: 1.25G
Distance: 20KM
Connector: LC
Format: SFP
Tested ambient temperature: -40°C to 70°C
Units are also compatible with non-MikroTik SFP devices.
*DDM/DOM Digital Diagnostic Monitoring/Digital Optical Monitoring - This technology allows the operator to monitor the parameters of fibre optic transceivers like optical input/output power, temperature, laser bias current, and transceiver supply voltage etc, in realtime.
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List

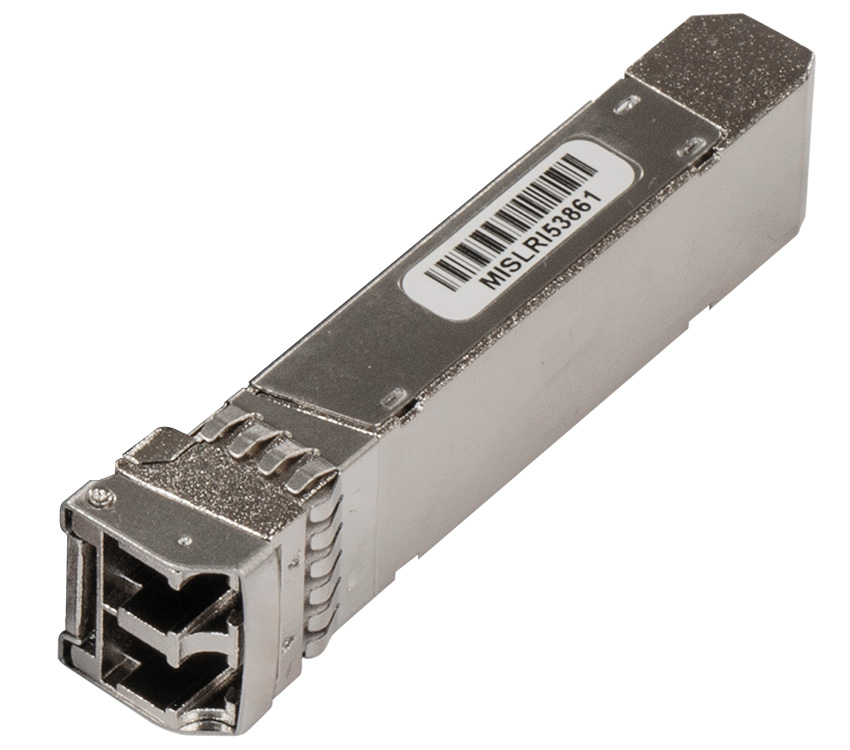

Mikrotik S-C57DLC40D - 1.25Gbps SFP CWDM (Coarse wavelength division multiplexing) module. Single Mode, 40km, 1570nm with a Dual LC-connector and DDM*
S-C57DLC40D Specifications:
Product code: S-C57DLC40D
Connector: Dual LC UPC
Data Rate: 1.25G
Distance: 40KM
Format: SFP
MTBF: Approximately 100'000 hours at 25°C
Mode: SM
Tested ambient temperature: 0°C to 70°C
Wavelength: 1570nm
*DDM/DOM Digital Diagnostic Monitoring/Digital Optical Monitoring - This technology allows the operator to monitor the parameters of fibre optic transceivers like optical input/output power, temperature, laser bias current, and transceiver supply voltage etc, in realtime.

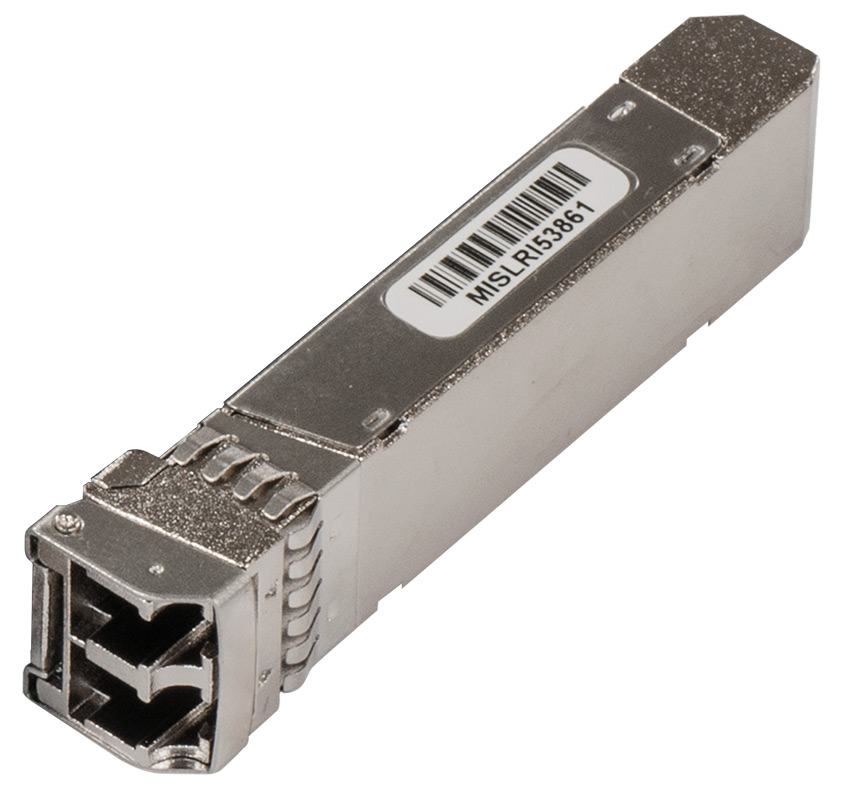

A MikroTik 1.25G single mode 40km 1610nm Dual LC-connector SFP module with CWDM (Coarse wavelength division multiplexing) and DDM*
S-C61DLC40D Specifications:
Connector: Dual LC UPC
Data Rate: 1.25G
Distance: 40KM
Format: SFP
MTBF: Approximately 100000 hours at 25°C
Mode: SM
Tested ambient temperature: 0°C to +70°C
Wavelength: 1610nm
*DDM/DOM Digital Diagnostic Monitoring/Digital Optical Monitoring - This technology allows the operator to monitor the parameters of fibre optic transceivers like optical input/output power, temperature, laser bias current, and transceiver supply voltage etc, in realtime.

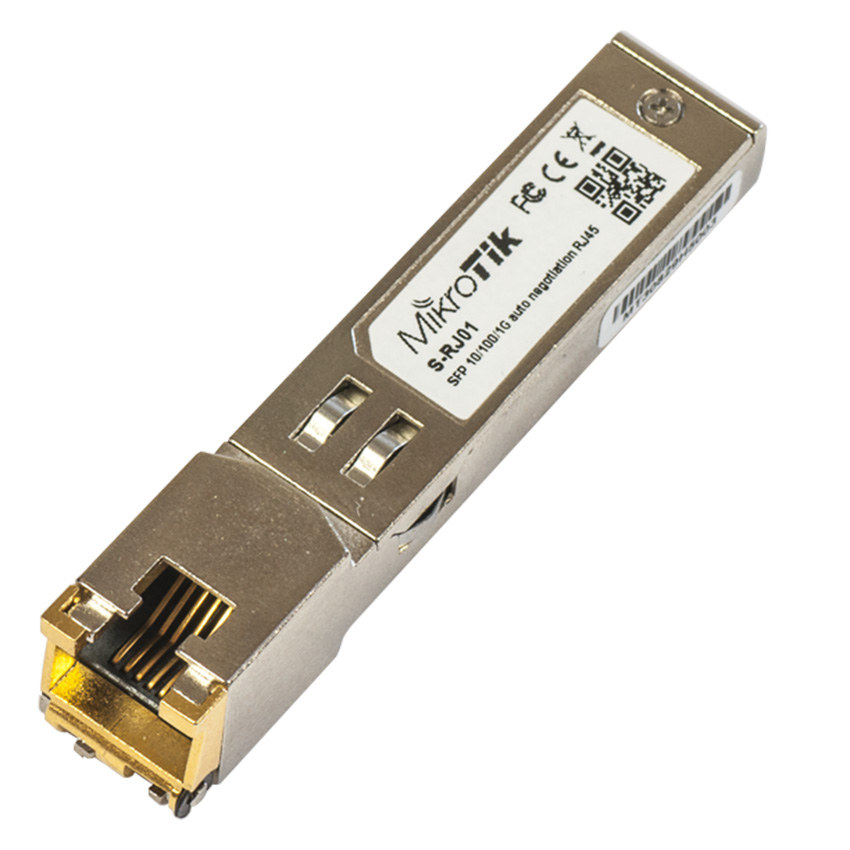

The S-RJ01 is an RJ45 SFP 10/100/1000M copper module, compatible with most Gigabit SFP ports available on various networking devices.
S-RJ01 Specifications:
Data Rate: 1.25Gbs
Distance: 100m
Connector: RJ45
Tested ambient temperature: 0°C to 85°C
Please note that this product is not compatible with Ubiquiti UnifiSwitches
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List

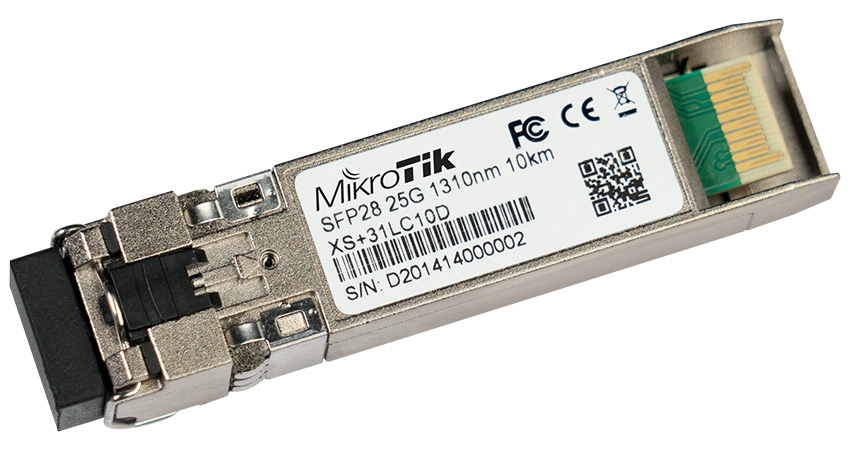

The MikroTik SFP/SFP+/SFP28 Module 1/10/25G Single Mode 1310nm - XS+31LC10D unit is a direct upgrade of MikroTik's previous 10G SFP+ 10 km module.
More functionality for the same price. 25G SFP28 support has been added - meaning you can use one module in all your setups.
Perfect for the CCR2004-1G-12S+2XS aggregation router and any other multi-port device.
Click on the link below to see MikroTik's SFP Module Compatibility List:
Module Compatibility List
