The Hi-Lo Duo 500 Electric Wall to Floor Mount is designed for large format and touch screens, delivering smooth, quiet height adjustment with a strong focus on safety, stability, and clean installation. Built for professional environments, it supports a wide range of screen sizes while ensuring reliable performance and user-friendly operation.
Key Features of Hi-Lo Duo 500
Supports large format and touch screens from 42 to 86 Inches
500mm smooth electric height adjustment
Near silent twin-leg telescopic operation
Integrated 800mm wide headbox for equipment and cable management
Built-in Anti-Collision safety sensor
Optional Anti-Crush sensor for enhanced safety
Includes 3 UK power sockets and 1 IEC outlet
Wide Easy Install bracket system for secure mounting
Floor plate for added stability and safety
Durable powder-coated white finish
Smooth Electric Height Adjustment
The Hi-Lo Duo 500 provides 500mm of electrically controlled height adjustment, allowing effortless positioning of screens for users of varying heights. The smooth and controlled motion ensures ease of use in both professional and educational environments.
Quiet and Professional Operation
Designed with near silent motor operation, this mount is ideal for environments where noise must be kept to a minimum. Its soft-start functionality ensures a refined and unobtrusive user experience.
Integrated Storage and Power Access
The large 800mm wide headbox offers practical space for housing small form factor PCs, peripherals, and cables. Built-in power options include three UK outlets and one IEC socket, supporting a clean and organised setup.
Advanced Safety Features
Safety is prioritised with a built-in Anti-Collision sensor that detects impact and automatically stops and reverses the lift. An optional Anti-Crush sensor provides additional protection in sensitive environments by reacting to minimal pressure.
Stable Twin-Leg Design
The twin-leg telescopic structure evenly distributes screen weight, improving stability during operation. This design ensures reliable performance even with larger displays.
Flexible and Secure Installation
The Easy Install bracket system provides multiple fixing points across wide rails, making it easier to align with structural supports. A removable cover plate keeps fixings hidden while allowing access for maintenance.
Enhanced Structural Safety
An integrated floor plate reduces load on wall fixings and adds an extra layer of protection in the unlikely event of fixing failure, helping prevent tipping or detachment.
Built for Versatile Environments
Suitable for boardrooms, classrooms, and collaborative spaces, the Hi-Lo Duo 500 adapts easily to different use cases. Its quiet performance and safety features make it a dependable choice for both professional and educational installations.
Durable and Discreet Finish
Finished in a durable white powder coating, the mount blends seamlessly into light interiors while maintaining long-lasting resistance to wear and daily use.

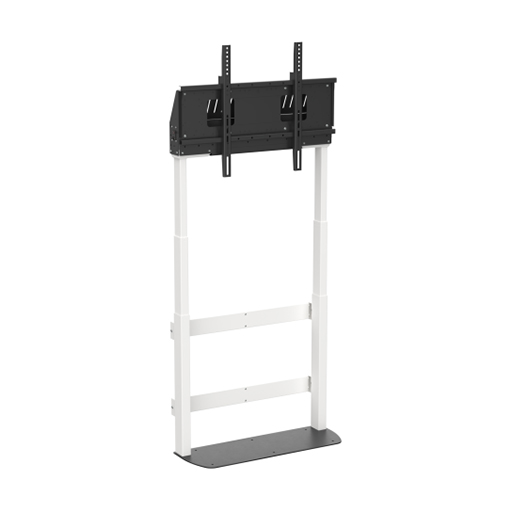

The Hi-Lo Duo 750 Twin Leg Telescopic Electric Wall to Floor Screen Mount is engineered for large format displays, delivering smooth, near-silent height adjustment with a robust and safety-focused design. Ideal for environments where visibility and accessibility are essential, this mount ensures effortless positioning while maintaining a clean and professional installation.
Key Features of Hi-Lo Duo 750 Wall to Floor e-Mount
750mm electric height adjustment for flexible screen positioning
Designed for large format screens from 75 to 98 Inches
Near silent operation with smooth movement
Built-in anti-collision safety mechanism
Optional anti-crush sensor for added protection
Integrated floor plate for enhanced stability
800mm wide headbox for equipment storage
Includes UK power outlets and IEC socket for peripherals
Wide Easy Install bracket system for secure mounting
Extended Height Adjustment Range
With a centre screen range from 965mm to 1715mm, the Hi-Lo Duo 750 provides substantial vertical travel. This makes it particularly suitable for larger displays where improved visibility is required across wider spaces such as classrooms and conference rooms.
Smooth and Quiet Electric Operation
The electrically driven telescopic system delivers a controlled and near silent lift, ensuring minimal disruption during use. The soft start switch enhances usability, offering precise and comfortable height adjustments.
Advanced Safety Integration
Safety is central to the design, with a built-in anti-collision system that detects resistance and automatically stops, reverses, and cuts power. An optional anti-crush sensor adds an extra layer of protection, activating with minimal pressure—ideal for environments requiring additional safeguarding.
Robust Installation and Support
The included Easy Install bracket system offers multiple fixing points across wide rails, allowing secure attachment to structural studwork. The integrated floor plate reduces load on wall fixings and provides added protection against potential failure or tampering.
Integrated Power and Storage
The spacious 800mm headbox accommodates IT equipment and peripherals, keeping installations organised. Built-in UK power outlets and an IEC socket simplify connectivity, reducing the need for additional external cabling.
Designed for Professional Environments
Finished in a durable white powder coat, the mount blends seamlessly into modern interiors. Its quiet performance and clean design make it well suited for both educational and corporate settings where reliability and presentation matter.
Slimline single column wall to floor screen mount incorporating vertical power/data cable management.
The Slimline Mono Wall to Floor Mount is sleek looking yet very rigid and stable with an all steel construction and welded screen mount brackets for maximum strength. Perfect for displays and touch screens up to 95".
The floor standing wall mount allows the weight of the large format display or touch screen to be taken directly to the floor meaning very little load is transferred to the wall.
Max screen weight 130kg.
Incorporating 400mm of height adjustment in 100mm increments, the allowing the screen to be positioned in the perfect fixed position, granting all users access to the display.
Standard VESA patterns suit screens up to 800mm wide x 440mm high.
For VESA mount patterns to 800mm x 600mm high specify bracket set 8975 when ordering at no extra charge.
Height from floor to centre of screen:
1310 – 1710mm
Loxit’s unique multi-point installation brackets provide multiple fixing points for a sturdy installation. Each wall fixing bracket is very strong with 2 tram lines of fixing points per bracket, resulting in 4 rows of fixings per installation. This ensures a very sturdy wall fixing installation.
The unique installation brackets are completely hidden once the installation is complete for a seamless professional looking installation.
2 integral vertical cable management trunking covers provide power and data routing to the screen either side of the mount, incorporating skirting board cut outs and cable pass through grommets at low and mid positions.

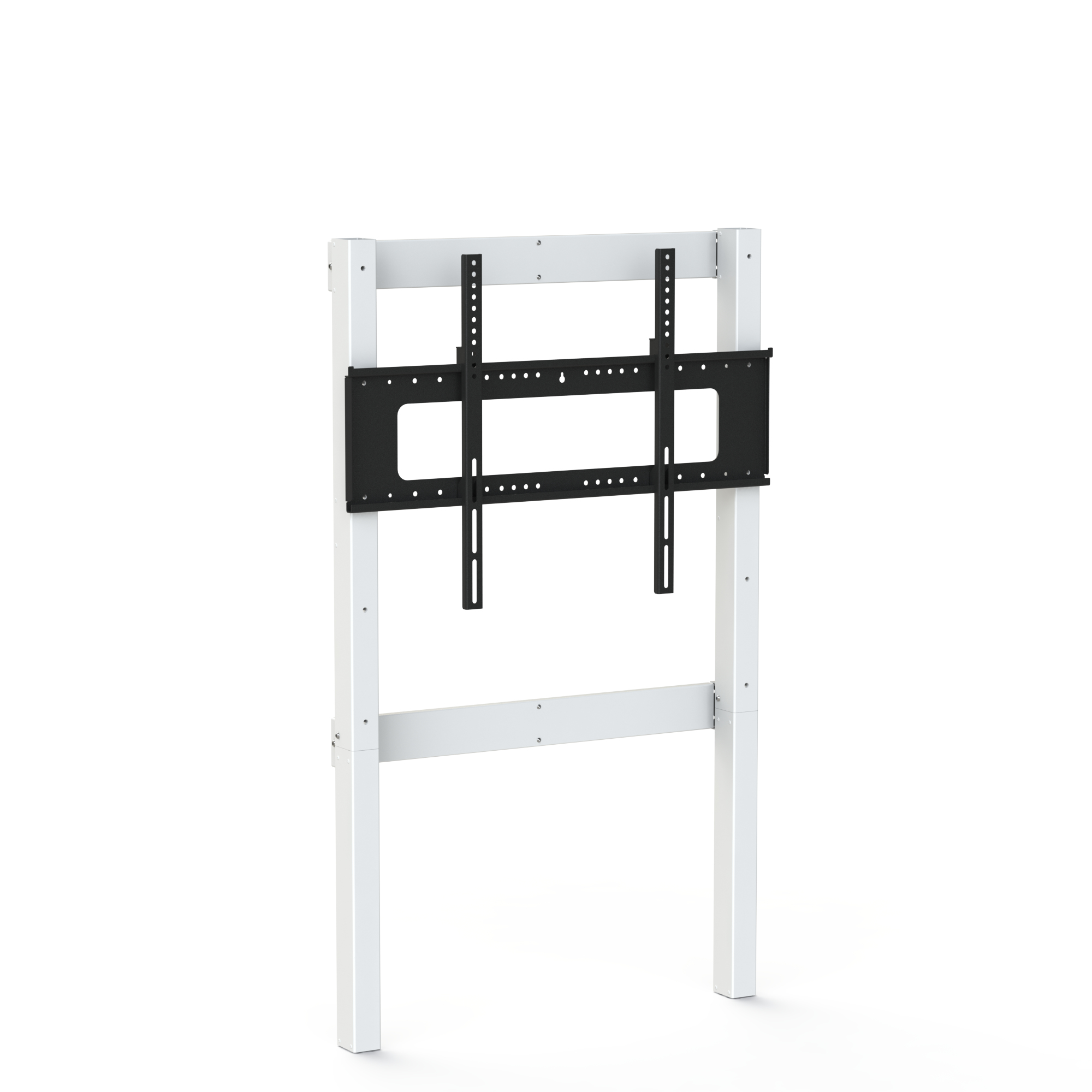

The Slimline Multi-Position Fixed Height Wall to Floor Mount effectively takes the weight of heavy screens directly to the floor, reducing the loading on the wall. Particularly useful for large format displays and touch screens and where walls are constructed from stud work partitions.
Suitable for younger years, primary schools and low-medium height installs where access to all areas of the touch screen is required at a lower height.
The wide mounting rails offer a large range of fixing positions over a wide area, allowing installers to use as many fixings as required to ensure a robust installation.
The easy install kit covers are fitted after the screen installation is complete and hide the wall fixings from view, for a professional installation.
Discrete cable routing through the legs means no trailing cables.
Optional 60mm and 100mm stand-off are available if dado rail or other obstacles are present on the wall.
Height from floor to centre of screen bracket is 700mm – 1300mm.
Max VESA pattern 800 x 600mm.
Max Screen Weight 130kg.

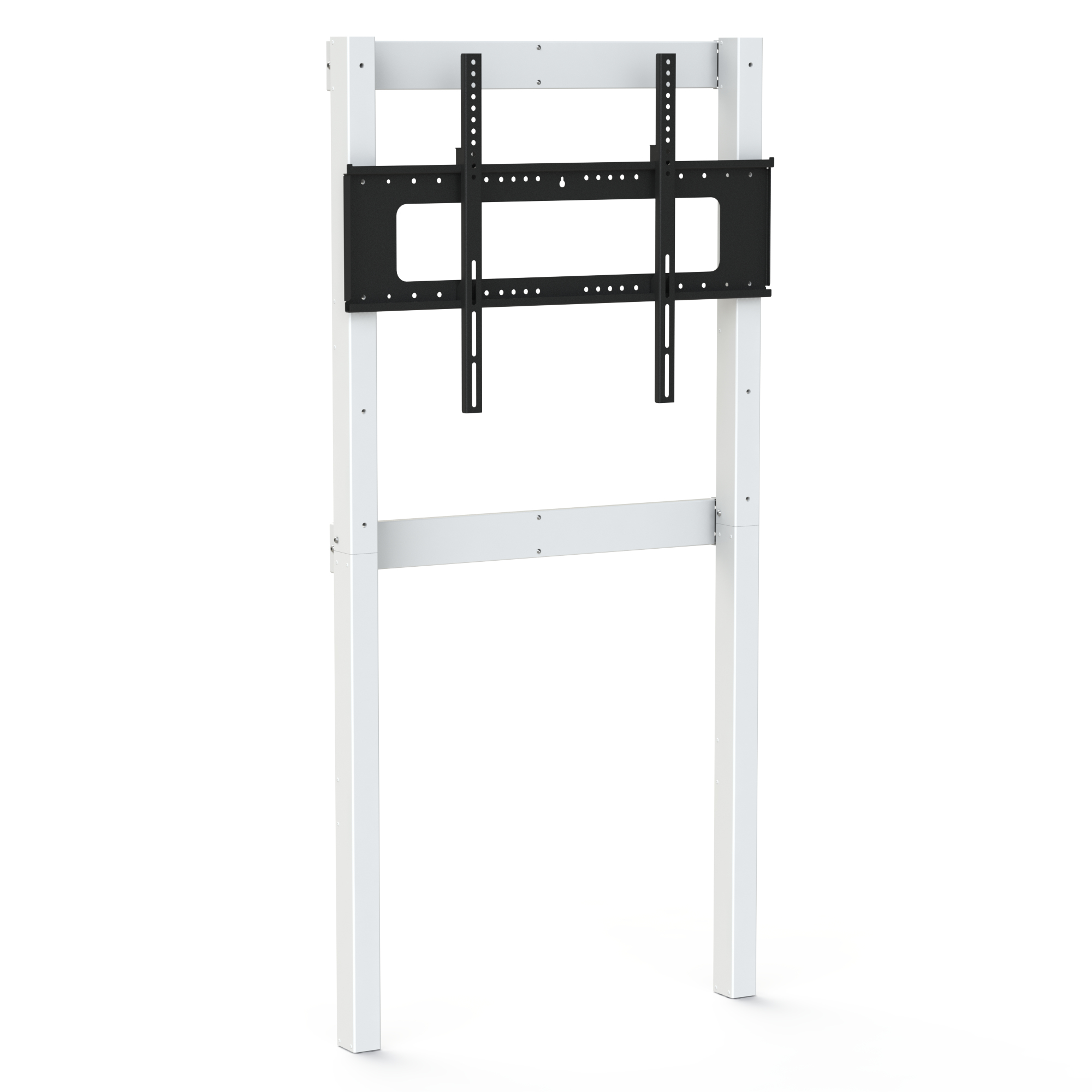

The Slimline Multi-Position Fixed Height Wall to Floor Mount effectively takes the weight of heavy screens directly to the floor, reducing the loading on the wall. Particularly useful for large format displays and touch screens and where walls are constructed from stud work partitions.
Suitable for secondary schools, training rooms and large format screens where the bottom edge of the screen needs to be visible across a room.
The wide mounting rails offer a large range of fixing positions over a wide area, allowing installers to use as many fixings as required to ensure a robust installation.
The easy install kit covers are fitted after the screen installation is complete and hide the wall fixings from view, for a professional installation.
Discrete cable routing through the legs means no trailing cables.
Optional 60mm and 100mm stand-off are available if dado rail or other obstacles are present on the wall.
Height from floor to centre of screen bracket is 1050mm – 1650mm.
Max VESA pattern 800 x 600mm.
Max Screen Weight 130kg.

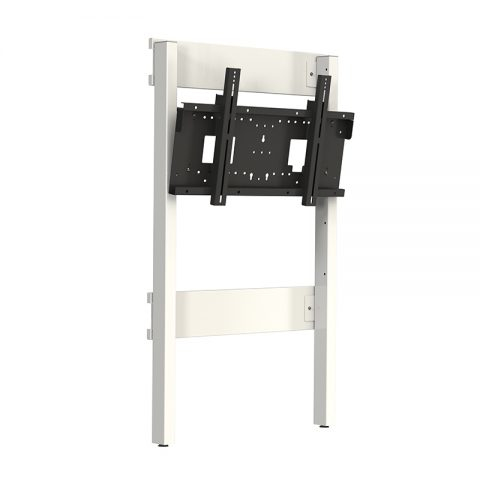

The Award Winning LED/LCD Slimline Multi-Position Mount is a light weight, durable and large capacity mount packed full of user friendly features.
Loxit's slimmest wall to floor mount includes the Easy Install Kit and offsets the columns just 20mm from the wall.
The Easy Install Bracket, may be discarded if not required, saving a further 20mm depth from the screen to the wall.
The integrated tilting brackets allow up to 10 degrees of tilt for the perfect viewing angle. Holes are bolted to prevent screen tilt slippage over time.
600mm height adjustment in 200mm increments, allows the mount box to be positioned at different heights by removing the fixings and re-positioning at the desired height.
Height to the centre of the mount box ranges from 700-1300mm.
Maximum screen weight 130kg.
Screen mount sizes: 200-880mm W x 100-440mm H.
Excellent cable management with optional Easy Access Power Management Tray with integrated power allowing you to power additional peripherals eg. laptop or PC, video conference equipment, speakers, games device or satelite TV box.
Taller mount brackets for VESA mounts up to 600mm high available, product code 8975, please specify at time of ordering.
Optional 100mm wall mount brackets for use with dado rails and electrical conduits are available, product code 8959.
 - 608.jpg)

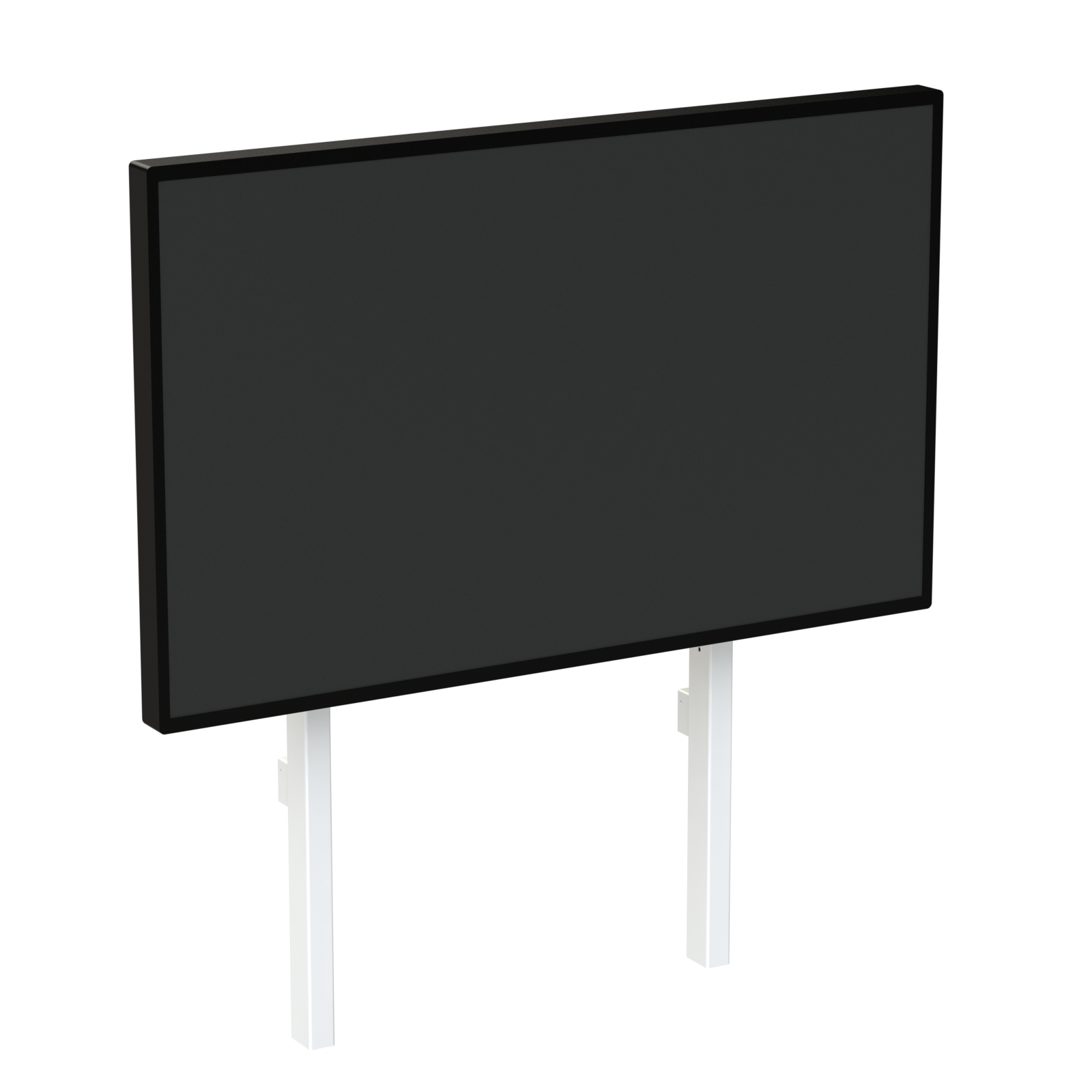

The Fixed Height Floor to Wall Mount, Multi Position, for Displays up to 130kg is a light weight, durable and large capacity mount.
Suitable for screen sizes from 42"-95".
Supplied with mount brackets which set the wall mount 40mm off the wall.
Optional 100mm wall mount brackets for use with dado rails and electrical conduits are available, product code 8959.
Screen mount sizes: 200-800mm W x 100-440mm H.
Optional mount brackets for VESA mounts up to 600mm high available, product code 8975.
Maximum screen weight 130kg.
Excellent cable management with space to mount your own power strip inside the plasma body, to power additional peripherals eg. laptop or PC, video conference equipment, speakers, games device or satelite TV box.
The height to the centre of screen has 600mm adjustment in the brackets allowing the mount box to be moved into different height positions by removing the fixings and re-positioning at the desired height.
Height to the centre of the mount box ranges from 700-1300mm in 200mm increments.

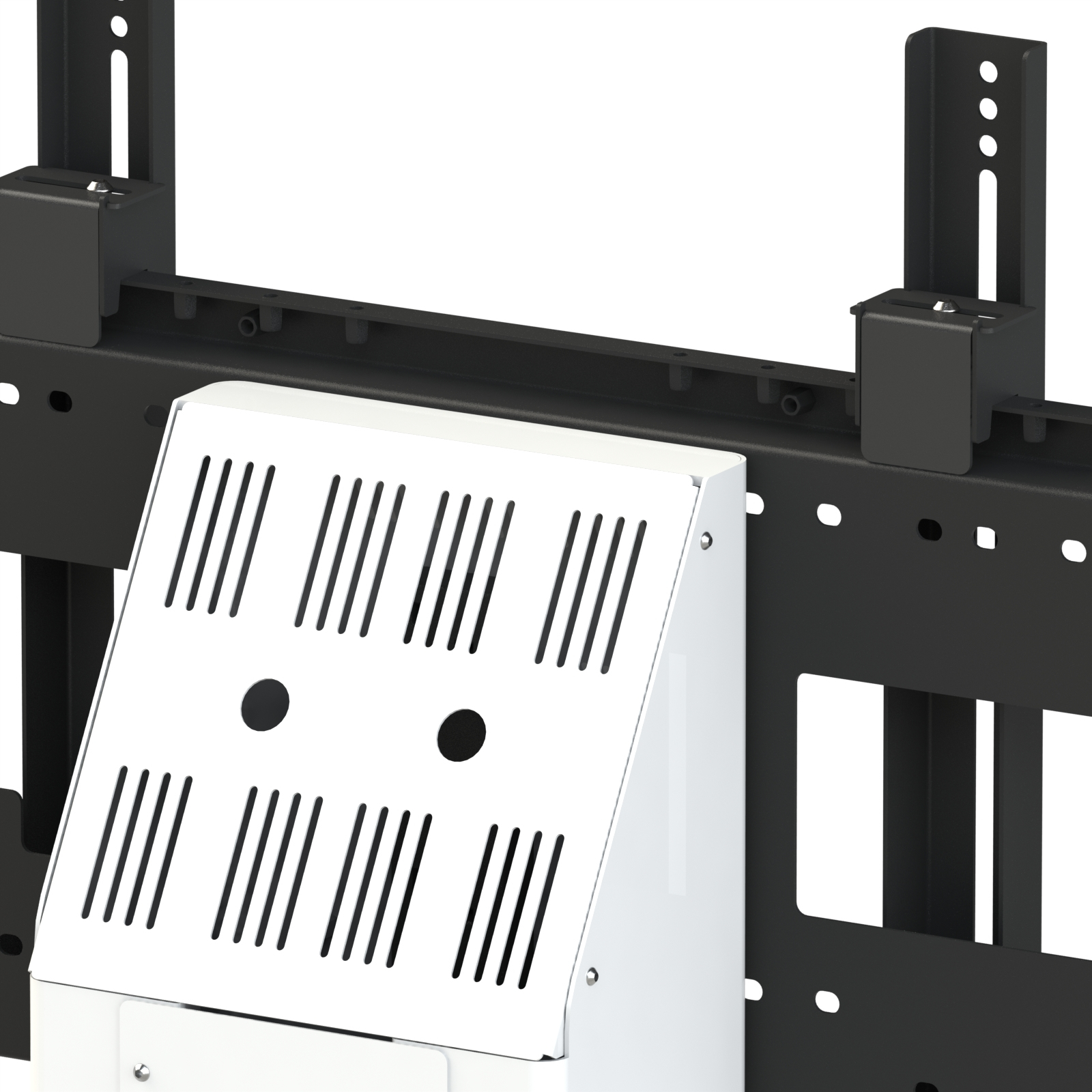

Single column wall to floor mounted screen mount.
Slender column is sleek looking yet very rigid and stable with a welded steel construction and welded screen mount brackets. Perfect for displays and touch screens up to 95?.
Max screen weight 130kg.
Fixed height screen mount with 400mm of height adjustment in 100mm increments, allowing the screen to be positioning in the perfect fixed position, granting all users access to the display.
Standard VESA patterns up to 800mm wide x 440mm high.
For VESA mount patterns to 800mm x 600mm high specify bracket set 8975 when ordering.
Height from floor to centre of screen:
890 – 1290mm
Includes:
Levelling feet for a perfect installation.
2 sets of plasterboard installation brackets with multiple fixing points for a sturdy installation. The floor standing wall mount allows the weight of the large format display or touch screen to be taken directly to the floor. The wall brackets act as a restraint.
Integrated 4 way power strip to power the screen and peripherals with just one cable to the mains socket.
3m hi-vis mains input cable for additional safety.
Switched, fused power inlet also includes 3 additional IEC outlets in addition to the 4 way power strip.
Cables are tidied away within the mount head and then covered with the ventilated grille for a professional installation.

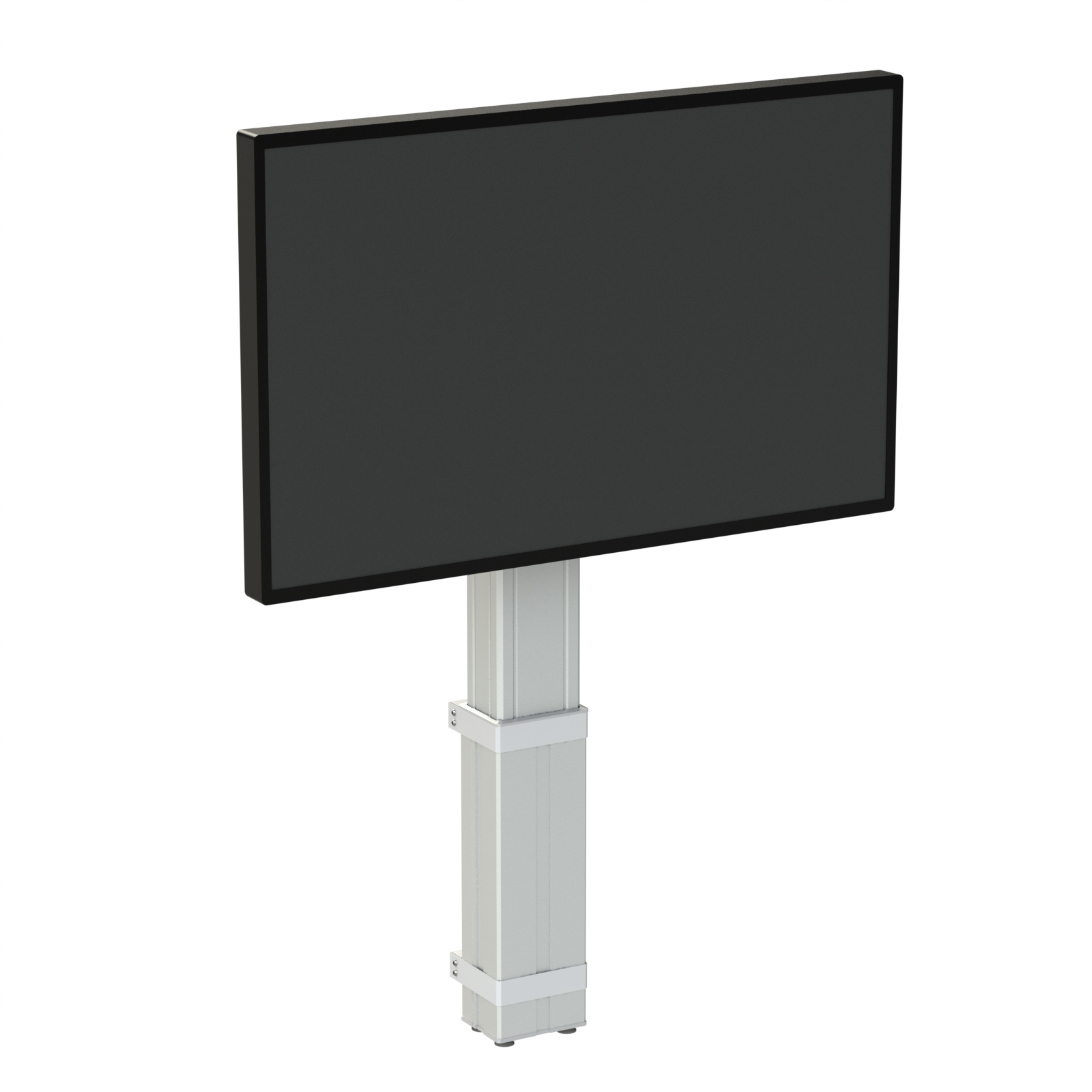

Single column wall to floor mounted electric screen lift.
Heavy duty electric operation with reinforced welded brackets for displays and touch screens up to 86".
Max screen weight 130kg.
Smooth electrical operation raises and lowers the screen by 500mm, allowing all users access to the display.
Suits VESA patterns up to 800mm wide x 440mm high.
For VESA mount patterns to 800mm x 600mm high use optional bracket set 8975.
Height from floor to centre of screen:
Lowered 882mm
Raised 1382mm
Includes:
Levelling feet for a perfect installation
2 sets of plasterboard installation brackets with multiple fixing points for a sturdy installation. The floor standing electric wall mount allows the weight of the large format display or touch screen to be taken directly to the floor. The wall brackets act as a restraint.
Integrated 4 way power strip to power the screen and peripherals with just one cable to the mains socket.
3m hi-vis mains input cable for additional safety.
Switched, fused power inlet also includes 3 additional IEC outlets in addition to the 4 way power strip.
Cables are tidied away within the mount head and then covered with the ventilated grille for a professional installation.

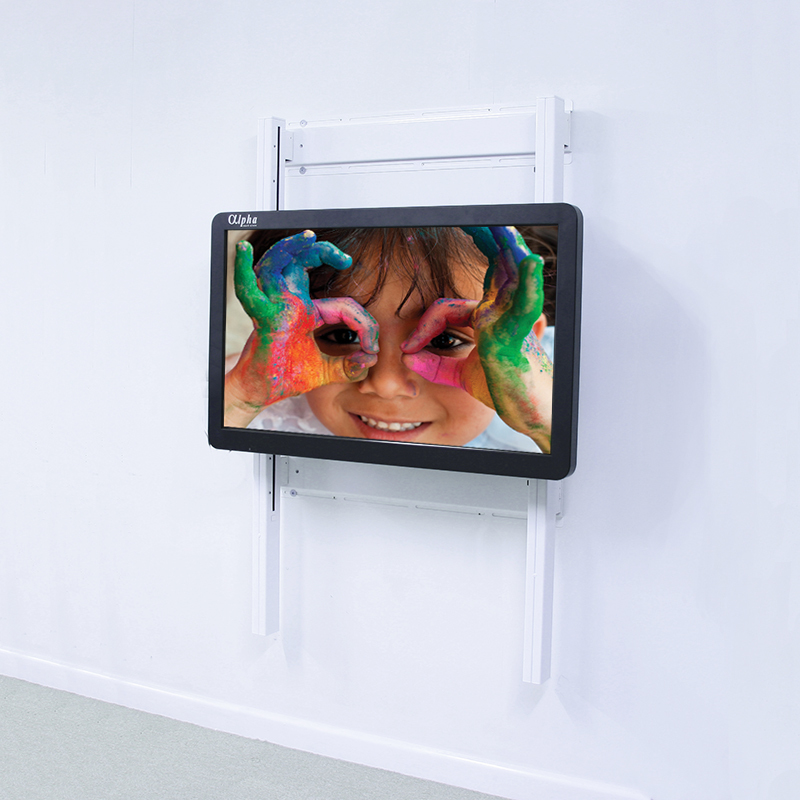

The wall mounted electric TV lift is used where screen height adjustability is required.
Ideal for touch screen applications, corporate presentations, digital signage and video conferencing, the Hi-Lo® Screen Lift Wall Electric Plasma Wall Mount allows screens up to 120kg to be effortlessly adjusted in height.
Includes Hi-Lo Screen Lift Easy Install Kit to ensure a perfect installation ensuring the columns are exactly vertical.
Using slots in the bracket, wall fixings can pick up structural members within studwork for the best installation possible, for up to 600mm centres.
A simple, fast and perfect installation every time, enabling maximum productivity.
750mm electric height adjustment means all users are able to access or view the screen.
Maximum weight screen 120Kg.
Universal screen mount brackets allow all makes and models of screen to be mounted on to the lift.
Electrically driven height adjustment - no heavy counterbalances.
LED/LCD lift is operated by a simple switch on coiled cable for tidiness.
12 month return to base warranty.
Wall bracket depth 40mm prevents screen wall lift conflicting with trunking and dado rails etc.
Optional 100mm wall bracket available to avoid dado rails, electrical trunking etc.
Total distance from surface of wall to rear of screen 180mm.
Hi-Lo Screen Lift Easy Install Kit speeds up installation of Screen lift 750 Wall Mount.
Ensures perfectly vertical installation of the wall mount, providing a perfect installation every time.
Simple to use and ensures the best fixing possible when used with plasterboarded walls, allowing the fixings to pick up studwork in any position up to 600mm centres.
Powder coated white colour.

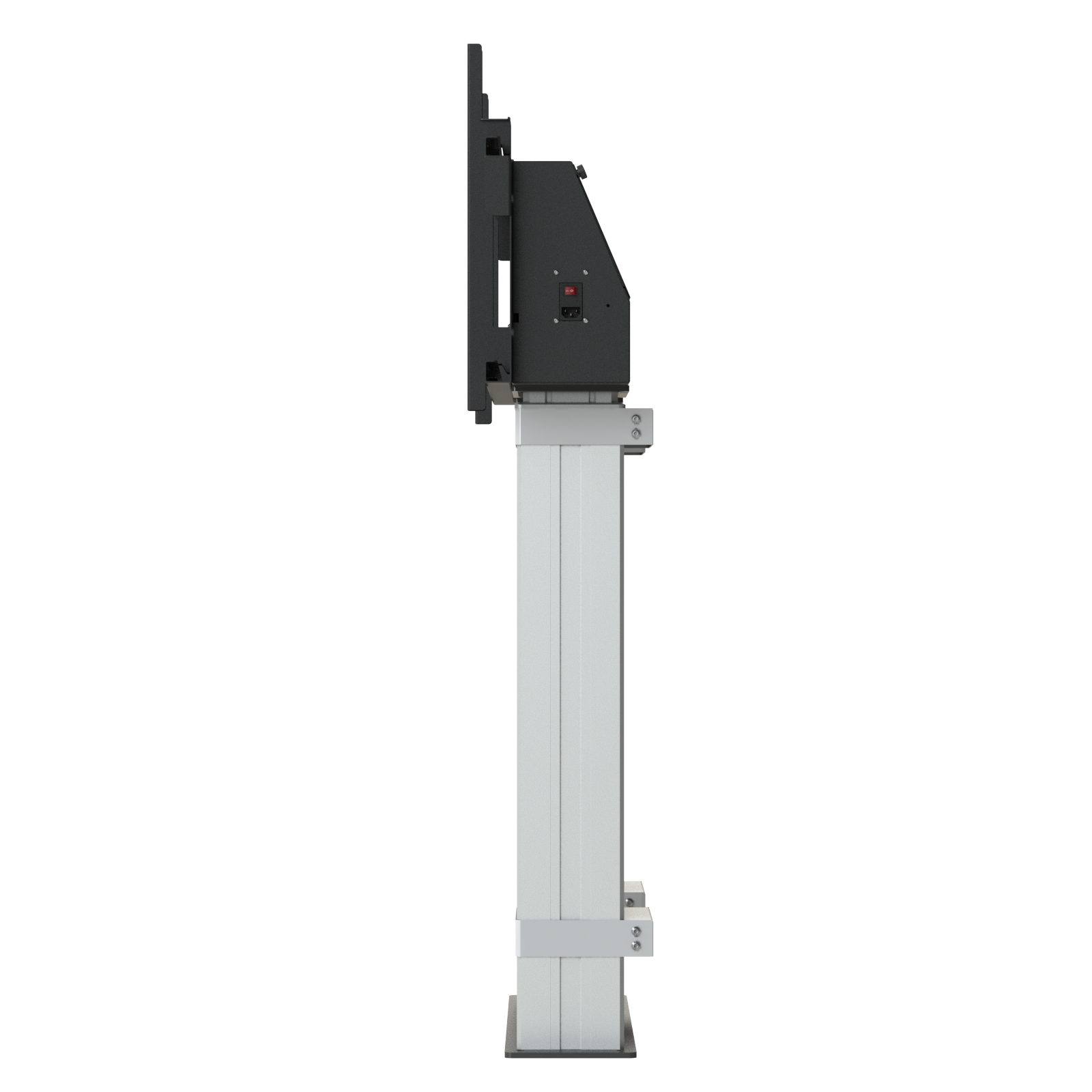

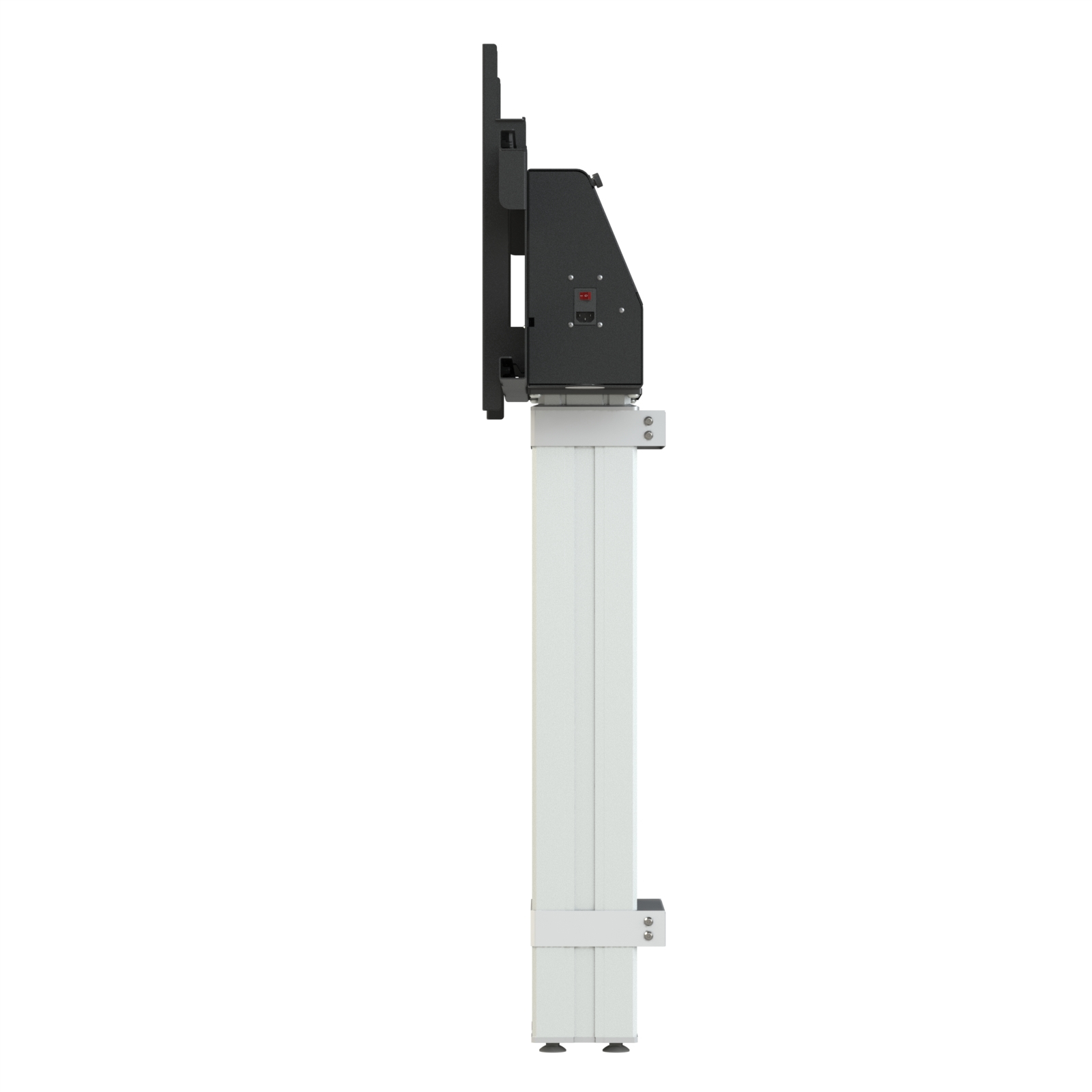

Single column wall to floor mounted electric screen lift.
Heavy duty electric operation with reinforced welded brackets for displays and touch screens up to 86".
Max screen weight 130kg.
Smooth electrical operation raises and lowers the screen by 600mm, allowing all users access to the display.
Suits VESA patterns up to 800mm wide x 440mm high.
For VESA mount patterns to 800mm x 600mm high use optional bracket set 8975.
Height from floor to centre of screen:
Lowered 1142mm
Raised 1742mm
Includes:
Levelling feet for a perfect installation.
2 sets of plasterboard installation brackets with multiple fixing points for a sturdy installation. The floor standing electric wall mount allows the weight of the large format display or touch screen to be taken directly to the floor. The wall brackets act as a restraint.
Integrated 4 way power strip to power the screen and peripherals with just one cable to the mains socket.
3m hi-vis mains input cable for additional safety.
Switched, fused power inlet also includes 3 additional IEC outlets in addition to the 4 way power strip.
Cables are tidied away within the mount head and then covered with the ventilated grille for a professional installation.

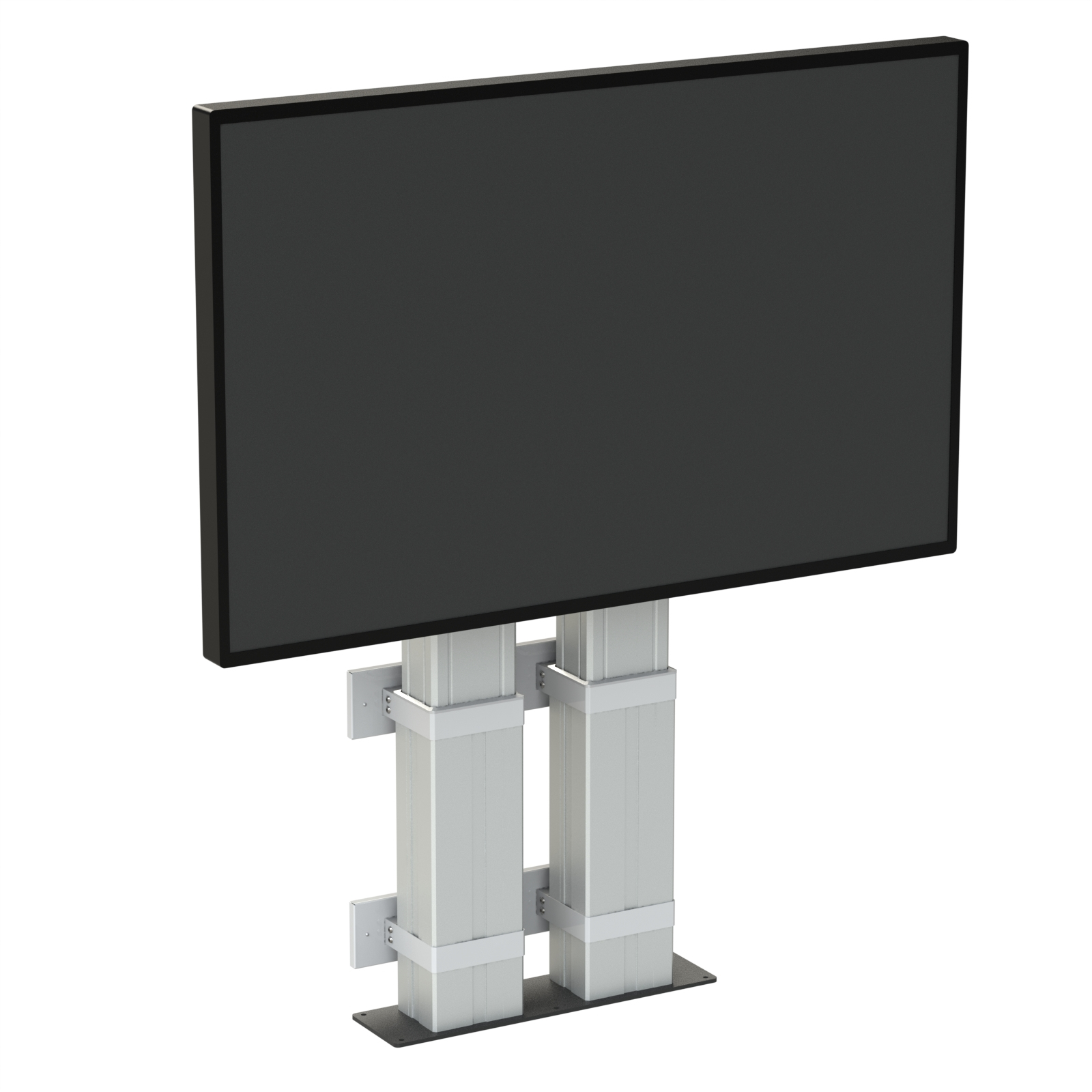

Dual column wall to floor mounted screen lift.
Heavy duty electric operation with reinforced welded brackets for displays and touch screens up to 105".
Max screen weight 170kg.
Smooth electrical operation raises and lowers the screen by 500mm, allowing all users access to the display.
Suits VESA patterns up to 800mm wide x 440mm high.
For VESA mount patterns to 800mm x 600mm high use optional bracket set 8975.
Ready assembled – simply screw the universal mount brackets onto the screen and hang on the trolley. Saves installation time and money.
Height from floor to centre of screen:
Lowered 882mm
Raised 1382mm
Includes:
Integrated 4 way power strip to power the screen and peripherals with just one cable to the mains socket.
3m hi-vis mains input cable for additional safety.
Switched, fused power inlet also includes 3 additional IEC outlets in addition to the 4 way power strip.
Cables are tidied away within the mount head for a professional installation.
Optional rubber bumper for use in nurseries and for base protection.
Dual column electric wall to floor screen lift for very heavy, large format displays and touch screens.
Heavy duty electric operation with reinforced welded brackets for displays and touch screens up to 105".
Max screen weight 170kg.
Smooth electrical operation raises and lowers the screen by 600mm, allowing all users access to the display.
Suits VESA patterns up to 800mm wide x 600mm high.
Ready assembled – simply screw the universal mount brackets onto the screen and hang on the trolley. Saves installation time and money.
Height from floor to centre of screen:
Lowered 1142mm
Raised 1742mm
Includes:
Integrated 4 way power strip to power the screen and peripherals with just one cable to the mains socket.
3m hi-vis mains input cable for additional safety.
Switched, fused power inlet also includes 3 additional IEC outlets in addition to the 4 way power strip.
Cables are tidied away within the mount head for a professional installation.
5 year on site warranty. Mainland UK excludes Scottish Highlands

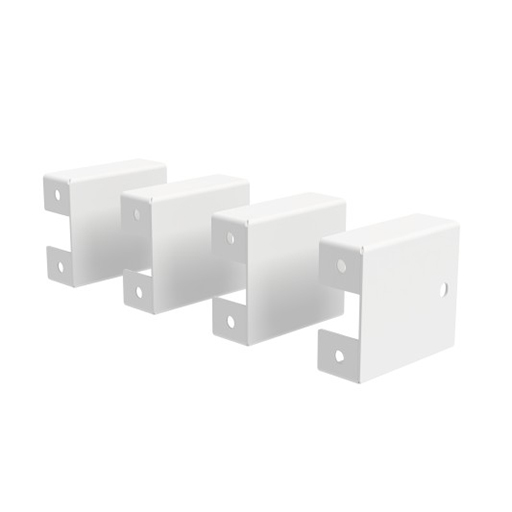

The Loxit 8912 100mm Standoff Bracket Set is designed for use with Loxit wall-to-floor display mounts 8910 and 8920, replacing the standard 40mm brackets to increase wall clearance. This added depth provides extra space between the structure and the wall surface, supporting installations where obstacles, cabling routes, or surface variations require greater separation.
Key Features of Loxit 8912
Provides 100mm spacing from wall surface
Replaces standard 40mm bracket set
Compatible with Loxit 8910 and 8920 wall-to-floor mounts
Supports installation flexibility where additional clearance is required
Supplied as a complete bracket replacement set
Compatibility Focused Design
Engineered specifically for Loxit 8910 and 8920 wall-to-floor systems, ensuring a direct replacement fit without modification to the main mount assembly.
Practical Mount Adjustment
The bracket set supports installations where additional space is needed behind the display, offering improved positioning options during setup.

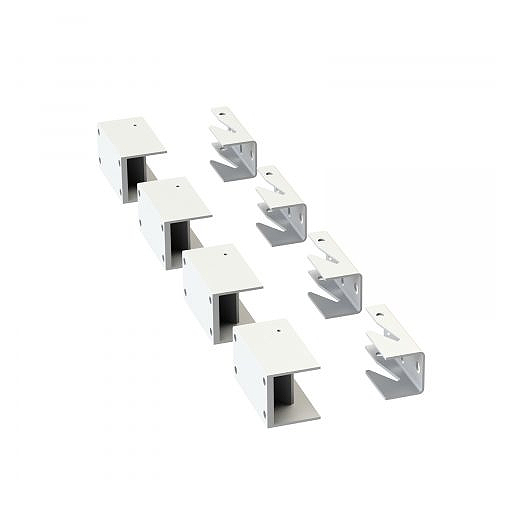

The Loxit 8954 stand off brackets are designed to introduce a controlled 40mm gap between the wall and the Slimline Multi-Position Wall to Floor Mount system. This added clearance helps when installations need to pass over wall features such as trunking, sockets, or other surface obstructions, while maintaining a clean and aligned screen installation.
Key Features of Loxit 8954
Can be fixed directly to the wall
Constructed from steel.
Note: If installing Slimline Multi-Position Wall To Floor Screen Mount and not using Loxit's Easy Install Kit, the user must source their own suitable fixing for the surface it is being mounted to.
Powder coated white.
Installation Flexibility
The brackets allow installers to adjust positioning where standard flush mounting is not practical. This helps accommodate uneven wall surfaces or built-in infrastructure without compromising alignment of the screen mount structure.
Build and Finish
Manufactured from durable steel with a powder coated finish, the brackets are designed to integrate visually and structurally with the wider Loxit mounting system while maintaining a consistent appearance across installations.
Application Use
Typically used in professional AV installations, the stand off brackets are suited for environments where wall-mounted display systems require additional spacing to clear fixed architectural or electrical elements.

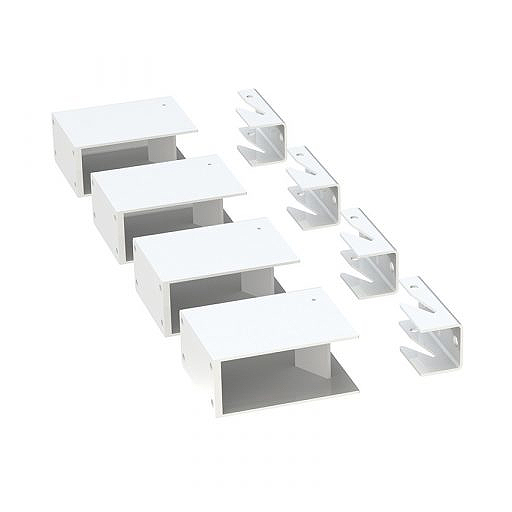

The Loxit 8958 100mm Stand Off Brackets are designed to extend the mounting distance between a wall and compatible wall-to-floor display systems. They provide additional clearance where standard bracket depth is not sufficient, supporting a cleaner installation layout around screens and structural obstacles. Built from steel and designed for compatibility with selected Loxit mounting frames, they form part of a modular setup that allows greater flexibility during installation planning.
Key Features of Loxit 8958
100mm stand-off depth for increased wall clearance
Can be fixed directly to the wall.
Constructed from steel.
Powder coated white.
Note: If installing Slimline Multi-Position Wall To Floor Screen Mount and not using Loxit's Easy Install Kit, the user must source their own suitable fixing for the surface it is being mounted to.
Installation Context
These brackets are typically used in professional display installations where additional spacing is required between the wall and mounting structure. They allow installers to adjust positioning without altering the main frame design, making them suitable for environments with uneven surfaces or rear obstructions.
