| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FE8432 |
| Manufacturer No: | 8432 |
| Delivery: | In Stock: 5-7 Days |
 |

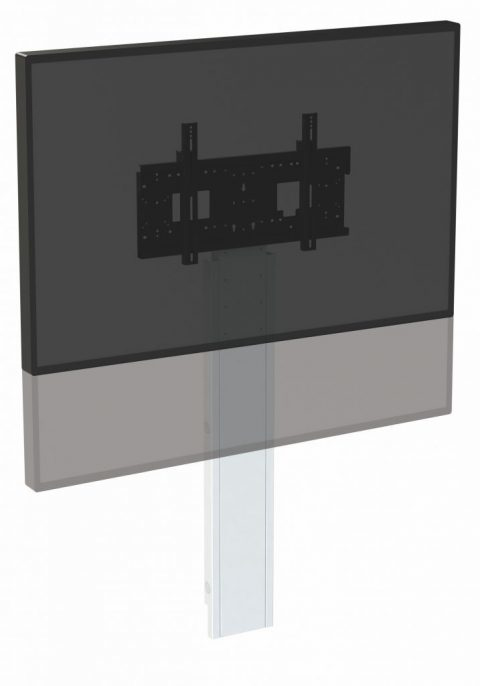

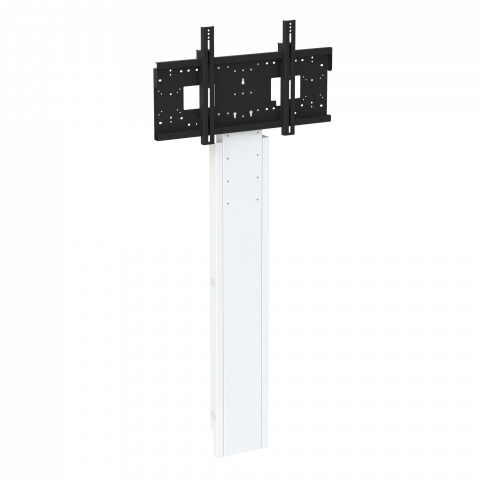

Slimline single column wall to floor screen mount incorporating vertical power/data cable management.
The Slimline Mono Wall to Floor Mount is sleek looking yet very rigid and stable with an all steel construction and welded screen mount brackets for maximum strength. Perfect for displays and touch screens up to 95".
The floor standing wall mount allows the weight of the large format display or touch screen to be taken directly to the floor meaning very little load is transferred to the wall.
Max screen weight 130kg.
Incorporating 400mm of height adjustment in 100mm increments, the allowing the screen to be positioned in the perfect fixed position, granting all users access to the display.
Standard VESA patterns suit screens up to 800mm wide x 440mm high.
For VESA mount patterns to 800mm x 600mm high specify bracket set 8975 when ordering at no extra charge.
Height from floor to centre of screen:
1310 – 1710mm
Loxit’s unique multi-point installation brackets provide multiple fixing points for a sturdy installation. Each wall fixing bracket is very strong with 2 tram lines of fixing points per bracket, resulting in 4 rows of fixings per installation. This ensures a very sturdy wall fixing installation.
The unique installation brackets are completely hidden once the installation is complete for a seamless professional looking installation.
2 integral vertical cable management trunking covers provide power and data routing to the screen either side of the mount, incorporating skirting board cut outs and cable pass through grommets at low and mid positions.
Slimline single column wall to floor screen mount incorporating vertical power/data cable management.
The Slimline Mono Wall to Floor Mount is sleek looking yet very rigid and stable with an all steel construction and welded screen mount brackets for maximum strength. Perfect for displays and touch screens up to 95".
The floor standing wall mount allows the weight of the large format display or touch screen to be taken directly to the floor meaning very little load is transferred to the wall.
Max screen weight 130kg.
Incorporating 400mm of height adjustment in 100mm increments, the allowing the screen to be positioned in the perfect fixed position, granting all users access to the display.
Standard VESA patterns suit screens up to 800mm wide x 440mm high.
For VESA mount patterns to 800mm x 600mm high specify bracket set 8975 when ordering at no extra charge.
Height from floor to centre of screen:
1310 – 1710mm
Loxit’s unique multi-point installation brackets provide multiple fixing points for a sturdy installation. Each wall fixing bracket is very strong with 2 tram lines of fixing points per bracket, resulting in 4 rows of fixings per installation. This ensures a very sturdy wall fixing installation.
The unique installation brackets are completely hidden once the installation is complete for a seamless professional looking installation.
2 integral vertical cable management trunking covers provide power and data routing to the screen either side of the mount, incorporating skirting board cut outs and cable pass through grommets at low and mid positions.
