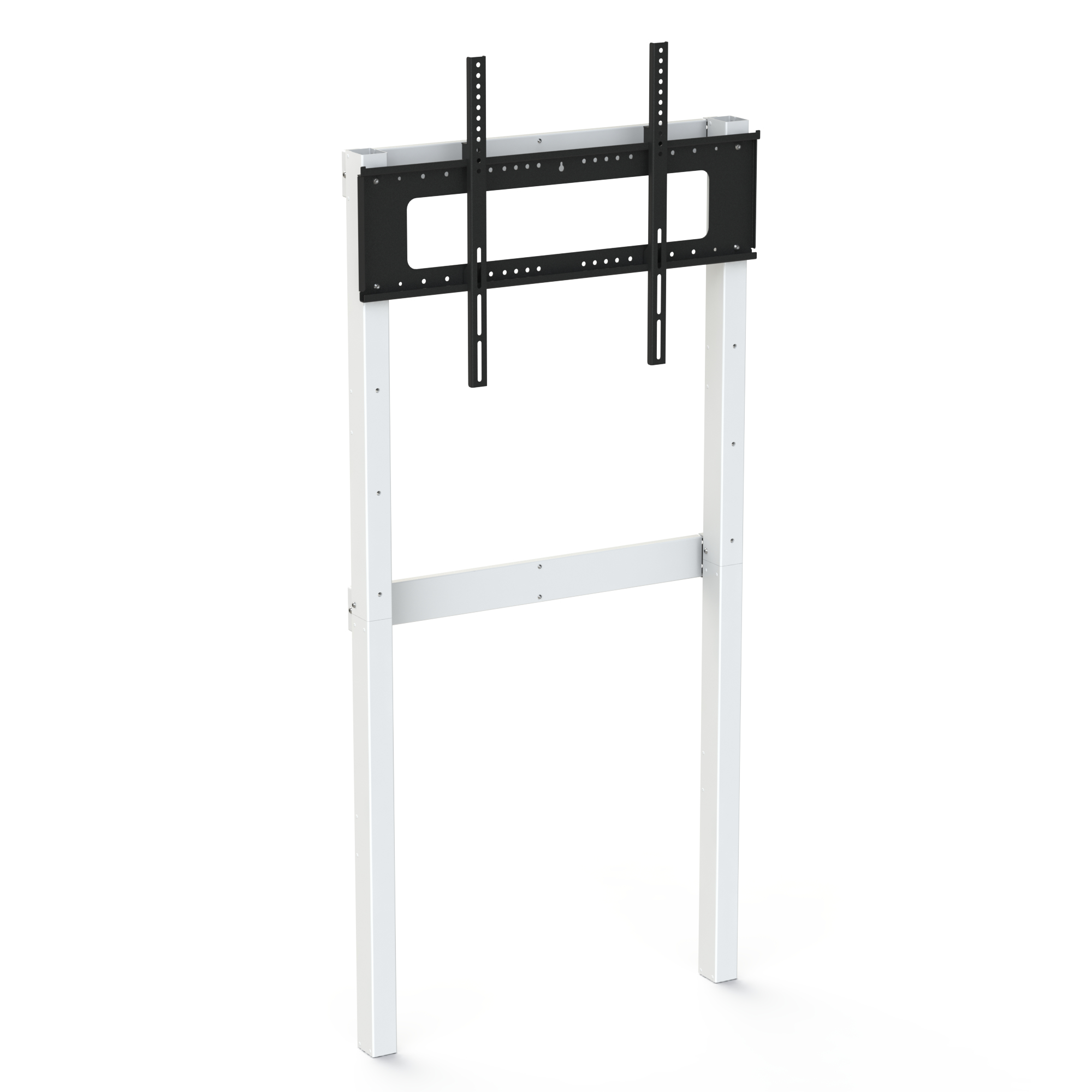

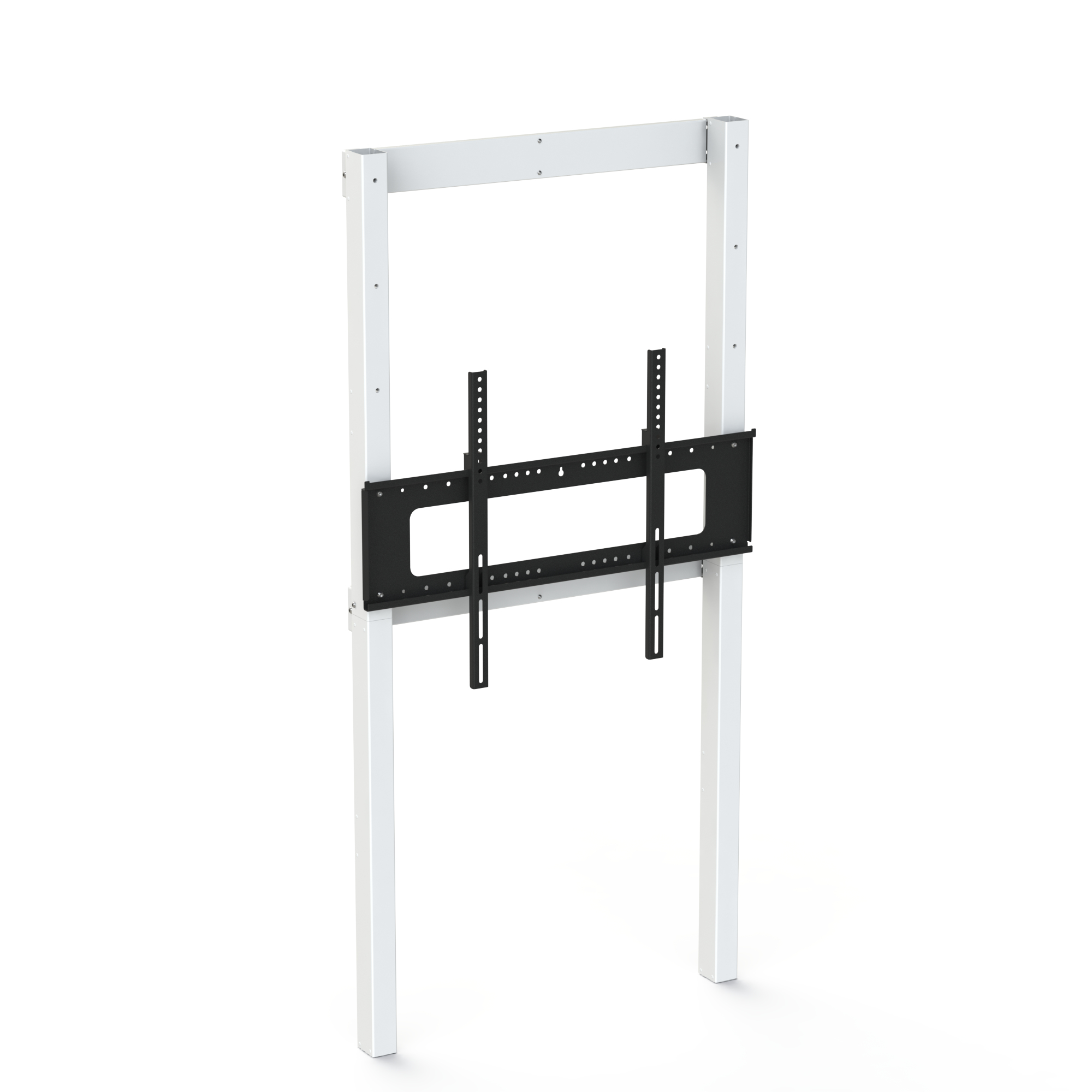

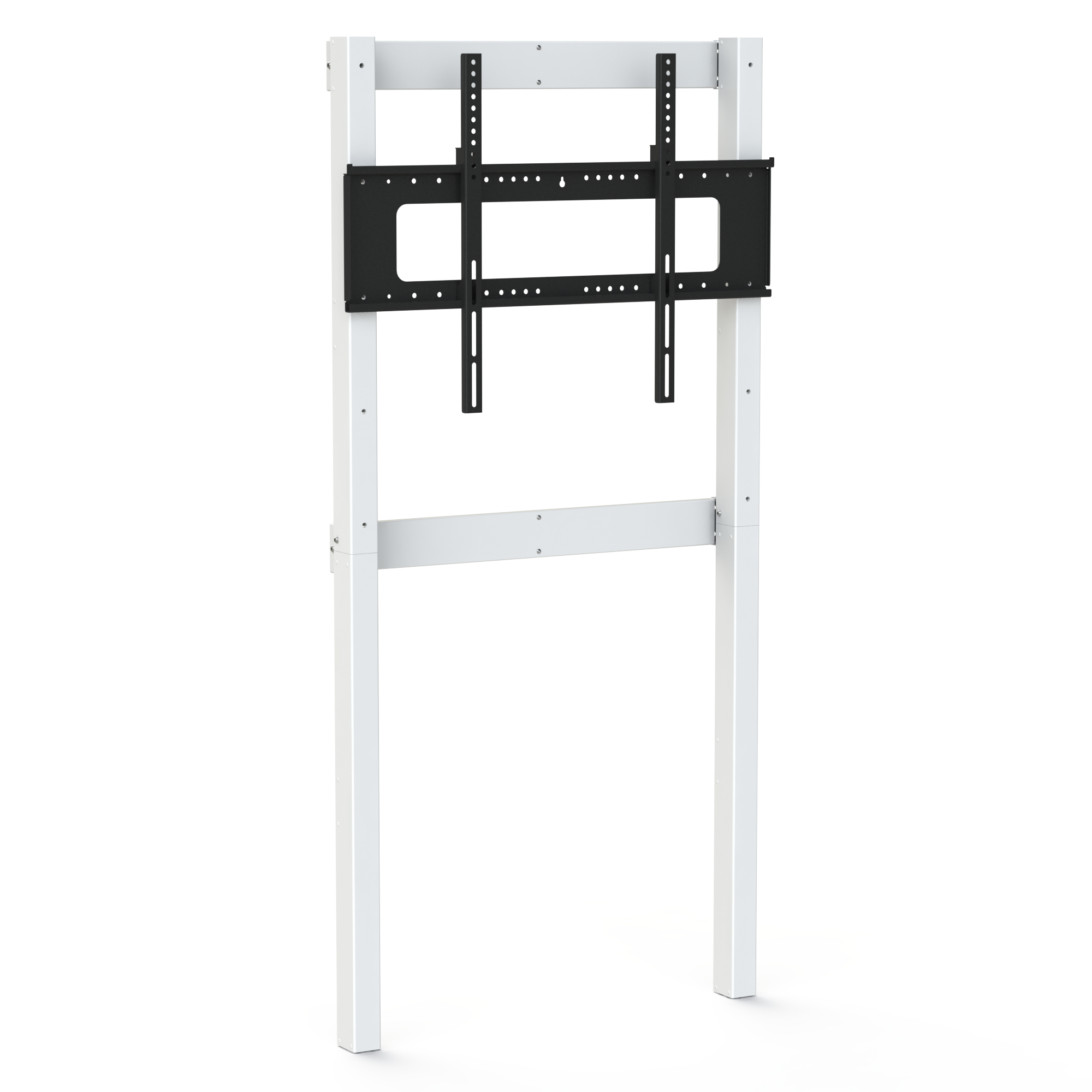

Loxit 8920 Fixed Height Slimline Wall to Floor Mount (no tilt) 1050-1650mm

The Slimline Multi-Position Fixed Height Wall to Floor Mount effectively takes the weight of heavy screens directly to the floor, reducing the loading on the wall. Particularly useful for large format displays and touch screens and where walls are constructed from stud work partitions.

Suitable for secondary schools, training rooms and large format screens where the bottom edge of the screen needs to be visible across a room.

The wide mounting rails offer a large range of fixing positions over a wide area, allowing installers to use as many fixings as required to ensure a robust installation.

The easy install kit covers are fitted after the screen installation is complete and hide the wall fixings from view, for a professional installation.

Discrete cable routing through the legs means no trailing cables.

Optional 60mm and 100mm stand-off are available if dado rail or other obstacles are present on the wall.

Height from floor to centre of screen bracket is 1050mm – 1650mm.

Max VESA pattern 800 x 600mm.

Max Screen Weight 130kg.
