The Lindy 4K30 HDMI and USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).
Please note: all modules are sold separately so you can build and scale according to your requirements.
One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.
Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.
As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.
This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.
The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.
SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.
The Lindy SDVoE controller is a fast and reliable control system for 4K60 Over IP Extender installations. This unit provides a single interface to manage large installations including multi view functions and video walls with the option to create projects to simplify the control tasks. Device management is controlled by a web based visual interface with signal preview supporting drag and drop operations making setup of the installation fast and intuitive.
Provides dual network ports to isolate Controls and Multicast networks and it can be managed also via third-party RS-232 central control.
The convenient PoE gigabit interface allows users to install the unit without connecting the included PSU.
Please note: this unit works only when connected to a 10Gigabit network where several extender transceiver units (No.38365) are connected.
IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.
The Lindy HDMI and IR over IP extender is a complete, low cost solution for extending HDMI signals across long distances via a local network setup. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding additional receivers (38399) provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.
Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. HDMI loop out port on the transmitter allows the user to connect a local display while IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.
Please Note: Use a dedicated network specially for larger installations. The HDMI over IP Extender distributes in full 1080p resolution using H.265 video compression.
SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.
The Lindy 4K60 HDMI and USB SDVoE Transceiver is a high performance AV over IP Extender for HDMI 4K60, USB, Audio, IR and RS-232 signals. It can be set either as Encoder and Decoder in order to manage a full SDVoE installation while the connection with a 10G Network Switch can be done via copper with a standard Cat.6 or above cable, or adding a SFP+ fiber optic module (not included).
Supporting resolutions up to 4K Ultra HD, uncompressed video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut.
This unit provides different features connecting in multicast mode such as seamless switching, Video Wall up to 9x9 and Muiltiview up to 25 windows.
Device management can be done with Lindy SDVoE Controller (No.38364) providing a web based visual interface with signal preview and drag-and-drop operations making setup of the installation fast and intuitive. The management can be done also through any SDVoE codec, enabling compatibility with other software and hardware streaming platforms.
In addition to HDMI signal, this Transceiver supports bi-directional IR control, USB 2.0 to connect mouse, keyboard and other USB devices, 3.5mm analog stereo for embedding end extracting audio, RS-232 control and PoE.
Please note: this unit works only when connected to a 10Gigabit network. It can be controlled with any SDVoE controller system with API support.
Extend HDMI and USB signals up to 150m via HDBaseT
The Lindy 150m Cat.6 HDMI 4K60, IR, RS232 & Audio HDBaseT KVM Receiver is one part of a high performance, reliable solution for extending AV and data signals over long distances via Cat.6 network cable.
By combining this Receiver unit with a compatible HDBaseT Wall Plate Transmitter such as Lindy No. 38387 and 38388, this solution ensures reliable transmission up to 150m.
The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:
Standard Mode (STD)
90m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Long Reach Mode (LRM)
150m: 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.
This extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.
The Lindy HDMI and IR over IP receiver is a supplementary solution for extending HDMI signals across greater distances via a local network setup and creating scalable IP installations by using multiple receivers when combined with 38398 and network equipment. As a point to point connection, the extender supports distances up to 150m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding receivers provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.
Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, good for eye catching digital signage, residential installations or AV distribution in hospitality. IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.
Please Note: Use a dedicated network specially for larger installations. The HDMI over IP Extender distributes in full 1080p resolution using H.265 video compression.
The Lindy 45m HDMI 8K60 Repeater is a high end solution for extending top-quality HDMI signals up to distances of 45m for full HD, 25m for 4K60 and 10m for 8K60 signals, while ensuring a superior reliable transmission with no degradation. This repeater supports a maximum resolution of 8K 60Hz for superior video quality, and with additional support for HDMI 2.1 features such as dynamic HDR, DSC, HFR, VRR, QMS, QFT, ALLM; automatic EQ (sharpness) adjustment will ensure an optimal signal clarity. HDCP pass-though also assures the user that all contents can be played on their display.
Featuring a sleek minimalistic design, the repeater is ideal for use with professional AV/IT setups and home cinema installations that require long length transmissions in limited space environments, or for creating a more discreet installation. The unit can be powered from the HDMI source device and also via the USB Mini-B port connecting a 5V charger if needed.
The Lindy Cat.6 HDBaseT HDMI 4K60 Wall Plate Transmitter is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38214 and 38342, this solution ensures reliable transmission up to 70m.
The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:
70m: 1920x1080@60Hz 4:4:4 8bit40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.
The Lindy 4K30 HDMI and USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).
Please note: all modules are sold separately so you can build and scale according to your requirements.
One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.
Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.
As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.
This Controller unit features dual network ports, one for network control and one for multicast video distribution, and provides control via Web GUI, TCP, RS-232, IR and GPIO. The convenient PoE gigabit interface allows users to install the unit without connecting a PSU.
The Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the dip-switch on the receiver unit.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit. Ideal for example when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers, wall plates or patch panels may result in a reduction of possible distances.
The Lindy 4K30 HDMI and USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).
Please note: All modules are sold separately so you can build and scale according to your requirements.
One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.
Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.
As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.
This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.
The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.
The Lindy 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender is an high end solution to Extend HDMI signals to 4 HDBaseT receivers (not included) using Cat.6 or above cables up to 100m.Compatible with most HDBaseT receivers on the market like N. 38342 and 38214.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as digital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone.
PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.
Please Note: Reicevers are not included, ensure to use HDBaseT receivers that support all the required features.
Overview

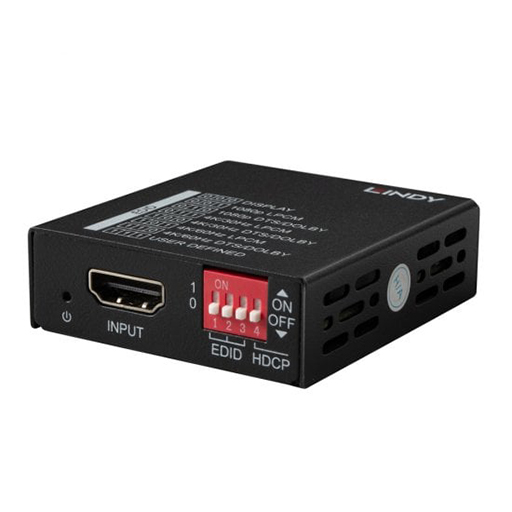

The Lindy 50m HDMI 2.0 18G Repeater is a high end solution for extending high quality HDMI signals up to distances of 50m, while ensuring a superior reliable transmission with no degradation
This repeater supports a maximum resolution of 3840x2160@60Hz for superior full colour 4K video quality, and with additional support for High Dynamic Range, the users 4K HDR content can be viewed with enhanced contrast and more lifelike colour
HDCP pass-though also assures the user that all 4K content can be played on their display.
Featuring a sleek minimalistic design, the repeater is ideal for use with professional AV/IT setups and home cinema installations that require long length transmissions in limited space environments, or for creating a more discreet installation
The single female HDMI ports are perfect for connecting a range of HDMI source devices such as next generation games consoles and 4K Blu-Ray players to 4K HDMI displays and projector, easily set up via two long length HDMI 2.0 18G cables.
Product Details
Extends HDMI 2.0 18G signals over 50m
Supports resolutions up to 3840x2160p@60Hz 4:4:4
High Dynamic Range support for enhanced contrasts and 10-bit colour performance
Minimalistic, compact design
2 year warranty
Overview
Designed to distribute HD video signals over long distances the HDMI over IP Extender is a cost effective solution for digital signage, presentation and demonstration applications
The HDMI over IP Extender is capable of broadcasting 1080p Full HD over a standard network*, in 1 to 1, 1 to many and many to many configurations
Using up to 3 layers of active network equipment to distribute signals the HDMI over IP Extender is ideal for distributing video content throughout large buildings such as schools, hotels, hospitals, shops, shopping centres and business premises.
In addition the Transmitter and Receiver units can be directly connected using a CAT6 cable of up to 100m, to create a low cost 100m HDMI and IR Extender.
Please Note: The HDMI over IP Extender distributes in full 1080p resolution using a form of video compression which is barely perceptible. Presentations and static desktop displays/images will have a similar loss of sharpness similar to standard JPEG compression.
Product Details
Additional receiver for HDMI over IP Ethernet IP Extender (38126)
Extend HDMI signals over a Ethernet* Network or 100m using a single CAT6 Cable
Supports 1 to 1, 1 to Many and Many to Many configurations via Ethernet*
Designed for digital signage, presentations and demonstrations
Supports resolutions up to 1080p with 8 bit colour and HDCP
2 Year Warranty
*Please Note: Either use a dedicated network, or network components which support port based VLAN.

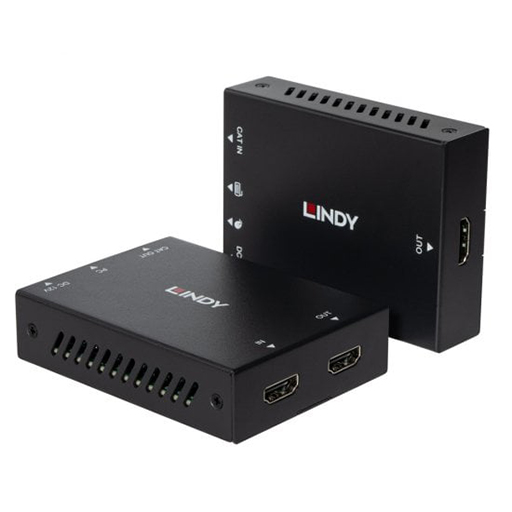

70m Cat.6 HDMI 4K30 & IR Extender with PoC & Loop Out
Key Features:
Extends HDMI & IR Signals up to 70m using a single Cat.6 Cable
Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit
Features a loop-through HDMI output on the Transmitter for local monitoring
Supports power over Cable, only a single power supply is required
2-year warranty
Cat.6 extenders allow for cost effective, reliable extension of audio or video signals over longer distances that are not possible with passive cable or active repeater solutions.
The Lindy 70m Cat.6 HDMI 4K30 & IR Extender is a simple to use solution which lets the user extend HDMI signals up to 70m using a single low cost Cat.6 U/UTP cable (not included). For added convenience, IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables.
Supporting 4K resolutions up to 3840x2160@30Hz 4:4:4 8bit, video content can be seen with incredible clarity at distances up to 70m, perfect for use in a variety of AV and digital signage applications in a range of settings including residential setups, education, business, retail and healthcare.
This extender features an HDMI loop-out port on the transmitter for local simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone. To ensure the maximum compatibility when two displays are connected, the EDID data, which determines the supported video and audio formats, can be copied from either the local display connected to the transmitter or the remote display connected to the receiver.
Power over Cable (PoC) functionality enables the extender to operate from a single power supply connected to the transmitter, allowing the receiver to be located where there is limited access to mains power sockets, making it ideal for minimalist, discreet installations.
In addition to PoC functionality the extenders slim design allow it to be easier to install in limited spaces behind flat screen monitors or TVs.
Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Specifications:
AV Interface: HDMI
Interface Standard: HDMI 1.4
Supported Bandwidth: 10.2Gbps
Maximum Distance: 70m (229.66ft) - 1920x1080@60Hz, 40m (131.23ft) - 3840x2160@30Hz 4:4:4 8bit
Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit
HDCP Support: HDCP 1.4
EDID Pass Through: EDID Copy Functionality
Supported Audio: Up to 7.1 (Pass-through)
IR Support: 20-60kHz
Transmission Medium: 1 x Cat.6
Chipset: GSV1001
Special Features: PoC (Power over Cable), IR Pass-through, Loop Out
Transmitter Input: HDMI Type A (Female)
Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female)
Receiver Input: RJ-45 (Female), IR (Female)
Receiver Output: HDMI Type A (Female)
Power: 5.5/2.1mm
Dimensions (approx.) WxDxH: 79.5x16.5x69mm (3.13x0.65x2.72in)
Housing Material: Metal
Net Weight: 0.13kg (0.29lb) per unit
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (no condensation)
Power Requirements: 12VDC 1A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 200x70x113mm (7.87x2.76x4.45in)
Gross Weight: 0.414kg (0.91lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & California Proposition 65
Package Contents:
Transmitter
Receiver

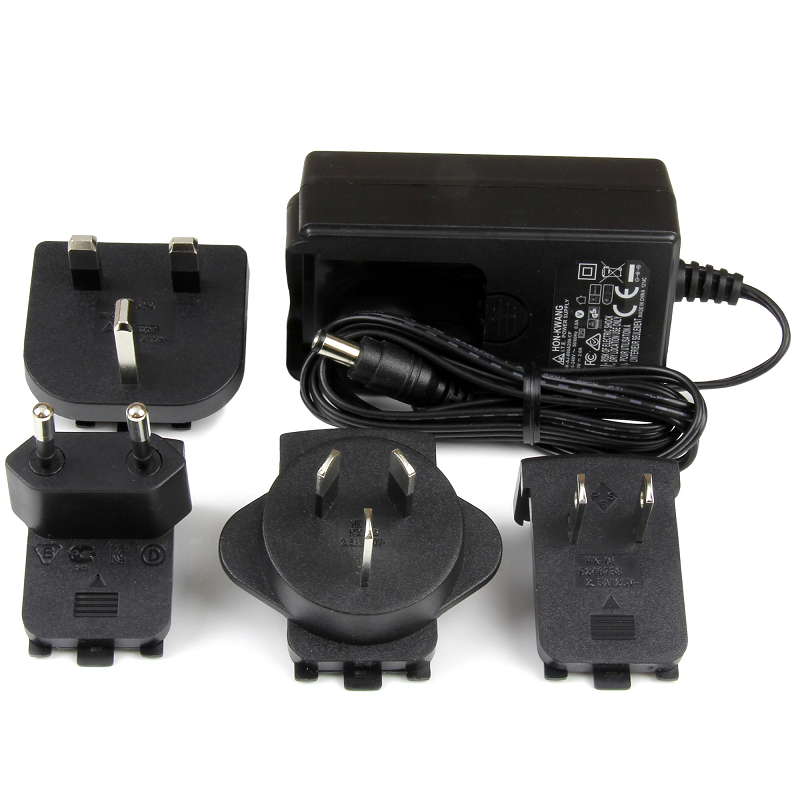

Multi-country Power Supply (UK, EU, US & AUS)
IR Transmitter
IR Receiver
Lindy Manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
HDMI over Powerline Extender, Receiver
Key Features:
Extends HDMI signals over a single powerline circuit
Receive HDMI signals and distribute to up to 3 displays using multiple receivers
Supports resolutions up to Full HD 1920x1080@60Hz
Receive IR signals from the display side of the setup
2-year warranty
HDMI over Powerline extenders provide a useful solution for extending HDMI content to one or more displays within one electrical circuit.
The Lindy HDMI over Powerline Receiver is one part of a high-quality solution for extending HDMI content from a source device to a display using a single electrical power circuit. Combined with the compatible transmitter unit, this extender provides simple, hassle-free content distribution within small office, store front or residential setups.
Supporting resolutions up to 1920x1080@60Hz ensuring excellent Full HD quality for the user. This device is ideal for sharing video and audio content into bedrooms, home offices or small-scale digital signage using pre-existing electrical wiring.
Up to 3 compatible receivers can be connected to a single transmitter allowing for larger scale distribution to multiple displays. A 3.5mm IR connection also allows for simple control from the display side of the setup.
Specifications:
AV Interface: HDMI
Interface Standard: 1.3
Supported Bandwidth: 6.75Gbps
Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
HDCP Support: 1.4
EDID Pass Through: Pass-through
Supported Audio: LPCM 2CH
IR Support: 20-60kHz
Transmission Medium: IEC
Chipset: ITE
Special Features: Output to 3 Receivers
Receiver Input: 3.5mm IR (Female), IEC C6 (Male)
Receiver Output: HDMI Type A (Female)
Power : IEC C6 (Male)
Physical Properties
Dimensions (approx.) WxDxH: 135x29x96.5mm (5.31x1.14x3.8in)
Housing Material: Metal
Net Weight: 1.058kg (2.33lb)
Operating Temperature: 32°C - 104°C (90°F - 219°F)
Storage Temperature: -4°C - 104°C (25°F - 219°F)
Humidity: 20 -90% RH (non-condensing)
Power Requirements: 100-240 VAC
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 262x80x150mm (10.31x3.15x5.91in)
Gross Weight: 1.273kg (2.81lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & California Proposition 65
Package Contents:
HDMI over Powerline Extender, Receiver
IR Receiver Cable, 1.5m
Multi-country C5 Power Cables (UK, EU, US & AUS)
Lindy Manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
Overview
The Lindy 70m Cat.6 HDMI & IR HDBaseT Extender with PoC is an end to end solution for extending HDMI signals over long distances via Cat.6 network cable.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
70m: 1920x1080@60Hz 4:4:4 8bit
40m: 3840x2160@60Hz 4:2:0 8bit / 30Hz 4:4:4 8bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, providing a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. RS-232 pass-through also allows for integration into larger control systems.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Product Details
Distributes HDMI resolutions up to 70m over Cat.6 network cable via HDBaseT technology
Supports HDMI 10.2G resolutions up to 4K@30Hz 4:4:4
CEC pass-through and bi-directional IR for simple control
Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
2 year warranty
Overview
The Lindy 70m Cat.6 4 Port HDMI & IR Splitter Extender is a simple to use plug and play solution that allows users to extend an HDMI signal up to 70m and then distribute that signal to four displays using low cost Cat.6 UUTP cable (not included)
For added convenience IR signals (20-60kHz) can also be extended using the supplied IR receiver and emitter cables.
Supporting resolutions up to 4K30, including 1080p 3D, the Splitter Extender is designed for use in AV and digital signage applications for a variety of settings such as home, education, business, retail and healthcare.
An integrated HDMI loop-through output on the transmitter unit enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone
For larger installations, the HDMI loop-through port can also be used to cascade up to 3 transmitters allowing up to 12 displays to be connected to a single source.
The HDMI loop-through port also allows the Splitter Extender to clone the EDID of a connected display
An integrated EDID emulation system provides 9 EDID presets for ultimate compatibility with a variety of EDID enabled devices.
Power over Cable (PoC) functionality provides power for the complete installation using only a single power supply connected to the transmitter - a perfect solution for retro fit installations where receivers may be located away from a mains power supply
The power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur
For added convenience the Splitter Extender's slim design and integrated mounting brackets make it easy to install in limited spaces behind modern flat screen displays.
Product Details
An advanced Splitter Extender that extends and distributes HDMI & IR signals to 4 displays at distances of up to 70m
Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit, including FullHD
Features a loop-through HDMI output on the transmitter for local monitoring/cascading
Supports power over Cable (PoC), only a single power supply is required for operation
2 year warranty
100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Transmitter
Key Features:
Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
ARC Support as well as RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
2-year warranty
The Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Transmitter is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. By combining this transmitter unit with a compatible Lindy HDBaseT receiver (i.e 38342), this solution ensures reliable transmission up to 100m.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
100m: 1920x1080@60Hz 4:4:4 8bit
70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low-cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.
Specifications:
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance:
70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
100m (328.08ft) - 1920x1080@60Hz
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass Through: Pass-through
Supported Audio: HDMI Audio Pass-through
Separate Audio Ports: TosLink (Optical), 3.5mm
IR Support: 20-60kHz
CEC Support: Pass-through
Serial Interface: RS-232
Transmission Protocol: HDBaseT
Transmission Medium: Cat.6
Chipset: VS2310TX-A1
Special Features:
HDMI Loop Out Port
PoC (Power over Cat.6)
ARC Support
Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female)
Transmitter Output: RJ-45 (Female),TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
Power: 5.5/2.1mm
Dimensions (approx.) WxDxH: 163x90x16mm (6.42x3.54x0.63in)
Housing Material: Metal
Net Weight: 0.38kg (0.84lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 24VDC 1A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 220x70x130mm (8.66x2.76x5.12in)
Gross Weight: 0.80kg (1.76lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents:
HDBaseT HDMI Extender, Transmitter
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
2 x Mounting Ears & 4 x Screws
3-Pin Terminal Block
Multi-country Power Supply (UK, EU, US & AUS)
Lindy Manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
Overview
HDMI fibre optic extenders provide reliable extension of HDMI signals over greater distances that are not possible with passive or network cabling solutions. Fibre cable also provide high immunity to RF and EM interference, making this ideal for use in industrial or other high interference installations.
The Lindy Fibre Optic HDMI 4K30 Extender is a cost effective, high performance solution for sending reliable HDMI signals over longer distances using low cost fibre optic cable.
Supporting a maximum resolution of 3840x2160@60Hz, video content can be seen with incredible 4K UHD clarity at distances up to 300m, perfect for use in commercial situations that require the source and display to be positioned far apart that may also include video wall setups or presentation equipment, as well as other applications in pro-AV and digital signage
With support for multi-channel audio, this device will ensure an impressive three-dimensional surround sound performance to compliment video content.
As opposed to other extender solutions, this system requires only a single OM3 LC duplex multimode (50/125µm) fibre cable, which can be detached from the transmitter and receiver, also ensuring cabling can be ran though smaller spaces for a simple installation process.
The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the HDMI source and display. This allows each device to be connected to a range of source devices including media players and Blu-ray players to display monitors and Tvs.
The modules are then connected together using a single, standard LC duplex single mode fibre cable of up to 300m in length (fibre optic cable is not included).
Product Details
Extend HDMI signals at distances of up to 300m using a single LC multimode mode fibre cable
Supports resolutions up to 3840x2160p@60Hz 4:2:0 8bit
10.2 Gbps Total Bandwidth over Single 2-core Fibre Optic Cable Link
Supports lossless audio formats including Dolby TrueHD and DTS-HD
2 year warranty
70m Cat.6 4 Port HDMI 4K60 Splitter Extender
Key Features:
Distribute 4K HDMI signals to up to 4 displays in multiple locations
Supports resolutions up to 4K@60Hz, with additional support for HDR
Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs
Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation
2-year warranty
The Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI signals to multiple displays using standard Cat.6 network cables.
Scalable Content Distribution
This Cat.6 splitter allows for distribution to up 4 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local HDMI output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters for even larger scale content distribution.
Immersive 4K and HDR Support
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.
Seamless IR Control
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.
Simultaneous PoC Distribution
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
Specifications:
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance: 70m (229.66ft)
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID management: default 4K60, downscale function to Full HD, copy function from loop-out port
Supported Audio: LPCM 2CH, up to 5.1 copying EDID from loop out port
IR Support: 20-60KHz
Transmission Medium: 1 x Cat.6
Chipset: GSV2006 & GSV5100
Special Features: PoC (Power over Cable)
Transmitter Input: HDMI Type A (Female)
Transmitter Output: 4 x RJ-45 (Female), HDMI Type A (Female), 3.5mm IR (Female)
Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
Receiver Output: HDMI Type A (Female)
Power: 5.5/2.1mm
Dimensions (approx.) WxDxH: Transmitter: 180x103x23mm (7.09x4.06x0.91in) , Receiver: 100x88x23mm (3.94x3.46x0.91in)
Housing Material: Metal
Net Weight: Transmitter: 0.39kg (0.86lb), Receiver: 0.199kg (0.44lb)
Operating Temperature : 0°C - 50°C (32°F - 122°F)
Storage Temperature: -10°C - 80°C (14°F - 176°F)
Humidity: 5 - 90% RH (non-condensing)
Power Requirements: 12VDC 2A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 423x60x354mm (16.65x2.36x13.94in)
Gross Weight: 2kg (4.41lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, RoHS, REACH & California Propositon 65
Package Contents:
70m Cat.6 4 Port HDMI 18G Splitter Extender
4 x Cat.6 HDMI 18G Receivers
IR Emitter Cable, 1.2m
4 x IR Receiver Cable, 1.2m
2 x Transmitter Mounting Brackets & Screws
8 x Receiver Mounting Brackets & Screws
Multi-country Power Supply (UK, EU, US & AUS)
Lindy Manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
150m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender
Key Features:
Distributes HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT & Long Reach technology
Supports HDMI 18G resolutions up to 4K 3840x2160@60Hz 4:4:4, with additional support for HDR
RS-232, CEC pass-through and bi-directional IR for simple control
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
2-year warranty
The Lindy C6 HDBaseT HDMI 18G & IR Extender is a complete high-performance solution for extending HDMI signals over long distances via Cat.6 network cable. Combined this extender provides high quality content distribution up to distances of 150m.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
150m (492.12ft) - 1280x720@60Hz via Long Reach Mode
100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit
70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
Supporting resolutions up to 4K UHD 3840x2160@60Hz, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls. An HDMI loop out port provides additional capability for connecting a local display for monitoring of the video content in security or close-range distribution in residential installs, while simultaneously extending the signal to the receiver.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user.
Terminal blocks allow for pass-through of RS-232 commands when integrated into control systems.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low-cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.
Specifications:
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance:
70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit
150m (492.12ft) - 1280x720@60Hz
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass Through: Pass-through
Supported Audio: HDMI Audio Pass-through
IR Support: 20-60kHz
CEC Support: Pass-through
Serial Interface: RS-232
Transmission Protocol: HDBaseT
Transmission Medium: Cat.6
Chipset: VS010-A0
Special Features:
HDMI Loop Out Port
PoC (Power over Cat.6)
Transmitter Input: HDMI Type A (Female), IR (Female)
Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female)
Receiver Input: RJ-45 (Female)
Receiver Output: HDMI Type A (Female), 3.5mm (Female)
Bi-directional Ports: RS-232 (Female)
Power: 5.5/2.1mm
Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in)
Housing Material: Metal
Net Weight: 0.472kg (1.04lb) Per Unit
Operating Temperature : 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 24VDC 1A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 245x75x185mm (9.65x2.95x7.28in)
Gross Weight: 1.45kg (3.2lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents:
HDBaseT HDMI Extender, Transmitter
HDBaseT HDMI Extender, Receiver
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
4 x Mounting Ears
2 x 3-Pin Terminal Block
Multi-country Power Supply (UK, EU, US & AUS)
Lindy Manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender
Key Features:
Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
ARC Support as well as RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
2-year warranty
The Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
100m: 1920x1080@60Hz 4:4:4 8bit
70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low-cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.
Specifications:
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance:
70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
100m (328.08ft) - 1920x1080@60Hz
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass Through: Pass-through
Supported Audio: HDMI Audio Pass-through, TosLink (Optical) Up to 5.1Ch, 3.5mm Up to 2.0Ch
Separate Audio Ports: TosLink (Optical), 3.5mm
IR Support: 20-60kHz
CEC Support: Pass-through
Serial Interface: RS-232
Transmission Protocol: HDBaseT
Transmission Medium: Cat.6
Chipset: VS2310TX-A1
Special Features:
HDMI Loop Out Port
PoC (Power over Cat.6)
ARC Support
Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female)
Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female)
Receiver Output: HDMI Type A (Female), 3.5mm IR (Female)
Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
Power: 5.5/2.1mm
Dimensions (approx.) WxDxH: 163x90x16mm (6.42x3.54x0.63in) per unit
Housing Material: Metal
Net Weight: 0.77kg (1.7lb)
Operating Temperature : 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 24VDC 1A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 265x70x210mm (10.43x2.76x8.27in)
Gross Weight: 1.28kg (2.82lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents:
HDBaseT HDMI Extender, Transmitter
HDBaseT HDMI Extender, Receiver
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
4 x Mounting Ears & 8 x Screws
2 x 3-Pin Terminal Block
Multi-country Power Supply (UK, EU, US & AUS)
Lindy Manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
300m Fibre Optic HDMI 4K60 Extender
Key Features:
Extends HDMI signals up to 300m using a single LC multi-mode cable
Supports resolutions up to 4K Ultra HD @ 60Hz
Experience an expanded range of contrasts and colours with HDR (High Dynamic Range)
Supports lossless HDMI audio formats including Dolby Atmos & DTS-X
2-year warranty
The Lindy Fibre Optic HDMI 4K60 Extender is an effective, reliable solution for extending 4K UHD HDMI transmissions over incredible distances up to 300m using duplex LC OM3 multi-mode (50/125µm) fibre optic cable.
The extender can transmit full 4K@60Hz signals, using smart methods of compression which decompresses the video at the receiver, allowing for distribution of visually lossless UltraHD content. With HDR (High Dynamic Range) support, content can be seen enhanced contrast, and a much wider colour gamut, perfect for a true home cinema experience or eye-catching digital signage in retail settings. HDCP 2.2 compatibility allows protected 4K UHD content, including Blu-Ray movies, TV shows & streaming services to be enjoyed without issue.
Support for lossless audio formats including Dolby Atmos & Dolby TrueHD adds powerful multi-channel sound to video content, providing an enhanced experience and sense of realism to the viewer.
The use of cost-effective LC OM3 multi-mode fibre optic cabling allows for the transmission of high bandwidth audio and video signals over incredible distances, far greater than is achievable with traditional copper-based extension systems. Fibre optic cables are also completely immune to any electromagnetic and radio frequency interference which makes this extender an ideal solution for installations within environments susceptible to high interference such as medical, aerospace and manufacturing facilities. The cables size and flexibility also allow for easy installation under floors and within wall partitions.
The integrated HDMI fly-lead, low power requirement and super slim form factor provide invaluable flexibility when incorporating this extender into new and existing installations. This built-in flexibility allows each module to be placed in a convenient location near the source and display without blocking ports and creating a discreet installation. The transmitter and receiver can be connected and powered by a variety of HDMI source and display devices such as Blu-Ray players, 4K HDR media players and projectors using the included USB Micro-B cable.
Specifications:
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance: 300m (984.24ft)
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: Pass-through
EDID Pass Through: Pass-through
Supported Audio: Pass-through
Transmission Medium: 1 x Duplex LC (50/125µm)
Laser Class (only for Fibre): 1
Wavelength (only for Fibre): 850nm
Special Features: Auto Laser Disabling Function
Transmitter Input: HDMI Type A (Male)
Transmitter Output: Duplex LC
Receiver Input: Duplex LC
Receiver Ouput: HDMI Type A (Male)
Power: USB Micro-B
Dimensions (approx.) WxDxH: 30x124.5x11.3mm (1.18x4.9x0.44in) per unit
Housing Material: Metal
Net Weight: 0.145kg (0.32lb) per unit
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: 10°C - 70°C (14°F - 158°F)
Humidity: 0-85% RH (non-condensing)
Power Requirements: 5V DC 1A
Colour: Black
Packaging Type: Carton box
Packaging Dimensions: 220x50x160mm (8.66x1.97x6.3in)
Gross Weight: 0.56kg (1.23lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents:
Transmitter unit
Receiver unit
2 x 1m USB A/Micro-B cable
Lindy manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
Overview
The Lindy 300m/1000m Fibre Optic HDMI & IR Extender is a high performance solution for extending 4K 60Hz Ultra HD transmissions over incredible distances, which are not possible with traditional copper based systems, using a single standard LC simplex fibre optic cable.
Support for the HDMI 2.0 specification allows for the transmission of highly detailed 4K Ultra HD resolutions, using smart methods of compression, which decompresses the signal at the receiver for a visually lossless picture
Also providing support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for creating eye-catching digital signage in retail, impressive residential installations or taking sports venue distribution to new immersive levels
HDCP 2.2 compatibility also means that protected 4K content including movies and TV shows can be viewed without issue.
As opposed to the use of copper based extension systems, the use of fibre optic cable also ensures immunity to RF and EMI, providing a stable signal in ‘noisy’ retail or industrial environments which can have a high interference from electronics.
With the ability to extend signals up to 1000m the extender provides huge installation flexibility, the transmitter can be easily connected to a variety of HDMI source devices such as Blu-Ray players, 4K HDR media players or PC's in a convenient location, while the receiver can be placed in a suitable viewing area along with a 4K display or projector. The included mounting brackets also allow for a neat installation under desks or discreetly hidden behind displays.
Featuring bi-directional IR and RS-232 ports, the extender provides the capability for source equipment to be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device, great for providing simple, flexible control over the installation for the user. The support for RS-232 enables the extension of control signals as part of a larger installation.
Product Details
Extends HDMI 2.0 18G signals up to 300m over a simplex LC multimode cable or up to 1000m over a simplex LC singlemode cable
Supports resolutions up to 4K 60Hz Ultra HD, with High Dynamic Range
Bi-directional IR or RS-232 for seamless, flexible control
HDCP 2.2 support to ensure maximum compatibility
2 year warranty
100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Receiver
Key Features:
Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
ARC Support as well as RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
2-year warranty
The Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Receiver is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. By combining this receiver unit with a compatible Lindy HDBaseT transmitter (i.e 38341), this solution ensures reliable transmission up to 100m.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
100m: 1920x1080@60Hz 4:4:4 8bit
70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.
Specifications:
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Distance:
70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
100m (328.08ft) - 1920x1080@60Hz
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass Through: Pass-through
Supported Audio: HDMI Audio Pass-through
Separate Audio Ports: TosLink (Optical), 3.5mm
IR Support: 20-60kHz
CEC Support: Pass-through
Serial Interface: RS-232
Transmission Protocol: HDBaseT
Transmission Medium: Cat.6
Chipset: VS2310TX-A1
Special Features:
PoC (Power over Cat.6)
ARC Support
Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female)
Receiver Output: HDMI Type A (Female), 3.5mm IR (Female)
Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
Power: 5.5/2.1mm
Dimensions (approx.) WxDxH: 163x90x16mm (6.42x3.54x0.63in)
Housing Material: Metal
Net Weight: 0.38kg (0.84lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 24VDC 1A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 220x70x130mm (8.66x2.76x5.12in)
Gross Weight: 0.80kg (1.76lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents:
HDBaseT HDMI Extender, Receiver
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
2 x Mounting Ears & 4 x Screws
3-Pin Terminal Block
Multi-country Power Supply (UK, EU, US & AUS)
Lindy Manual
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
- Review: The 10 Best Wireless Access Points
- Review: The Top 10 Best Ethernet Cables
- What Is An Ethernet Cable And What Does It Do?
- 10 Best CCTV Security IP Cameras For Home & Business
- Review: Best Powerline Adapters In The UK
- Celebrating 20 Years Of Comms Express!
- The Top 10 DrayTek Wireless Access Points
- Best Selling APC Products At Comms Express
- Review: Top 5 Best Performing APC Uninterruptible Power Supply Units (UPS)
- Review: Top 10 Best PDU’s
