Lindy DisplayPort Cables

Lindys range of Fibre Optic Hybrid DisplayPort cables are a high quality, advanced solution for creating longer length DisplayPort connections, not possible with standard copper only cables while also offering a lower cost alternative to fibre optic extender systems that can be directly connected to the source and display, with no requirement for additional cabling.

With a premium fibre and copper hybrid construction, signals are transmitted with no degradation, while also providing resistance to electro-magnetic and radio-frequency interference, perfect for integration into high noise environments including industrial or retail settings.

Support for resolutions up to 4K@60Hz and HDR ensures video can be viewed with flawless quality, enhanced brightness and a wider colour gamut, ideal for eye-catching digital signage in retail or engaging educational content in universities.

Features



Create a longer distance connection between a DisplayPort source and display
Copper and fibre optic hybrid construction for uncompressed signals and high EMI & RF resistance
Supports resolutions up to 4K@60Hz 4:4:4 10bit
DPCP support to ensure maximum compatibility
2 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material Zinc Alloy Pin Construction Phosphor Copper Pin Plating 24K Gold 15µm Connector Plating 24K Gold 3µm Dimensions WxDxH
(approx.) 20x37x13mm (0.79x1.46x0.51in) Cable Construction Lengths Available 40m, 70m and 100m Colour Black Standard DisplayPort 1.2 Jacket Diameter 4.8mm (0.19in) Jacket Material PVC Conductor Material Fibre / Copper Specifications Supported Bandwidth 21.6 Gbps Maximum Resolution 4096x2160@60Hz 4:4:4 10bit Nominal Attenuation: 850nm <3.5dB
1300nm <1.2dB Minimum Bend Radius 60mm (2.36in) Operating Temperature 0°C - 50°C Storage Temperature -20°C - 70°C

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.

Features



Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
Robust ABS housing 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
DisplayPort 1.4, 32.4Gbps
10 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material ABS Pin Construction Phosphor Bronze Pin Plating 24K Gold 3µm Connector Plating 24K Gold 15µm Dimensions WxDxH
(approx.) 21.0x38.9x13.6mm (0.83x1.53x0.54in) Cable Construction Lengths Available 0.5m, 1m and 2m Colour Black Standard DisplayPort 1.4 Jacket Diameter 7.3mm (0.29in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge 28AWG Type Round Shielding Shielding Copper Braid: 65% Specifications Supported Bandwidth 32.4 Gbit/s Maximum Resolution 7680x4320@60Hz 4:2:2 8bit
4096x2160@144Hz 4:2:2 10bit Nominal Attenuation: 100MHz-450MHz <5.1dB
450MHz-8100MHz <33.28dB Minimum Bend Radius 58.4mm (2.14in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 85°C

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Specifications



Professional choice DisplayPort 1.2 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit
Robust ABS housing 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
DisplayPort 1.2, 21.6Gbps
10 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material ABS Pin Construction Phosphor Bronze Pin Plating 24K Gold 3µm Connector Plating 24K Gold 15µm Dimensions WxDxH
(approx.) 21.0x38.9x13.6mm (0.83x1.53x0.54in) Cable Construction Lengths Available 3m, 5m, 7m and 10m Colour Black Standard DisplayPort 1.2 Jacket Diameter 7.3mm (0.29in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge 28AWG Type Round Shielding Shielding Copper Braid: 65% Specifications Supported Bandwidth 21.6 Gbit/s Maximum Resolution 4096x2160@120Hz 4:2:2 8bit Nominal Attenuation: 100MHz-450MHz <5.1dB
450MHz-8100MHz <33.28dB Minimum Bend Radius 58.4mm (2.14in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 85°C

From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@120Hz 4:4:4 8bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.

Specifications



No compromise, ultimate performance DisplayPort cable for demanding environments and mission critical systems
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit
Full metal 24K gold plated housing, 24K gold plated connectors and contacts
Low attenuation triple shielded cable, corrosion resistant, high performance OFC 24AWG conductors
DisplayPort 1.4 compliant: 3D, 8K, 4K, 32.4Gbps, DisplayPort Certified
25 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material 24 Gold Plated Zinc Alloy Connector Plating 24K Gold 3µm Pin Construction Phosphor Bronze Pin Plating 24K Gold 15µm Dimensions WxDxH
(approx.) 19.8x42.5x12.5mm (0.78x1.67x0.49in) Cable Construction Lengths Available 0.5m, 1m, 2m and 3m Colour Grey Standard DisplayPort 1.4 Jacket Diameter 9mm (0.35in) Jacket Material PVC Conductor Material OFC Copper Conductor Gauge 24AWG Type Round Shielding Copper Braid 85% Specifications Supported Bandwidth 32.4 Gbit/s Maximum Resolution 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@120Hz 4:4:4 8bit Nominal Attenuation: 300kHz-825MHz Minimum Bend Radius 90mm (3.5in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 80°C

From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@120Hz 4:4:4 8bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.

Specifications



Professional choice DisplayPort 1.2 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit
Robust ABS housing 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
DisplayPort 1.2, 21.6Gbps
10 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material 24 Gold Plated Zinc Alloy Connector Plating 24K Gold 3µm Pin Construction Phosphor Bronze Pin Plating 24K Gold 15µm Dimensions WxDxH
(approx.) 19.8x42.5x12.5mm (0.78x1.67x0.49in) Cable Construction Lengths Available 5m, 7.5m, 10m, 20m and 30m Colour Grey Standard DisplayPort 1.2 Jacket Diameter 9mm (0.35in) Jacket Material PVC Conductor Material OFC Copper Conductor Gauge 24AWG Type Round Shielding Copper Braid 85% Specifications Supported Bandwidth 21.6 Gbit/s Maximum Resolution 4096x2160@60Hz 4:4:4 8bit Nominal Attenuation: 300kHz-825MHz Minimum Bend Radius 90mm (3.5in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 80°C

From the Lines cable connectivity concept developed by Lindy, Cromo Line DisplayPort cables are high performance, designer connections that combine premium construction materials with striking connector architecture.

Cromo Line DisplayPort Cables feature triple shielded construction with 28AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@160Hz 8bit, are supported. Cromo Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.

Specifications



Superior performance and design DisplayPort cable
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@160Hz 4:4:4 8bit
Chrome design ABS housing, 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant, high performance tinned copper 28AWG conductors
DisplayPort 1.4, 8K, 4K, 3D, 32.4Gbps
10 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material Chrome Plated ABS Plastic Connector Plating 24K Gold 3µm Pin Construction Phosphor Copper Pin Plating 24K Gold 15µm Dimensions WxDxH
(approx.) 19.7x12x38.9mm (0.77x0.47x1.53in) Cable Construction Lengths Available 0.5m, 1m and 2m Colour Grey Standard DisplayPort 1.4 Jacket Diameter 7.3mm (0.29in) Jacket Material PVC Conductor Material Tinned copper Conductor Gauge 28AWG Type Round Shielding Copper Braid 85% Specifications Supported Bandwidth 32.4 Gbit/s Maximum Resolution 7680x4320@60Hz 4:2:2 8bit Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB Minimum Bend Radius 73mm (2.87in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 85°C

From the Lines cable connectivity concept developed by Lindy, Cromo Line DisplayPort cables are high performance, designer connections that combine premium construction materials with striking connector architecture.

Cromo Line DisplayPort Cables feature triple shielded construction with 28AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. Cromo Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.

Specifications



Superior performance and design DisplayPort cable
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@160Hz 4:4:4 8bit
Chrome design ABS housing, 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant, high performance tinned copper 28AWG conductors
DisplayPort 1.4, 8K, 4K, 3D, 32.4Gbps
10 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material Chrome Plated ABS Plastic Connector Plating 24K Gold 3µm Pin Construction Phosphor Copper Pin Plating 24K Gold 15µm Dimensions WxDxH
(approx.) 19.7x12x38.9mm (0.77x0.47x1.53in) Cable Construction Lengths Available 3m and 5m Colour Grey Standard DisplayPort 1.2 Jacket Diameter 7.3mm (0.29in) Jacket Material PVC Conductor Material Tinned copper Conductor Gauge 28AWG Type Round Shielding Copper Braid 85% Specifications Supported Bandwidth 21.6 Gbit/s Maximum Resolution 4096x2160@60Hz 4:4:4 10bit Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB Minimum Bend Radius 73mm (2.87in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 85°C

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD.

Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Specifications



Entry level DisplayPort cable for home and small office applications
Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, 24K gold plated contacts
Triple shielded cable, corrosion resistant copper 30AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps
10 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B DisplayPort Male Housing Material ABS Connector Plating Nickel Pin Construction Phosphor Bronze Pin Plating 24K Gold 3µm Dimensions WxDxH
(approx.) 21.0x38.9x13.6mm (0.83x1.53x0.54in) Cable Construction Lengths Available 0.5m, 1m, 1.5m, 2m and 3m Colour Black Standard DisplayPort 1.2 Jacket Diameter 6mm (0.24in) Jacket Material PVC Conductor Material Copper Conductor Gauge 30AWG Type Round Shielding Copper Braid 80% Specifications Supported Bandwidth 21.6 Gbit/s Maximum Resolution 4096x2160@60Hz 4:4:4 10bit Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB Minimum Bend Radius 48mm (1.89in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 85°C

The Lindy DisplayPort to HDMI Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an HDMI display. Supporting 4K UHD resolutions up to 3840x2160@30Hz, this cable is ideal for ensuring video is displayed in superior clarity.

This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups.

The DisplayPort to HDMI Cable supports uncompressed 7.1 Audio and compressed Audio such as DTS-HD Master Audio, Dolby TrueHD.

Please note that audio output over HDMI is only supported when the graphics card of the laptop or desktop computer supports audio output over DisplayPort.

Specifications



Connects a DisplayPort equipped device to a 4K UHD HDMI display or projector
Supports resolutions up to 3840x2160@30Hz
Supports video mirroring and extended desktop modes
Audio pass-through if supported by the video source
2 year warranty


Technical Information



Connectors Connector A DisplayPort Male Connector B HDMI Type A Male Housing Material DisplayPort: ABS
HDMI: PVC Connector Plating Gold Plated Pin Construction Copper Pin Plating Gold plated Dimensions WxDxH
(approx.) DisplayPort: 36.4x20.5x9.4mm (1.43x0.81x0.37in)
HDMI: 37.5x20.5x10.5mm (1.48x0.81x0.41in) Cable Construction Lengths Available 0.5m, 1m, 1.5m, 2m and 3m Colour Black Standard HDMI 1.4
>DisplayPort 1.2 Jacket Diameter 7.3mm (0.29in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge 28AWG Type Round Shielding Aluminum Braid 85% Specifications Supported Bandwidth 10.2 Gbit/s Maximum Resolution 3840x2160@30Hz 4:4:4 8bit Nominal Attenuation: 100MHz~450MHz -2.44--5.099dB
450MHz~8100MHz -5.094~32.906dB Minimum Bend Radius 73mm (2.87in) Operating Temperature 0°C - 45°C Storage Temperature -10°C - 80°C

Lindy’s Active DisplayPort 1.2 cables combine a sleek yet functional design with superior performance to provide a reliable DisplayPort transmission over distances not possible with standard passive DP cables.

An active chipset, housed neatly in the centre of the cable, allows active cables to amplify DisplayPort signals effectively creating much longer DP transmissions. This creates long distance connections without the need for additional repeaters or extenders.

Although many active DisplayPort cables are unidirectional and require connection to the source and display from a specific connector, these cables provide bi-directional capabilities, allowing for a simpler connection while avoiding potential compatibility issues.

Combined with a stylishly designed headshell and high quality, flexible cable, these are an ideal solution for hassle-free installations through conduits or behind walls, to provide a more discreet and modern AV setup.

Featuring DisplayPort 1.2 cable technology, these cables are ideal for use with a variety of DisplayPort source device including PCs when connected to DP commercial displays and monitors.

With support for resolutions up to 4k 60Hz, video content can be seen with stunning clarity, perfect for creating exciting retail displays, informational digital signage in transport buildings or engaging presentations in education, while 8-channel audio support allows for immersive audio to complement and enhance the viewer’s experience.

Additional support for the REC.2020 colour space that covers the wider colour gamut required for high-dynamic range content, for better contrast and more lifelike colour, also provides an enhanced viewing experience.

Please note: This cable does not currently support daisy-chain functionality with Lenovo displays.

Features



Creates a long distance connection between a DisplayPort source device and display
Supports high quality resolutions up to 4K 60hz
In-built active chipset for reliable longer length DisplayPort transmission
Bi-directional capability for a more efficient, simpler installation
2 year warranty



Technical Information

Connectors Connector A DisplayPort (Male) Connector B DisplayPort (Male) Housing Material ABS Connector Plating 24K Gold Plated Pin Construction Copper Pin Plating Internal (AC: 110-240V, 50-60Hz, 1.0A max) Dimensions (approx.)
WxDxH 20.5x41.27x13.46mm (0.81x1.62x0.53in) Chipset Housing Dimensions 75x20mm (2.95x0.79in) (Length x Outer Diameter) Cable Construction Lengths Available 10m, 15m and 20m Colour Black Standard DisplayPort 1.2 Jacket Diameter 7mm (0.28in) Jacket Material PVC Conductor Material Bare Copper Conductor Gauge 28AWG Type Round Shielding 75% Aluminium Mylar Specifications Supported Bandwidth 21.6 Gbit/s Maximum Resolution 5120x2880@60Hz 4:2:2 8bit
3840x2160@60Hz 4:4:4 10bit
2560x1440@144Hz 4:2:2 10bit Nominal Attenuation: - Minimum Bend Radius 90mm (3.54in) Operating Temperature 0°C - 70°C Storage Temperature -10°C - 45°C

Lindy’s Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC’s, while avoiding the need for additional adapters.

With support for resolutions up to 4096x2160@60Hz, these cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.

Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.

Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. Several on-board graphics adapters such as Mobile Intel 4 Series Express Chipset in Notebooks (i.e. Dell E6400) do NOT support audio output over DisplayPort, even when HDMI support (Intel High Definition Audio HDMI Service) is installed for audio controllers. In such instances a separate audio connection has to be set up.

Please note: Some of Nvidia's latest drivers do not work correctly at 4k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 4k@60Hz 4:2:2

Features



Connect a DisplayPort equipped device to a 4K HDMI display or projector
Supports high quality resolutions up to 4K@60hz
Active conversion for compatibility with dual mode and non-dual mode graphics cards
Support for AMD Eyefinity for multi-screen playback
2 year warranty



Technical Information

Connectors Connector A DisplayPort (Male) Connector B HDMI Type A (Male) Housing Material ABS Connector Plating 24K Gold 1µm Pin Construction Brass Pin Plating 24K Gold 3µm Dimensions (approx.)
WxDxH DisplayPort Connector: 32x21x10.8mm (1.26x0.83x0.43in)
HDMI Connector: 44.5x20.8x10.8mm (1.75x0.82x0.43in) Cable Construction Lengths Available 0.5m, 1m, 2m and 3m Colour Black Standard HDMI 2.0, DisplayPort 1.2 Jacket Diameter 5mm (0.2in) Jacket Material PVC Conductor Material Tinned copper Conductor Gauge 32AWG Type Round Shielding Copper braid, 85% coverage Specifications Supported Bandwidth 18 Gbit/s Maximum Resolution 4096x2160@60HZ 4:4:4 8Bit Nominal Attenuation: -5dB@0.3~825MHz
-12dB@825~2475MHz
-20dB@ 2475~4125MHz
-25dB@4125~5100MHz Minimum Bend Radius 60mm (2.36in) Operating Temperature -20°C - 80°C Storage Temperature -25°C - 85°C

Product Details

Lindy's range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure.

With their compact, high performance design, these cables are ideal for situations where space is limited around source & display ports, such as with gaming monitors or graphics cards. Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Supporting DP 1.4 resolutions including 8K@60Hz and 4K@144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands. With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display).

Product Features

Professional choice slim DisplayPort 1.4 cable with low profile connectors
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit and 4K 4096x2160@144Hz 4:2:2 10bit
Robust ABS housing with 24K gold-plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
10-year warranty

The Lindy DisplayPort to DVI Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an DVI display. It supports high definition video resolutions up to 1920x1200@60Hz.

This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups.

Features



Connects a DisplayPort equipped device to a DVI display
Supports resolutions up to 1920x1200@60Hz
Supports video mirroring and extended desktop modes
Male to male connections for a secure direct connection
2 year warranty



Technical Information

Connectors Connector A DisplayPort (Male) Connector B DVI-D Male Housing Material DisplayPort: ABS
DVI: PVC Connector Plating Gold plated Pin Construction Copper Pin Plating Gold plated Dimensions (approx.)
WxDxH DisplayPort: 42x22x9.4mm (1.65x0.87x0.37in)
DVI: 46x39.8x15.9mm (1.81x1.57x0.63in) Cable Construction Lengths Available 1m, 2m, 3m and 5m Colour Black Standard DVI-D (Single Link), DisplayPort 1.1 Jacket Diameter 5.5mm (0.22in) Jacket Material PVC Conductor Material Tinned copper Conductor Gauge 30AWG Type Round Shielding Aluminum Braid 85% Specifications Supported Bandwidth 1.65 Gbit/s Maximum Resolution 1920x1200@60Hz Nominal Attenuation: 300KHz-825MHz <5dB
825MHz-2.475GHz <5dB - <12dB Minimum Bend Radius 60mm (2.36in) Operating Temperature 0°C - 45°C Storage Temperature -10°C - 80°C

The Lindy DisplayPort to VGA Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a legacy VGA display or projector. It converts the digital signal from the DisplayPort connection into an analogue VGA signal and supports high definition video resolutions up to 1920x1200@60Hz.

This cable can also be used to add another display to extend the available desktop workspace and increase productivity.

Features



Connects a DisplayPort equipped device to a VGA display or projector
Supports resolutions up to 1920x1200@60Hz
Supports video mirroring and extended desktop modes
Male to male connections for a secure direct connection
2 year warranty



Technical Information

Connectors Connector A DisplayPort (Male) Connector B VGA Male Housing Material DisplayPort: ABS
VGA: PVC Connector Plating Gold plated Pin Construction Copper Pin Plating Gold plated Dimensions (approx.)
WxDxH DisplayPort: 42x19.8x11.6mm (1.65x0.78x0.46in)
VGA: 53x33.8x16.7mm (2.09x1.33x0.66in) Cable Construction Lengths Available 0.5m, 1m, 2m, 3m and 5m Colour Black Standard VGA, DisplayPort 1.1 Jacket Diameter 6mm (0.24in) Jacket Material PVC Conductor Material Tinned copper Conductor Gauge 28AWG Type Round Shielding Aluminum Braid 85% Specifications Supported Bandwidth 1.65 Gbit/s Maximum Resolution 1920x1200@60Hz Nominal Attenuation: 100MHz-450MHz 2.44-5.099dB
450MHz-8100MHz 5.094-32.906dB Minimum Bend Radius 60mm (2.36in) Operating Temperature 0°C - 70°C Storage Temperature -10°C - 85°C

Product Details

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 7680x4320@60Hz 4:2:2 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.4 technology ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths from 0.5m to 3m.

Product Features

Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
Supports UHD resolutions up to 7680x4320@60Hz 4:2:2 8bit
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant copper alloy 28AWG conductors
DisplayPort 1.4 compliant: 3D, 8K, 32.4Gbps, 10 year warranty

Lindy’s Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC’s, while avoiding the need for additional adapters.

With support for resolutions up to 4096x2160@60Hz and with additional support for High Dynamic Range, 4K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.

Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.

Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. Several on-board graphics adapters such as Mobile Intel 4 Series Express Chipset in Notebooks do NOT support audio output over DisplayPort, even when HDMI support (Intel High Definition Audio HDMI Service) is installed for audio controllers. In such instances a separate audio connection has to be set up.

Please note: Some of Nvidia's latest drivers do not work correctly at 4k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 4k@60Hz 4:2:2

Features



Connect a DisplayPort equipped device to a 4K HDMI display or projector
Supports high quality resolutions up to 4K@60hz
High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut
Active chipset for enhanced compatibility with various graphic cards
2 year warranty



Technical Information

Connectors Connector A DisplayPort (Male) Connector B HDMI Type A male Housing Material ABS Connector Plating 24K Gold 1µm Pin Construction Brass Pin Plating 24K Gold 3µm Dimensions (approx.)
WxDxH DisplayPort: 36x20x7.5mm (1.42x0.79x0.3in)
HDMI: 45.1x21.8x12.2mm (1.78x0.86x0.48in) Cable Construction Lengths Available 0.5m, 1m, 2m and 3m Colour Black Standard HDMI 2.0, DisplayPort 1.2 Jacket Diameter 5mm (0.2in) Jacket Material PVC Conductor Material Tinned copper Conductor Gauge 32AWG Type Round Shielding Copper braid, 85% coverage Specifications Supported Bandwidth 18 Gbit/s Maximum Resolution 4096x2160@60Hz 4:4:4 8bit
4096x2160@60Hz 4:2:2 12bit Nominal Attenuation: 300KHz-825MHz
825MHz-2.475GHz Minimum Bend Radius 60mm (2.36in) Operating Temperature 0°C - 45°C Storage Temperature -10°C - 80°C

Fibre Optic Hybrid Cable

DisplayPort 1.2 to HDMI 18G


Highlights • Combines copper and fibre optic cable for a hybrid, long distance DisplayPort to HDMI connection

• Supports DisplayPort 1.2 & HDMI 18G resolutions up to 4K UHD 3840x2160@60Hz 4:4:4 8bit

• Flexible cable structure with narrow jacket diameter for installation within walls or conduit

• High immunity to RF & EM interference

• 2 year warranty

  The Lindy Fibre Optic Hybrid DisplayPort 1.2 to HDMI 18G cable is a premium direct connection solution for extending DisplayPort signals over incredible distances and connecting to an HDMI display.

Hybrid cables feature a unique internal structure combining copper and fibre optic cabling to form a high-quality solution that extends signals far exceeding what is possible with standard copper cabling. This structure provides several additional benefits including high immunity to RF and EM interference, ensuring hybrid cables are the perfect extension solution for use in sensitive electrical applications including factory floors and medical environments. The cable's flexible and narrow construction also allows easy, discreet installation through walls and conduits, great for use in lecture theatres or larger study rooms where AV installations need to be neat, ensuring all focus is on the content on screen. Supplied as a single long length hybrid cable, source and display can be directly connected, negating the requirement for additional accessories or separate transmitter or receiver units, providing the user with a simple method of installation.

Supporting resolutions up to 4K UHD 3840x2160@60Hz 4:4:4 8bit, content is available in crystal clear quality. This allows for a perfect visual experience for the user, great for creating eye-catching digital signage in retail settings or immersive large-scale public events.

This cable also provides active conversion of the signals, ensuring compatibility with both dual and non-dual mode graphics cards. Support for AMD Eyefinity technology also gives the user a cost-effective way of creating a non-standard aspect ratio or ultra-high-resolution display made up from up to three or more screens. This feature also allows the user to run multiple applications simultaneously on separate displays, improving productivity in workplaces or creating long-distance widescreen gaming experiences.

Active DisplayPort 1.4 Cable

5m / 7.5m / 10m


Highlights • Creates a long-distance connection between a DisplayPort source device and display

• Supports high quality resolutions up to 4K @ 144Hz

• High Dynamic Range support for enhanced colour, brightness and contrasts

• In-built active chipset for reliable longer length DisplayPort transmission

• 2 year warranty

  Active DisplayPort cables use integrated electronics in the form of 'chipsets' to amplify signals enabling them to be sent further than their standard distance.

Lindy’s Active DisplayPort 1.4 cables provide premium performance DisplayPort transmission over distances not possible with standard passive DP cables.

An active chipset, situated in the connector housing, allows active cables to amplify DisplayPort signals effectively creating much longer DP transmissions. This creates long distance connections without the need for additional repeaters or extenders.

Combined with a stylishly designed head-shell and high quality, flexible cable, these are an ideal solution for hassle-free installations through conduits or behind walls, to provide a more discreet and modern AV setup.

Featuring DisplayPort 1.4 technology, these cables are ideal for use with a variety of DisplayPort source devices including PCs when connected to DP commercial displays and monitors. With support for resolutions up to 4k @ 144Hz or 8K @ 60Hz, video content can be seen with stunning clarity, perfect for creating exciting retail displays, informational digital signage in transport buildings or immersive gaming setups in the home or in larger eSports installations. High Dynamic Range support also provides enhanced brightness, more lifelike colour reproduction and better contrasts for a superior viewing experience.

USB Type C to DP 4K60 Adapter Cable

5m / 7.5m / 10m with HDR


Highlights • Creates a reliable 4K connection between a USB Type C equipped computer and a DisplayPort display at longer distances

• Supports DisplayPort resolutions up to 4K 3840 x 2160 @ 60Hz

• High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut

• Requires DisplayPort Alternate Mode support by the USB Port/Bus

• 2 year warranty

  Adapter cables are cables which feature two different connections and allow users to connect two devices which feature differing connection standards.

The Lindy USB Type C to DisplayPort 4K60 Adapter Cable with HDR allows users to easily add external video capabilities to a computer featuring the USB Type C port with additional support for DisplayPort Alternate Mode. The DisplayPort connector of the adapter cable can be directly connected to the DisplayPort display with the 5m / 7.5m / 10m cable allowing for additional flexibility when positioning of the DP display - perfect for a simple and adaptable installation. The cable combines a sleek yet functional design with superior performance to provide a reliable 4K connection over distances not possible with standard cables. An active chipset, housed neatly in the centre of the cable, allows active cables to amplify DisplayPort signals effectively creating much longer DP transmissions. This creates long distance connections without the need for additional repeaters or extenders.

With support for resolutions up to 3840 x 2160 @ 60Hz and with additional support for High Dynamic Range, 4K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.

This cable is powered by the USB Bus, so no external power supply is needed and with ‘Plug and Play’ installation, this converter cable can be installed into an AV system with minimum difficulty, ideal for both professional and first time users.

Upward Angled Adapter

DisplayPort 1.2


Highlights • Connects a DisplayPort cable to a DisplayPort display or device with recessed ports or within limited spaces

• Install at a 90° angle for setup where connection is required in an upward configuration

• Supports DisplayPort 1.2 resolutions up to 4K UHD 3840 x 2160 @ 60Hz 4:4:4 8bit

• Compact design, perfect for use in discreet or wall mounted display installations

• 10 year warranty

  The Lindy DisplayPort 1.2 upward angled adapter is a compact solution for connecting DisplayPort cables to DP displays or devices with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90° connection from ports that are situated at the bottom of a display, recessed within the housing and require a connection away from the display, or for an upward connection if ports are situated on the back of the display or PC.

With DisplayPort 1.2 support, this adapter can be used with DisplayPort 1.2 cables, devices and monitors while also being backwards compatible with previous DisplayPort specifications. 4K UHD 3840x2160@60Hz 4:4:4 8bit resolutions are supported by the adapter, ensuring this is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.

Please note: it is common for desktop PCs to have DP ports function in the opposite configuration. If this is applicable, please check whether this or the opposing adapter (41366) is required.

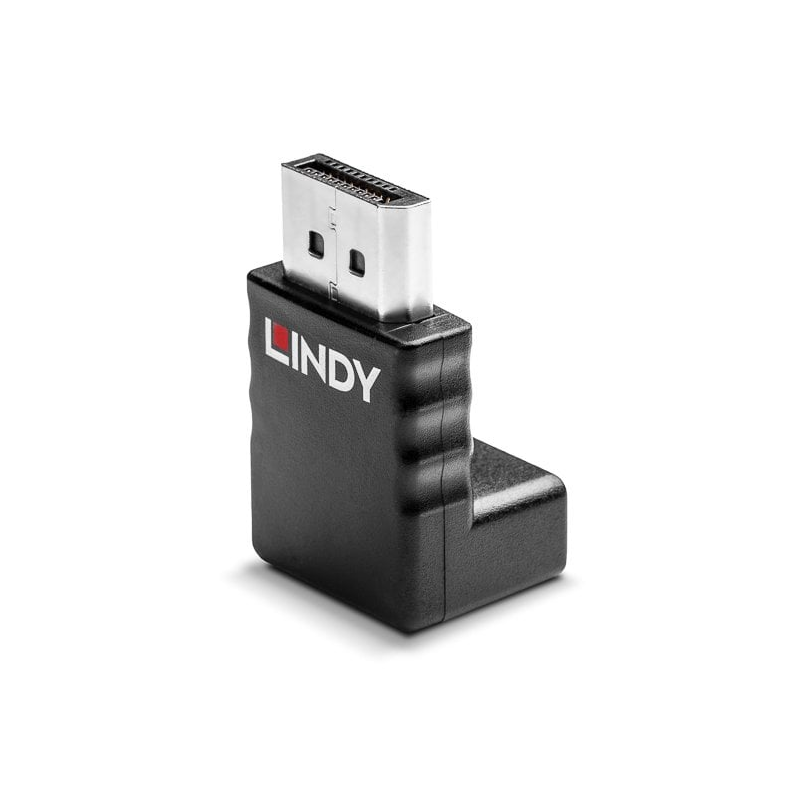

Downward Angled Adapter

DisplayPort 1.2


Highlights • Connects a DisplayPort cable to a DisplayPort display or device with recessed ports or within limited spaces

• Install at a 90° angle for setup where connection is required in a downward configuration

• Supports DisplayPort 1.2 resolutions up to 4K UHD 3840 x 2160 @ 60Hz 4:4:4 8bit

• Compact design, perfect for use in discreet or wall mounted display installations

• 10 year warranty

  The Lindy DisplayPort 1.2 downward angled adapter is a compact solution for connecting DisplayPort cables to DP displays or devices with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90° connection in a downward direction if ports are situated on the back of the display or PC.

With DisplayPort 1.2 support, this adapter can be used with DisplayPort 1.2 cables, devices and monitors while also being backwards compatible with previous DisplayPort specifications. 4K UHD 3840x2160@60Hz resolutions are supported by the adapter, ensuring this is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.

15m DisplayPort 1.1 Cable, Anthra Line

Key Features:



Professional choice DisplayPort 1.1 cable for commercial and high performance AV and IT installations
Supports resolutions up to 1920x1200@60Hz
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper 26AWG conductors
DisplayPort 1.1 compliant: 10.8Gbps, 10 year warranty


From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 26AWG tinned copper conductors for performance and corrosion resistance. High-quality gold-plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Resolutions up to 1920x1200@60Hz are supported. DisplayPort 1.1 technology ensures compatibility with all DisplayPort enabled devices.

Specifications:



Connector A: DP Male
Connector B: DP Male
Housing Material: ABS
Connector Plating: Gold
Pin Construction: Copper Alloy
Pin Plating: Gold
Dimensions (approx.) WxDxH: 20.4x36.0x12.7mm (0.8x1.42x0.5in)
Cable construction:
Length: 15m (49.21ft)
Standard: DP 1.1
Colour: Black
Type: Round
Jacket Diameter: 8.5mm (0.34in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26AWG
Shielding: Aluminium Magnesium Braid 50%
Supported Bandwidth: 10.8Gbps
Maximum Resolution: 1920x1200@60Hz
Nominal Attenuation: 100MHz - 450MHz > -2.44dB, 450MHz - 8100MHZ > -5.094dB"
Minimum Bend Radius: 85mm (3.35in)
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

2m DisplayPort 1.4 Cable, Gold Line

Key Features:



No compromise, ultimate performance DisplayPort cable for demanding environments and mission critical systems
Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit
Full metal 24K gold plated housing, 24K gold plated connectors and contacts
Low attenuation triple shielded cable, corrosion resistant, high performance OFC 24AWG conductors
DisplayPort 1.4 compliant: 3D, 8K, 4K, 32.4Gbps, DisplayPort Certified; 25-year warranty


From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@120Hz 4:4:4 8bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.

Specifications:



Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: 24 Gold Plated Zinc Alloy
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15µm
Dimensions (approx.) WxDxH: 19.8x42.5x12.5mm (0.78x1.67x0.49in)
Cable Construction:
Length: 2m (6.56ft)
Standard: DisplayPort 1.4
Colour: Grey
Type: Round
Jacket Diameter: 9mm (0.35in)
Jacket Material: PVC
Conductor Material: OFC Copper
Conductor Gauge: 24AWG
Shielding: Copper Braid 85%
Supported Bandwidth: 32.4 Gbps
Maximum Resolution: 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@120Hz 4:4:4 8bit
Nominal Attenuation: 300kHz-825MHz
Minimum Bend Radius: 90mm (3.5in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 80°C (-13°F - 176°F)
Packaging Type: Polybag
Warranty (Years): 25
Certificated: RoHS, REACH, UL


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
