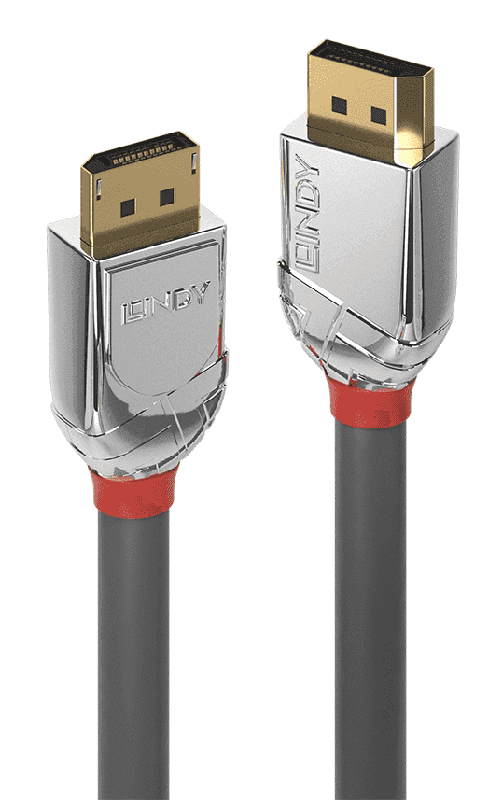

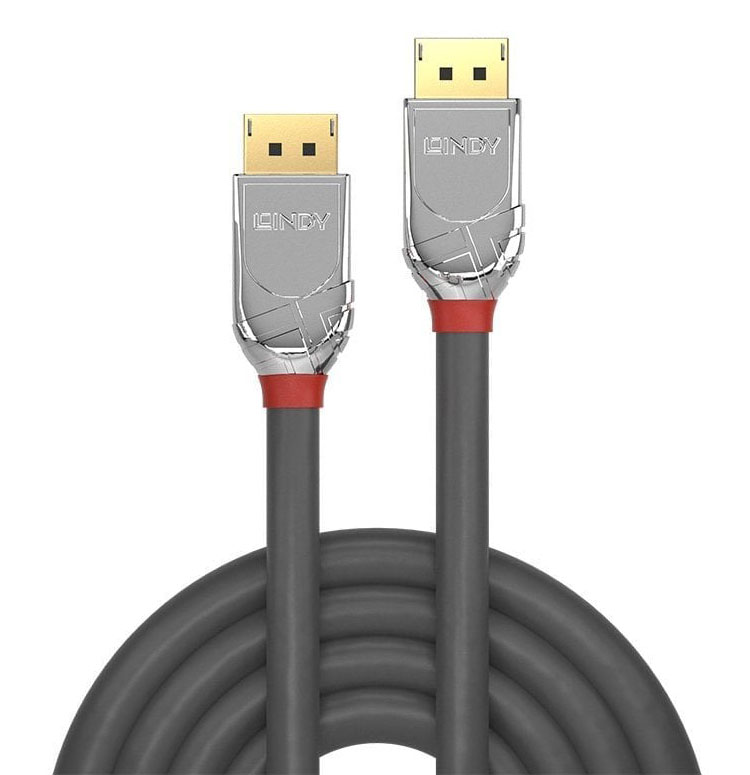

From the Lines cable connectivity concept developed by Lindy, Cromo Line DisplayPort cables are high performance, designer connections that combine premium construction materials with striking connector architecture.
Cromo Line DisplayPort Cables feature triple shielded construction with 28AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. Cromo Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.
Specifications
Technical Information
| Connectors | |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Housing Material | Chrome Plated ABS Plastic |
| Connector Plating | 24K Gold 3µm |
| Pin Construction | Phosphor Copper |
| Pin Plating | 24K Gold 15µm |
|
Dimensions WxDxH (approx.) |
19.7x12x38.9mm (0.77x0.47x1.53in) |
| Cable Construction | |
| Lengths Available | 3m and 5m |
| Colour | Grey |
| Standard | DisplayPort 1.2 |
| Jacket Diameter | 7.3mm (0.29in) |
| Jacket Material | PVC |
| Conductor Material | Tinned copper |
| Conductor Gauge | 28AWG |
| Type | Round |
| Shielding | Copper Braid 85% |
| Specifications | |
| Supported Bandwidth | 21.6 Gbit/s |
| Maximum Resolution | 4096x2160@60Hz 4:4:4 10bit |
| Nominal Attenuation: | 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB |
| Minimum Bend Radius | 73mm (2.87in) |
| Operating Temperature | -20°C - 80°C |
| Storage Temperature | -25°C - 85°C |
