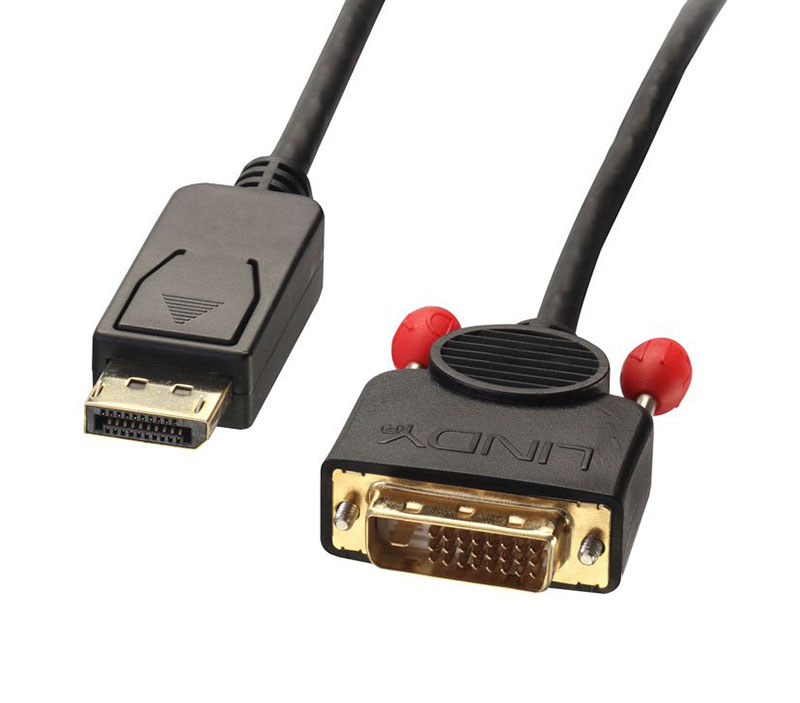

The Lindy DisplayPort to DVI Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an DVI display. It supports high definition video resolutions up to 1920x1200@60Hz.
This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups.
Features
Technical Information
Connectors | |
Connector A | DisplayPort (Male) |
Connector B | DVI-D Male |
Housing Material | DisplayPort: ABS DVI: PVC |
Connector Plating | Gold plated |
Pin Construction | Copper |
Pin Plating | Gold plated |
Dimensions (approx.) WxDxH |
DisplayPort: 42x22x9.4mm (1.65x0.87x0.37in) DVI: 46x39.8x15.9mm (1.81x1.57x0.63in) |
Cable Construction | |
Lengths Available | 1m, 2m, 3m and 5m |
Colour | Black |
Standard | DVI-D (Single Link), DisplayPort 1.1 |
Jacket Diameter | 5.5mm (0.22in) |
Jacket Material | PVC |
Conductor Material | Tinned copper |
Conductor Gauge | 30AWG |
Type | Round |
Shielding | Aluminum Braid 85% |
Specifications | |
Supported Bandwidth | 1.65 Gbit/s |
Maximum Resolution | 1920x1200@60Hz |
Nominal Attenuation: | 300KHz-825MHz <5dB 825MHz-2.475GHz <5dB - <12dB |
Minimum Bend Radius | 60mm (2.36in) |
Operating Temperature | 0°C - 45°C |
Storage Temperature | -10°C - 80°C |
