Length: |
| Part No: | LIN41940 |
| Manufacturer No: | 41940 |
| Delivery: | End of Life Product |
 |

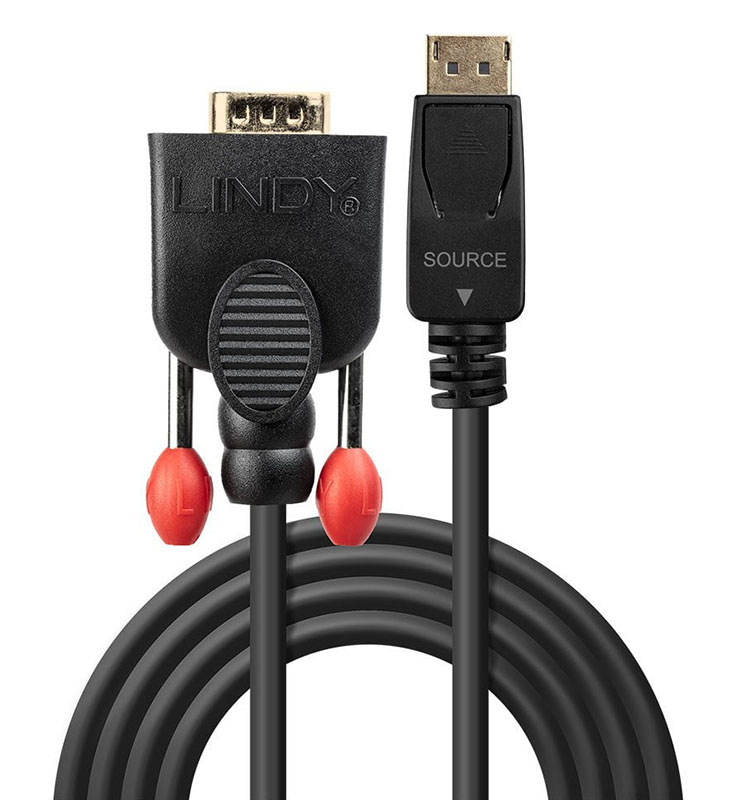

The Lindy DisplayPort to VGA Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a legacy VGA display or projector. It converts the digital signal from the DisplayPort connection into an analogue VGA signal and supports high definition video resolutions up to 1920x1200@60Hz.
This cable can also be used to add another display to extend the available desktop workspace and increase productivity.
Features
Technical Information
| Connectors | |
| Connector A | DisplayPort (Male) |
| Connector B | VGA Male |
| Housing Material | DisplayPort: ABS VGA: PVC |
| Connector Plating | Gold plated |
| Pin Construction | Copper |
| Pin Plating | Gold plated |
|
Dimensions (approx.) WxDxH |
DisplayPort: 42x19.8x11.6mm (1.65x0.78x0.46in) VGA: 53x33.8x16.7mm (2.09x1.33x0.66in) |
| Cable Construction | |
| Lengths Available | 0.5m, 1m, 2m, 3m and 5m |
| Colour | Black |
| Standard | VGA, DisplayPort 1.1 |
| Jacket Diameter | 6mm (0.24in) |
| Jacket Material | PVC |
| Conductor Material | Tinned copper |
| Conductor Gauge | 28AWG |
| Type | Round |
| Shielding | Aluminum Braid 85% |
| Specifications | |
| Supported Bandwidth | 1.65 Gbit/s |
| Maximum Resolution | 1920x1200@60Hz |
| Nominal Attenuation: | 100MHz-450MHz 2.44-5.099dB 450MHz-8100MHz 5.094-32.906dB |
| Minimum Bend Radius | 60mm (2.36in) |
| Operating Temperature | 0°C - 70°C |
| Storage Temperature | -10°C - 85°C |
