EX4600-EM-8F Expansion Model

8-port SPF+/SFP expansion module for EX4600

The EX4600-EM-8F, provides 8 additional 10-Gigabit Ethernet SFP+ ports or 8 additional 1-Gigabit SFP ports to one of the bays in the EX4600 switch.

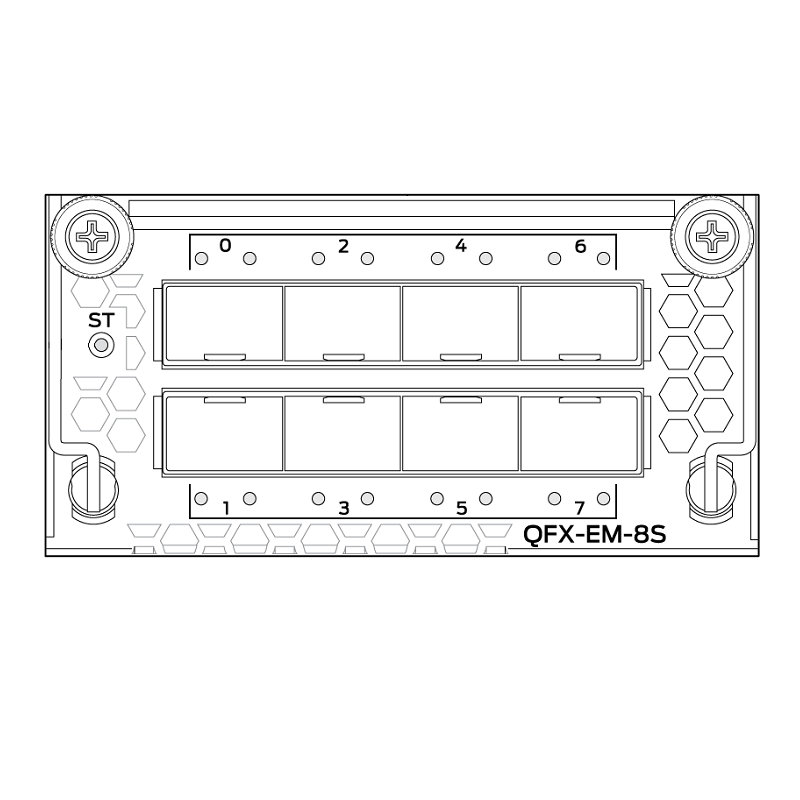

Product Diagram:

1. Expansion module status LED

2. SFP+ port LEDs





When the expansion module is inserted into the expansion bay, the chassis detects the additional ports, recognizes them as 10GbE ports, and lights the Status LED.

EX4600-40F-S Spare Chassis

8-port SPF+/SFP expansion module for EX4600

The EX4600 switch chassis is a rigid sheet-metal structure that houses the hardware components.

The EX4600 switch has four status LEDs on the field-replaceable unit (FRU) end of the chassis, next to the management ports




Product Diagram:

1. Status LEDs

2. em1–SFP management Ethernet port (C1) Cage (socket for either 1 GbE copper SFP or fiber SFP)

3. RJ-45 console port (CON) and em0–RJ-45 (1000 Base-T) management Ethernet port (C0)

4. USB port
