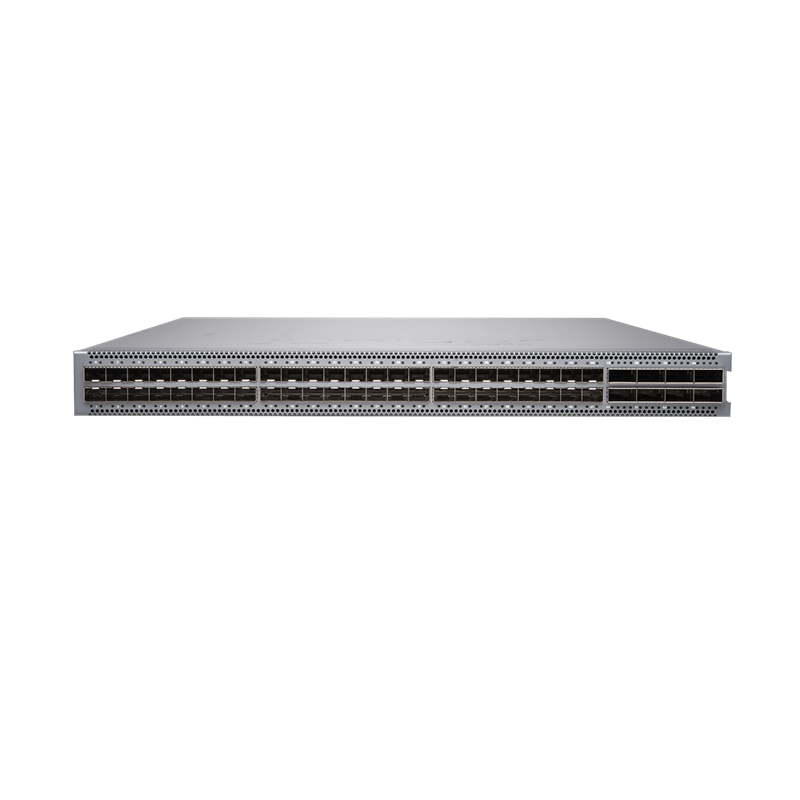

EX4650 Ethernet Switch
48 25GbE/10GbE/GbE SFP28/SFP+/SFP ports, 8 100GbE/40GbE QSFP28/QSFP+ ports, redundant fans, 2 AC power supplies, 2 power cords, 4-post rack mount kit, non-PoE, AFO (Front-to-back airflow)
The EX4650 Ethernet Switch is a compact, scalable, high-performance 10GbE/25GbE/100GbE solution for midsized to large enterprise campus distribution deployments. It delivers rich telemetry data to Juniper Mist™ Wired Assurance, bringing AI-powered automation and service levels to access switching.
The EX4650 is cloud-ready and ZTP-enabled, so you can use Wired Assurance to onboard, provision, and manage it for improved connected-device experiences. In addition, the Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI simplifies operations and improves visibility into the performance of connected devices.
Features + Benefits
Juniper Mist Wired Assurance
Claim, configure, and troubleshoot switches with a few clicks. Wired Assurance delivers better experiences for connected devices through AI-powered automation and service-level expectations (SLEs) with Mist’s AI engine and microservices cloud.
The EX Switches provide rich streaming telemetry data to enable the insights for switch health metrics and anomaly detection. Streamline IT operations, reduce mean time to repair, and deliver optimized experiences across wired and wireless.
EVPN-VXLAN
The EX4650 supports powerful EVPN-VXLAN capabilities to simplify deployments and operations by providing a common technology across campus and data centers.
EVPN-VXLAN offers a scalable way to build and interconnect multiple campuses, data centers, and public clouds, delivering a variety of benefits.
Virtual Chassis
With Virtual Chassis technology, up to four interconnected EX4650 switches operate as a single logical device, reducing operational expenses and simplifying management.
Wire-Speed Performance
Wire-speed performance with native 10GbE, 25GbE, and 100GbE port densities dramatically simplifies network topologies and operations.
Enterprises are demanding more high-speed, low-latency, storage- and I/O-converged networking solutions to maximize the performance of their physical servers, virtual servers, and storage. The EX4650 addresses these needs with low-latency, lossless, high-density 10GbE and 25GbE interfaces, as well as 100GbE uplinks to the core network.
The EX4650 line of Ethernet switches delivers high scale, high availability, and high performance for campus distribution deployments. The EX4650 offers fixed 1GbE/10GbE/25GbE ports with 40GbE/100GbE uplinks that support advanced campus environments, allowing them to provide the onramp to multicloud, to deploy cutting edge cloud applications, and to embrace IoT technology. It is also flexible enough for use in enterprise on-premises top-of-rack and service provider aggregation deployments.
The EX4650 is onboarded, provisioned, and managed in the Juniper Mist Cloud Architecture. Mist Wired Assurance delivers better experiences for connected devices through AI-powered automation and service levels.

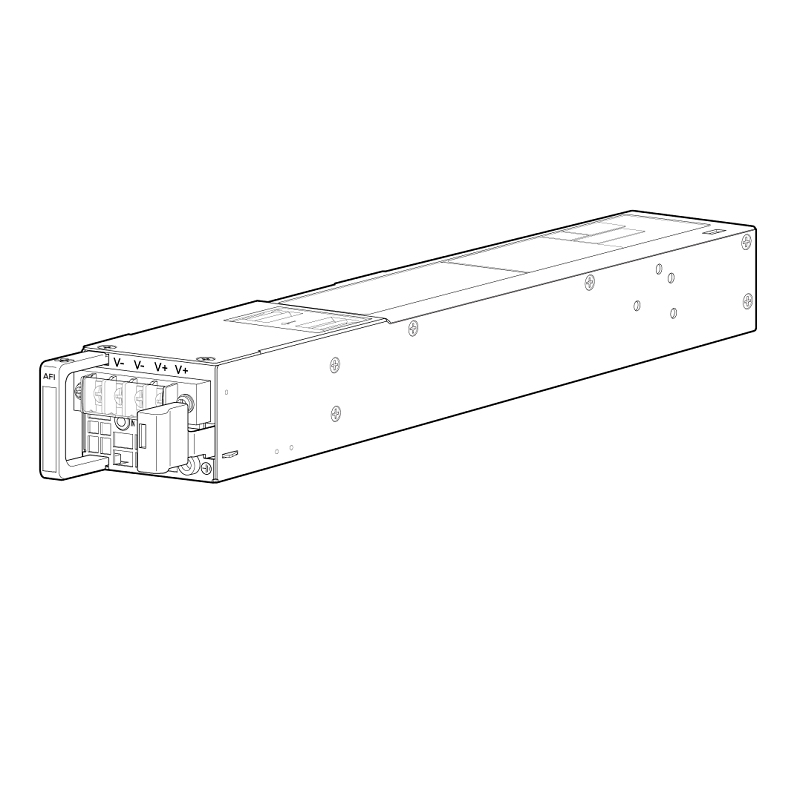

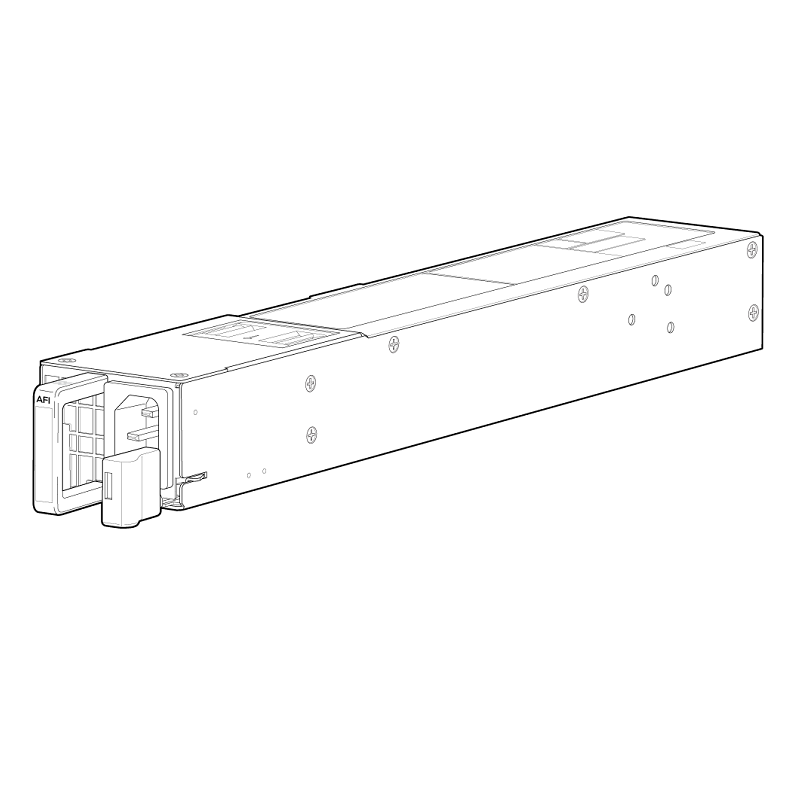

The Juniper Networks® EX4650 Ethernet Switch delivers 4 Tbps of Layer 2 and Layer 3 connectivity to networked devices such as secure routers, servers, and other switches. Featuring 48 wire-speed 10GbE/25GbE small form-factor pluggable and pluggable plus transceiver (SFP/SFP+/SFP28) ports and 8 wire-speed 40GbE/100GbE quad SFP+ transceiver (QSFP+/QSP28) ports in a compact 1 U platform, the EX4650 provides the flexibility to support mixed 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE environments. Four models are available: two featuring AC power supplies with front-to-back or back-to-front airflow, and two featuring DC power supplies with front-to-back or back-to-front airflow. All models include dual power supplies.
Key Components
The EX4650 switch includes native 25GbE (fiber only) and either 40GbE or 100GbE fixed-configuration options with rich L2, L3, Ethernet VPN (EVPN), and MPLS features. The EX4650 switches run the same reliable, high-performance Juniper Networks Junos® operating system used by Juniper Networks EX Series and QFX Series Ethernet Switches, SRX Series Services Gateways, and Juniper routers, ensuring a consistent control plane feature implementation and user experience across the entire Juniper infrastructure.
EX4650 Switch Models
The EX4650 switch is a compact, 1 U platform that provides high throughput, very low latency, and a rich set of Junos OS features. The performance of the EX4650’s control plane is further enhanced with a powerful 2.3 GHz quad-core Intel CPU with 16 GB of memory and 64 GB SSD storage.
The EX4650-48Y is a 25GbE/100GbE campus distribution switch offering 48 SFP28 transceiver ports and eight QSFP28 ports that can be configured as 8x40GbE or 8x100GbE ports, with an aggregate throughput of 4 Tbps or 2.98 Bpps per switch. For added flexibility, each QSFP28 port can also be configured as 4x25GbE ports using breakout cables, increasing the total number of supported 25GbE ports to 80 per switch.
The EX4650-48Y switch features the following:
• Support for high-density, multispeed 1GbE/10GbE/25GbE downlinks and 40GbE/100GbE uplinks for access and aggregation configurations, with up to 48 25GbE ports and up to eight 100GbE uplink ports in a 1 U platform
• Throughput of up to 4 Tbps L2 and L3 performance, with latency as low as 550 nanoseconds
• A 2.3 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage
• Feature-rich automation capabilities with support for Python and Zero Touch Provisioning (ZTP)
• Support for virtualization protocols such as Virtual Extensible LAN (VXLAN)
• Advanced Junos OS features such as EVPN, BGP add-path, MPLS, L3 VPN, and IPv6 6PE
Cloud Management with Juniper Mist Wired Assurance
Juniper Mist Wired Assurance, a cloud-based service driven by Mist AI to claim, configure, manage, and troubleshoot the EX4650, delivers AI-powered automation and service levels to ensure a better experience for connected devices. Wired Assurance leverages rich Junos switch telemetry data to simplify operations, reduce mean time to repair, and improve visibility. Wired Assurance offers the following features:
Day 0 operations — Onboard switches seamlessly by claiming a greenfield switch or adopting a brownfield switch with a single activation code for true plug-and-play simplicity.
Day 1 operations — Implement a template-based configuration model for bulk rollouts of traditional and campus fabric deployments, while retaining the flexibility and control required to apply custom site- or switch-specific attributes. Automate provisioning of ports via Dynamic Port Profiles.
Day 2 operations — Leverage the AI in Juniper Mist Wired Assurance to meet service-level expectations such as throughput, successful connects, and switch health with key pre- and post-connection metrics (see Figure 1). Add the self-driving capabilities in Marvis Actions to detect loops, add missing VLANs, fix misconfigured ports, identify bad cables, isolate flapping ports, and discover persistently failing clients (see Figure 2). And perform software upgrades easily through Juniper Mist cloud.
The addition of Marvis, a complementary Virtual Network Assistant driven by Mist AI, lets you start building a self-driving network that simplifies network operations and streamlines troubleshooting via automatic fixes for EX Series switches or recommended actions for external systems.
EVPN-VXLAN Technology
The EX4650 embraces open standards and extends the industry-standard EVPN-VXLAN technology already supported in both the data center and campus. With enterprise applications moving to the cloud, it has become necessary to deploy IP fabrics as enterprise fabrics with L2 extensions using VXLAN. The EX4650 is capable of both L2 and L3 VXLAN gateway services, allowing customers to deploy networks that provide L2 adjacencies for applications over L3 fabrics. EVPN-VXLAN offers a scalable way to build and interconnect multiple campuses, data centers, and public clouds, delivering the following benefits:
• Greater network efficiency
• Based on industry standards
• Scalable at all network layers
• Faster convergence
• Flexible and secure architecture
Junos OS
The high-performance EX4650 runs Junos OS, Juniper’s powerful and robust network operating system that powers all Juniper switches, routers, and firewalls. Key Junos OS features that enhance the functionality and capabilities of the EX4650 include:
• Software modularity, with process modules running independently in their own protected memory space and with the ability to do process restarts
• Commit and rollback functionality that ensures error-free network configurations
• A powerful set of scripts for on-box problem detection, reporting, and resolution
Junos OS Software License
The software features supported on the EX4650-48Y switch are categorized in three tiers: Base, Premium, and Advanced.
• Base software features include basic L2 switching, basic L3 routing, multicast, automation, programmability, ZTP, and basic monitoring. A Base software feature license comes with the purchase of the hardware and does not require any explicit license keys.
• Premium software features include all Base license functionality, plus BGP, IS-IS, and EVPN-VXLAN to explicitly address the needs of enterprise customers. To enable these features, customers must purchase the EX4650-PFL license, generate unique license keys, and install them on the switch. The license is not portable across devices.
• Advanced software features include all Premium license functionality plus MPLS to explicitly address the needs of enterprise interconnect and edge use cases. To enable these features, customers must purchase the EX4650-AFL license, generate unique license keys, and install them on the switch. The license is not portable across devices.
The Premium and Advanced software licenses are offered as perpetual licenses. Please see the Ordering Information section for license SKU descriptions.
Virtual Chassis Technology
The EX4650 supports Juniper Networks unique Virtual Chassis technology, which enables up to four interconnected switches to operate as a single, logical device with a single IP address. Virtual Chassis technology allows enterprises to separate physical topology from logical groupings of endpoints, ensuring more efficient resource utilization. When deployed in a Virtual Chassis configuration, EX4650 switches can be connected using up to four of the 40GbE or 100GbE ports in link aggregation groups (LAGs) across 40GbE/1000GbE ports, providing an aggregate backplane capacity of up to 1.04 Tbps.
Campus Fabric Technology
Juniper Networks campus fabrics provide a single, standards-based Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) solution that can be deployed in any campus, whether a two-tier network with a collapsed core distribution or a campus-wide system that involves multiple buildings with separate distribution and core layers. Juniper’s campus fabrics support the following validated architectures:
EVPN Multihoming (Collapsed Core/Distribution): A pair of interconnected EX4650 switches can be deployed to provide EVPN multihoming (ESI-LAG) in a collapsed core/distribution configuration. This eliminates the need for Spanning Tree Protocol (STP) across the campus network by providing multihoming capabilities from the access to the distribution layer, while distribution to core is an L3 IP fabric. ESI-LAG also supports horizontal scaling with more than two devices in the distribution layer and can extend EVPN to the core.
Campus Fabric or Core Distribution: A pair of interconnected EX4650 switches can provide EVPN L2 and L3 VXLAN gateway support. This eliminates the need for STP across the campus network by providing a multihoming capability from the access to the distribution layer, while distribution to the core is an L3 IP fabric using EVPN technology. The IP fabric can also extend to connect multiple enterprise buildings, while VXLAN allows stretching L2 across buildings. An IP Clos network between the distribution and the core layers can exist in two modes, both of which are supported by the EX4650:
• Centrally routed bridging overlay: Integrated Routing and Bridging (IRB) interface placed at a central location in the fabric (in this case, a core device)
• Edge routed bridging overlay: IRB interface placed at the edge of the fabric (in this case, a distribution device)
• Campus Fabric IP Clos: The Campus Fabric IP Clos architecture pushes VXLAN Layer 2/3 gateway functionality to the access layer. In this architecture, EX4650 acts as an IP fabric distribution switch
Managing AI-Driven Campus Fabric with the Juniper Mist Cloud
Juniper Mist Wired Assurance brings cloud management and Mist AI to campus fabric. It sets a new standard moving away from traditional network management towards AI-driven operations, while delivering better experiences to connected devices. The Juniper Mist cloud streamlines deployment and management of campus fabric architectures by allowing:
• Automated deployment and zero touch deployment
• Anomaly detection
• Root cause analysis
Enterprise On-Premises Server Connectivity - Data centers are demanding more high-speed, low-latency, storage- and I/O-converged networking solutions to maximize the performance of their physical servers, virtual servers, and storage. The EX4650 addresses these needs with low-latency, lossless, high-density 10GbE and 25GbE interfaces, as well as 100GbE uplinks to the core network. Furthermore, the EX4650 offers EVPN-VXLAN L2 and L3 gateway support, making it an ideal solution for overlay deployments in the enterprise on-premises data center.
The EX4650 also offers flexible airflow options, enabling them to support back-to-front and front-to-back cooling to ensure consistency with server designs for hot-aisle or cold-aisle deployments. Support for tri-speed 1GbE/10GbE/25GbE make the EX4650 ideal for enterprise server access; 48 ports of native 10GbE/25GbE for server connectivity and up to eight 40GbE or 100GbE ports for uplink connectivity provide very low oversubscription of 1.5:1 from access to aggregation. Each 40GbE port can be broken out into four 10GbE ports, providing additional options for server connectivity.
The EX4650 operates in both cut-through and store-and-forward modes, delivering sustained wire-speed switching with sub-microsecond latency and low jitter for any packet size (including jumbo frames) in both modes. With features such as EVPN multihoming (ESI-LAG) and MC-LAG, the EX4650 supports active/active server dual homing and can utilize full bisectional bandwidth from server to switch.
Wired Service Level Expectation
The Wired Assurance feature provides operational visibility into the wired experience with service-level expectations (SLEs) for EX Series Switches. Pre- and post-connection performance metrics help you monitor successful connects and switch health throughout the system, using Mist AI to measure and manage networks and simplify troubleshooting.
Automation
The EX4650 supports a number of network automation and plug-and-play features, including ZTP and event scripts, automatic rollback, and Python scripting.
Flexible Forwarding Table
The EX4650 includes a Unified Forwarding Table (UFT), which allows the hardware table to be divided into configurable partitions of L2 media access control (MAC), L3 host, and longest prefix match (LPM) tables. In a pure L2 environment, the EX4650 supports up to 288,000 MAC addresses; in L3 mode, the table can support up to 168,000 host entries; in LPM mode, the table can support up to 360,000 prefixes. Junos OS provides configurable options through a CLI to optimize the EX4650 for various deployment scenarios.
Intelligent Buffer Management
The EX4650 features a total of 32 MB of shared buffers. While 25% of the total buffer space is dedicated, the rest is shared among all ports and is user configurable. The intelligent buffer mechanism in the EX4650 effectively absorbs traffic bursts while providing deterministic performance, significantly increasing performance over static allocation.
MPLS
A broad set of MPLS features, including L3 VPN, IPv6 provider edge router (6PE), RSVP traffic engineering, and LDP, support standards-based network segmentation and virtualization, allowing the EX4650 to be deployed as a low-latency MPLS label-switching router (LSR).
VXLAN Overlays
The EX4650 is capable of both L2 and L3 VXLAN gateway services. Customers can deploy overlay networks to provide L2 adjacencies for applications over L3 fabrics. The overlay networks utilize VXLAN in the data plane and EVPN for programming the overlays, which can operate without a controller or be orchestrated with an SDN controller like OpenContrail.
Junos OS
Running Junos OS, which features the most advanced and robust routing capabilities in the industry, the EX4650 supports RIP and OSPF for both IPv4 and IPv6, as well as advanced routing capabilities such as IS-IS and BGP. With additional capabilities such as 64-way equal-cost multipath (ECMP) and BGP add path, the EX4650 is an ideal building block for deploying the most robust L3 underlay for SDN.
EVPN-VXLAN
Many proprietary campus architectures are built on traditional L2 Ethernet-based architectures that address the desire to eliminate Spanning Tree Protocol (STP). With the increase of IoT devices in the enterprise, these networks will be expected to scale rapidly without adding complexity and resources. Some of these IoT devices, however, have limited networking capabilities and require L2 adjacency across buildings or campuses. To address this problem, traditional solutions extend VLANs across buildings and campuses using data plane flood-and-learn. Unfortunately, this solution is inefficient and difficult to manage. The increasing number of network endpoints, coupled with rapidly changing business needs, demands an open, standards-based network that is simple, scalable, and programmable across both the campus and the data center.
Modern enterprise networks need a campus architecture that decouples the overlay network from the underlay network with technologies such as VXLAN, which enables network administrators to create logical L2 networks across different L3 networks. The EX4650 satisfies these requirements by supporting EVPN-VXLAN L2 and L3 gateway capabilities, providing the following benefits:
Improved network and host mobility efficiency
• Control plane MAC learning to reduce unknown-unicast flooding
• Reduced Address Resolution Protocol (ARP) flooding due to MAC-to-IP binding in control plane
• Multipath traffic over multiple core switches (VXLAN entropy)
• Multipath traffic to active/active dual-homed access layer switches
Fast convergence
• Faster reconvergence when linked to dual-homed access switches fail (aliasing)
• Faster reconvergence when endpoints move
Scalability
• Scalable BGP-based control plane
• Seamless expansion of the core, distribution, and access layers as business needs grow
• Seamless expansion of campuses as business needs grow
Flexibility
• Easy integration with L3 and L2 VPNs
• BGP-based control plane functionality that allows application of fine-grained policies
Nonproprietary
• Standards-based protocols that support multivendor core, distribution, and access layers
Junos Telemetry Interface
The EX4650 supports Junos Telemetry Interface (JTI), a modern telemetry streaming tool designed for performance monitoring in enterprise networks. Streaming data to a performance management system enables network administrators to measure trends in link and node utilization, and troubleshoot such issues as network congestion in real time. JTI delivers the following features:
• Application visibility and performance management by provisioning sensors to collect and stream data and analyze application and workload flow paths through the network
• Capacity planning and optimization by proactively detecting hotspots and monitoring latency and microbursts
• Troubleshooting and root cause analysis via high-frequency monitoring
Full specification and details can be found in the Product Datasheet PDF file
