Juniper Networks EX4300 Pluggable Optics

EX-SFP-1GE-T LC Connector

SFP 1000BASE-LX; LC connector; 1310 nm; 10 km reach on single-mode fiber

This is an optional uplink module for EX4200 switches support SFP, SFP+, or XFP transceivers. The Gigabit Ethernet SFP, SFP+, or XFP transceivers installed in EX4200 switches support digital optical monitoring (DOM). Use only optical transceivers and optical connectors purchased from Juniper Networks for your EX Series switches.

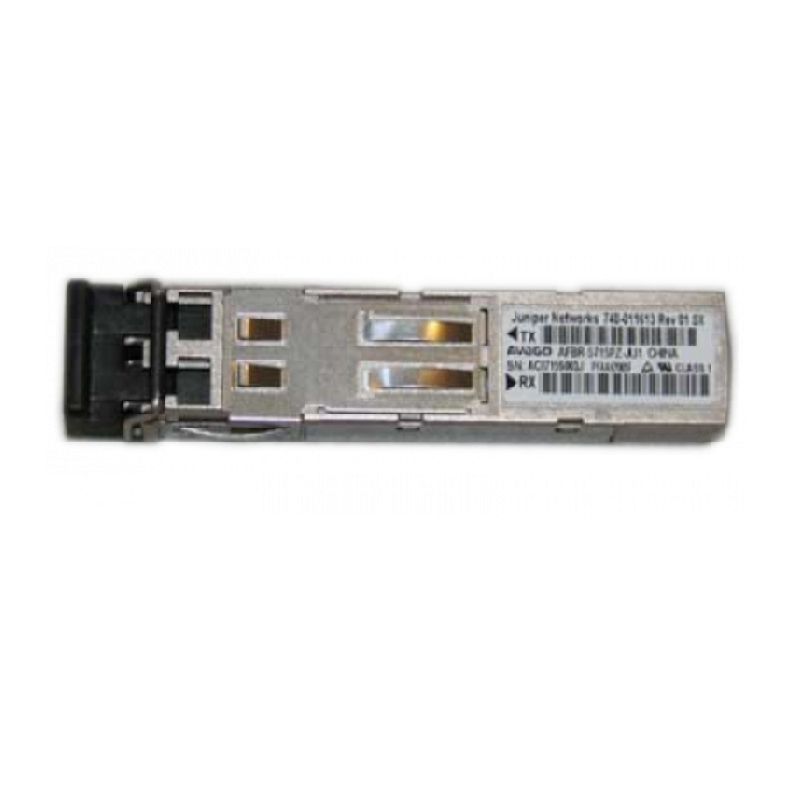

EX-SFP-1FE-FX LC Connector

SFP 100BASE-FX; LC connector; 1310 nm; 2 km reach on multimode fiber

supported on EX4300-32F and EX4300-32F-DC 100BASE-X fixed ports only

This is an optional uplink module for EX4200 switches support SFP, SFP+, or XFP transceivers. The Gigabit Ethernet SFP, SFP+, or XFP transceivers installed in EX4200 switches support digital optical monitoring (DOM). Use only optical transceivers and optical connectors purchased from Juniper Networks for your EX Series switches.

EX-SFP-1GE-SX LC Connector

SFP 1000BASE-SX; LC connector; 850 nm; 550 m reach on multimode fiber

This is an optional uplink module for EX4200 switches support SFP, SFP+, or XFP transceivers. The Gigabit Ethernet SFP, SFP+, or XFP transceivers installed in EX4200 switches support digital optical monitoring (DOM). Use only optical transceivers and optical connectors purchased from Juniper Networks for your EX Series switches.

EX-SFP-10GE-USR LC Connector

SFP+ 10GbE ultra short reach optics, 850 nm for 10 m on OM1, 20 m on OM2, 100 m on OM3 multimode fiber

10 Gigabit Ethernet Ultra Short Reach; 850 nm; 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber

EX-SFP-1GE-LX LC Connector

SFP 1000BASE-LX; LC connector; 1310 nm; 10 km reach on single-mode fiber

This is an optional uplink module for EX4200 switches support SFP, SFP+, or XFP transceivers. The Gigabit Ethernet SFP, SFP+, or XFP transceivers installed in EX4200 switches support digital optical monitoring (DOM). Use only optical transceivers and optical connectors purchased from Juniper Networks for your EX Series switches.

EX-SFP-10GE-SR LC Connector

SFP+ 10GBASE-SR; LC connector; 850 nm; 300 m reach on 50 microns multimode fiber; 33 m on 62.5 microns multimode fiber

Juniper EX-SFP-10GE-SR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+

EX-SFP-10GE-LRM LC Connector

SFP+ 10GBASE-LRM; LC connector; 1310 nm; 220 m reach on multimode fiber

At Juniper, we have a unique and fundamentally different way of looking at the challenges of the global network. We’ve developed and productized some of the industry’s most disruptive innovations across every aspect of networking technology that began with the initial separation of routing and forwarding and has led to more than 500 patents issued or pending.

This includes a dedication to developing new solutions based on a unique single architecture, single operating system, JUNOS, and a single release train strategy that ensures the performance, reliability and security at the scale that customers demand of their network, without compromise.

EX-SFP-10GE-LR LC Connector

SFP+ 10GBASE-LR; LC connector; 1310 nm; 10 km reach on single-mode fiber

Juniper EX-SFP-10GE-LR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Compatible products: EX2500

EX-SFP-10GE-ER LC Connector

SFP+ 10GBASE-ER 10GbE optics, 1550 nm for 40 km transmission on single-mode fiber

SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds.
