Grandstream IP Video Phones for Android

Product Overview

The GBX20 is a backlit LCD extension module supported by the GXV3350 and GRP2615. The module includes 20 dual-colored extension keys and 2 arrow keys for page switching (allowing each GBX20 to support up to 40 contacts/extensions.). Connect up to 4 GBX20 modules to compatible Grandstream phones for a total of 160 contacts/extensions.

The GBX20 is an Extension Module that adds functionality, versa tility and flexibility to Grandstream’s GRP2615 Carrier-Grade IP Phone and GXV3350 IP Video Phone. It f eatures a 272x480 LCD display that offers up to 40 contacts per module with support for up to 160 contact s by using 4 modules.

The GBX20 supports a wide-range of advanced call features including BLF, call park /pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward and much more. An ideal sol ution for businesses and receptionists managing high call volumes, the GBX20 ensures maximum productiv ity by efficiently monitoring and dispatching incoming calls.

Product Features
Busy Lamp Field

Call Forwarding

Call Transfer

Call Queue

20 per page (each module contains 2 pages, for up to 40 lines per module


BLF, call park /pick-up, speed-dial, presence, intercom, voice conferencing transfer/forward and more
Combine up 4 daisy-chained modules for 160 contacts/extensions


4.3 inch (272x480) TFT color LCD


Product Overview

The GXV3350 is an advanced desktop video collaboration solution that combines a 16 line IP phone with the functionality of an Android tablet to offer an all-in-one communication solution. It is the ideal desktop device for busy professionals and executives and also offers a powerful yet cost-effective device for any conference room.

The GXV3350 IP Video Phone for Android combines a 16-line IP video phone with a multi-platform video collaboration solution and the functionality of an Android tablet to offer an all-in-one communications solution. This IP video phone delivers a powerful experience through its’ 5 inch 1280x720 capacitive touch screen, tiltable camera, HDMI output, dual microphones and support for 720p HD video.

The GXV3350 adds dual Gigabit ports with PoE/PoE+, integrated Wi-Fi and Bluetooth support. It also runs Android 7.0 and offers instant access to hundreds of thousands of Android apps. By combining a state-of- the-art IP video phone and the functionality of an Android tablet, the GXV3350 offers businesses throughout the world a powerful desktop communication and productivity solution.

Product Features
16 Lines

HD Audio

Power Over Ethernet

Touch Screen

Gigabit

Built-in Camera Detection

Bluetooth

Wi-Fi

Hardware

HDMI

USB

6-Way Conference

16 lines with up to 16 SIP accounts


Built-in 1 mega-pixel CMOS tiltable camera for video calling with privacy wheel


Dual-switched auto-sensing 10/100/1000Mbps network ports


Integrated dualband Wi-Fi (2.4GHz & 5GHz)


Dual-mic HD speakerphone with noise reduction, advanced echo cancellation & excellent doubletalk performance


6-way audio conferencing & 3-way 720p 30fps HD video conferencing capability
Runs on the Android 7.0 operating system


Built-in Bluetooth for syncing with mobile devices and connecting Bluetooth headsets


Built-in PoE/PoE+ for power and network connections


5.0” (1280×720) capacitive 5-point touch screen HD TFT LCD


4-core 1.3GHz ARM Cortex A53 processor with 2GB RAM and 8GB eMMC Flash


Peripherals include HDMI-out, USB, headset jack, EHS


The GXV3370 IP Video Phone for Android™ offers a powerful desktop video phone featuring Android 7.0, a 7” touch screen, real-time HD video telephony, built-in WiFi & Bluetooth, and more.

The GXV3370 is a powerful desktop video phone for enterprise users. It features a 7” touch screen, advanced megapixel camera for HD video conferencing, built-in WiFi and Bluetooth, Gigabit network speeds and innovative telephony functionalities. It also runs on Android 7.0 and has flexible SDK support for custom apps. The GXV3370 is fully interoperable with nearly all major SIP platforms on the market and can be seamlessly integrated with Grandstream’s portfolio including SIP based security cameras, door systems, IP PBXs, and video conferencing systems and services. This video phone is the perfect choice for users looking for an integrated video communications solution for their desktop.

Features: 16 lines with up to 16 SIP accounts
Built-in mega-pixel camera for video calling with privacy shutter
Runs on Android 7.0 operating system
Built-in Bluetooth for syncing with mobile devices and connecting Bluetooth headset
Dual-switched auto-sensing 10/100/1000Mbps network ports
Integrated dual-band WiFi (2.4GHz & 5GHz)
Built-in PoE/PoE+ to power the device and give it a network connection
Speakerphone with HD acoustic chamber, advanced echo cancellation & excellent double-talk performance
4-core 1.3GHz ARM Cortex A53 processor with 2GB RAM and 8GB eMMC Flash
7’’ (1024×600) capacitive 5-point touch screen TFT LCD
TLS and SRTP security encryption technology to protect calls and accounts
7-way audio conferencing & 3-way 720p 30fps HD video conferencing capability


Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN® Network Interfaces Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+  Graphic Display 7" 1024×600 capacitive touch screen (5 points) TFT LCD Camera Tiltable mega pixel CMOS camera with privacy shutter, 720p 30fps  Bluetooth Yes, integrated. Bluetooth 4.0 + EDR Wi-Fi Yes, dual-band 802.11a/b/g/n (2.4GHz & 5GHz) Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB port, SD, HDMI-out (1.4 up to 720p 30fps) Feature Keys 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK Voice Codecs G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO),  VAD, CNG, AEC, PLC, AJB, AGC, ANS Video Codecs & Capabilities H.264 BP/MP/HP,  video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps,  3-way video conference (720p 30fps),  anti-flickering, auto focus and auto exposure Telephony Features Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup,  7-way audio conference(including the host),  shared-call-appearance (SCA) / bridged-line-appearance (BLA),  virtual MPK, downloadable contacts (XML, LDAP, up to 1000 items), call record(local and server), call log (up to 1000 records), call waiting, auto answer,  XML customisation of screen, click-to-dial, flexible dial plan, hot desking,  personalised music ringtones and music on hold, server redundancy & fail-over Sample Applications Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser, Voicemail, Clock, Recorder, GS Market, etc. Support 3rd party apps: Skype, Google Hangouts, Skype for Business, etc. API/SDK available for advanced custom application development Applications Deployment Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control HD Audio Yes, HD handset and speakerphone with support for wideband audio Base Stand Yes, built-in stand with multiple adjustable angles. Wall mountable QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS Security User and administrator level passwords,  MD5 and MD5-sess based authentication,  256bit AES encrypted configuration file,  TLS, SRTP, HTTPS,  802.1x media access control Power & Green Energy Efficiency Universal power adapter included:  Input: 100-240VAC 50-60Hz;  Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
*USB enabled only when power supply or PoE+ is used. Package Content GXV3370 phone, handset with cord, universal power supply, network cable, screen cleaning cloth, quick installation guide, GPL license, wall mount bracket

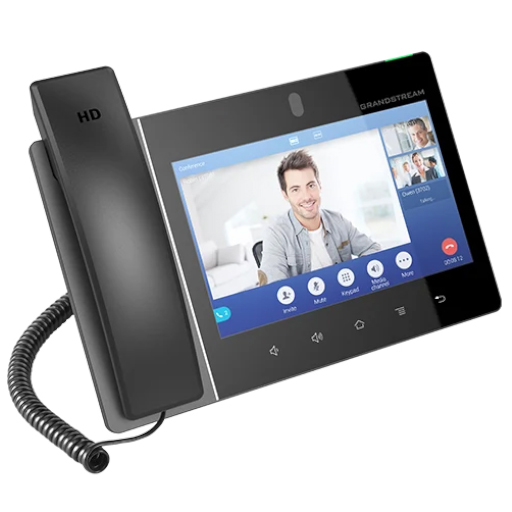

The Grandstream GXV3380 is a high-end Android Smart Video Phone, seamlessly integrating a 16-line IP phone, multi-platform video collaboration, and Android tablet functionality. Boasting an 8-inch touch screen, 2MP camera, and 1080p HD video support, it offers a streamlined solution for professionals. With dual Gigabit ports, Wi-Fi, Bluetooth, and Android 7.x, it serves as a powerful desktop communication tool for businesses worldwide.

Specifications

The GXV3380 is a high-end Android Smart Video Phone, seamlessly integrating a 16-line IP phone, multi-platform video collaboration, and Android tablet functionality.
Boasting an 8-inch touch screen, 2MP camera, and 1080p HD video support, it offers a streamlined solution for professionals.
With dual Gigabit ports, Wi-Fi, Bluetooth, and Android 7.x, it serves as a powerful desktop communication tool for businesses worldwide.
16 lines with up to 16 SIP accounts
Built-in 2-megapixel camera for video calling with a privacy shutter
Dual-switched auto-sensing 10/100/1000Mbps network ports
Integrated dualband Wi-Fi (2.4GHz & 5GHz)
Dual-mic HD speakerphone with noise reduction, advanced echo cancellation & excellent doubletalk performance
7-way HD audio conferencing & 3-way 1080p 30fps HD video capability
8" (1280x800) capacitive 10-point touch screen IPS LCD
Runs on the Android 7.x operating system
Built-in Bluetooth for syncing with mobile devices and connecting Bluetooth headsets
Built-in PoE/PoE+ for power and network connections
5.0" (1280×720) capacitive 5-point touch screen HD TFT LCD
64-bit quad-core processor, 2GB RAM, and 16GB Flash
Peripherals include HDMI-in/out, USB, Micro SD, headset jack, EHS (Plantronics headsets)
*For complete specifications see the documentation tab above.
