Grandstream GBX20 20 Button EXP Module

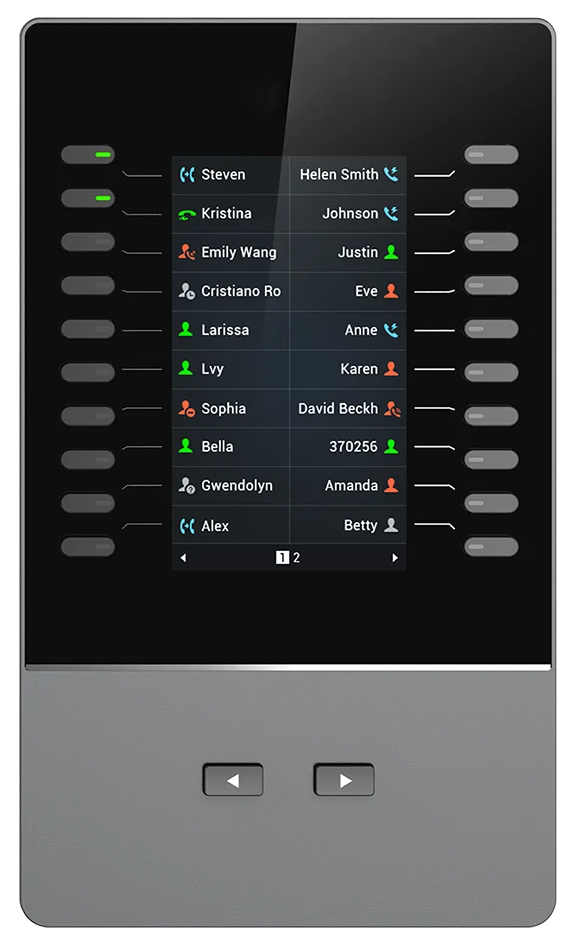

Grandstream GBX20 20-Button Expansion Module with 4.3-Inch Colour LCD

The Grandstream GBX20 adds programmable call-control keys to compatible Grandstream IP phones. It is an accessory rather than a standalone phone and works with the GRP2615, GRP2624, GRP2650, GRP2670, GXV3350 and GXV3450.

Its 20 programmable keys have dual-colour LEDs, while two selectable pages provide access to up to 40 contacts or extensions per module. The 4.3-inch 480 x 272 TFT colour display shows names, line status and assigned functions. Up to four GBX20 modules can be daisy-chained, providing as many as 160 programmable entries.

Supported Functions:

• Busy Lamp Field (BLF), bridged line appearance (BLA) and shared call appearance (SCA)
• Call park and pickup
• Speed dial and presence
• Intercom and conferencing
• Call transfer and forwarding

These functions make the GBX20 particularly useful for receptionists, switchboard operators, executive assistants, customer-service teams and other users handling high call volumes.

Busy Lamp Field

Call Forwarding

Call Transfer

Call Queue

Key Features:

• 20 programmable keys with dual-colour LEDs on each page
• Two-page design provides up to 40 contacts or extensions per module
• Up to four daisy-chained modules support 160 programmable entries
• 4.3-inch 480 x 272 TFT colour LCD
• Compatible with Grandstream GRP2615, GRP2624, GRP2650, GRP2670, GXV3350 and GXV3450 phones
• Configured and updated through the connected host phone
• One module can be powered by the host phone; the included 12V/1A adapter is used when two or more modules are connected

The package includes the GBX20 extension module, base stand, connector plate, screw, Type-A to Micro-B USB cable, quick installation guide and 12V/1A power adapter.

For other Grandstream desk and video phone options, customers can explore Grandstream Phones. Comms Express also offers an impressively wide VOIP Business Phone Systems range from Grandstream and other leading manufacturers, making it easy to source phones, expansion modules, conferencing products and related equipment all from us in one place.

*For complete specifications see the documentation tab above
