The Datwyler 19145400BL CU 6552 CAT6A cable is a high-grade structured cabling option designed for fixed network installations requiring stable 10 Gigabit performance and strong signal integrity. Built with F/FTP shielding and 23 AWG solid copper conductors, it provides reliable transmission across demanding environments while maintaining strict fire safety compliance with a B2ca rating. Supplied on a 500 metre drum, it is suited to large-scale installations where consistency and long-distance cabling runs are required.
Key Features of Datwyler 19145400BL
Category 6A performance supporting up to 500 MHz bandwidth
Supports 10 Gbit/s Ethernet transmission
F/FTP construction with individually foil-shielded pairs
Overall foil screen for improved interference protection
Low smoke zero halogen (LS0H / FRNC) outer sheath
B2ca-s1a,d1,a1 fire performance classification
Designed for PoE and PoE+ network applications
Supplied in 500 m drum format for structured installations
Signal Stability in High-Density Environments
The cable’s dual-layer shielding design helps maintain consistent signal quality in environments with high levels of electrical noise, making it suitable for complex building infrastructures and dense cable routing scenarios.
Fire Safety Compliance for Building Standards
With a B2ca classification, this cable meets stringent fire performance requirements, supporting installation in public buildings, commercial spaces, and other regulated environments where safety standards are critical.
Designed for Large-Scale Structured Cabling
The 500 metre drum format and solid copper construction make it well suited for extensive installations, allowing consistent performance across long cable runs in professional network deployments.
The Datwyler 19145400CL CU 6552 Cat6A F/FTP cable is a 500 metre structured cabling reel designed for high-speed data transmission in modern network installations. Built with 23 AWG solid copper conductors and full foil screening, it supports stable signal performance across demanding copper infrastructure layouts.
Key Features of Datwyler 19145400CL
Cat6A (Class EA) performance rating
F/FTP construction with individual pair and overall foil screening
4 twisted pairs, solid copper conductors
23 AWG conductor size
500 MHz transmission capability
500 metre drum format for large installations
CPR Cca fire rating variant
LSZH outer sheath for reduced smoke emissions
Supports 10 Gigabit Ethernet applications
100 ohm characteristic impedance
Signal Stability Design
The cable construction uses individual foil wrapping around each pair combined with an overall screen to reduce external interference and maintain consistent data transmission quality across longer cable runs.
Installation Use Case
Designed for structured cabling environments, the 500 metre reel format allows installers to deploy long runs in commercial and technical environments where high bandwidth and dependable copper connectivity are required.
Physical Build
Each conductor is formed from solid copper with a durable LSZH outer jacket, supporting installation in enclosed spaces where reduced smoke output and material compliance are required.
Datwyler 19145400DL CU 6552 CAT6A F/FTP is a 500 metre structured cabling drum designed for high-speed copper network installations. It uses individually foil-shielded pairs with an overall screen to support stable transmission across demanding environments, making it suitable for 10 Gigabit Ethernet and modern data-driven infrastructure layouts.
Key Features of Datwyler 19145400DL
Category 6A performance for 10G Ethernet support
F/FTP construction with foil shielding on each pair plus overall screen
23 AWG solid bare copper conductors
500 metre drum format for larger installation projects
Supports up to 500 MHz bandwidth
LS0H/FRNC sheath for reduced smoke and halogen-free safety characteristics
Suitable for PoE, PoE+ and high-power network applications
Dca fire classification rating for installation compliance
Construction Overview
The cable is built using four twisted pairs, each individually wrapped in foil, combined with an overall aluminium screen. This design reduces external interference and maintains signal stability across longer cable runs.
Performance Characteristics
It supports high bandwidth transmission up to 500 MHz, enabling reliable 10 Gigabit data transfer over copper cabling within compliant installation standards.
The Datwyler 18291100BL 7080 CAT7 S/FTP cable is a high-grade copper installation cable designed for structured network environments requiring stable high-frequency transmission. Built with individually shielded twisted pairs and an overall braided screen, it supports consistent data performance across demanding building infrastructure layouts. Supplied on a 500 m drum, it is suited for fixed installation projects where long continuous cable runs are required and fire safety compliance is a key consideration.
Key Features of Datwyler 18291100BL
Category 7 cable supporting up to 1000 MHz bandwidth
S/FTP construction with foil-shielded pairs and braided outer screen
Four twisted pairs with 23 AWG solid copper conductors
B2ca fire rating for enhanced building safety compliance
Supplied on 500 metre drum for large-scale installations
Suitable for structured LAN and high-speed data networks
Low smoke halogen-free sheath for reduced emissions in fire conditions
Fire Safety Rating
Meets B2ca classification standards, making it appropriate for environments with strict fire performance requirements.
Performance Capacity
Supports high-frequency transmission suitable for demanding data traffic, including modern Ethernet applications and multimedia distribution.
Cable Build
Solid copper 23 AWG conductors provide consistent electrical performance and mechanical stability for fixed installations.
The Datwyler 18291100CL CU 7080 Cat.7 S/FTP cable is a 500 metre installation cable designed for structured network environments requiring stable high-frequency transmission. Built with individually shielded pairs and an overall braid, it supports strong signal consistency across longer cable runs. Its solid copper 23 AWG construction and Cca fire rating make it suitable for fixed infrastructure in commercial and technical building layouts where reliable data transfer is required.
Key Features of Datwyler 18291100CL
Cat.7 performance class rated up to 1000 MHz
S/FTP construction with individual pair foil shielding and overall braid
4-pair configuration using 23 AWG solid bare copper conductors
Supplied on 500 metre installation drums
Cca fire performance classification for fixed building installations
Designed for structured cabling systems in ICT environments
Supports high-speed Ethernet applications including 10GBASE-T in suitable conditions
Shielded Construction Design
The cable uses a dual-shield structure where each twisted pair is individually wrapped in foil, combined with an outer copper braid. This arrangement reduces external interference and limits internal crosstalk, helping maintain stable transmission quality in dense cabling environments.
Installation Suitability
With its 500 metre drum format and solid conductor design, the cable is intended for permanent installations within buildings. It performs well in structured routing systems such as trunking, risers, and data distribution pathways where long-term stability is required.
Datwyler 18291100DL is a Category 7 installation cable designed for high-speed structured cabling environments where strong signal stability and reduced interference are required. Built with S/FTP shielding and solid copper conductors, it supports demanding network infrastructures across commercial and technical building installations on a 500 metre drum format.
Key Features of Datwyler 18291100DL
Category 7 cable designed for high-frequency data transmission up to 1000 MHz
S/FTP construction with individual pair foil and overall braid shielding
4-pair solid bare copper conductor design (AWG 23)
500 metre drum format for larger installation projects
LSOH/FRNC outer sheath for reduced smoke and halogen-free properties
Dca-s2,d1,a1 fire performance rating for building compliance
Stable performance for structured LAN and backbone network layouts
Network Stability Focus
Designed to maintain consistent signal performance in environments with high electromagnetic activity, this cable supports reliable data transfer across long fixed runs within structured cabling systems.
Performance Characteristics
The cable construction supports high bandwidth data movement while reducing crosstalk, making it suitable for multi-service network environments including data, voice, and building control systems.
Datwyler 41806100ZF KS-T Plus RJ45 Cat6A IEC module is a shielded keystone connector designed for structured cabling environments requiring stable high-speed data transmission. It supports 10 Gigabit Ethernet performance and is built for tool-less termination, allowing efficient installation in patch panels, outlets, and modular faceplates. The shielded construction helps maintain signal integrity across demanding network layouts.
Key Features of Datwyler 41806100ZF
Cat6A IEC performance rating for high-speed network links
Shielded RJ45 keystone module design
Tool-less IDC termination for faster installation
Supports up to 500 MHz bandwidth
Compatible with 10 Gbit/s Ethernet transmission
Suitable for PoE, PoE+ and high-power PoE applications
Keystone format for patch panels and outlet systems
Durable metal housing for improved signal stability
Design and Build
Enables acceptance testing with high spare capacity at the limit values stipulated for Class EA Permanent Links when combined with shielded Category 6A, 7 and 7A data cables.Therefore it is applicable for 10-gigabit Ethernet transmissions in accordance with IEEE 802.3. Useable for PoE, PoE+ and 4PPoE application. Solid zinc die casting housing with mounting clip for installation in Keystone panels and outlets. Contact spring with phosphor bronze alloy, plated with gold.
For connecting the wires a wire manager is used in combination with two integrated moveable housing wings for tool-less IDC connections. Only for cutting the wires a plane wire cutter is necessary. The 360° metal shield ensures a durable fully shielded environment. Strain relief via cable tie. The module is re-usable. Potential balancing possibility directly at the module when needed. With removable black dust shutter. Other colours available as accessories sets.
Installation Use
Designed for structured cabling deployments, the module is suited for installation in office networks, data centres, and building infrastructure where modular and repeatable termination is required.

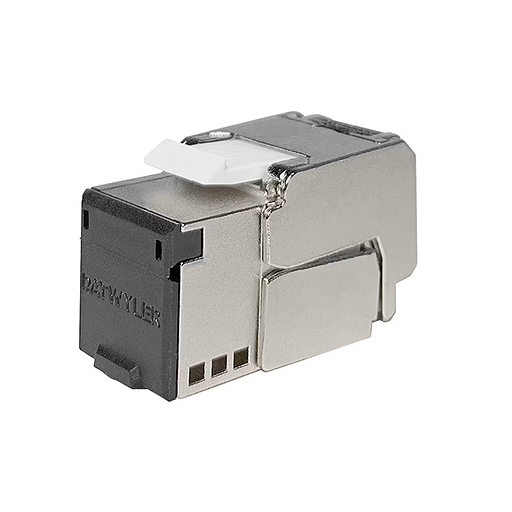

The Datwyler 41806900ZF RJ45 Compact Shielded Cat6A IEC Module KS-TC is designed for structured copper networks that require consistent high-speed signal performance within a compact keystone format. Built with integrated shielding and a space-efficient housing, it supports stable 10 Gbit/s transmission while helping maintain signal integrity across demanding installation environments. Its tool-less termination design supports efficient fitting into patch panels, outlets, and modular frames, making it suitable for modern network infrastructure layouts where density and reliability are key considerations.
Key Features of Datwyler 41806900ZF
Cat.6A IEC performance supporting up to 500 MHz bandwidth
Supports 10 Gbit/s Ethernet transmission
Compact shielded RJ45 keystone module design
360° metal shielding for improved signal stability
Tool-less IDC termination for faster installation
Compatible with standard keystone panels and outlets
Suitable for PoE, PoE+, and 4PPoE applications
Zinc die-cast housing for mechanical durability
Gold-plated contact system for reliable connectivity
Pack size: 12 modules
Performance Characteristics
Designed for Class EA cabling systems, the module maintains stable transmission performance under high-frequency data loads. Its shielding structure reduces external interference, helping maintain consistent signal quality in electrically active environments.
The Datwyler 418068 RJ45 Shielded Cat6a IEC Module is a 45-degree angled keystone-style connector designed for structured copper cabling installations where space efficiency and clean cable routing are important. It supports high-speed Ethernet transmission up to 10 Gbit/s when used within compatible Cat6A/Class EA channel configurations. The angled front design helps reduce strain on patch leads and improves airflow and organisation in dense panel layouts. Its shielded metal housing provides strong protection against external interference, making it suitable for professional network environments requiring stable signal performance.
Key Features of Datwyler 418068
45-degree angled RJ45 outlet for improved cable routing
Shielded metal housing for interference resistance
Supports Cat6 / Class E and Cat6A / Class EA channel performance
Capable of supporting Ethernet speeds up to 10 Gbit/s
Tool-less IDC termination for faster installation
Compatible with solid and stranded copper conductors (AWG 22-26)
Supports PoE and high-power PoE applications
Designed for keystone-style patch panel systems
Pack size: 10 pieces
Design and Build
The module uses a compact keystone form factor with a zinc die-cast shielded shell. The angled design reduces stress on connected patch cables, helping maintain neat routing in high-density installations. Its structure is intended for repeated handling within structured cabling environments.
Performance Capability
This module supports high-bandwidth data transmission suitable for modern Ethernet networks. When installed within a compliant Cat6A/Class EA channel, it enables stable 10 Gbit/s connectivity over copper infrastructure while maintaining consistent signal integrity.
The Datwyler 418023 1U Screened 24 Port Flat Panel provides a clean and practical foundation for structured cabling installations in professional network cabinets. Its unloaded design allows installers to configure the panel using compatible keystone modules suited to the project requirements, while the screened metal construction helps maintain stable network performance in demanding environments. Designed for 19-inch racks, the flat port layout supports straightforward patching and organised cable presentation across high-density installations.
Key Features of Datwyler 418023
Two rows of six ports on each side
12 modules point to the left side and 12 modules point to the right side
Snap-in modules can be easily fitted into the patch panel
Angled design allows patching without the need for a cable management panel
Front panel manufactured from flame-retardant UL94V-0 rated compound
Constructed using stainless steel with integrated cable strain relief
Flexible Keystone Configuration
The unloaded format allows installers to populate the panel with the required module categories and port layouts, making it suitable for both new installations and future network expansion projects.
Professional Rack Integration
Designed for standard 19-inch cabinets, the compact 1U profile helps maximise rack space while maintaining a tidy and accessible patching area.

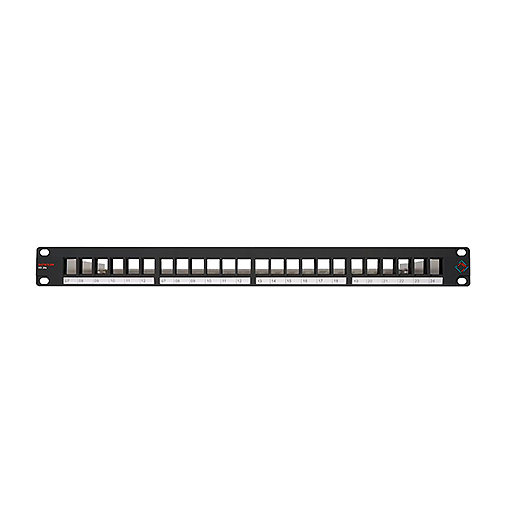

The Datwyler 418019 is a 1U rack-mounted 24-port screened patch panel designed for use with keystone-style RJ45 modules. It provides a flexible framework for building structured network terminations, allowing installers to select module types based on cabling category requirements. The unloaded format supports tailored configurations in shielded network environments where signal integrity and organised cabling layouts are required.
Key Features of Datwyler 418019
1U 19-inch rack mounting format for standard cabinet integration
Supports up to 24 keystone RJ45 module positions
Screened metal construction for use in shielded cabling environments
Unloaded design allows flexible module selection
Rear cable management and strain relief provisions
Front panel designed for snap-in keystone installation
Cabinet Integration
Built for 19-inch rack systems, the panel fits seamlessly into standard networking cabinets. Its screened metal structure supports continuity in grounded installations, maintaining consistent performance across structured cabling setups.
Build and Application
The steel construction and modular layout make it suitable for office networks, data rooms, and communication cabinets where organised patching and modular expansion are required. The unloaded configuration gives full control over port specification.

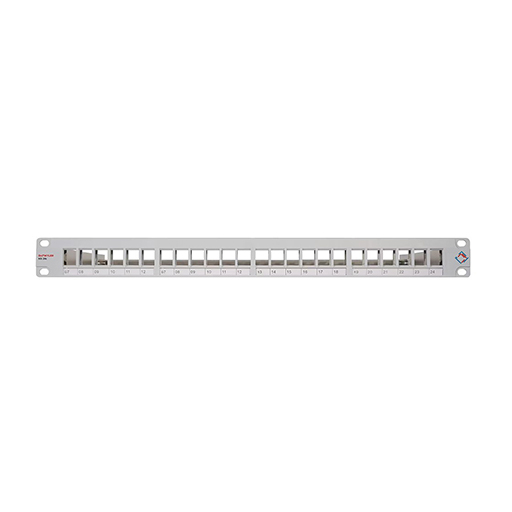

The Datwyler 418020 is a 1U, 19-inch screened patch panel designed for structured cabling environments that require flexible module configuration. Supplied in an unloaded format, it allows installers to fit compatible Keystone-style modules based on specific network requirements. Its 24-port layout supports high-density cabling within a compact rack space, while the screened construction helps maintain signal integrity across connected links. The panel is built with a durable front frame and integrated rear cable management to support organised installation within network cabinets.
Key Features of Datwyler 418020
24-port configuration within a 1U rack height
19-inch rack mounting compatibility
Screened construction for improved signal stability
Unloaded Keystone format for flexible module selection
Snap-in module installation system
Rear cable strain relief for organised routing
Flame-retardant front panel construction
Suitable for structured cabling installations in patching frames
Modular Configuration
The unloaded Keystone layout allows each port to be populated with the required connector type, making it adaptable to different network designs within a single panel.
Cable Management
The rear section includes structured strain relief points that help secure incoming cables, supporting a cleaner and more organised installation layout.
