| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DAT41806100ZF |
| Manufacturer No: | 41806100ZF |
| Delivery: | In Stock: 5-7 Days |
 |

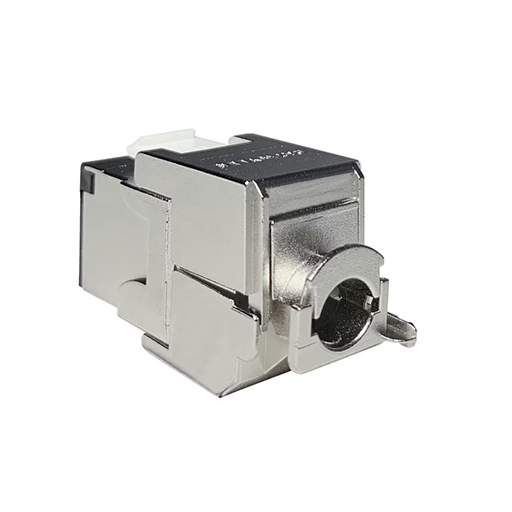

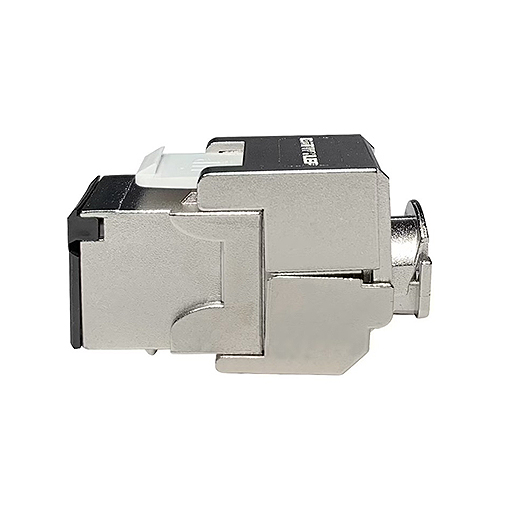

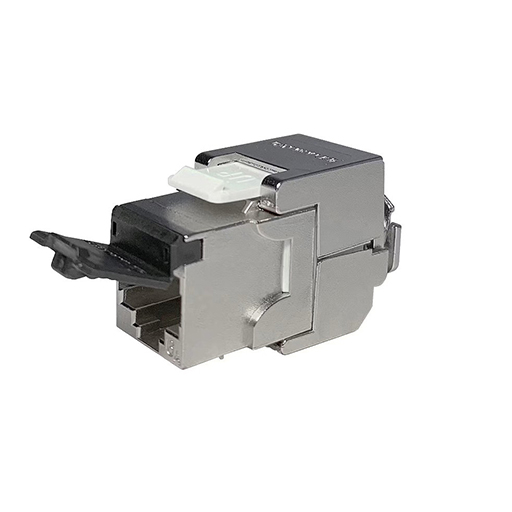

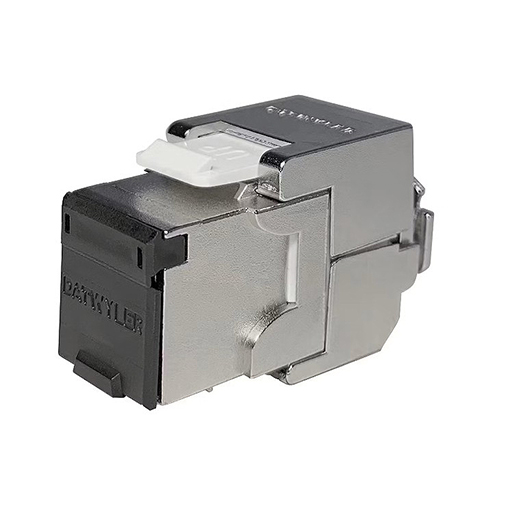

Datwyler 41806100ZF KS-T Plus RJ45 Cat6A IEC module is a shielded keystone connector designed for structured cabling environments requiring stable high-speed data transmission. It supports 10 Gigabit Ethernet performance and is built for tool-less termination, allowing efficient installation in patch panels, outlets, and modular faceplates. The shielded construction helps maintain signal integrity across demanding network layouts.
Enables acceptance testing with high spare capacity at the limit values stipulated for Class EA Permanent Links when combined with shielded Category 6A, 7 and 7A data cables.Therefore it is applicable for 10-gigabit Ethernet transmissions in accordance with IEEE 802.3. Useable for PoE, PoE+ and 4PPoE application. Solid zinc die casting housing with mounting clip for installation in Keystone panels and outlets. Contact spring with phosphor bronze alloy, plated with gold.
For connecting the wires a wire manager is used in combination with two integrated moveable housing wings for tool-less IDC connections. Only for cutting the wires a plane wire cutter is necessary. The 360° metal shield ensures a durable fully shielded environment. Strain relief via cable tie. The module is re-usable. Potential balancing possibility directly at the module when needed. With removable black dust shutter. Other colours available as accessories sets.
Designed for structured cabling deployments, the module is suited for installation in office networks, data centres, and building infrastructure where modular and repeatable termination is required.
Datwyler 41806100ZF KS-T Plus RJ45 Cat6A IEC module is a shielded keystone connector designed for structured cabling environments requiring stable high-speed data transmission. It supports 10 Gigabit Ethernet performance and is built for tool-less termination, allowing efficient installation in patch panels, outlets, and modular faceplates. The shielded construction helps maintain signal integrity across demanding network layouts.
Enables acceptance testing with high spare capacity at the limit values stipulated for Class EA Permanent Links when combined with shielded Category 6A, 7 and 7A data cables.Therefore it is applicable for 10-gigabit Ethernet transmissions in accordance with IEEE 802.3. Useable for PoE, PoE+ and 4PPoE application. Solid zinc die casting housing with mounting clip for installation in Keystone panels and outlets. Contact spring with phosphor bronze alloy, plated with gold.
For connecting the wires a wire manager is used in combination with two integrated moveable housing wings for tool-less IDC connections. Only for cutting the wires a plane wire cutter is necessary. The 360° metal shield ensures a durable fully shielded environment. Strain relief via cable tie. The module is re-usable. Potential balancing possibility directly at the module when needed. With removable black dust shutter. Other colours available as accessories sets.
Designed for structured cabling deployments, the module is suited for installation in office networks, data centres, and building infrastructure where modular and repeatable termination is required.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
