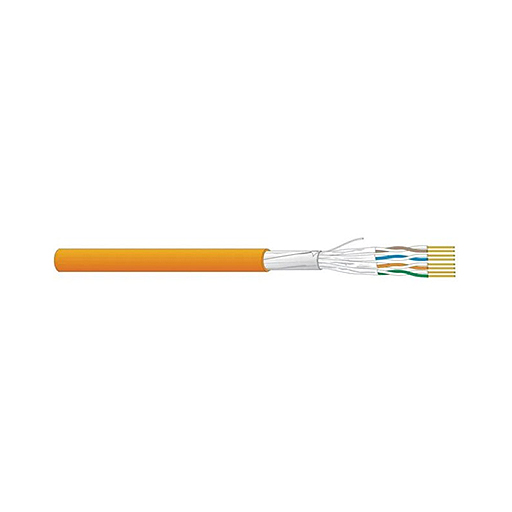

Datwyler 19145400CL 6552 CAT6a F/FTP 4 pair 23 AWG Cca (on 500m drums)

The Datwyler 19145400CL CU 6552 Cat6A F/FTP cable is a 500 metre structured cabling reel designed for high-speed data transmission in modern network installations. Built with 23 AWG solid copper conductors and full foil screening, it supports stable signal performance across demanding copper infrastructure layouts.

Key Features of Datwyler 19145400CL

• Cat6A (Class EA) performance rating
• F/FTP construction with individual pair and overall foil screening
• 4 twisted pairs, solid copper conductors
• 23 AWG conductor size
• 500 MHz transmission capability
• 500 metre drum format for large installations
• CPR Cca fire rating variant
• LSZH outer sheath for reduced smoke emissions
• Supports 10 Gigabit Ethernet applications
• 100 ohm characteristic impedance

Signal Stability Design

The cable construction uses individual foil wrapping around each pair combined with an overall screen to reduce external interference and maintain consistent data transmission quality across longer cable runs.

Installation Use Case

Designed for structured cabling environments, the 500 metre reel format allows installers to deploy long runs in commercial and technical environments where high bandwidth and dependable copper connectivity are required.

Physical Build

Each conductor is formed from solid copper with a durable LSZH outer jacket, supporting installation in enclosed spaces where reduced smoke output and material compliance are required.
