Datwyler 19145400DL 6552 CAT6a F/FTP 4 pair 23 AWG Dca (on 500m drums)

Datwyler 19145400DL CU 6552 CAT6A F/FTP is a 500 metre structured cabling drum designed for high-speed copper network installations. It uses individually foil-shielded pairs with an overall screen to support stable transmission across demanding environments, making it suitable for 10 Gigabit Ethernet and modern data-driven infrastructure layouts.

Key Features of Datwyler 19145400DL

• Category 6A performance for 10G Ethernet support
• F/FTP construction with foil shielding on each pair plus overall screen
• 23 AWG solid bare copper conductors
• 500 metre drum format for larger installation projects
• Supports up to 500 MHz bandwidth
• LS0H/FRNC sheath for reduced smoke and halogen-free safety characteristics
• Suitable for PoE, PoE+ and high-power network applications
• Dca fire classification rating for installation compliance

Construction Overview

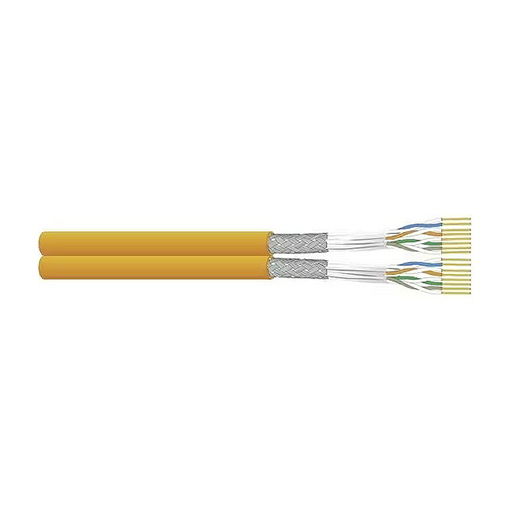

The cable is built using four twisted pairs, each individually wrapped in foil, combined with an overall aluminium screen. This design reduces external interference and maintains signal stability across longer cable runs.

Performance Characteristics

It supports high bandwidth transmission up to 500 MHz, enabling reliable 10 Gigabit data transfer over copper cabling within compliant installation standards.
