Overview
The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Package Contents
1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
1x Microphone Cable
1x Speaker Cable
1x USB Type-A to Type-B Cable
1x DisplayPort Cable
2x Mounting Kits
2x Power Adapters
1x User Instructions
Features
Supports HDBaseT™ 2.0 technology
Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Status detection and LED indication for HDBaseT™ signal transmission on remote unit
EDID Buffer for smooth power-up and the highest quality display
Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
- HDBaseT™ Long-Reach mode up to 1080P @ 150m
Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
HDCP Compatible
Supports individual 2-channel stereo audio for high-quality audio applications
Supports PC wakeup function via single pushbutton through RS-232 channel*
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable.
The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters.
With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
* Note: The CE920R-AT supports Ethernet function and the CE920R-ATA does not.
Aten KE9900ST FHD DisplayPort Slim KVM over IP Transmitter

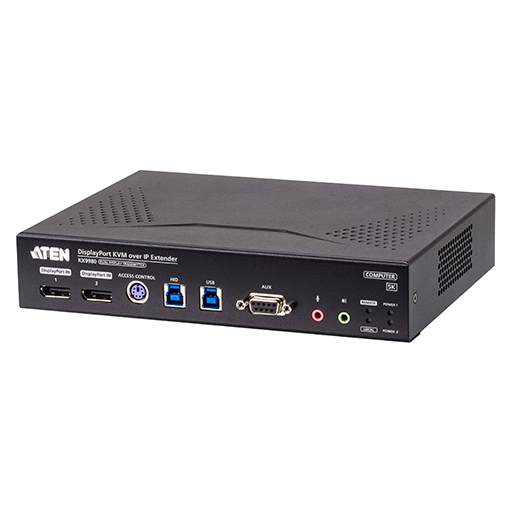

The KX9980 is a high-performance KVM over IP transmitter engineered to deliver secure, remote, and uninterrupted access to DisplayPort hosts from 5K DisplayPort KVM consoles across an intranet or dedicated LAN, enabling ergonomic, distributed control-room workflows while isolating critical systems from adverse environments.
Key Features of KX9980
Native DisplayPort signal processing with 8/10/12-bit deep color and support for Adobe RGB / sRGB / YCbCr / YUV color spaces
Pixel-perfect 5K@60 Hz @4:4:4 audiovisual performance
High-frame-rate support (1080p@240Hz, 1440p@144Hz) for live broadcasting and eSports workflows
Enhanced isochronous USB transmission for high-rate peripheral sharing (cameras, mics, speakers)
Network options: dual SFP+ modules (10 Gbps fiber) plus RJ-45 copper for flexible fiber/copper connectivity
Network and power redundancy (fail-safe design with seamless failover)
AES-256 encryption for zero-latency KVM over IP extension
Panel Array™ multiview mode (2x2 up to 6x6) when used with CCKM matrix manager
ATEN Boundless Switching for intuitive video wall control (push/pull content management)
Flexible matrix topologies: point-to-point, point-to-multipoint, multipoint-to-point, multipoint-to-multipoint
KVM over IP Access Control integration (PS/2 port) to immediately block remote receiver access for local maintenance
Centralized management via CCKM web GUI or iPad app; mixed extender compatibility in matrix deployments
Overview
The KX9980 enables secure remote access to DisplayPort workstations from a separated receiver console over standard IP networks, improving operator ergonomics and continuity of mission-critical workflows while isolating host systems from local disturbances.
Target Use Cases
Designed for mission-critical control rooms — broadcasting NOCs, air traffic control towers, production-line monitoring — and professional gaming/broadcasting environments that demand secure, real-time monitoring and rapid collaboration.
Native DisplayPort Signal Processing
Powered by native DisplayPort processing with support for 8/10/12-bit color depths, the KX9980 preserves wide color gamuts and supports lossless compression over KVM over IP transmission for accurate visualization tasks (e.g., broadcast post-production, meteorology).
Pixel-Perfect 5K Performance
Delivers 5K@60Hz at 4:4:4 chroma subsampling for pixel-accurate rendering; combined with host GPU dithering, it improves luminosity gradients and image smoothness to support detailed monitoring and analysis.
High Frame Rate Video for eSports & Broadcast
Supports 1920×1080 at 240Hz (CVT-RB) and 2560×1440 at 144Hz to meet the demands of live event production and esports broadcasting where high frame-rate fidelity is critical for switching and streaming workflows.
Enhanced Isochronous USB
USB peripheral ports support isochronous transfer for high-throughput, time-sensitive peripherals such as cameras and microphones, enabling smooth AV capture and peripheral sharing across the KVM network.
Fail-Safe Network & Power Redundancy
Equipped with dual SFP+ modules and an RJ-45 port for fiber and copper links plus power redundancy logic to maintain continuous operations and resilient failover during network or power contingencies.
Panel Array™ Multiview
When paired with CCKM, the receiver console can display multiple transmitter video sources simultaneously in 2x2 up to 6x6 layouts, increasing situational awareness and enabling rapid context switching at the operator console.
Zero-Latency KVM over IP Extension
Guaranteed secure, extendable, zero-latency KVM over IP transmission with AES-256 encryption to protect data in transit, removing distance constraints and enabling real-time situational awareness for dispersed control rooms.
Emergency KVM over IP Control Access
Includes a PS/2 port for connection to an Access Control Box (2XRT-0015G) to forcibly stop remote receiver connections in emergency scenarios, allowing local technicians to perform immediate troubleshooting and maintenance.
Video Wall Collaboration & Boundless Switching
Integrates with video walls using ATEN Boundless Switching to switch control across screens via cursor movement, and supports push/pull of screen contents for collaboration and rapid escalation of incidents to the video wall.
Matrix Flexibility & Centralized Management
Deployable as point-to-point, point-to-multipoint, and full matrix topologies; extenders can be mixed and centrally managed via CCKM (web GUI or iPad app) for scalable control-room architectures.
Network Interface & Throughput
Supports up to 10 Gbps fiber connectivity via SFP+ modules for future-proofed bandwidth and fast peripheral sharing, while maintaining compatibility with copper RJ-45 links for hybrid networking.
Security & Encryption
All KVM over IP data transmissions are encrypted with AES-256 prior to transmission and decrypted at the receiver, ensuring confidentiality and integrity for sensitive control-room traffic.
Deployment Considerations
Supports mixed extender configurations in matrix setups; plan network topology to include redundant links and power sources for continuous uptime. Use CCKM for centralized policy, user access controls, and multiview layout configuration.
Applications
Optimized for control rooms and environments needing real-time monitoring and secure remote access: broadcast operations, NOCs, ATC towers, production lines, and competitive gaming/broadcasting venues.
The KX9980 is a high-performance KVM over IP transmitter engineered to deliver secure, remote, and uninterrupted access to DisplayPort hosts from 5K DisplayPort KVM consoles across an intranet or dedicated LAN, enabling ergonomic, distributed control-room workflows while isolating critical systems from adverse environments.
Key Features of KX9980
Native DisplayPort signal processing with 8/10/12-bit deep color and support for Adobe RGB / sRGB / YCbCr / YUV color spaces
Pixel-perfect 5K@60 Hz @4:4:4 audiovisual performance
High-frame-rate support (1080p@240Hz, 1440p@144Hz) for live broadcasting and eSports workflows
Enhanced isochronous USB transmission for high-rate peripheral sharing (cameras, mics, speakers)
Network options: dual SFP+ modules (10 Gbps fiber) plus RJ-45 copper for flexible fiber/copper connectivity
Network and power redundancy (fail-safe design with seamless failover)
AES-256 encryption for zero-latency KVM over IP extension
Panel Array™ multiview mode (2x2 up to 6x6) when used with CCKM matrix manager
ATEN Boundless Switching for intuitive video wall control (push/pull content management)
Flexible matrix topologies: point-to-point, point-to-multipoint, multipoint-to-point, multipoint-to-multipoint
KVM over IP Access Control integration (PS/2 port) to immediately block remote receiver access for local maintenance
Centralized management via CCKM web GUI or iPad app; mixed extender compatibility in matrix deployments
Overview
The KX9980 enables secure remote access to DisplayPort workstations from a separated receiver console over standard IP networks, improving operator ergonomics and continuity of mission-critical workflows while isolating host systems from local disturbances.
Target Use Cases
Designed for mission-critical control rooms — broadcasting NOCs, air traffic control towers, production-line monitoring — and professional gaming/broadcasting environments that demand secure, real-time monitoring and rapid collaboration.
Native DisplayPort Signal Processing
Powered by native DisplayPort processing with support for 8/10/12-bit color depths, the KX9980 preserves wide color gamuts and supports lossless compression over KVM over IP transmission for accurate visualization tasks (e.g., broadcast post-production, meteorology).
Pixel-Perfect 5K Performance
Delivers 5K@60Hz at 4:4:4 chroma subsampling for pixel-accurate rendering; combined with host GPU dithering, it improves luminosity gradients and image smoothness to support detailed monitoring and analysis.
High Frame Rate Video for eSports & Broadcast
Supports 1920×1080 at 240Hz (CVT-RB) and 2560×1440 at 144Hz to meet the demands of live event production and esports broadcasting where high frame-rate fidelity is critical for switching and streaming workflows.
Enhanced Isochronous USB
USB peripheral ports support isochronous transfer for high-throughput, time-sensitive peripherals such as cameras and microphones, enabling smooth AV capture and peripheral sharing across the KVM network.
Fail-Safe Network & Power Redundancy
Equipped with dual SFP+ modules and an RJ-45 port for fiber and copper links plus power redundancy logic to maintain continuous operations and resilient failover during network or power contingencies.
Panel Array™ Multiview
When paired with CCKM, the receiver console can display multiple transmitter video sources simultaneously in 2x2 up to 6x6 layouts, increasing situational awareness and enabling rapid context switching at the operator console.
Zero-Latency KVM over IP Extension
Guaranteed secure, extendable, zero-latency KVM over IP transmission with AES-256 encryption to protect data in transit, removing distance constraints and enabling real-time situational awareness for dispersed control rooms.
Emergency KVM over IP Control Access
Includes a PS/2 port for connection to an Access Control Box (2XRT-0015G) to forcibly stop remote receiver connections in emergency scenarios, allowing local technicians to perform immediate troubleshooting and maintenance.
Video Wall Collaboration & Boundless Switching
Integrates with video walls using ATEN Boundless Switching to switch control across screens via cursor movement, and supports push/pull of screen contents for collaboration and rapid escalation of incidents to the video wall.
Matrix Flexibility & Centralized Management
Deployable as point-to-point, point-to-multipoint, and full matrix topologies; extenders can be mixed and centrally managed via CCKM (web GUI or iPad app) for scalable control-room architectures.
Network Interface & Throughput
Supports up to 10 Gbps fiber connectivity via SFP+ modules for future-proofed bandwidth and fast peripheral sharing, while maintaining compatibility with copper RJ-45 links for hybrid networking.
Security & Encryption
All KVM over IP data transmissions are encrypted with AES-256 prior to transmission and decrypted at the receiver, ensuring confidentiality and integrity for sensitive control-room traffic.
Deployment Considerations
Supports mixed extender configurations in matrix setups; plan network topology to include redundant links and power sources for continuous uptime. Use CCKM for centralized policy, user access controls, and multiview layout configuration.
Applications
Optimized for control rooms and environments needing real-time monitoring and secure remote access: broadcast operations, NOCs, ATC towers, production lines, and competitive gaming/broadcasting venues.
The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters.
In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable. With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Box Includes:
1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
2x mounting kits
1x user instructions
