| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | ATKX9980T |
| Manufacturer No: | KX9980T |
| Delivery: | In Stock: 5-7 Days |
 |

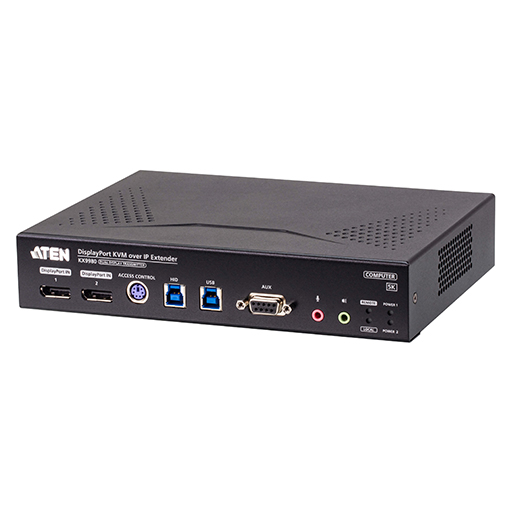

The KX9980 is a high-performance KVM over IP transmitter engineered to deliver secure, remote, and uninterrupted access to DisplayPort hosts from 5K DisplayPort KVM consoles across an intranet or dedicated LAN, enabling ergonomic, distributed control-room workflows while isolating critical systems from adverse environments.
The KX9980 enables secure remote access to DisplayPort workstations from a separated receiver console over standard IP networks, improving operator ergonomics and continuity of mission-critical workflows while isolating host systems from local disturbances.
Designed for mission-critical control rooms — broadcasting NOCs, air traffic control towers, production-line monitoring — and professional gaming/broadcasting environments that demand secure, real-time monitoring and rapid collaboration.
Powered by native DisplayPort processing with support for 8/10/12-bit color depths, the KX9980 preserves wide color gamuts and supports lossless compression over KVM over IP transmission for accurate visualization tasks (e.g., broadcast post-production, meteorology).
Delivers 5K@60Hz at 4:4:4 chroma subsampling for pixel-accurate rendering; combined with host GPU dithering, it improves luminosity gradients and image smoothness to support detailed monitoring and analysis.
Supports 1920×1080 at 240Hz (CVT-RB) and 2560×1440 at 144Hz to meet the demands of live event production and esports broadcasting where high frame-rate fidelity is critical for switching and streaming workflows.
USB peripheral ports support isochronous transfer for high-throughput, time-sensitive peripherals such as cameras and microphones, enabling smooth AV capture and peripheral sharing across the KVM network.

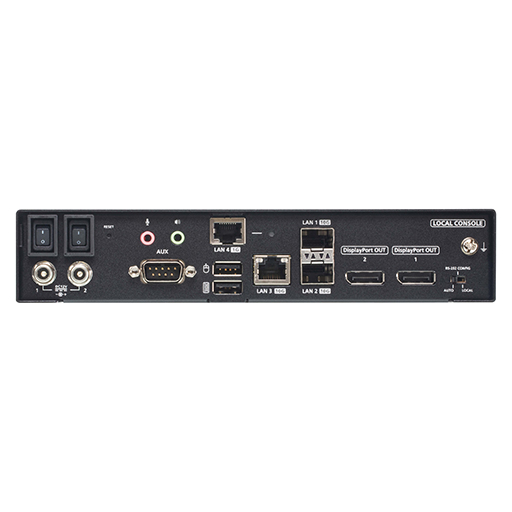

Equipped with dual SFP+ modules and an RJ-45 port for fiber and copper links plus power redundancy logic to maintain continuous operations and resilient failover during network or power contingencies.
When paired with CCKM, the receiver console can display multiple transmitter video sources simultaneously in 2x2 up to 6x6 layouts, increasing situational awareness and enabling rapid context switching at the operator console.
Guaranteed secure, extendable, zero-latency KVM over IP transmission with AES-256 encryption to protect data in transit, removing distance constraints and enabling real-time situational awareness for dispersed control rooms.

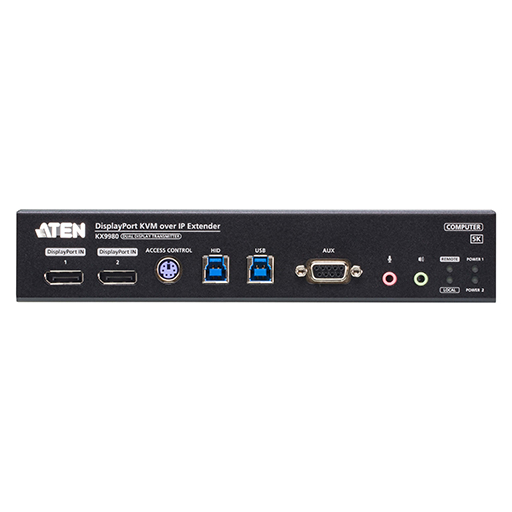

Includes a PS/2 port for connection to an Access Control Box (2XRT-0015G) to forcibly stop remote receiver connections in emergency scenarios, allowing local technicians to perform immediate troubleshooting and maintenance.
Integrates with video walls using ATEN Boundless Switching to switch control across screens via cursor movement, and supports push/pull of screen contents for collaboration and rapid escalation of incidents to the video wall.
Deployable as point-to-point, point-to-multipoint, and full matrix topologies; extenders can be mixed and centrally managed via CCKM (web GUI or iPad app) for scalable control-room architectures.
Supports up to 10 Gbps fiber connectivity via SFP+ modules for future-proofed bandwidth and fast peripheral sharing, while maintaining compatibility with copper RJ-45 links for hybrid networking.
All KVM over IP data transmissions are encrypted with AES-256 prior to transmission and decrypted at the receiver, ensuring confidentiality and integrity for sensitive control-room traffic.
Supports mixed extender configurations in matrix setups; plan network topology to include redundant links and power sources for continuous uptime. Use CCKM for centralized policy, user access controls, and multiview layout configuration.
Optimized for control rooms and environments needing real-time monitoring and secure remote access: broadcast operations, NOCs, ATC towers, production lines, and competitive gaming/broadcasting venues.
The KX9980 is a high-performance KVM over IP transmitter engineered to deliver secure, remote, and uninterrupted access to DisplayPort hosts from 5K DisplayPort KVM consoles across an intranet or dedicated LAN, enabling ergonomic, distributed control-room workflows while isolating critical systems from adverse environments.
The KX9980 enables secure remote access to DisplayPort workstations from a separated receiver console over standard IP networks, improving operator ergonomics and continuity of mission-critical workflows while isolating host systems from local disturbances.
Designed for mission-critical control rooms — broadcasting NOCs, air traffic control towers, production-line monitoring — and professional gaming/broadcasting environments that demand secure, real-time monitoring and rapid collaboration.
Powered by native DisplayPort processing with support for 8/10/12-bit color depths, the KX9980 preserves wide color gamuts and supports lossless compression over KVM over IP transmission for accurate visualization tasks (e.g., broadcast post-production, meteorology).
Delivers 5K@60Hz at 4:4:4 chroma subsampling for pixel-accurate rendering; combined with host GPU dithering, it improves luminosity gradients and image smoothness to support detailed monitoring and analysis.
Supports 1920×1080 at 240Hz (CVT-RB) and 2560×1440 at 144Hz to meet the demands of live event production and esports broadcasting where high frame-rate fidelity is critical for switching and streaming workflows.
USB peripheral ports support isochronous transfer for high-throughput, time-sensitive peripherals such as cameras and microphones, enabling smooth AV capture and peripheral sharing across the KVM network.
Equipped with dual SFP+ modules and an RJ-45 port for fiber and copper links plus power redundancy logic to maintain continuous operations and resilient failover during network or power contingencies.
When paired with CCKM, the receiver console can display multiple transmitter video sources simultaneously in 2x2 up to 6x6 layouts, increasing situational awareness and enabling rapid context switching at the operator console.
Guaranteed secure, extendable, zero-latency KVM over IP transmission with AES-256 encryption to protect data in transit, removing distance constraints and enabling real-time situational awareness for dispersed control rooms.
Includes a PS/2 port for connection to an Access Control Box (2XRT-0015G) to forcibly stop remote receiver connections in emergency scenarios, allowing local technicians to perform immediate troubleshooting and maintenance.
Integrates with video walls using ATEN Boundless Switching to switch control across screens via cursor movement, and supports push/pull of screen contents for collaboration and rapid escalation of incidents to the video wall.
Deployable as point-to-point, point-to-multipoint, and full matrix topologies; extenders can be mixed and centrally managed via CCKM (web GUI or iPad app) for scalable control-room architectures.
Supports up to 10 Gbps fiber connectivity via SFP+ modules for future-proofed bandwidth and fast peripheral sharing, while maintaining compatibility with copper RJ-45 links for hybrid networking.
All KVM over IP data transmissions are encrypted with AES-256 prior to transmission and decrypted at the receiver, ensuring confidentiality and integrity for sensitive control-room traffic.
Supports mixed extender configurations in matrix setups; plan network topology to include redundant links and power sources for continuous uptime. Use CCKM for centralized policy, user access controls, and multiview layout configuration.
Optimized for control rooms and environments needing real-time monitoring and secure remote access: broadcast operations, NOCs, ATC towers, production lines, and competitive gaming/broadcasting venues.
