Aten LCD Console Drawers

Product Details 8-Port PS/2-USB VGA Single Rail LCD KVM Switch

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.

Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.

To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.


Product Features

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions


Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
A single console controls up to 64 computers by cascade to 1 level and connect up to 8 switches.


Superior video quality – 1920 x 1080 @ 60Hz; DDC2B


Product Diagram

ATEN's economy LCD KVM console, CL1000M, offers a space-saving, streamlined approach to IT environments by integrating a keyboard, 17" LCD monitor, and touchpad in a 1U Slide away housing. The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines, and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module away back into the rack. There is no better way to save time and money than with a CL1000M installation. By using the CL1000M to manage your installation, you: (1) save all the space those standard components, keyboard, mouse, and monitor, would take up; (2) eliminate the expense of having to purchase a separate keyboard, monitor, and mouse for each computer if attaching to a KVM switch; (3) take advantage of upgrading your current system, since CL1000M is compatible with all types of KVM switches; (4) save time for installation. Just connect the cable between CL1000M and a KVM or a computer, and the CL1000M is ready to serve you.

Features:

Integrated KVM console featuring a 17" LCD monitor in 1U height
Dual Consoles Design - remote access ready
Compatible with all ATEN KVM Switches and most of KVM switch in the market
 Internal power built in
Adjustable depth to fit within the different racks
Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack
High video resolution:
-Up to 1280 x 1024 @75Hz
-Supports DDC, DDC2, DDC2B
DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
Package Contents
1x CL1000 with Standard Rack Mount Kit
1x Custom KVM Cable Set
1x Power Cord
1x User Instructions





The CL1000M is now equipped with a lighting LED as per illustration, ideal for the IT person who sometimes needs to access the server in fairly dark environments






Package Contents 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable Sets
1x 5-in-1 USB / PS/2 Console Cable
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions




The CL5708M is now equipped with a lighting LED as per illustration, ideal for the IT person who sometimes needs to access the server in fairly dark environments







Package Contents 1x CL5716 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable Sets
1x 5-in-1 USB / PS/2 Console Cable
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions





The CL5716M is now equipped with a lighting LED as per illustration, ideal for the IT person who sometimes needs to access the server in fairly dark environments

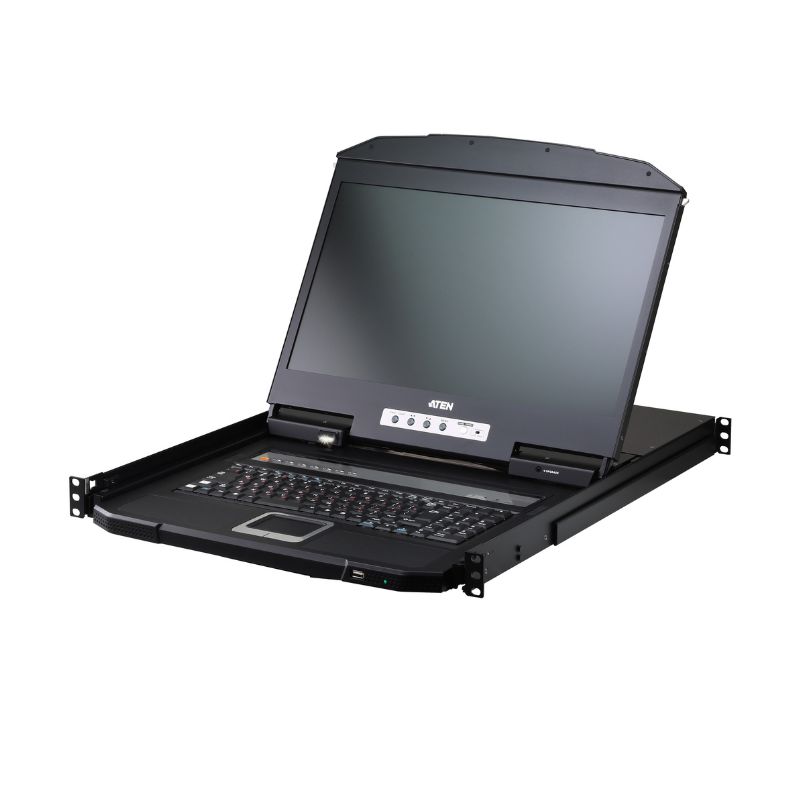

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.


The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.

Features:

Integrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
Supports an external console with USB / DVI / VGA / HDMI connectors
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
Audio support for connecting speakers
Standard 105-key keyboard; Sun keyboard emulation
Multiplatform support – Windows, Linux, Mac, and Sun
Adjustable depth to fi t within the rack
Firmware upgradeable
Console lock – enables the console drawer to remain securely locked away in position when not in use
DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek


Integrated KVM console with DVI-D/VGA/HDMI connectors to connect with computer
