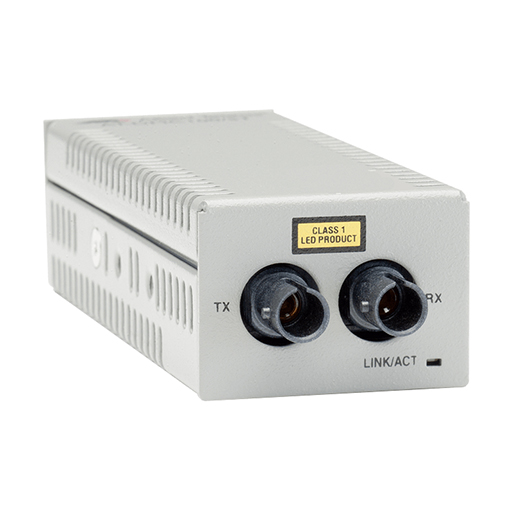

Explore the Allied Telesis AT-DMC100/ST-30 100Mb LAN ST multi-mode Fibre media converter. Compact and energy-efficient, it's a standout in the DMC series for its small size and USB-powered versatility.
Specifications
Network
Fiber optic connector: ST
Data transfer rate: 100 Mbit/s
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (1 Gbps): 1488000 pps
VLAN support: Yes
Converter input interface: 100Base-TX
Networking standards: IEEE 802.1Q
Ethernet interface type: Fast Ethernet
Duplex system: Full, Half
Converter output interface: 100Base-FX
Auto MDI/MDI-X: Yes
Maximum data transfer rate: 100 Mbit/s
Technical Details
Wavelength: 1310 nm
Maximum transfer distance: 2000 m
Fiber mode structure: Multi-mode
Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
Tx power (min): -22.5 dBmW
Tx power (max): -14 dBmW
Rx power (min): -32 dBmW
Internal: Yes
Data transfer rate: 100 Mbit/s
Ports & Interfaces
Connectivity technology: Wired
Fiber optic connector: ST
Indication
LED indicators: Yes
Design
LED indicators: Yes
Product colour: Grey
Internal: Yes
Power
Power consumption (typical): 1.5 W
Dimensions
Dimensions: Width 31.8 mm, Depth 91.4 mm, Height 21.6 mm
Weight
Weight: 113 g
Operational Conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude:

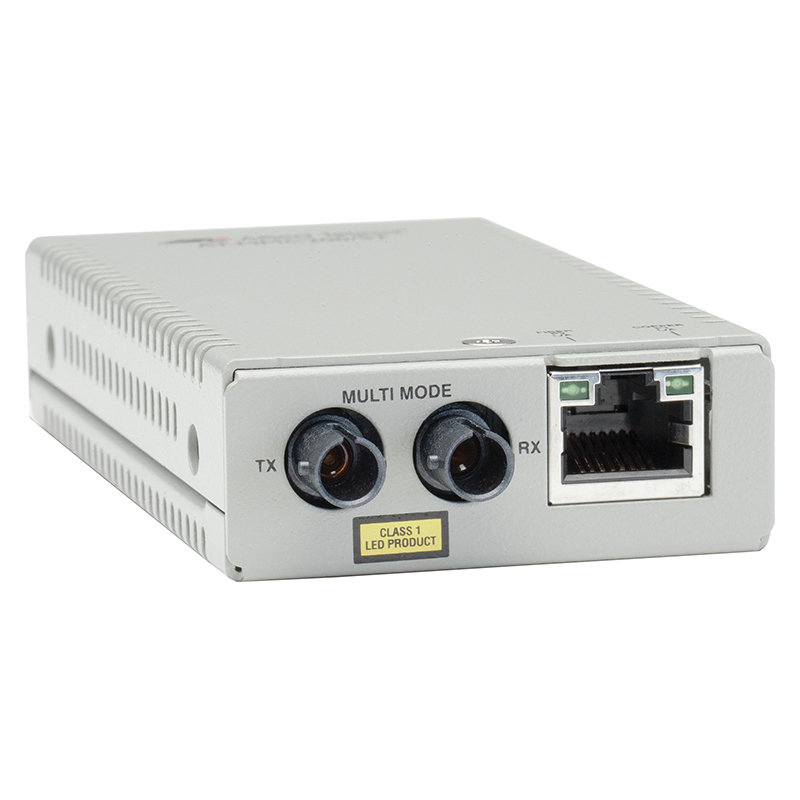

The AT-MMC200/ST-960 Mini media converter offers a smaller size and smaller carbon footprint to help the environment and save space in the office.
Compact size lends to a smaller carbon footprint
Delivers all the power and functionality of standard size media converters
Auto Negotiation and Auto MDI/MDIX on 10/100 copper port
Supports the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs)
Key Features
Convert speed as well as media type
2K MAC address tables
Store-and-forward switching mode
Available in Multi Mode & Single Mode Models (for longer distance needs)
Transparent to IEEE 802.1Q packets
Link/Activity LED per port
Far end fault on 100 Mb fiber
10K byte jumbo packets
Smart MissingLink™
12VDC power supply
Locking power supply jack to prevent accidental power disconnects
Available in Trade Agreement Act (TAA) compliant models (-901)
MMC1000/SP supports 1000T only on the copper side
Certifications and Compliance
The AT-MMC200LX/ST-960 Mini media converter offers a smaller size and smaller carbon footprint to help the environment and save space in the office.
Compact size lends to a smaller carbon footprint
Delivers all the power and functionality of standard size media converters
Auto Negotiation and Auto MDI/MDIX on 10/100 copper port
Supports the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs)
Key Features
Convert speed as well as media type
2K MAC address tables
Store-and-forward switching mode
Available in Multi Mode & Single Mode Models (for longer distance needs)
Transparent to IEEE 802.1Q packets
Link/Activity LED per port
Far end fault on 100 Mb fiber
10K byte jumbo packets
Smart MissingLink™
12VDC power supply
Locking power supply jack to prevent accidental power disconnects
Available in Trade Agreement Act (TAA) compliant models (-901)
MMC1000/SP supports 1000T only on the copper side
Certifications and Compliance

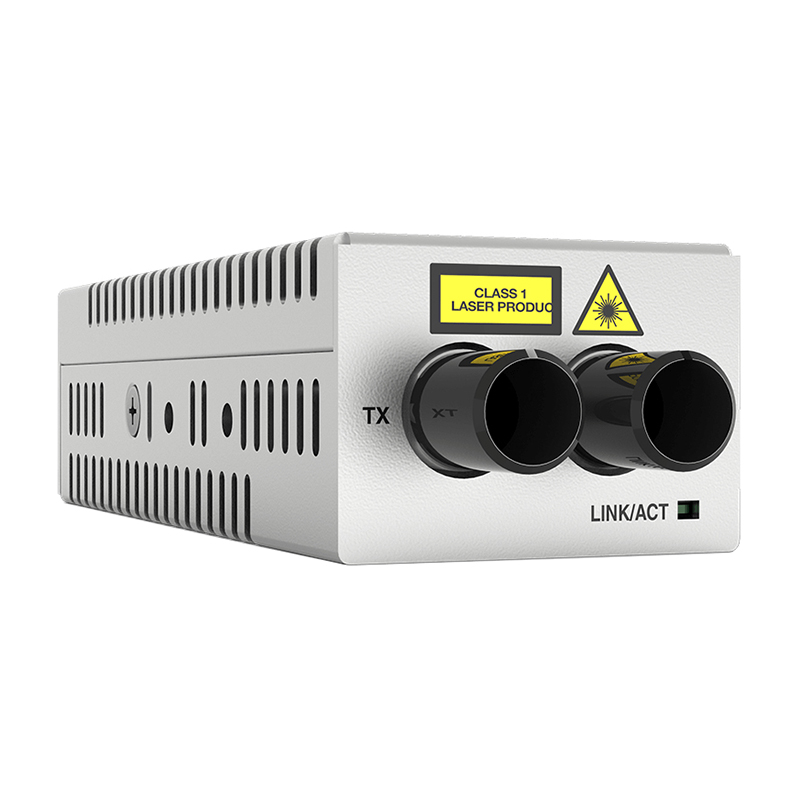

Explore the Allied Telesis AT-DMC100/ST-30 1000Mb LAN ST multi-mode Fibre media converter. Compact and energy-efficient, it's a standout in the DMC series for its small size and USB-powered versatility.
Specifications
Network
Fiber optic connector: ST
Data transfer rate: 1000 Mbit/s
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (1 Gbps): 1488000 pps
VLAN support: Yes
Converter input interface: 1000Base-T
Networking standards: IEEE 802.1Q
Ethernet interface type: Gigabit Ethernet
Duplex system: Full, Half
Converter output interface: 1000Base-SX
Auto MDI/MDI-X: Yes
Maximum data transfer rate: 1000 Mbit/s
Technical Details
Wavelength: 850 nm
Maximum transfer distance: 550 m
Fiber mode structure: Multi-mode
Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
Tx power (min): -9.5 dBmW
Tx power (max): -4 dBmW
Rx power (min): -17 dBmW
Internal: No
Data transfer rate: 1000 Mbit/s
Ports & Interfaces
Connectivity technology: Wired
Fiber optic connector: ST
Indication
LED indicators: Yes
Design
LED indicators: Yes
Product colour: Grey
Internal: No
Power
Power consumption (typical): 1.5 W
Dimensions
Dimensions: Width 31.8 mm, Depth 91.4 mm, Height 21.6 mm
Weight
Weight: 113 g
Operational Conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m

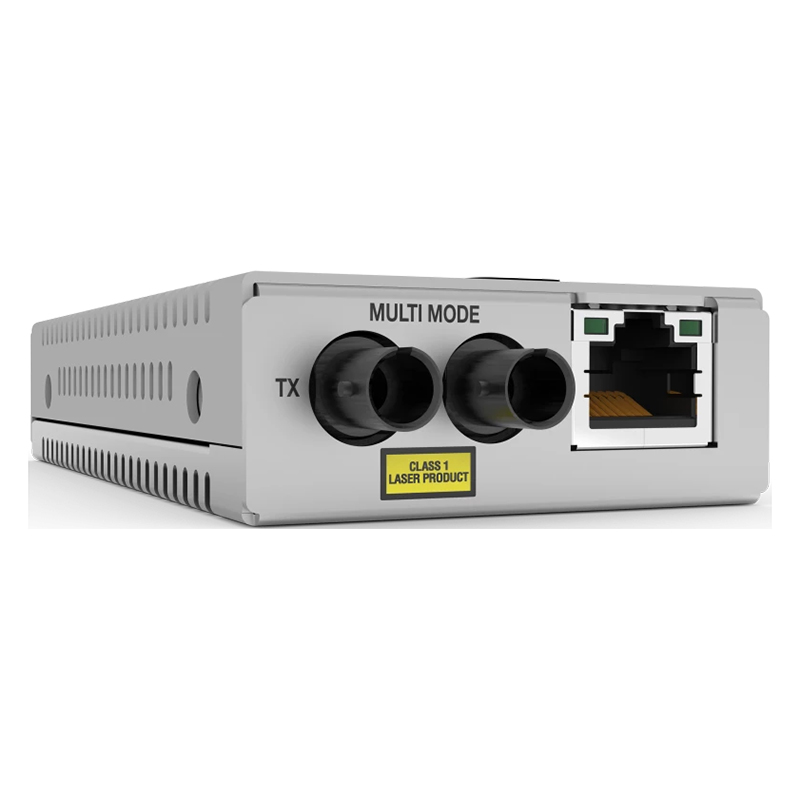

The AT-MMC2000/ST-960 Mini media converter offers a smaller size and smaller carbon footprint to help the environment and save space in the office.
Compact size lends to a smaller carbon footprint
Delivers all the power and functionality of standard size media converters
Auto Negotiation and Auto MDI/MDIX on 10/100 copper port
Supports the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs)
Key Features
Convert speed as well as media type
2K MAC address tables
Store-and-forward switching mode
Available in Multi Mode & Single Mode Models (for longer distance needs)
Transparent to IEEE 802.1Q packets
Link/Activity LED per port
Far end fault on 100 Mb fiber
10K byte jumbo packets
Smart MissingLink™
12VDC power supply
Locking power supply jack to prevent accidental power disconnects
Available in Trade Agreement Act (TAA) compliant models (-901)
MMC1000/SP supports 1000T only on the copper side
Certifications and Compliance
