The MCF3300, 1RU, 3-slot modular media converter is capable of supporting up to 24 media conversions, dependent on connector. It is the industry's smallest form factor model for up to 24 media conversions.
*Images are for illustrative purposes only; product does not come with any modules installed
*Images are for illustrative purposes only; product does not come with any modules installed

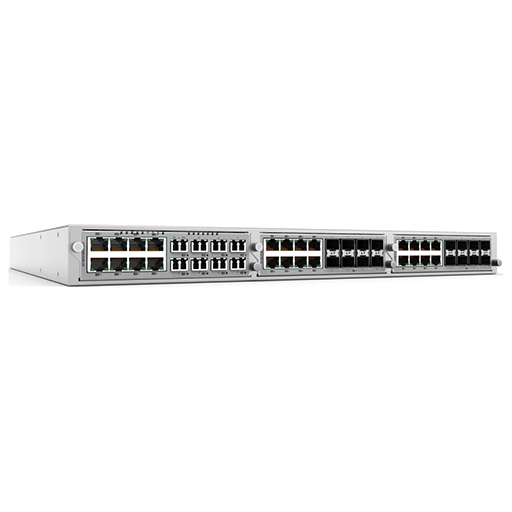

The Allied Telesis AT-MCF3300-980 is a compact, rack-mountable 1RU modular media converter chassis designed for high-density fibre and copper network environments. Featuring a 3-slot architecture and supplied with a DC power supply as standard, the MCF3300 supports up to 24 media conversions depending on blade configuration, making it the industry’s smallest form-factor chassis capable of delivering enterprise-grade, scalable media conversion with centralised management.
Key Features of Allied Telesis AT-MCF3300-980
1RU rack-mountable 3-slot modular media converter chassis
Supports up to 24 media conversions depending on blade type
Includes 1 x DC power supply unit (PSU)
Industry-leading compact form factor for high-density deployments
Supports Gigabit and 10 Gigabit media conversion modules
Optional managed or unmanaged operation
Hot-swappable power supply and modular blades
High-Density Modular Media Conversion
The AT-MCF3300-980 chassis is designed to support a wide range of slide-in media converter blades, enabling up to 24 fibre-to-copper or fibre-to-fibre conversions within a single 1RU footprint. This makes it ideal for data centres, enterprise networks, and telecommunications environments where space efficiency is critical.
Flexible Blade Options
Multiple blade types are supported, including Gigabit SFP-to-copper, Gigabit fibre-to-copper, and SFP+-based modules supporting 1G and 10G speeds. This flexibility allows mixed-speed and mixed-media environments to be supported within the same chassis, protecting existing investments while enabling future upgrades.
Managed Media Conversion Capabilities
When used with the optional management module, the MCF3300 provides centralised monitoring and control via web browser, Telnet, SSH, or console access. Network administrators can configure, monitor, and troubleshoot media conversion links remotely, making it well suited for distributed or mission-critical networks.
Robust Security and Access Control
The chassis supports strong security features including user authentication, access control lists, secure management protocols, and SNMPv3. These features help ensure that only authorised personnel can access and manage the system, protecting critical network infrastructure.
Power and Reliability
Supplied with a DC power supply as standard, the AT-MCF3300-980 also supports optional redundant power supplies for increased resilience. Hot-swappable PSUs and blades, combined with comprehensive system monitoring, help maximise uptime and support high-availability network designs.
Compact, Rack-Mountable Design
With its 1RU height and 19-inch rack-mountable chassis, the MCF3300 is optimised for space-constrained environments. Despite its compact size, it delivers enterprise-class performance and scalability, making it an ideal choice for high-density media conversion at the network edge or in the data centre.
