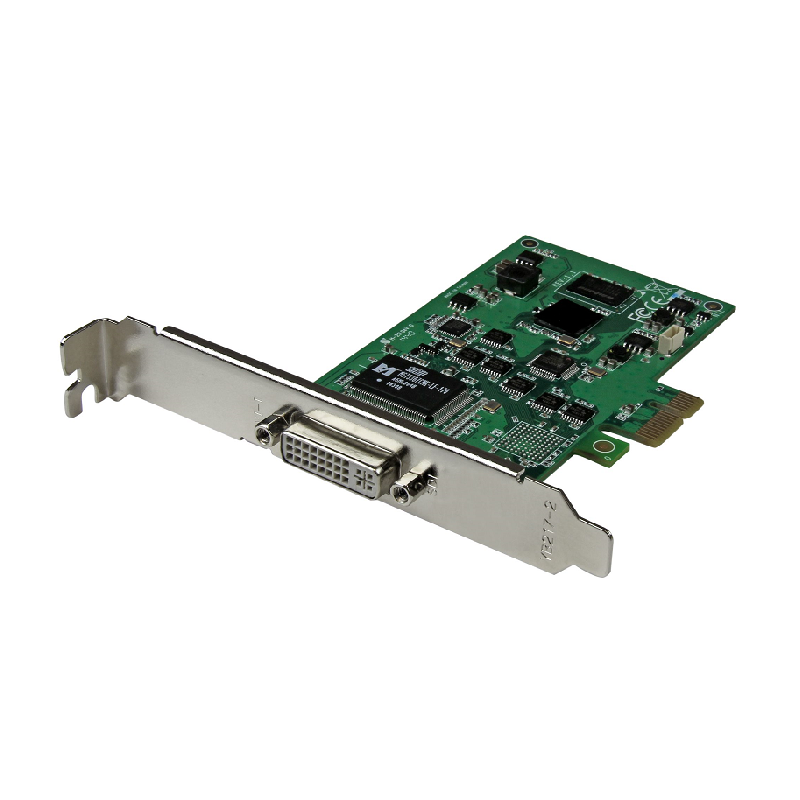

High-Definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P
Capture an HD audio-video source, through a low-profile or full-profile PCI Express slot
This all-in-one PCI Express capture card lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
You can install the card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers. Installing your capture device internally through PCIe ensures a secure and reliable way to capture video.
Capture video in 1080p HD
You can capture the same quality delivered by your video source, by recording video in high-definition 1080p at 30 frames per second. Unlike some capture devices that can only record at low-resolution 480p, this capture card matches the output of most consumer A/V equipment.
Now, you can capture the output from your computer, server, or POS station when creating software training and tutorial videos, without having to put up with inferior video quality.
H.264 encoding for wide device compatibility
The software that's included with the capture card encodes in H.264 -- the most widely adopted video codec in the world. Although the card is designed specifically for Windows® computers, H.264 encoding ensures the video files you save will be compatible with almost any video player such as such the media software on your PC, Mac, iOS and Android™ devices, with no editing or converting required.
H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch®.
Flexible input solutions for convenient compatibility
With multiple A/V input options, the capture card lets you record video from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter(SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that’s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The PEXHDCAP2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: This capture card will not record digitally encrypted content.
Computer System Requirements:
Operating system: Microsoft® Windows® Vista / 7 / 8 / 8.1 (32/64-bit)
CPU: i3 dual core 2.8GHz or higher
Memory: 2 GB
An available PCI Express slot
Product Diagram:
Applications:
Record video for training and tutorial purposes from a variety of video output technologies
Stream live video feeds online, with streaming services such as Twitch.tv
Capture HD video game play at 30 frames per second, while playing on a different display using the ST122HDMILE HDMI splitter
Convert analog video to digital, in professional video archiving applications
Features:
Support for HDMI, DVI, VGA, and component input sources, lets you record from virtually any device
H.264 encoding ensures wide device compatibility with exported video files
Brilliant picture quality with support for capturing resolutions up to 1080p at 30 frames per second
Dual profile card with low-profile and full-profile brackets included
NTSC and PAL systems supported
Supports 16:9 and 4:3 aspect ratio
Supports 2-channel stereo audio (HDMI / RCA)
Technical details
Supported aspect ratios
4:3, 16:9
Internal
Yes
Host interface
PCIe
Interface
DVI-I
Video capture resolution (max)
1920 x 1080 pixels
Capturing from
Cable TV, DVD player, Digital camera
Chipset
Mstar MST3363CNK-170
Sustainability certificates
RoHS
Video
Analog signal format system
NTSC,PAL,PAL 60,PAL M
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported resolutions
1920x1080, 1440x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600
Audio
Sample rate
48 kHz
File formats
Video compression formats
H.264,MPEG4
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
20 - 80 %
Ports & interfaces
DVI-I ports quantity
1
Weight & dimensions
Width
120 mm
Depth
120 mm
Height
20 mm
Weight
58 g
Packaging data
Package width
205 mm
Package height
42 mm
Package depth
148 mm
Package weight
365 kg
Low-profile bracket
Yes
Interface adapters included
DVI-I male - VGA female
Quick installation guide
Yes
Cables included
DVI
Full specification and details can be found in the


USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps
Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC
This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
Seamless picture quality at 60 FPS
Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.
H.264 encoding for wide device compatibility
The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac®, iOS® and Android™ with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch.
This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft® DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).
Flexible Input Solutions for Convenient Compatibility
With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter (SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that's compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Notes:
A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers.
Will not record digitally encrypted content.
Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S400 or PEXUSB3S4.
Computer System Requirements:
Operating System: Microsoft® Windows® Vista / 7 / 8 / 8.1 / 10 (32/64-bit)
CPU: i3 Dual Core 2.8GHz or higher
Memory: 2 GB
USB 3.0 host controller (Confirmed support with: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100)
Product Diagram:
Applications:
Record video for training and tutorial purposes from varying video output technologies
Stream live video feeds online with streaming services such as twitch
Use with ST122HDMILE HDMI splitter to capture HD video game play at 60 frames per second, while playing on a different display
Convert analog video to digital in professional video archiving applications
Features:
Seamless picture quality with USB 3.0 bandwidth enabling you to capture 1080p video at 60fps
Record from virtually any device, with support for HDMI, DVI, VGA, and Component video input sources
Supports 2-channel stereo audio (HDMI / RCA)
NTSC and PAL systems supported
Supports 16:9 and 4:3 aspect ratio
ALERTE PRODUIT : La dernire version du logiciel Streamcatcher Pro (inclus/disponible en tlchargement), avec une interface rafrachie, ajoute la connexion simultane de plusieurs dispositifs de capture. Est compatible avec Windows 10 (Windows 7 et plus)
The StarTech.com Advantage:
Smooth video capture with USB 3.0 bandwidth, enabling you to record 1080p video at 60fps
H.264 encoding ensures your recordings will work on any platform, such as PC, Mac, iOS & Android
Record from virtually any device, with support for HDMI, DVI, VGA, and Component video input sources
Certifications, Reports and Compatibility:
Technical details
Supported aspect ratios
4:3, 16:9
Internal
No
Host interface
USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)
1920 x 1080 pixels
Chipset
Mstar MST3363CNK-170
Mean time between failures (MTBF)
2242857 h
Sustainability certificates
RoHS
Video
Analog signal format system
NTSC, PAL 60, PAL M
Supported video modes
1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Maximum frame rate
60 fps
File formats
Video compression formats
H.264, MPEG4
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
20 - 80 %
Ports & interfaces
DVI-I ports quantity
1
S-Video inputs quantity
1
HDMI ports quantity
1
Weight & dimensions
Width
75.5 mm
Depth
114.4 mm
Height
24.5 mm
Weight
104 g
Packaging data
Package width
150 mm
Package height
53 mm
Package depth
215 mm
Package weight
400 kg
Manual
Yes
Cables included
AV, USB
Interface adapters included
DVI-I male - VGA female
Full specification and details can be found in the


USB 3.0 Capture Device for High-Performance DVI Video - 1080p 60fps - Aluminum
Record DVI video to your computer, and embed a 3.5mm audio source, at 1080p 60fps resolution
This DVI to USB 3.0 video capture device records high-definition DVI video to your computer. With an aluminum enclosure, this device is built strong for fixed-location or on-the-go capture. It offers a separate 3.5 mm audio input for accompanying audio or voice-overs, and a DVI pass-through port for connecting a monitor to review the video as it’s captured.
Capture HD video at 1080p 60fps
Record 1080p video at 60fps (frames per second), to save your content so it can be shared, stored, or edited. Capture from security equipment, control rooms, medical, or other industrial DVI devices, directly to your computer.
Easy video recording on Windows and Mac
The included software makes recording easy. Using a widely adopted codec, videos saved in StreamCatcher™ work with almost any video player and require no converting or editing.
DirectShow compatibility on Windows
On Windows, you can live broadcast your video over the internet, using Twitch™ or other third-party video streaming platforms, with the included software.
DirectShow compatibility on Windows
With this capture device, you’re not tied to the included software. You can record raw/lossless video using any third-party DirectShow™ compatible software, such as Open Broadcaster Software (OBS).
Capture video from HDMI®, VGA or DVI devices
This versatile DVI capture device works with HDMI to DVI and VGA to DVI adapters, so you can record video from an HDMI or VGA source.
The USB32DVCAPRO is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Diagram:
Applications:
Record video for training and tutorial purposes from technologies that output DVI
Capture raw, uncompressed video using your preferred DirectShow compatible software
Great for recording the output from your PC, server, or POS station, when creating software training and tutorial videos
Add your own independent audio source for voice-over commentary
Features:
Seamless picture quality with USB 3.0 bandwidth enabling you to capture 1080p video at 60 FPS
Wide device playback support with universally encoded video files
Raw/lossless video capture ensuring DirectShow compatibility on Windows devices
Separate 3.5 mm audio input for added voice commentary or audio track
Includes a DVI pass-through port for a monitor to watch your video as it is captured
Certifications, Reports and Compatibility:
Technical details
Internal
No
Host interface
USB 3.2 Gen 1 (3.1 Gen 1)
Interface
USB Type-B
Video capture resolution (max)
1920 x 1080 pixels
Product colour
Black, Silver
Chipset
Mstar MST3363CNK-170
Mean time between failures (MTBF)
504825 h
Housing material
Aluminium
Sustainability certificates
RoHS
Video
Analog signal format system
NTSC, PAL 60, PAL M
Supported video modes
1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600
Maximum frame rate
60 fps
File formats
Import video formats supported
H.264,MPEG4
Audio
Audio support
Yes
Supported audio channels
2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
20 - 80 %
Ports & interfaces
DVI-I ports quantity
2
Audio (L/R) in
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Weight & dimensions
Width
61.1 mm
Depth
92.2 mm
Height
24.3 mm
Weight
102 g
Packaging data
Package width
150 mm
Package height
52 mm
Package depth
217 mm
Package weight
462 kg
Quick installation guide
Yes
Cables included
USB
Full specification and details can be found in the

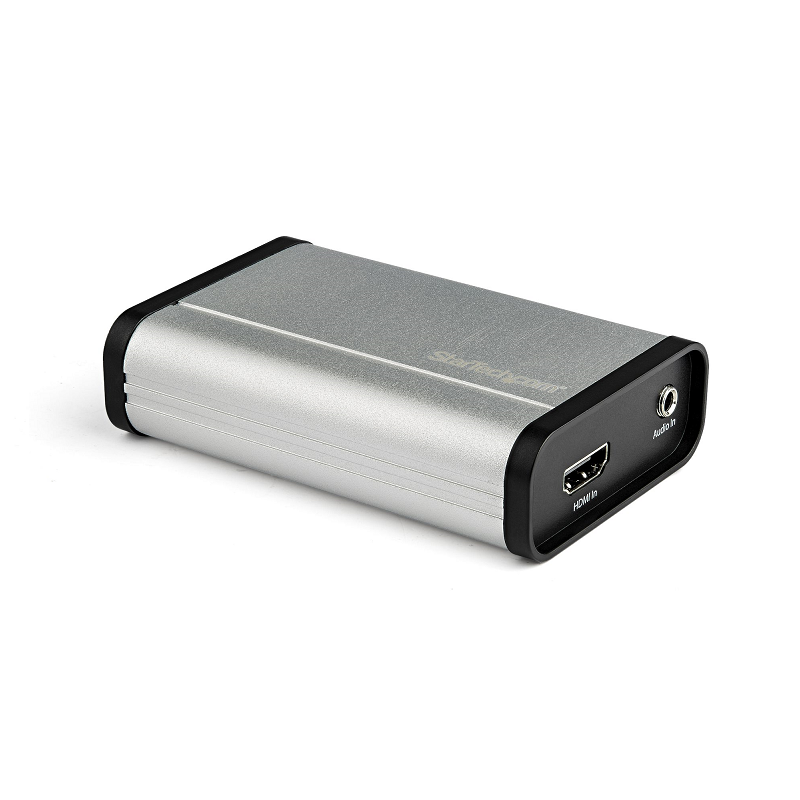

HDMI to USB C Video Capture Device 1080p 60fps - UVC - External USB 3.0 Type-C Capture/Live Streaming - HDMI Audio/Video Recorder Adapter - Works with USB-C/USB-A/Thunderbolt 3
HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included
This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.
Easy Setup, Easy Capture
For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you're not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
Capture HD Video
Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.
Stream Your 1080p Content
Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.
The UVCHDCAP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
Product Diagram:
Applications:
Capture meetings, presentations or conference calls directly to your computer
Upload recorded videos or live broadcast your signal to any online video platform
Record training and tutorial videos from your laptop or game console
Features:
HD VIDEO CAPTURE: Bus-powered USB 3.0 capture device records HDMI video to USB-C, TB3 or USB-A computer with low-latency 1080p 60fps, 3.5mm 2ch audio, HDMI pass-through, H.264 software encoding (MJPEG/MPEG-2/MPEG-4)
USB VIDEO CLASS: UVC ensures an easy setup w/ driverless, automatic install in Windows (7 & up), Mac (10.11 & up) & Linux (4.x LTS); Capture device is compatible w/ DirectShow & QuickTime applications
APPLICATIONS: Experience HDMI playback while recording conference calls, camera feeds or live streaming at 1080p60 w/Streamcatcher or 3rd party software (OBS); Live streaming on YouTube/platforms w/ RTSP, RTMP; Works with Teams & Zoom
PORTABLE & DURABLE: Compact & lightweight aluminum screen recorder adapter is easy to carry from a media room, classroom or recording studio, so you can connect the device directly to a laptop/desktop
COMPATIBILITY: External video capture card with incl. Stream Catcher software works w/ Windows; HDCP compliant, will not capture protected-content source video like Blu-rays or video output from a Mac
Certifications, Reports and Compatibility:
Technical details
Internal
No
Host interface
USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)
1920 x 1080 pixels
Product colour
Black, Silver
Chipset
Mstar MST3363CNK-170
Sustainability certificates
RoHS
Video
Supported video modes
1080p
Supported resolutions
1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600
Maximum frame rate
60 fps
Audio
Audio support
Yes
Supported audio channels
2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
20 - 80 %
Ports & interfaces
HDMI in
1
Number of HDMI outputs
1
Audio (L/R) in
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Weight & dimensions
Width
60 mm
Depth
92 mm
Height
23 mm
Weight
86 g
Packaging data
Package width
470 mm
Package height
215 mm
Package depth
392 mm
Package weight
470 g
User guide
Yes
Cables included
HDMI, USB, USB Type-C
Full specification and details can be found in the

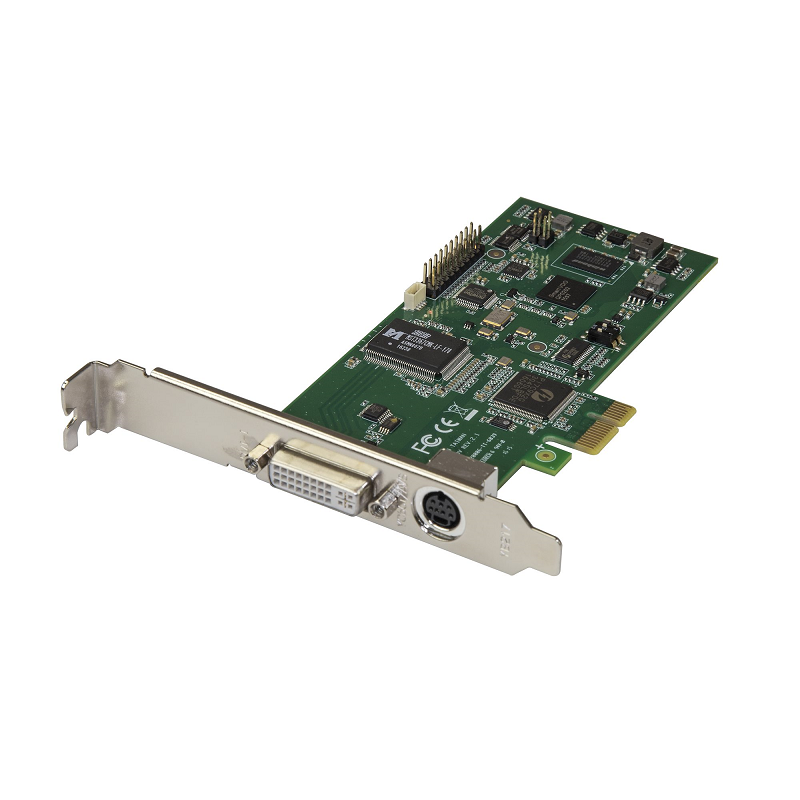

PCIe HDMI Video Capture Card - HDMI, VGA, DVI, or Component Video at 1080p60
Use this dual-profile internal capture card to record 1080p video at 60 frames per second
This PCIe video capture card lets you record 1080p HD video and 2-channel stereo audio (HDMI/RCA) to your computer system. With multiple video inputs, including HDMI, DVI, VGA and component, this all-in-one capture card can record original content from virtually any device.
You can install the card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers. Installing your capture device internally through PCIe ensures a secure and reliable way to capture video.
Seamless picture quality at 60 frames per second
With frame rates up to 60fps (frames per second) and H.264 encoding, this card is perfect for capturing high-definition video for editing, compiling, and archiving. The capture card supports 16:9 and 4:3 aspect ratios and lets you record lossless video at 60fps. This ensures that every frame of content is saved, unlike 30fps capture devices that only capture half the action.
60fps exactly matches the output of most computer video cards, which makes this capture card great for recording the output from your PC, server, or point-of-sale station, when creating software training and tutorial videos.
H.264 encoding for wide device compatibility
The included software encodes captured video in H.264 -- the most widely adopted video compression standard in the world. This ensures your video captures are compatible with most device platforms such as PC, Mac, iOS and Android™.
The software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the internet using online services such as Twitch, and others.
This HD capture card can record lossless raw video, which makes it compatible with Microsoft® DirectShow. This means you can record video using your preferred third-party DirectShow software, such as Open Broadcaster Software (OBS).
Flexible input solutions for convenient compatibility
This adapter card features DVI-I signaling and multiple adapters to support many video input types. With multiple A/V input options, you can capture video from a wide variety of sources including HDMI, DVI, VGA, and component. You can also expand the capabilities of this capture card by using A/V adapters to record from other video sources such as SDI, using our SDI to HDMI converter (SDI2HD) (sold separately). Support for a variety of A/V devices and signals is ideal for archiving analog video footage into a digital database.
The capture device also includes easy-to-use software that’s compatible with NTSC and PAL systems - a must-have for professional video archiving applications where source media can change from project to project.
The PEXHDCAP60L2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: This capture device will not record digitally encrypted content.
Computer System Requirements:
Expansion slot: PCI-Express 2
CPU: i5-3330 or higher
RAM: 4GB or higher
Operating system: Microsoft® Windows® 10, 8.1, 8, 7 (32 or 64 bit)
Product Diagram:
Applications:
Record video for training and tutorial purposes from a variety of video output technologies
Stream live video feeds online with streaming services such as Twitch.tv
Capture HD video game play at 60 frames per second, while playing on a different display using the ST122HDMILE HDMI splitter
Convert analog video to digital, in professional video archiving applications
Features:
Seamless picture quality with 1080p video capture at 60fps
Record from virtually any device with support for HDMI, DVI, VGA, and component input sources
H.264 encoding ensures wide device compatibility with exported video files
Supports 2-channel stereo audio (HDMI / RCA)
NTSC and PAL systems supported
Records lossless raw video compatible with Microsoft DirectShow
Features dual-profile support for use in full-profile and low-profile cases
Technical details
Internal
Yes
Host interface
PCIe
Video capture resolution (max)
1920 x 1080 pixels
Sustainability certificates
RoHS
Video
Analog signal format system
NTSC,PAL 60,PAL M
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
File formats
Video compression formats
H.264, MPEG4
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
20 - 80 %
Ports & interfaces
DVI-I ports quantity
1
Component video (YPbPr/YCbCr) in
1
Weight & dimensions
Width
69 mm
Depth
141 mm
Height
15 mm
Weight
70 g
Packaging data
Package width
207 mm
Package height
38 mm
Package depth
144 mm
Package weight
300 kg
Low-profile bracket
Yes
Interface adapters included
DVI-I male - HDMI female, DVI-I male - VGA female
Quick installation guide
Yes
Full-height bracket
Yes
Cables included
Component, Composite, S-Video
Full specification and details can be found in the





- Review: The 10 Best Wireless Access Points
- Review: The Top 10 Best Ethernet Cables
- What Is An Ethernet Cable And What Does It Do?
- 10 Best CCTV Security IP Cameras For Home & Business
- Review: Best Powerline Adapters In The UK
- Celebrating 20 Years Of Comms Express!
- The Top 10 DrayTek Wireless Access Points
- Best Selling APC Products At Comms Express
- Review: Top 5 Best Performing APC Uninterruptible Power Supply Units (UPS)
- Review: Top 10 Best PDU’s
