| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEPEXHDCAP2 |
| Manufacturer No: | PEXHDCAP2 |
| Delivery: | In Stock: Next Day |
 |

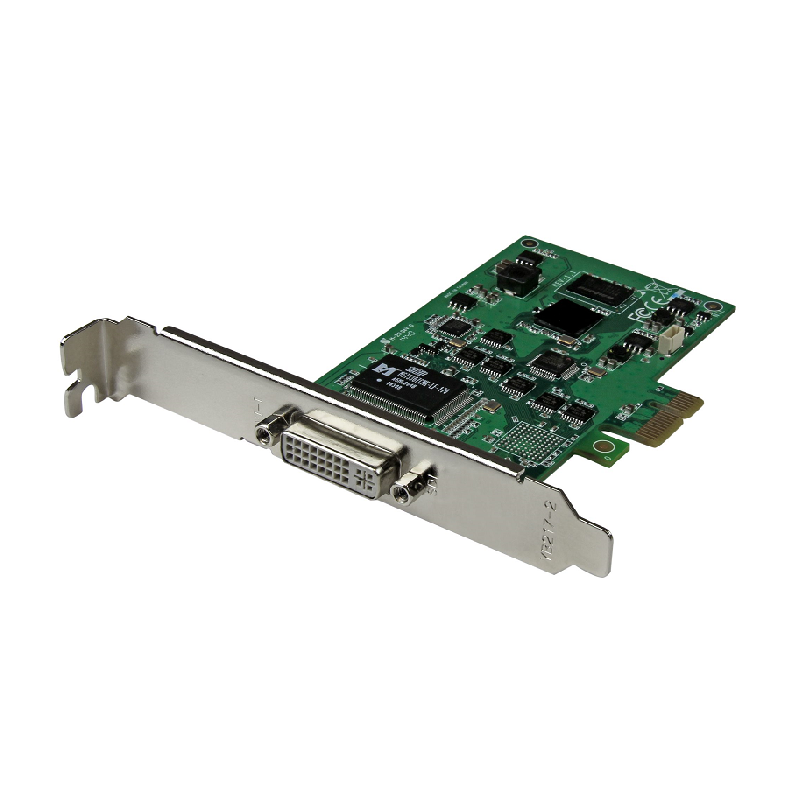

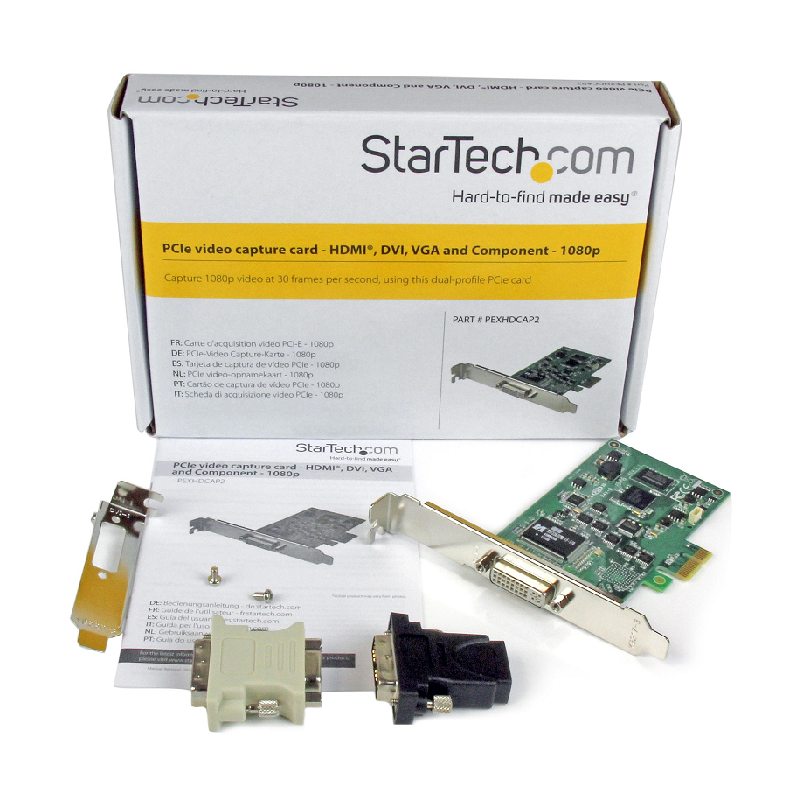

High-Definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P
Capture an HD audio-video source, through a low-profile or full-profile PCI Express slot
This all-in-one PCI Express capture card lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.

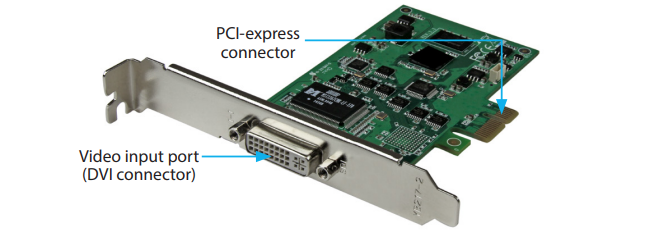

You can install the card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers. Installing your capture device internally through PCIe ensures a secure and reliable way to capture video.
You can capture the same quality delivered by your video source, by recording video in high-definition 1080p at 30 frames per second. Unlike some capture devices that can only record at low-resolution 480p, this capture card matches the output of most consumer A/V equipment.
Now, you can capture the output from your computer, server, or POS station when creating software training and tutorial videos, without having to put up with inferior video quality.
The software that's included with the capture card encodes in H.264 -- the most widely adopted video codec in the world. Although the card is designed specifically for Windows® computers, H.264 encoding ensures the video files you save will be compatible with almost any video player such as such the media software on your PC, Mac, iOS and Android™ devices, with no editing or converting required.
H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch®.
With multiple A/V input options, the capture card lets you record video from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter(SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that’s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The PEXHDCAP2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: This capture card will not record digitally encrypted content.
| Technical details | |
| Supported aspect ratios | 4:3, 16:9 |
| Internal | Yes |
| Host interface | PCIe |
| Interface | DVI-I |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Capturing from | Cable TV, DVD player, Digital camera |

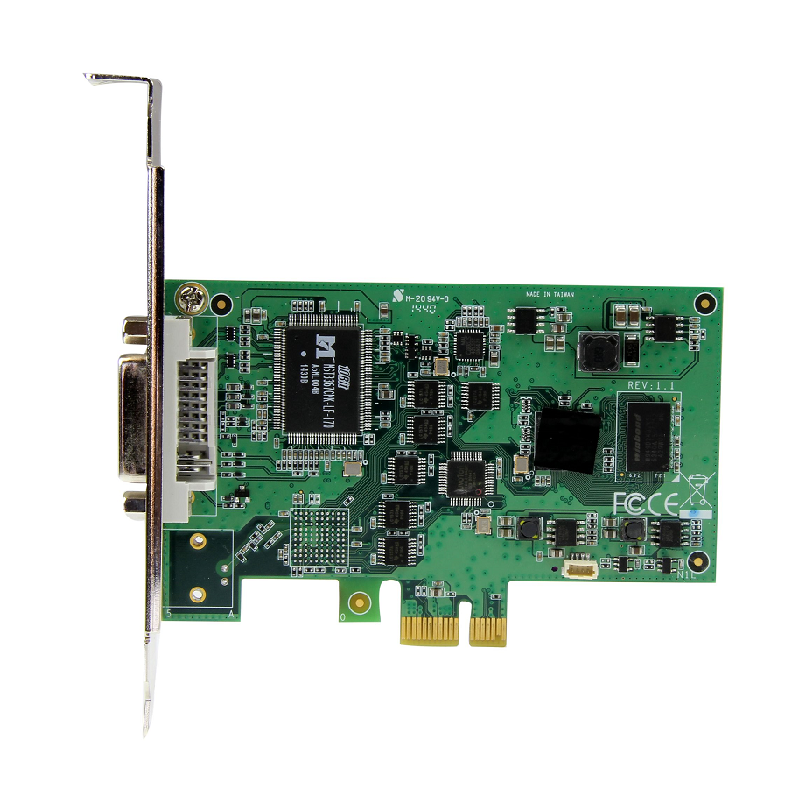

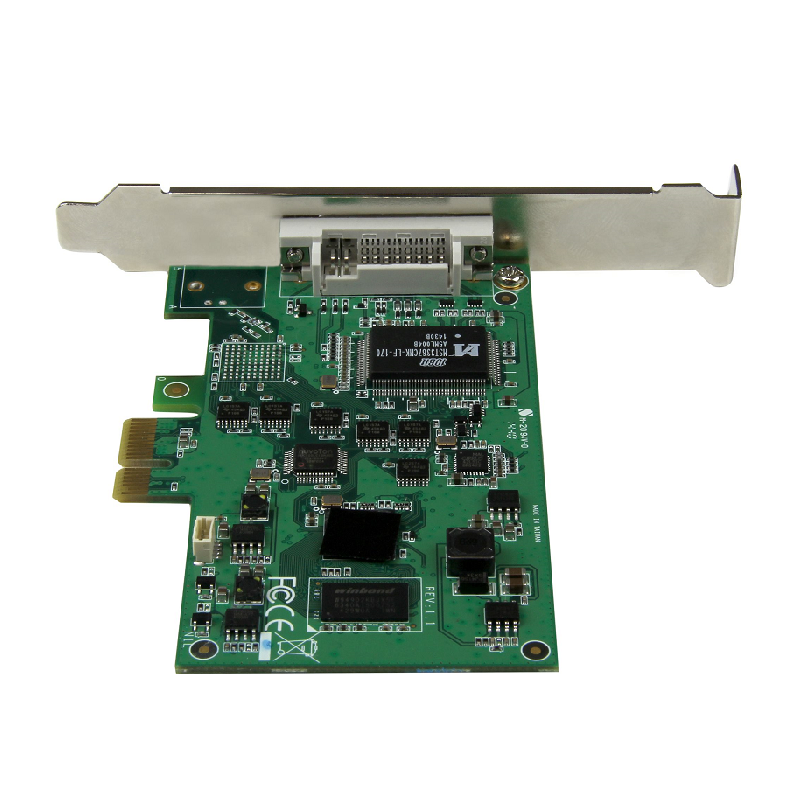

| Chipset | Mstar MST3363CNK-170 |
| Sustainability certificates | RoHS |
| Video | |
| Analog signal format system | NTSC,PAL,PAL 60,PAL M |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported resolutions | 1920x1080, 1440x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 |
| Audio | |
| Sample rate | 48 kHz |
| File formats | |
| Video compression formats | H.264,MPEG4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Ports & interfaces | |
| DVI-I ports quantity | 1 |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 120 mm |
| Height | 20 mm |
| Weight | 58 g |
| Packaging data | |
| Package width | 205 mm |
| Package height | 42 mm |
| Package depth | 148 mm |
| Package weight | 365 kg |

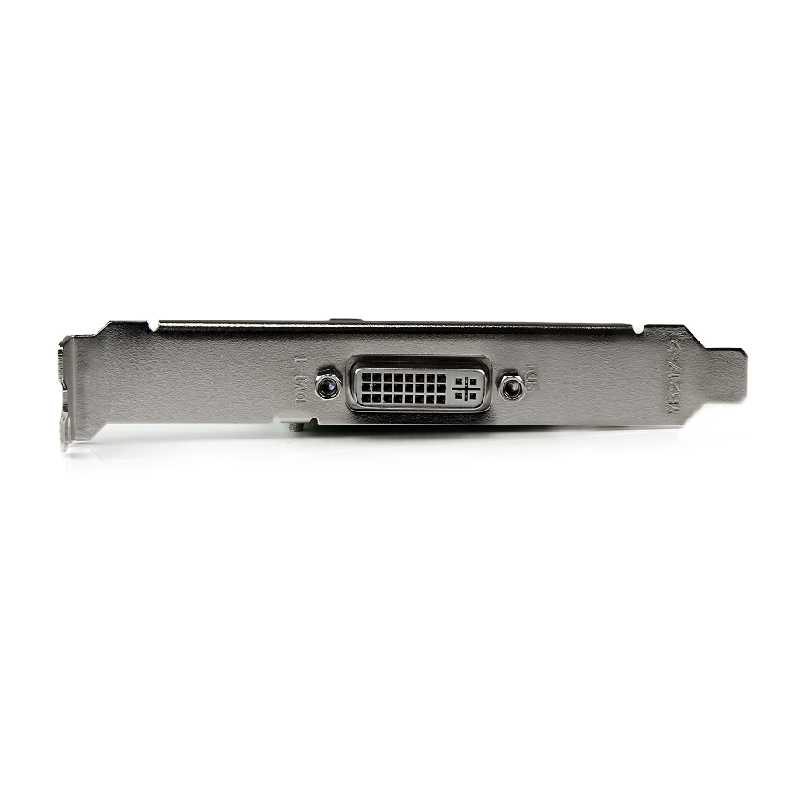

| Low-profile bracket | Yes |

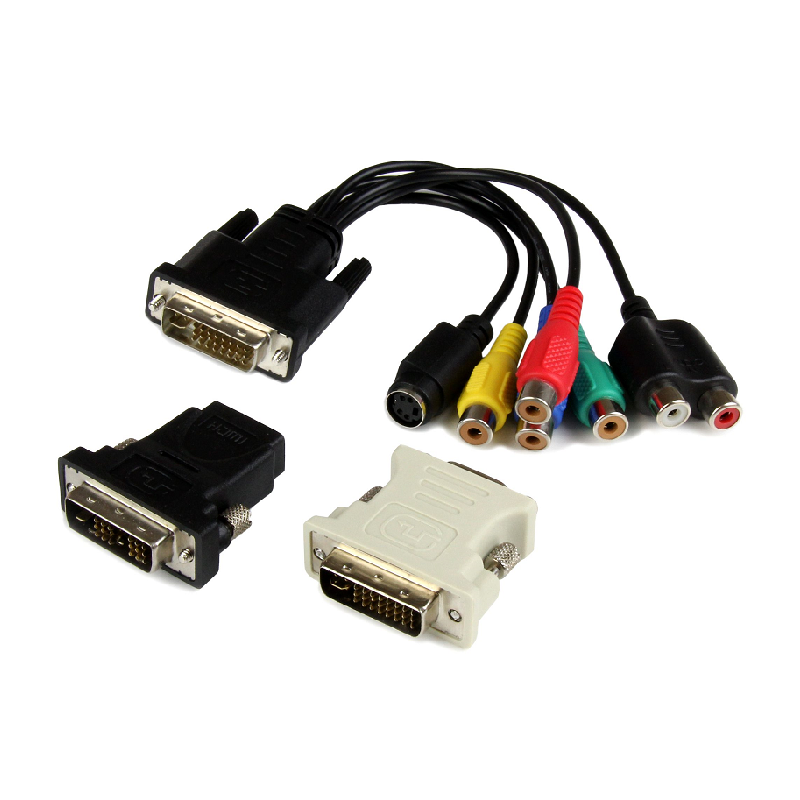

| Interface adapters included | DVI-I male - VGA female |
| Quick installation guide | Yes |
| Cables included | DVI |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A quick start guide can be found in the PDF file
