| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEUVCHDCAP |
| Manufacturer No: | UVCHDCAP |
| Delivery: | In Stock: Next Day |
 |

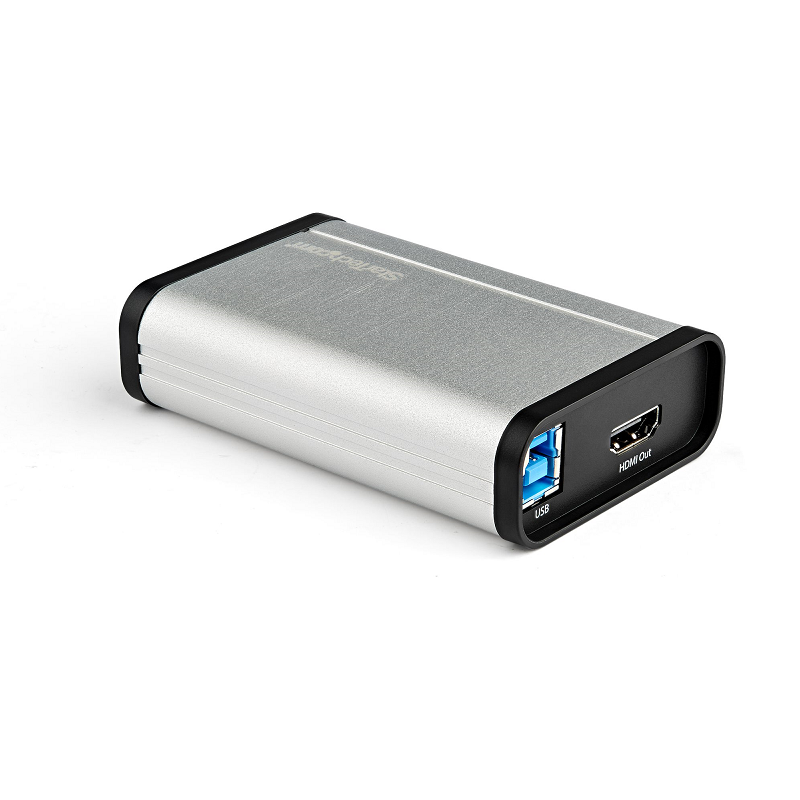

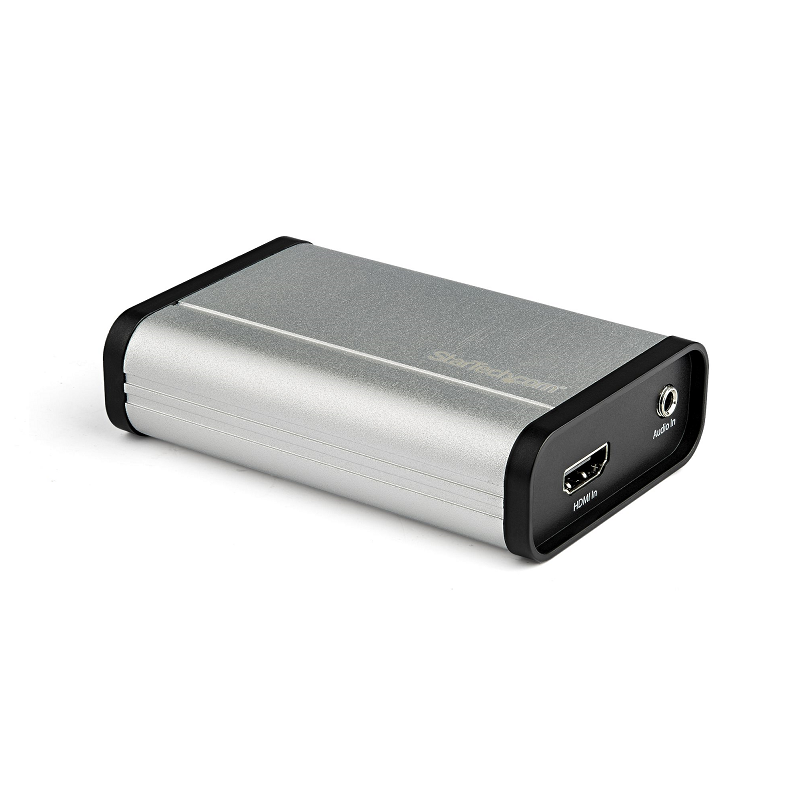

HDMI to USB C Video Capture Device 1080p 60fps - UVC - External USB 3.0 Type-C Capture/Live Streaming - HDMI Audio/Video Recorder Adapter - Works with USB-C/USB-A/Thunderbolt 3
HDMI® Recorder| USB 3.0 | USB Video Class | USB-A Cable Included

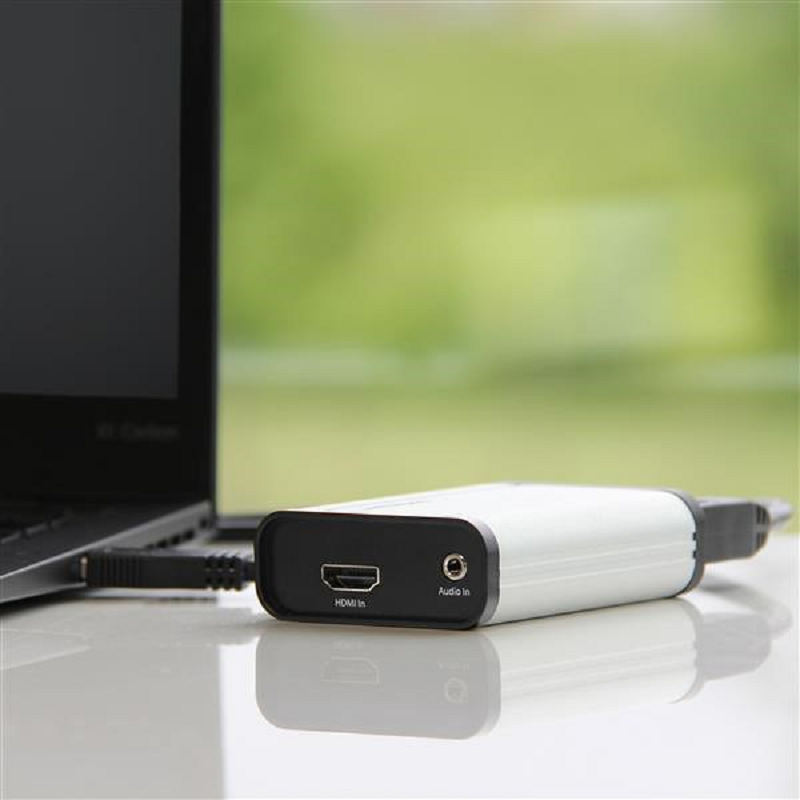

This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.
For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you're not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.
Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.
The UVCHDCAP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Note: This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video.
| Technical details | |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Video capture resolution (max) | 1920 x 1080 pixels |
| Product colour | Black, Silver |
| Chipset | Mstar MST3363CNK-170 |
| Sustainability certificates | RoHS |
| Video | |
| Supported video modes | 1080p |
| Supported resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 |
| Maximum frame rate | 60 fps |
| Audio | |
| Audio support | Yes |
| Supported audio channels | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80 % |

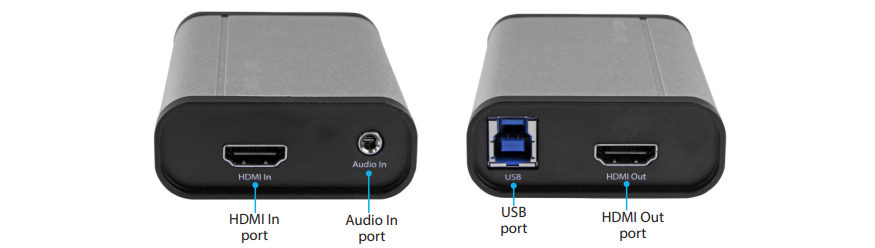

| Ports & interfaces | |

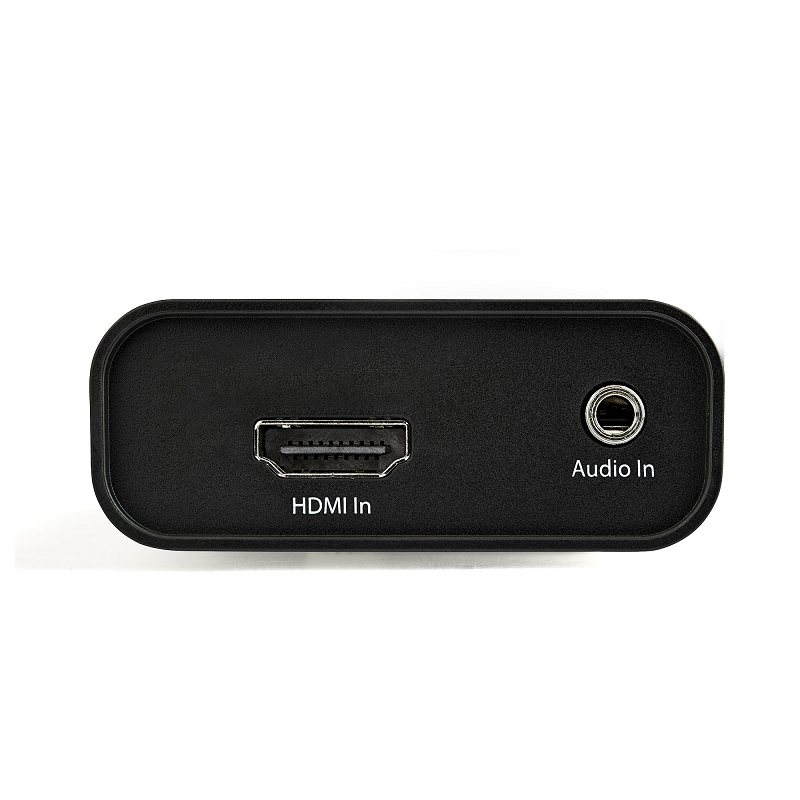

| HDMI in | 1 |

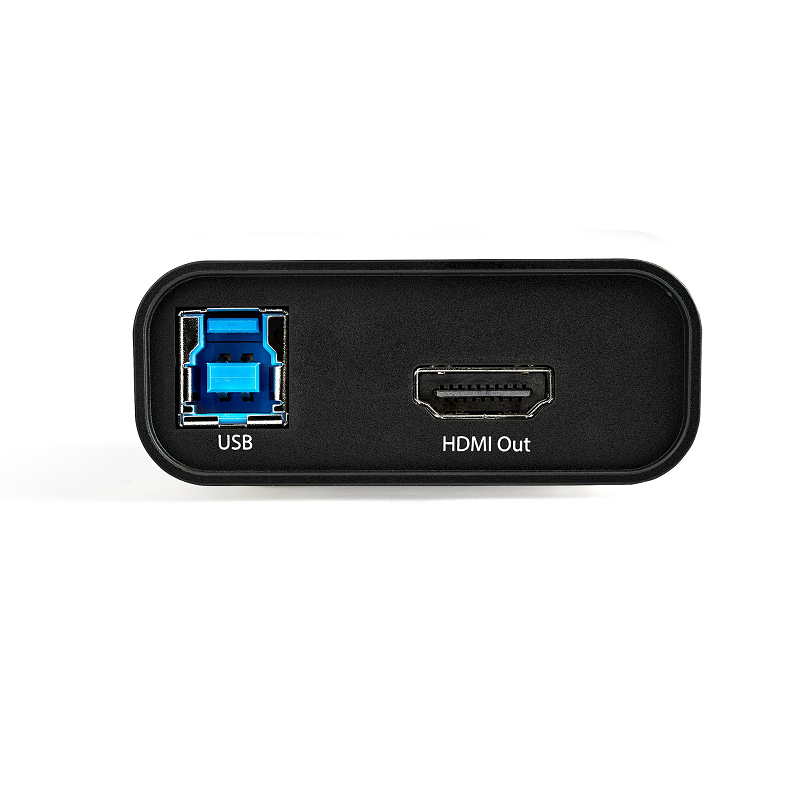

| Number of HDMI outputs | 1 |
| Audio (L/R) in | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 92 mm |
| Height | 23 mm |
| Weight | 86 g |
| Packaging data | |
| Package width | 470 mm |
| Package height | 215 mm |
| Package depth | 392 mm |
| Package weight | 470 g |
| User guide | Yes |

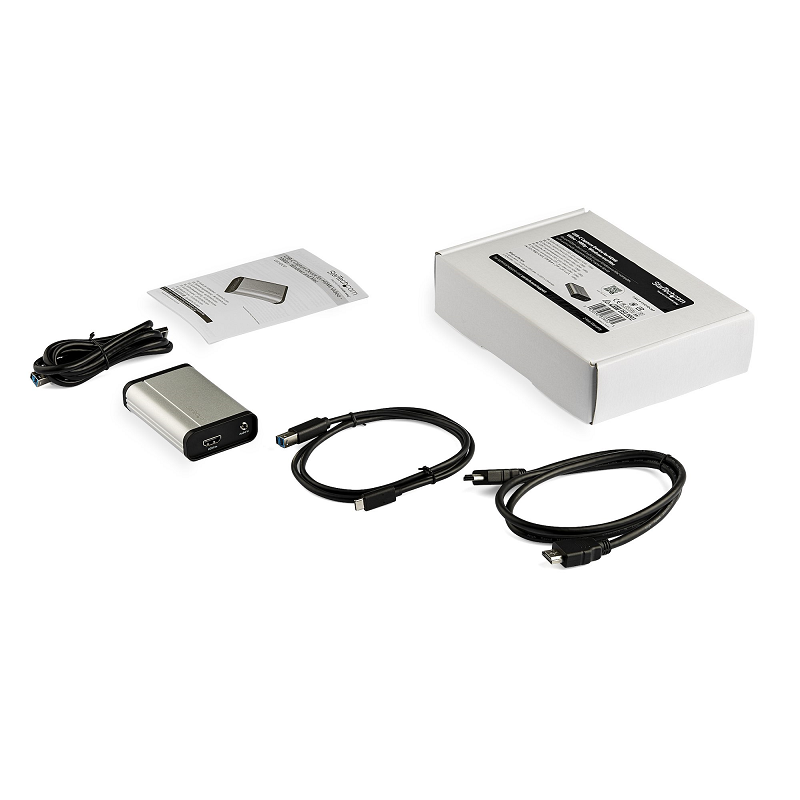

| Cables included | HDMI, USB, USB Type-C |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A quick start guide can be found in the PDF file
