StarTech DP Cables

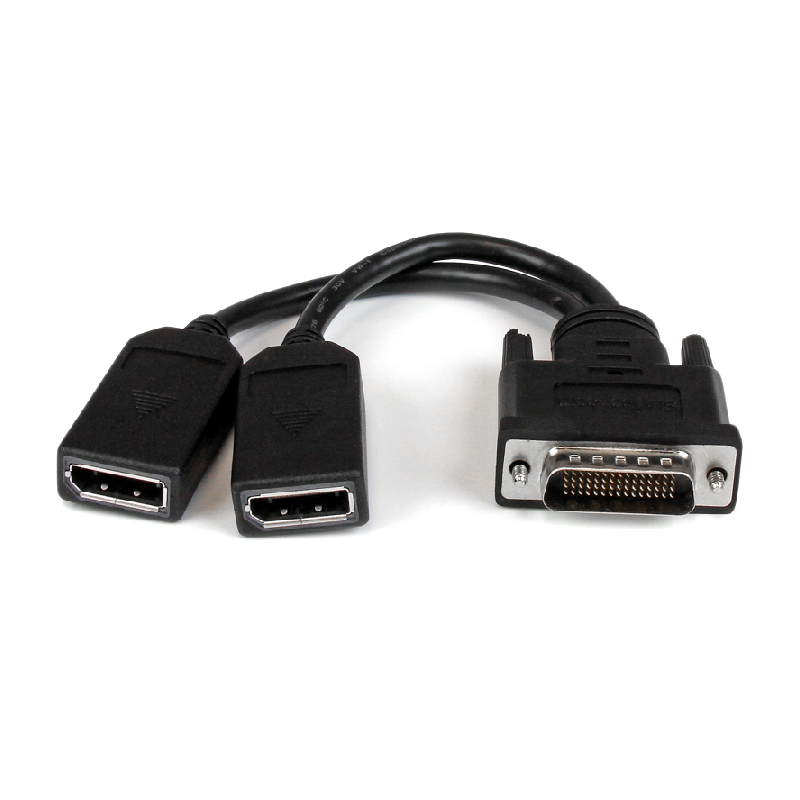

8" (20 cm) DMS-59 to Dual DisplayPort Adapter Cable - 4K x 2K Video - LFH DMS 59 pin (M) to 2x DisplayPort 1.2 (F) Splitter Y Cable - LFH Graphics Card to Dual DP Monitors

Connect two DisplayPort monitors to your DMS / LFH-equipped graphics card










The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors.


The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®, PNY, ATI and HP.


Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability – making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables.


Product Drawing:








Applications: Connect two DisplayPort monitors to a single DMS / LFH 59 or DMS / LFH 60 graphics card port









Features: DMS-59 TO DUAL DISPLAYPORT ADAPTER CABLE: This 7.8 in (20 cm) DMS-59 P to 2x DP v1.2 extension cable (male to 2x female connectors) supports 4K x 2K video (3840 x 2400p 60Hz), 1920 x 1200p, Full HD 1080p, 21.6 Gbps bandwidth, HBR2
RELIABLE DESIGN: Durable and flexible molded PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Cost-effective replacement for damaged or misplaced DMS-59 to dual DisplayPort splitter y cables
QUALITY CONSTRUCTION: 32AWG wire and EMI shielding with Aluminium foil and Braid provide superior signal integrity and reliability for higher quality video and audio; Use this DMS-59 to DisplayPort cable with DMS/LFH 59 graphics cards
APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with TB2/Mini-DP port)/professional workstations with FirePro W9100/8100, NVS 810/510 graphic card; UHD/4K monitor/projector/display; Apple MacBook Pro/Air, Microsoft Surface Pro 1-6
SPECS: 6 feet (2 m) Black DP v1.2 Mini DisplayPort Male to Female 30 AWG PVC cable jacket, ABS connector shell Shield: Aluminium foil with Braid Protocols: HBR 2, MST, GTC Backwards compatible with DP1.1 Lifetime Warranty









The StarTech.com Advantage: Cost-effective alternative to other DMS DisplayPort Cables such as the HP XP688AA
Guaranteed reliability








Features Maximum resolution 3840 x 2160 pixels Product colour Black Certification CE, REACH Connector contacts plating Nickel Cable length 0.203 m HD type 4K Ultra HD
Ports & interfaces Video ports quantity 2 Video out 2 x DisplayPort Connector contacts plating Nickel Cable length 0.203 m
Weight & dimensions Width 41 mm Height 15 mm Depth 203.2 mm Weight 79 g
Packaging data Package width 145 mm Package height 17 mm Package depth 290 mm Package weight 86 g Full specification and details can be found in the
