Excel Mixed Socket PDUs are the ultimate solution for complex IT infrastructure environments where a variety of power connections are required. By combining different outlet types into a single unit, these Power Distribution Units (PDUs) eliminate the need for multiple power strips, streamlining your equipment organisation. At Comms Express, our range of Excel combination PDUs typically features a mix of standard UK sockets, IEC C13 sockets, and high-draw IEC C19 sockets. This versatility is essential for modern business networking and data centre networking setups that house a blend of legacy hardware and high-performance enterprise servers.
Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 24 sockets.
The range of units are higher density vertical mounted with each unit fitted with a 32A master air circuit breaker and LED indicator to confirm power to the unit.
Features and Benefits
Choice of C13 and C19 sockets
3 metre PVC input lead is terminated with a 32 Amp rated IEC 60309 2P+E plug
CE compliant, RoHS complaint
32A Master air circuit breaker
External earth facility
Product specifications for this product can be found in the Documentation tab
No. Sockets: |

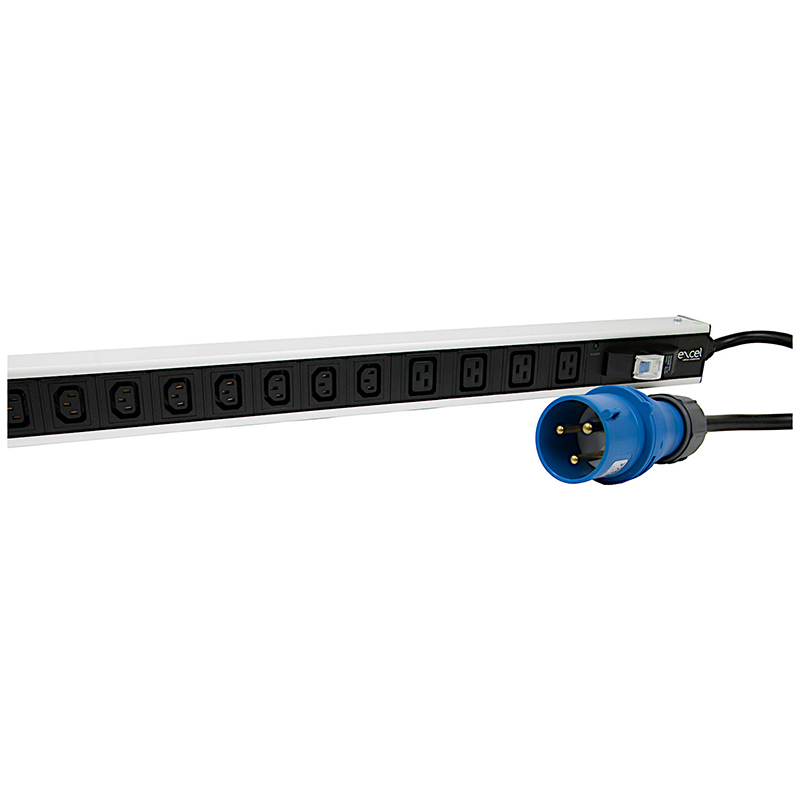

Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 24 sockets in a combination of C13 and C19.
The range of units are higher density vertical mounted with each unit fitted with a 16A master air circuit breaker and LED indicator to confirm power to the unit.
Features
3 metre PVC input lead is terminated with a 16 Amp rated IEC 60309 2P+E plug
CE compliant, RoHS complaint
16A master air circuit breaker
External earth facility
Specifications
Mounting size: 913mm (16-Way) | 1079mm (20-Way) | 1245mm (24-Way)
Mounting direction: Vertical
Electrical connection: Connecting cord with plug
Type of electric plug connection: 16 Amp - EN6039 Style (BS4343)
Cable length: 3 m
Number of c13 socket outlets: 12 (16-Way) | 16 (20-Way) | 20 (24-Way)
Number of c19 socket outlets: 4 (All Models)
Number of rack units (ru): 1
Dimensions (W x H x D): (See Mounting Size) x 55 mm x 62 mm
Supply voltage: 230 V
Surge protected: Yes
With led indication: Yes
With fuse: Yes
With mounting bracket: Yes
No. Sockets: |
