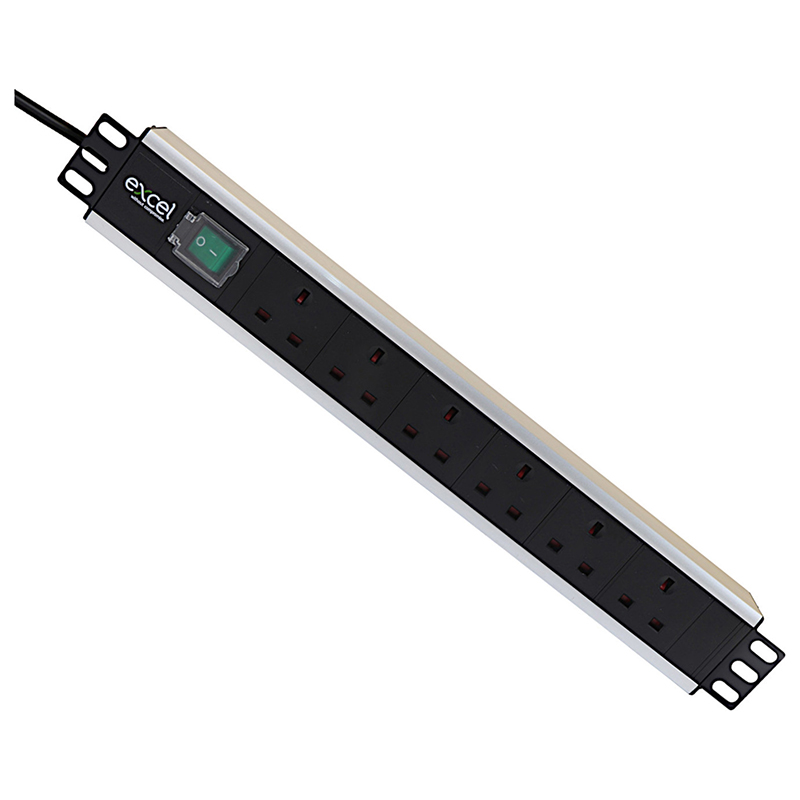

The Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets.
In this particular range each socket is UK style, manufactured in accordance with the BS1363 standard, the 3 metre input lead is terminated with a C20 3 pin plug.
The sockets are mounted at a 45° angle on the vertical PDUs and a 90° angle on the horizontal PDUs to aid with cable management. The range of available units includes 19" horizontally mounted, and higher density vertical mounted options, each unit contains a fully shrouded switch to control input power, and a LED indicator to confirm power to the unit.
Features
UK style sockets to BS1363
High quality, light weight aluminium housing
LED indicated unit power
Choose from vertical and horizontal options
250 volt AC, 50/60 Hz Rating
CE compliant, ROHS complaint
Specifications
Mounting size: 465 mm
Mounting direction: Horizontal
Electrical connection: Connecting cord with plug
Type of electric plug connection: C20
Cable length: 3 m
Number of uk bs1363 sockets: 6
Number of rack units (ru): 2
Dimensions: 482.6 mm (W) x 62 mm (H) x 45 mm (D)
Supply voltage: 250 V
Surge protected: No
Switchable: Yes
With led indication: Yes
With fuse: No
With mounting bracket: Yes
