Excel C13 to C20 PDUs are engineered to support high-density IT infrastructure by providing a robust 16A power distribution solution. Featuring a high-capacity IEC C20 input, these Power Distribution Units (PDUs) are designed to handle the increased current demands of modern enterprise hardware. At Comms Express, our range is housed in a high-quality aluminium extruded housing, ensuring a durable and professional finish for any business networking or data centre networking environment.
The Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets. In this particular range each socket is IEC C13 style, the 3 metre input lead is terminated with a C20 3 pin plug.
The range of available units includes 19" horizontally mounted, and higher density vertical mounted options, each unit contains a fully shrouded switch to control input power, and a LED indicator to confirm power to the unit.
Features
IEC 60320 C13 style sockets
High quality, light weight aluminium housing
LED indicated unit power
Choose from vertical and horizontal options
250 volt AC, 50/60 Hz rating
CE compliant, ROHS complaint
Specifications
Mounting size: 482 mm
Mounting direction: Horizontal
Electrical connection: Connecting cord with plug
Type of electric plug connection: C20
Cable length: 3 m
Number of c13 socket outlets: 6
Number of rack units (ru): 2
Dimensions: 482.6 mm (W) x 62 mm (H) x 45 mm (D)
Supply voltage: 250 V
Surge protected: No
Switchable: Yes
With led indication: Yes
With fuse: No
With mounting bracket: Yes
The Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets. In this particular range each socket is IEC C13 style, the 3 metre input lead is terminated with a C20 3 pin plug.
The range of available units includes 19" horizontally mounted options, each unit contains a fully shrouded switch to control input power, and a LED indicator to confirm power to the unit.
Features
IEC 60320 C13 style sockets
High quality, light weight aluminium housing
LED indicated unit power
Choose from vertical and horizontal options
250 volt AC, 50/60 Hz rating
CE compliant, ROHS complaint
Specifications
Mounting size: 551 mm(8-Way) | 635 mm(10-Way)
Mounting direction: Horizontal
Electrical connection: Connecting cord with plug
Type of electric plug connection: C20
Cable length: 3 m
Number of c13 socket outlets: 8-Way, 10-Way
Number of rack units (ru): 2
Dimensions (W x H x D): (See Mounting Size) x 44.4 x 62 mm
Supply voltage: 250 V
Surge protected: No
Switchable: Yes
With led indication: Yes
With fuse: No
With mounting bracket: Yes
No. Sockets: |

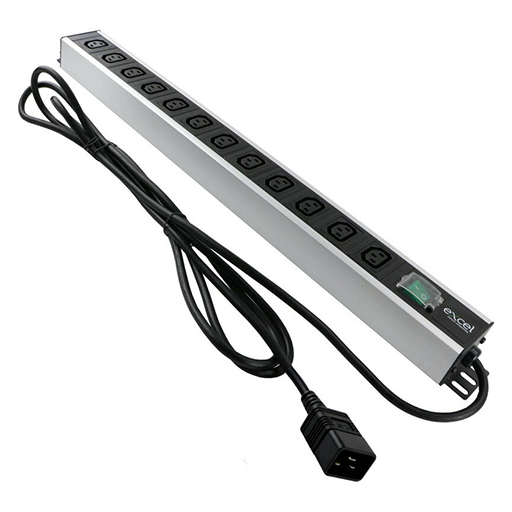

The Excel range of power distribution units are designed for installation and use within 19" networking cabinets and enclosures. Each unit comprises a high quality aluminium extruded housing into which are loaded up to 12 sockets. In this particular range each socket is IEC C13 style, the 3 metre input lead is terminated with a C20 3 pin plug.
The range of available units includes 19" vertical mounted options, each unit contains a fully shrouded switch to control input power, and a LED indicator to confirm power to the unit.
Features
IEC 60320 C13 style sockets
High quality, light weight aluminium housing
LED indicated unit power
Choose from vertical and horizontal options
250 volt AC, 50/60 Hz rating
CE compliant, ROHS complaint
Specifications
Mounting size: 719 mm
Mounting direction: Vertical
Electrical connection: Connecting cord with plug
Type of electric plug connection: C20
Cable length: 3 m
Number of c13 socket outlets: 12-Way
Number of rack units (ru): 2
Dimensions (W x H x D): (See Mounting Size) x 44.4 x 62 mm
Supply voltage: 250 V
Surge protected: No
Switchable: Yes
With led indication: Yes
With fuse: No
With mounting bracket: Yes
