Eaton Direct Attach Cables (DAC)

Splits a 40 GbE Network System to Four 10 GbE Servers, Switches and/or Adapters

Ideal for data centres, high-end servers and enterprise wiring closets

Lower port cost and power budget when compared to fibre optics

Multi-platform support for 40GBASE-CR4, 10GBASE-CR4, 6G SAS, Fibre Channel and SONET

Top-of-the-Line Construction

Zinc die-cast male connectors for superior EMI resistance

Ergonomic pull-tab ejectors for quick, easy connections

8-pair wire technology optimized for bandwidth-intense applications

Flexible 30 AWG conductors maintain smooth high-frequency response

Fully Compliant and Compatible

Compatible with SDR, DDR and QDR

Compatible with all QSFP and QSRP+ ports

Complies with latest MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture

Compatible to Cisco QSFP-4SFP10G-CU3M

Connect Network Equipment at Speeds Up to 100 Gbps

Combines four 28 Gbps SFP channels into single high-density cable

Ideal for data centres, high-end servers and enterprise wiring closets

Multi-platform support for 128G Fibre Channel and EDR InfiniBand

Lower port cost and power budget when compared to fibre optics

Top-of-the-Line Construction

100 GbE 38-position “board-as-connector” design

Zinc die-cast male QSFP+ connectors for superior EMI resistance

Ergonomic pull-tab ejectors for quick, easy connections

8-pair wire technology optimized for bandwidth-intense applications

Flexible 26 AWG conductors maintain smooth high-frequency response

Fully Compliant and Compatible

Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards

Complies with IEEE 802.3bj and RoHS

Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture

Compatible with all QSFP and QSRP+ ports

Features

QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable
Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards
Compatible to Cisco QSFP-H40G-CU1M
SDR, DDR, and QDR Compatible
QSFP+ to QSFP+ 30AWG SFF-8436 compliant cable and connector
Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate )
Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET
Zinc die-cast QSFP+ connectors with "Pull-to-Release" latching
Fully compliant to latest QSFP+ MSA ( Multi Source Agreement )
Lower port cost and reduced power budget vs Fiber Optics
RoHS, SFF-8436, and IEEE 802.3ba Compliant
BER better than 10¹²

Connect Network Equipment at Speeds Up to 100 Gbps

Combines four 28 Gbps SFP channels into single high-density cable

Ideal for data centres, high-end servers and enterprise wiring closets

Multi-platform support for 128G Fibre Channel and EDR InfiniBand

Lower port cost and power budget when compared to fibre optics

Top-of-the-Line Construction

100 GbE 38-position “board-as-connector” design

Zinc die-cast male QSFP+ connectors for superior EMI resistance

Ergonomic pull-tab ejectors for quick, easy connections

8-pair wire technology optimized for bandwidth-intense applications

Flexible 26 AWG conductors maintain smooth high-frequency response

Fully Compliant and Compatible

Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards

Complies with IEEE 802.3bj and RoHS

Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture

Compatible with all QSFP and QSRP+ ports

Compatible to Cisco QSFP-100G-CU1M

30Awg SFP+ High Speed Passive Copper 10Gbps Cable

Fully compliant to MSA SFF-8431 specification

Equivalent to Cisco SFP-H10GB-CU1M

Use in 10Gbps Ethernet and Fibre Channel applications

100ohm Twinaxial cable, Diecast metal shells, pull-to-release latching

Support for 1x, 2x, 4x and 8x Fiber Channel data rates

Hot-Pluggable SFP 20PIN footprint

Low power consumption

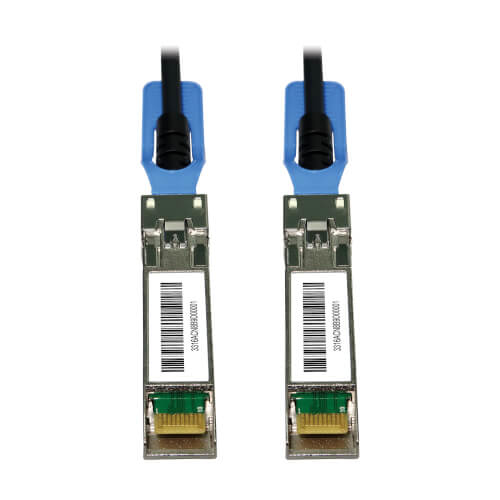

The Smart Solution for 25G Network Cable Connections

This Cisco-compatible SFP cable is ideal for fast, clear signal transmission in 25 Gbps networks such as data centres, high-end server rooms and enterprise wiring closets. This cable is a low-power, cost-effective alternative to fibre optic cabling for high-speed connection applications such as network storage and enterprise networking. It meets SFF-8432 specifications and is compatible with equipment that accepts third-party cables, such as Cisco, Arista, Dell, Juniper, and Mellanox.

Expert Construction for Reliable Data Transfers

The cable is ideal for network engineers, IT managers and installers working with servers, switches, adapters and routers that require connections through SFP28 ports at short range. Zinc die-cast male SFP28 connectors and flexible 30 AWG conductors resist EMI line noise and maintain smooth high-frequency response. Ergonomic pull tabs allow easy hot-swap connections and disconnections in crowded network components.

Fully Compliant to Fit Almost Any Application

In addition to fitting the latest SFP28 MSA (Multi-Source Agreement) SFF-8432 architecture, this cable meets or exceeds strict 25GBase-CR1 standards, as well as IEEE 802.3by and RoHS. Its male connectors fit all SFP28 ports and are the equivalent of Cisco’s SFP-H25G-CU cable.
