Eaton 9SX

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 3000 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

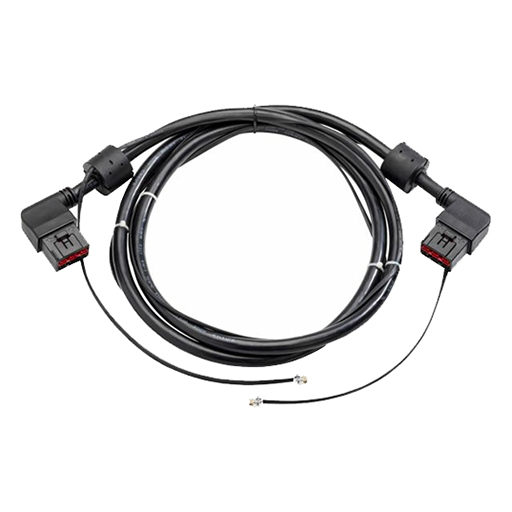

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 1000 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 1000 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 1500 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 1500 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS





Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.





Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.





Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 2000 UPS Specifications



1 - Remote Power Off connector
(configurable)

2 - Slot for Management card





3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output





5 - USB and serial ports


6 - Input/Ouput connections



Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 2000 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 3000 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Advanced protection for IT, Networking, Storage, Telecom, Infrastucture, Industrial and Medical industries

Online double conversion UPS Successor of Eaton 9130 UPS

Performance and Availability

Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.

With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.

Manageability

The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.

The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software.

Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.

9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power® Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.

Flexibility

One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.

More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Eaton 9SX 3000 UPS Specifications

1 - Remote Power Off connector
(configurable)

2 - Slot for Management card

  3 - External battery module (EBM) connector
with automatic detection (RJ11)

4 - Relay output

  5 - USB and serial ports


6 - Input/Ouput connections

  Please see the Eaton 9SX Technical Specification for detailed battery and physical information

Eaton 9PX 9SX5KIRT UPS

High performance Online double-conversion UPS




Advanced protection for: • Infrastucture, Industrial and Medical

• IT, Networking, Storage and Telecom




Performance and Efficiency • Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

• With up to 95% efficiency in online double-conversion mode the 9SX provides the highest efficiency level in its class to reduce energy & cooling costs.

• With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.




Availability and Flexibility • The internal bypass allows service continuity in case of internal fault. Batteries are hot-swappable from the front panel without powering down critical systems.

• With its tower or rack/tower versatile form factor the 9SX can be installed in any environment (rack kit provided as standard on RT versions).

• Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.

• More runtime can be added with external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.




Manageability • The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen (in seven languages). LCD display position can be adjusted to offer the best viewable angle for tower and rack usage.

• The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite.

• Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices. It can also be used to remotely reboot locked-up equipment or to manage scheduled shutdowns and sequential start-ups.

• The 9SX offers Serial, USB and relay (dry contacts) connectivity, plus an extra slot for an optional card (Modbus, Network or Relay). 9SX also provides Remote Power off function. Eaton’s Intelligent Power Software is included with each UPS.




Product Diagram:

1. Remote Off/On and Remote Power Off connectors

2. Slot for Management card

3. External battery module (EBM) connector with automatic detection (RJ11)

4. DB 9 with output contacts

5. USB and serial ports

6. Input/Ouput connections


Full specification and details can be found in the Product Datasheet PDF file
