| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FE9SX3000IMBS |
| Manufacturer No: | 9SX3000IMBS |
| Delivery: | In Stock: 7-10 Days |
 |
The Eaton 9SX Marine UPS is designed for marine and offshore environments, featuring coated circuit boards and high-temperature compatibility. Recognized by DNV-GL, it delivers advanced double-conversion protection for bridge systems, navigation, communication, small computer and automation systems.
Performance and Availability
Double-conversion topology. The Eaton 9SX Marine constantly monitors power conditions and regulates voltage and frequency.
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems
With coated boards and hi-temperature compatibility, 9SX Marine is designed for Marine & Offshore environments.
Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX Marine also provides recommended replacement date for batteries
DNV-GL type approved UPS
Manageability
The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.
The 9SX Marine can meter energy consumption. kWh values can be monitored using the LCD
Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices
9SX Marine offers Serial, USB connectivity, plus an extra slot for an optional communication card.
Flexibility
Configurable to frequency converter operation (50 -> 60Hz and 60 -> 50Hz), or Marine mode (output frequency follows input frequency).

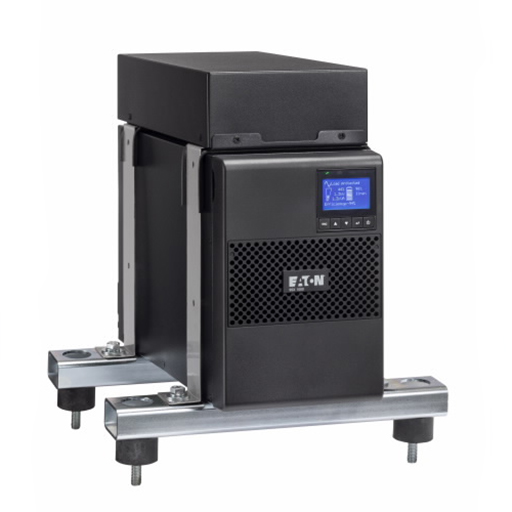

Easy to install, mounting rails can be bolted or welded to the deck/bulk head or shelf. Installation kit includes vibration absorbers that are mounted under the UPS cabinet
More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS
The Eaton 9SX Marine UPS is designed for marine and offshore environments, featuring coated circuit boards and high-temperature compatibility. Recognized by DNV-GL, it delivers advanced double-conversion protection for bridge systems, navigation, communication, small computer and automation systems.
Performance and Availability
Double-conversion topology. The Eaton 9SX Marine constantly monitors power conditions and regulates voltage and frequency.
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems
With coated boards and hi-temperature compatibility, 9SX Marine is designed for Marine & Offshore environments.
Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX Marine also provides recommended replacement date for batteries
DNV-GL type approved UPS
Manageability
The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.
The 9SX Marine can meter energy consumption. kWh values can be monitored using the LCD
Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices
9SX Marine offers Serial, USB connectivity, plus an extra slot for an optional communication card.
Flexibility
Configurable to frequency converter operation (50 -> 60Hz and 60 -> 50Hz), or Marine mode (output frequency follows input frequency).
Easy to install, mounting rails can be bolted or welded to the deck/bulk head or shelf. Installation kit includes vibration absorbers that are mounted under the UPS cabinet
More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
