The AXIS A1610 Network Door Controller is fully integrated within Axis end-to-end solutions and supported by our
partner solutions, this smart, edge-based door controller is optimized for both small and large installations. It
includes everything you need to control two doors.
Versatile and high performance
Ideal for various installation and applications, this robust solution offers powerful hardware with extra processing
power, memory, and storage. Designed to withstand harsh conditions, it can operate in temperatures from -40 °C to 70
°C (-40 °F to 158 °F). With support for PoE+ and DC, you can directly power the onboard lock.
Plus, with six configurable auxiliary I/O ports, it’s easy to integrate with sensors and external security systems,
for instance to detect breaking glass, intrusion, or emergency alarms. This advanced device supports a DIN rail
mount for fast and easy installation on walls. Plus, with plenum rating, it’s suitable for installation in plenum
spaces and eliminates the need for an additional installation cabinet.
Reliable and secure
Featuring four reader connections as well as two Form C relays to power the onboard lock, AXIS A1610 includes
everything you need to control two doors. Plus, it’s all powered using one PoE cable. Thanks to intelligence on the
edge, this smart door controller can internally handle all tasks related to door access—even if the network is down.
Additionally, built-in cybersecurity features help prevent unauthorized access and safeguard your system.
For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your
network. Furthermore, it ensures cryptographic keys such as the OSPD Secure Channel encryption key are safely and
securely stored in the onboard EAL6+ Certified compute module.
Grows with your needs
AXIS A1610 is fully integrated within Axis end-to-end solution and supported by our partner solutions. This scalable
solution is optimized for both small and large installations and is designed to meet your changing needs as they
develop. You can store up to 250k credentials and 250k event logs on the device itself.
Plus, it ensures flexible and secure authentication using different types of credentials. For instance, you can
grant access to hundreds of thousands of visitors using traditional access types such as card or PIN codes, as well
as dynamic QR code for visitor access, and license plates for vehicle access.
*For complete specifications see the documentation tab above

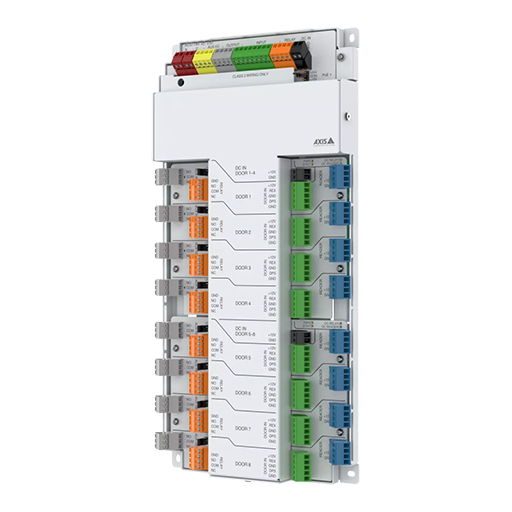

The AXIS A1810-B is a compact, scalable door controller engineered for full control of up to eight doors and sixteen readers. This efficient and centralized access control solution is ideal for both new and retrofit installations, offering simplified wiring, onboard lock power, and robust cybersecurity features. Optimized for installations in security rooms or rack-mounted cabinets, it is the go-to controller for flexible, high-capacity access control systems.
Key Features
Supports up to 8 doors and 16 OSDP readers
Built-in lock power and color-coded connectors
250k credential and event log capacity
Compact design ideal for centralized cabinet installation
OSDP Verified for secure communication
Supports multi-factor authentication including QR codes and license plates
Edge Vault for secure key storage and device integrity
Cost-Efficient Multi-Door Control
With support for up to eight doors, sixteen readers, and sixteen locks, the AXIS A1810-B is a fully integrated controller that reduces complexity and saves installation time. Onboard lock power simplifies wiring, while color-coded connectors help streamline the setup process for both Axis and third-party components.
Compact and Scalable Integration
The barebone, space-saving design makes it ideal for installations requiring centralized access control hardware. Whether deploying in small facilities or scaling across large sites, its support for OSDP and optional Wiegand readers ensures flexibility for evolving security needs.
Advanced Security Architecture
Built on the Axis Edge Vault platform with EAL6+ certified hardware, the A1810-B offers industry-leading protection of cryptographic keys and sensitive data. It supports secure authentication methods including Bluetooth, dynamic QR codes, and license plate recognition—making it suitable for personnel and vehicle access alike.
Seamless System Compatibility
Designed for use with AXIS Camera Station Secure Entry and compatible with partner access management solutions, the A1810-B allows for integrated video surveillance and access control from a single platform. This ensures complete situational awareness and streamlined administration across sites.
