Austin Hughes Two Console KVM solutions allow dual-user access to multiple servers from two separate consoles, making them ideal for data centers and enterprise IT environments. These rackmount units combine high-resolution LCD displays, keyboards, and touchpads with integrated KVM switching for efficient, space-saving server management. Perfect for businesses needing flexible and secure multi-user control.
Austin Hughes 8/16 Port CyberView PS2/USB Two Console KVM Switch with 1 Local User + 1 Extended Remote User
The CyberView CV-802 / CV-1602 is a 8 / 16 port DB-15 KVM Switch for VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles - 1 x local, 1 x remote extended.
Cost Efficient PS/2 DB-15 Two Console KVM
Austin Hughes provides its entry level, highly cost efficient 8 or 16 port Two Console KVM switches based on the DB-15 interface. Using a specially designed 3 in one KVM cable with PS/2 fly lead plugs - allows a user to cost effectively specify the switch to match the exact server configurations.
In this Two console variant of these KVM switches Austin Hughes offer multiplatform switches that allow PS/2 and USB to be used (without conversion) on the same switch platform simply by selection of the low cost cable type. This is feature often only found on higher cost Cat5 switches where a dongle must be used to convert the interface. But by using these PS/2 or USB KVM switchs it allows you to connect up to 16 servers on one switch, in addition to this the KVM switch can be 'stacked' to 8 levels providing access to 128 servers.
Secure Remote Access
The second console allows a user to work securely via a remote Keyboard, monitor and mouse over a Cat5 link up to 300m away from the installed switch / servers. This plug and play technology requires no software to be installed on the servers but provides seamless secure access over Cat5 4 pair copper cable to all switch ports allowing access to your servers even if the Ethernet / WAN network has failed or is unavailable.
Two Console DB-15 KVM Benefits
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.4em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 1.2em; /* slightly larger gap */ }
Enhanced rear cable management using 3 in 1 KVM cables
Secure remote access over 300m (1000ft) of Cat5
Switch Features and Options
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.4em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 1.2em; /* slightly larger gap */ }
Enhanced data centre security with a second user or console up to 300m from the installed switch / server
Multi lingual on screen display menu
OSD hot key control
Key Features:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
DB-15 KVM with 8 or 16 ports in 1U
Local console & KVM ports support resolution up to 1920 x 1200
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Multi-platform for PC, server, Blade Server, MAC
Cascade levels up to 8 KVM switches
TAA Compliant
DC power : 12V / 24V / 48V / 125V / 250V
2 Years Standard Warranty - Expandable up to 5 years
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Package Contents:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
1 x CV-802 / CV-1602 KVM Switch
1 x 1U, 19" mounting kit w/ brackets & screws
1 x Power adapter & Power cord ( for KVM ) * DC power excludes AC power cord.
1 x KVM receiver for extended console
1 x Power adapter & Power cord ( for receiver )
1 x CE-6 6ft Combo KVM cable for receiver box
*For complete specifications see the documentation tab above
Ports: |

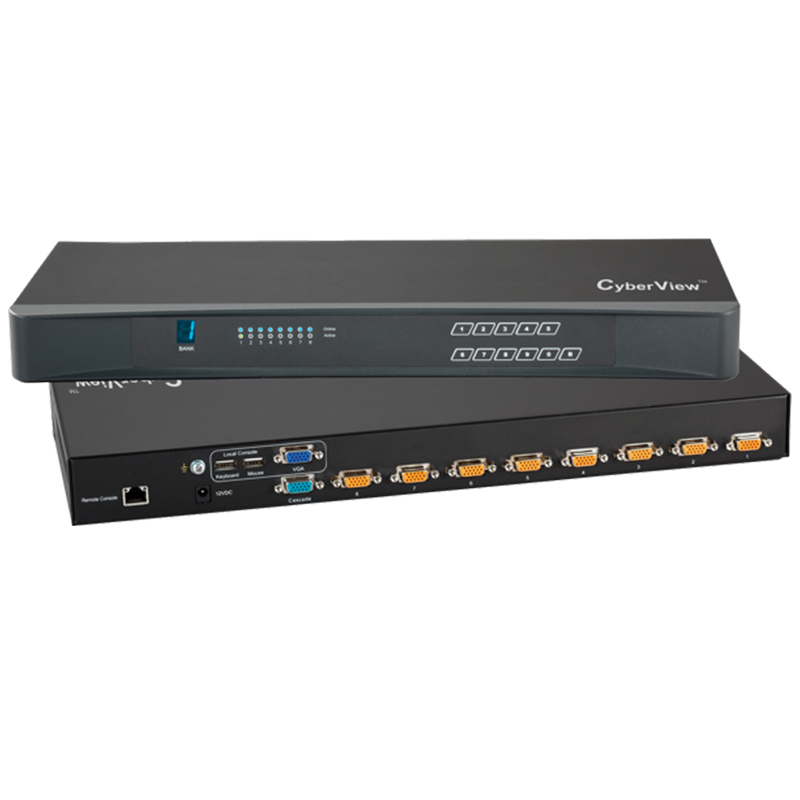

Austin Hughes IP-802 / IP-1602 8 or 16 Port VGA CyberView IP Combo Console KVM Switch with 1 Local User and 1 Remote IP User
The CyberView IP-802 / IP-1602 is an 8 or 16 port DB-15 KVM Switch for VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 1 x local console and 1 x network IP console.
Cost Efficient PS/2 DB-15 IP KVM
Austin Hughes provides its entry level, highly cost efficient 8 port IP KVM switches based on the DB-15 interface. Using a specially designed 3 in one KVM cable with PS/2 fly lead plugs - allows a user to cost effectively specify the switch to match the exact server configurations
In this Two console IP variant of these KVM switches Austin Hughes offer multiplatform switches that allow PS/2 and USB to be used (without conversion) on the same switch platform simply by selection of the low cost cable type. This is feature often only found on higher cost Cat5 switches where a dongle must be used to convert the interface. But by using these PS/2 or USB KVM switchs it allows you to connect up to 16 servers on one switch, in addition to this the KVM switch can be 'stacked' to 8 levels providing access to 128 servers.
Secure Remote IP Access
A second user can work securely via a remote Keyboard, monitor and mouse across Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC's but provides seamless secure access over IP via a web browser. Secure IP access allows the ultimate server control even to Bios level of your infrastructure.
Key Features:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
DB-15 KVM with 8 or 16 ports in 1U
High definition video support with resolutions up to 1920 x 1200
Multi-platform for PC, server, Blade Server, MAC
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches
DC power : 12V / 24V / 48V / 125V / 250V
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Package Contents:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
1 x IP-802 / IP-1602 KVM Switch
1 x 1U, 19" mounting kit w/ brackets & screws
1 x Power adapter & Power cord ( for KVM ) * DC power excludes AC power cord.
2-Year standard warranty - upgradable up to 5 years
*For complete specifications see the documentation tab above
Ports: |
