Austin Hughes CAT5e/CAT6 KVM solutions provide efficient, long-distance server management over structured cabling, making them ideal for data centers and enterprise IT environments. These KVM systems deliver high-resolution video and secure connectivity while reducing cable clutter. Perfect for businesses seeking flexible, reliable, and space-saving remote access solutions.

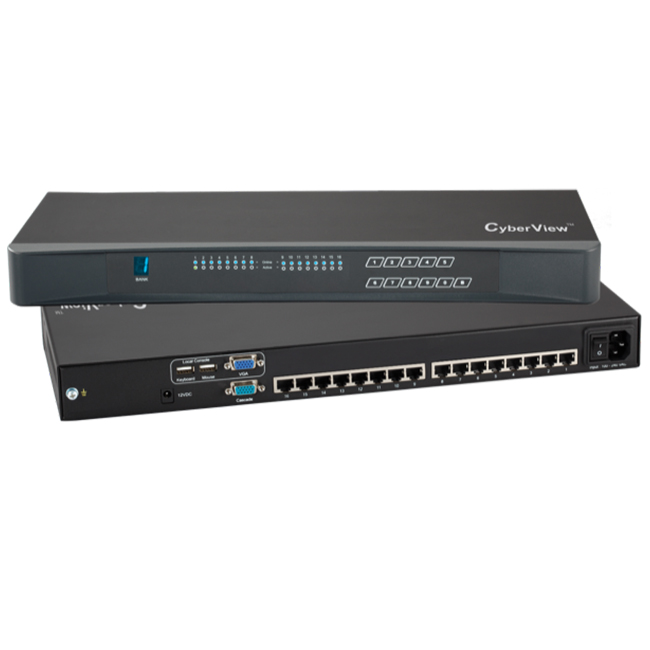

Austin Hughes U-1601 16 Port Combo Cat6 Single Console KVM Switch
The CyberView U-1601 is a 16 port Combo Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200.
The CyberView U-1601 Cat6 KVM Switch allows you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). This KVM supports single-user access to 16 sources from the Local console. CyberView Cat6 KVMs support a variety of video inputs from USB-C, DisplayPort, HDMI, DVI, & VGA, with resolutions up to up to 1080p & 1920 x 1200. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.
Key Features:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
Cat6 KVM with 16 ports in 1U
Cat6 dongle available for USB-C, DP, HDMI, DVI-D or VGA video input
High definition video support with resolutions up to 1920 x 1080
Multi-platform
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches
DC power : 12V / 24V / 48V / 125V / 250V
Dual power with failover
2 Years Standard Warranty - Expandable up to 5 years
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Front Panel LEDs:
Rear Panel:
Package Contents:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
1 x U-1601 KVM Switch
1 x 1U, 19" mounting kit w/ brackets & screws
1 x Power cord ( for KVM )
* DC power excludes AC power cord
*For complete specifications see the documentation tab above

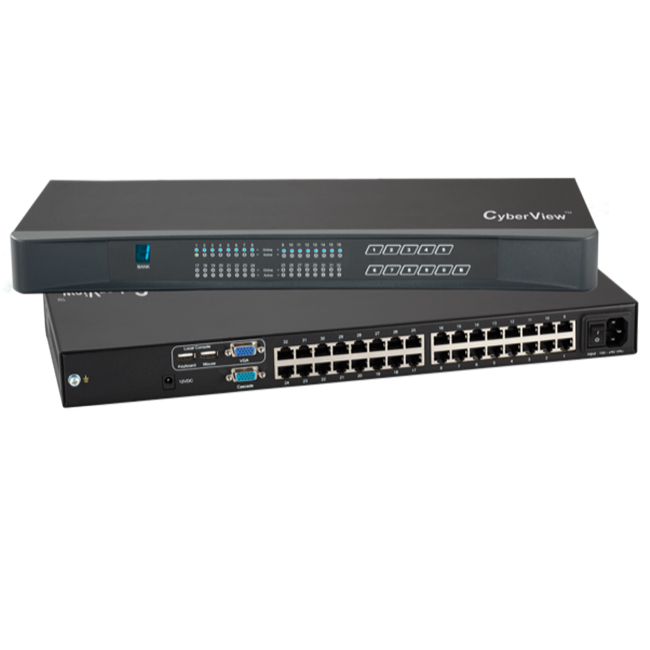

Austin Hughes U-3201 32 Port Combo Cat6 Single Console KVM Switch
The CyberView U-3201 is a 32 port Combo Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200.
The CyberView U-3201 Cat6 KVM Switch allows you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). This KVM supports single-user access to 32 sources from the Local console. CyberView Cat6 KVMs support a variety of video inputs from USB-C, DisplayPort, HDMI, DVI, & VGA, with resolutions up to up to 1080p & 1920 x 1200. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.
Key Features:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
Cat6 KVM with 32 ports in 1U
Cat6 dongle available for USB-C, DP, HDMI, DVI-D or VGA video input
High definition video support with resolutions up to 1920 x 1080
Multi-platform
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches
DC power : 12V / 24V / 48V / 125V / 250V
Dual power with failover
2 Years Standard Warranty - Expandable up to 5 years
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Front Panel LEDs:
Rear Panel:
Package Contents:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
1 x U-3201 KVM Switch
1 x 1U, 19" mounting kit w/ brackets & screws
1 x Power cord ( for KVM )
* DC power excludes AC power cord
*For complete specifications see the documentation tab above
Austin Hughes U-1602 16 Port Combo Cat6 Two Console KVM Switch - 1 Local + 1 Extended Remote Users
The CyberView U-1602 is a 16 port Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles - 1 x local, 1 x remote extended.
The CyberView U-1602 Cat6 KVM Switch allows you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). This KVM supports single-user access to 16 sources from up to 2 consoles: 1x Local, and 1x Extended via an integrated CAT6 KVM Extender. CyberView Cat6 KVMs support a variety of video inputs from USB-C, DisplayPort, HDMI, DVI, & VGA, with resolutions up to up to 1080p & 1920 x 1200. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.
Key Features:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
Cat6 KVM with 16 ports in 1U
Cat6 dongle available for USB-C, DP, HDMI, DVI-D or VGA video input
Access sources from 2 consoles (1 Local, 1 Extended)
Multi-platform
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches
DC power : 12V / 24V / 48V / 125V / 250V
Dual power with failover
2 Years Standard Warranty - Expandable up to 5 years
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Front Panel LEDs:
Rear Panel:
Package Contents:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
1 x U-1602 KVM Switch
1 x KVM receiver for extended console
1 x 1U, 19" mounting kit w/ brackets & screws
1 x Power cord ( for KVM )
Power adapter & Power cord ( for receiver )
* DC power excludes AC power cord
CE-6 6ft Combo KVM cable for receiver box
*For complete specifications see the documentation tab above

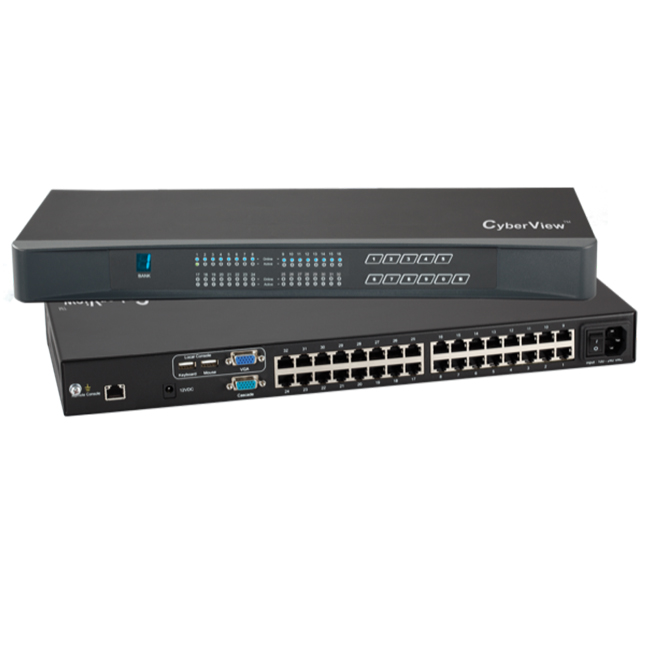

Austin Hughes U-3202 32 Port Combo Cat6 Two Console KVM Switch - 1 Local + 1 Extended Remote Users
The CyberView U-3202 is a 32 port Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles - 1 x local, 1 x remote extended.
The CyberView U-3202 Cat6 KVM Switch allows you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). This KVM supports single-user access to 32 sources from up to 2 consoles: 1x Local, and 1x Extended via an integrated CAT6 KVM Extender. CyberView Cat6 KVMs support a variety of video inputs from USB-C, DisplayPort, HDMI, DVI, & VGA, with resolutions up to up to 1080p & 1920 x 1200. Daisy chain connections allows up to 8 KVMs to be cascaded to access up to 256 source devices.
Key Features:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
Cat6 KVM with 32 ports in 1U
Access sources from 2 consoles (1 Local, 1 Extended)
Cat6 dongle available for USB-C, DP, HDMI, DVI-D or VGA video input
High definition video support with resolutions up to 1920 x 1080
Multi-platform
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches
DC power : 12V / 24V / 48V / 125V / 250V
Dual power with failover
2 Years Standard Warranty - Expandable up to 5 years
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Front Panel LEDs:
Rear Panel:
Package Contents:
/* normal spacing between all items */
.spaced-list li {
margin-bottom: 0.7em; /* adjust as needed */ }
/* extra space after the final item */
.spaced-list li:last-child {
margin-bottom: 2em; /* slightly larger gap */ }
1 x U-3202 KVM Switch
1 x KVM receiver for extended console
1 x 1U, 19" mounting kit w/ brackets & screws
1 x Power cord ( for KVM )
Power adapter & Power cord ( for receiver )
* DC power excludes AC power cord
CE-6 6ft Combo KVM cable for receiver box
*For complete specifications see the documentation tab above
