Aten Switched Outlet/Bank metered Single Phase PDUs

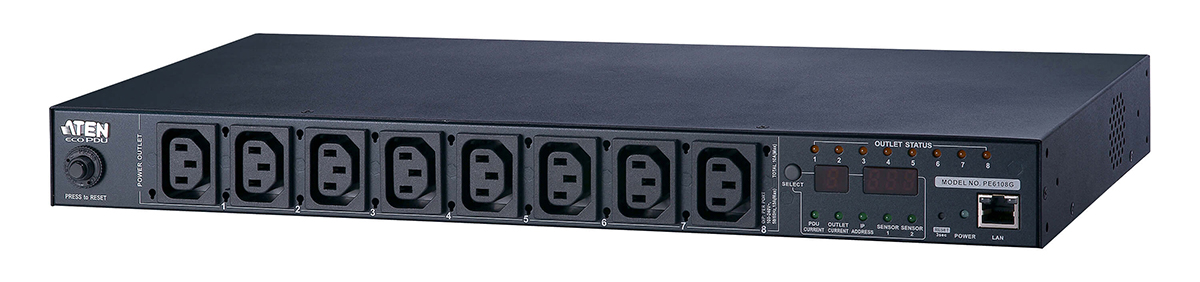

The Aten PE6108G Eco PDU is a streamlined rack-mount power distribution unit built for reliability and control. With eight C13 outlets and a 10A capacity, it provides an efficient way to manage connected equipment while allowing administrators to monitor and control power remotely with ease.

eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device or outlet level, from practically any location via a TCP/IP connection.

eco PDU supports any 3rd party v3 SNMP Manager Software and eco Sensors (Energy Management Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and userfriendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

Key Features

Power Distribution Space saving 1U rack mount design with rear mounting
IEC or NEMA outlet models
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker



Remote Access Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
eco PDU Power Management software – eco DC
Supports SNMP Manager V3



Operation Remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari)
RTC support to keep the timer running during times of no power.
Supports up to 8 user and 1 administrator accounts
Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices



Management Power status measurement at the PDU level
LED indicators for current and IP address at the PDU device level
Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis.
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian



Security Two-level password security
Strong security features include password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS



eco DC Energy Management Software Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time power outlet management
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and Syslog
Power Analysis Report



Features available only on firmware-upgraded models with -ATB part number Supports SMPTS, IPv6, Modbus (Over TCP/IP), Auto Ping, TLS1.2, SSH
Supports IEEE 802.1X
Authentication: LDAP, TACACS+
UI – heartbeat,schedule control, mail control, and setting rule

ECO DC Included free with Aten PDUs The Eco DC energy tracking and reporting program is included at no additional cost with every ATEN PDU, providing users with valuable insights into energy consumption. This program enables real-time monitoring, detailed reporting, and efficient management of power usage, helping organizations optimize performance and reduce unnecessary energy waste—all without requiring extra investment.

Download ECO DC For Free Here *Contact ATEN UK support for Serial Number to activate, via [email protected]

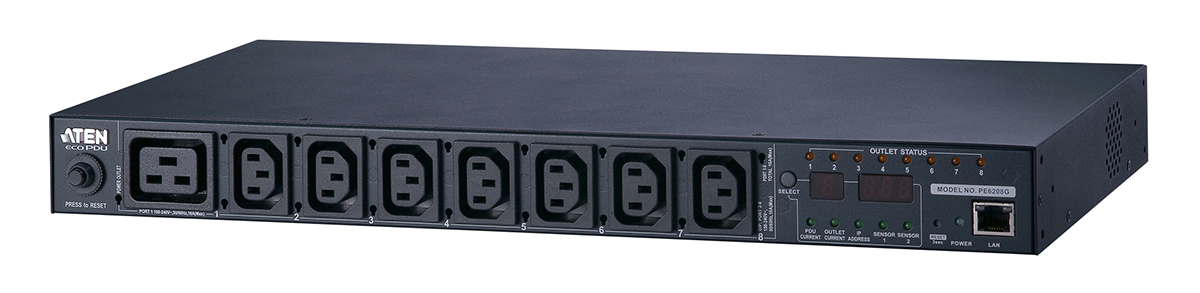

The Aten PE6208G 1U Eco PDU is designed to deliver precise and efficient power management for data centers and IT setups. With a compact 1U rack profile and intelligent monitoring features, it provides full control over connected devices while maintaining safety and energy visibility.

• 8 outlets
• 20A (UL derated 16A) / 16A
• PDU Power Measurement

The PE6208 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.

The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection.

The eco PDU supports any 3rd party v3 SNMP Manager Software and the eco DC (Energy Management Web GUI). The eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With the eco DC, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

Note: Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.

Key Features

Power Distribution Space saving 1U rack mount design with rear mounting
IEC or NEMA outlet models
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker



Remote Access Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
eco PDU Power Management software – eco DC
Supports SNMP Manager V3



Operation Remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari)
RTC support to keep the timer running during times of no power.
Supports up to 8 user and 1 administrator accounts
Proactive Overload Protection (POP) – automatically powers off outlets in the user-defined sequence when a current overload occurs in protecting the powered devices



Management Power status measurement at the PDU level
LED indicators for current and IP address at the PDU device level
Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis.
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian



Security Two-level password security
Strong security features include password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS



eco DC Energy Management Software Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time power outlet management*
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and Syslog
Power Analysis Report



Features available only on firmware-upgraded models with -ATB part number Supports SMPTS, IPv6, Modbus (Over TCP/IP), Auto Ping, TLS1.2, SSH
Supports IEEE 802.1X
Authentication: LDAP, TACACS+
UI – heartbeat,schedule control, mail control, and setting rule

ECO DC Included free with Aten PDUs The Eco DC energy tracking and reporting program is included at no additional cost with every ATEN PDU, providing users with valuable insights into energy consumption. This program enables real-time monitoring, detailed reporting, and efficient management of power usage, helping organizations optimize performance and reduce unnecessary energy waste—all without requiring extra investment.

Download ECO DC For Free Here *Contact ATEN UK support for Serial Number to activate, via [email protected]

The Aten PE6324LG Eco PDU is a streamlined 0U rack-mount unit designed for reliable power distribution and smart management. With 24 total outlets and built-in monitoring, it helps data centers and IT rooms maintain steady control over connected equipment while keeping energy usage visible and manageable.

• 0U 24-Outlet low profile eco PDU
• Bank level metering
• Supports Proactive Overload Protection (POP) / Outlet Switch Control

The PE6324L PDUs are low-profile units featuring 24 AC outlets, coming available in various IEC or NEMA socket configurations. This series has a smaller input region on the PDU to provide more installation space for data centers.

The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing users to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP / IP connection. The power status of each outlet can be set individually, allowing users to switch each device On / Off.

This series supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco DC (Energy & DCIM Management Web GUI), delivering an easy method for multiple device management while offering an intuitive and user-friendly GUI that allows users to configure a PDU device and monitor power status of the equipment connected to it.


Key Features

Connections Support 10/100Mbit Ethernet Interface
Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
Support : eco DC, Browser (IE, Firefox, Chrome, Safari)

Metering Bank level power metering and monitoring
Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting

Outlet Switch Control Remote power outlet control ( On/Off, Power Cycle) by individual outlets and outlet groups
Support multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
Power-On sequencing – users can set the power on sequence and delay time for each outlet to allow equipment to be turned on in the proper order
Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices
ECO DC Included free with Aten PDUs
The Eco DC energy tracking and reporting program is included at no additional cost with every ATEN PDU, providing users with valuable insights into energy consumption. This program enables real-time monitoring, detailed reporting, and efficient management of power usage, helping organizations optimize performance and reduce unnecessary energy waste—all without requiring extra investment.

Download ECO DC For Free Here *Contact ATEN UK support for Serial Number to activate, via [email protected]
