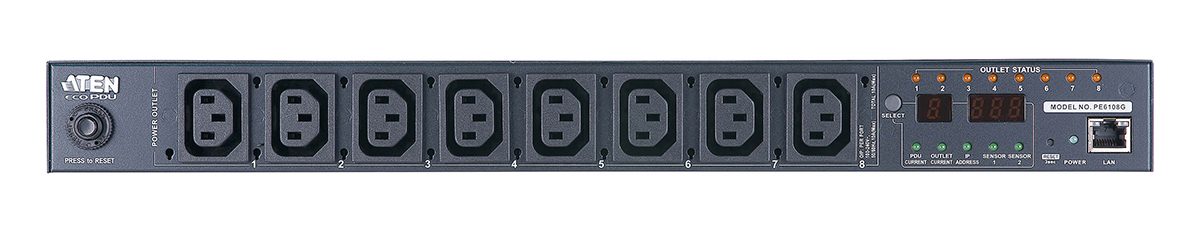

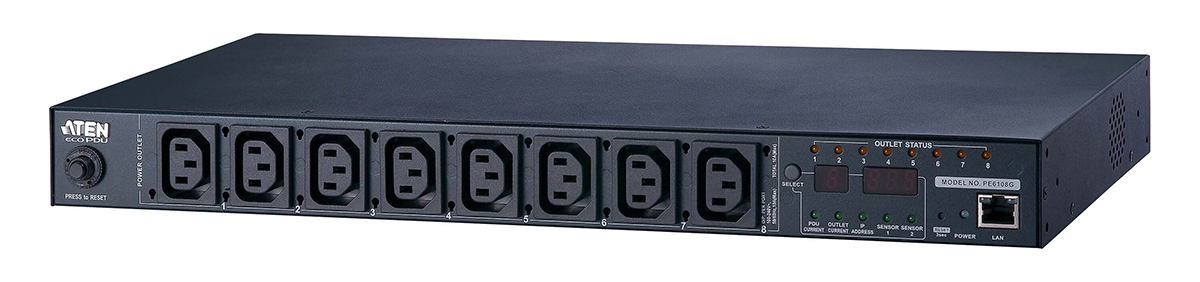

Aten PE6108G 1U 10A, C13x8 Eco PDU

The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection.

The eco PDU supports any 3rd party v3 SNMP Manager Software and The eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With ALTUSEN eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.

Remote Access

• Remote power control via TCP/IP and a built in 10/100 Ethernet port
• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
• eco PDU Power Management software – eco Sensors
• Supports SNMP Manager V3

Operation

• Remote power outlet control (On, Off, Power Cycle) by individual outlets
• Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
• Easy setup and operation via a browser-based user interface
• Multibrowser support (IE, Firefox, Chrome, Safari)
• RTC support to keep the timer running during times of no power.
• Supports up to 8 user and 1 administrator accounts
• Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices

Management

• Power status measurement at the PDU level
• LED indicators for current and IP address at the PDU device level
• Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
• Current and voltage threshold setting
• Naming support for outlets
• User outlet access assignment on an outlet-by-outlet basis.
• Event logging and syslog support
• Upgradeable firmware
• Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian

Security

• Two-level password security
• Strong security features include password protection and advanced encryption technologies – 128 bit SSL
• Remote authentication support: RADIUS

Eco Sensors Energy Management Software

• Automatic discovery of all PE devices within the same intranet
• Remote real-time power measurement and monitoring
• Remote real-time power outlet management
• Remote real-time environment sensor monitoring
• Plotting/Monitoring of all PE devices
• Exceed threshold alert through SMTP and Syslog
• Power Analysis Report

Package Contents:

• 1x PE6108 Power Distribution Unit
• 1x Power Cord
• 1x Rack Mount Kit
• 1x Software CD
• 1x User Instructions
