Aten PE6324LG 0U 32A, C13x21 C19x3 Eco PDU

The Aten PE6324LG Eco PDU is a streamlined 0U rack-mount unit designed for reliable power distribution and smart management. With 24 total outlets and built-in monitoring, it helps data centers and IT rooms maintain steady control over connected equipment while keeping energy usage visible and manageable.

• 0U 24-Outlet low profile eco PDU
• Bank level metering
• Supports Proactive Overload Protection (POP) / Outlet Switch Control

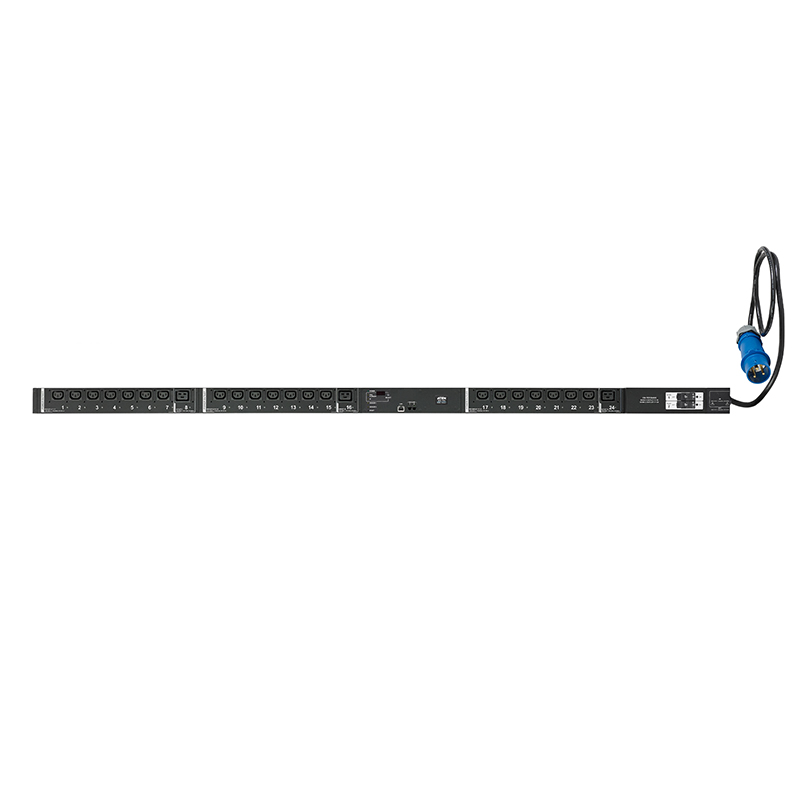

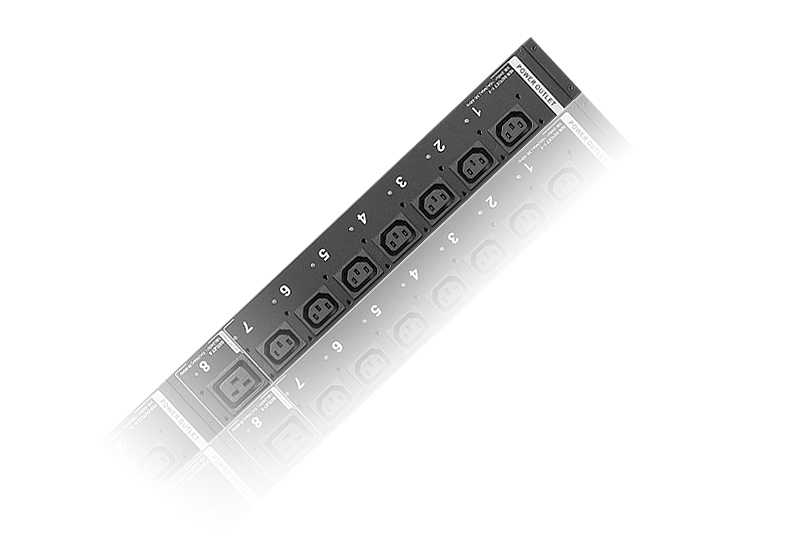

The PE6324L PDUs are low-profile units featuring 24 AC outlets, coming available in various IEC or NEMA socket configurations. This series has a smaller input region on the PDU to provide more installation space for data centers.

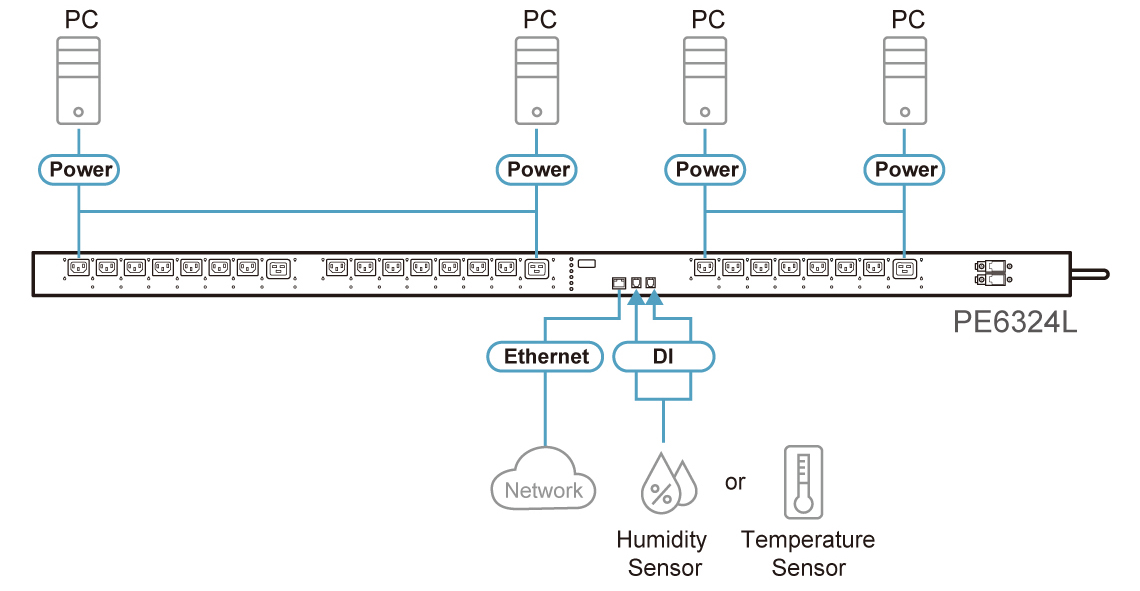

The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing users to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP / IP connection. The power status of each outlet can be set individually, allowing users to switch each device On / Off.

This series supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco DC (Energy & DCIM Management Web GUI), delivering an easy method for multiple device management while offering an intuitive and user-friendly GUI that allows users to configure a PDU device and monitor power status of the equipment connected to it.

Key Features

Connections
• Support 10/100Mbit Ethernet Interface
• Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
• Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
• Support : eco DC, Browser (IE, Firefox, Chrome, Safari)

Metering
• Bank level power metering and monitoring
• Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
• Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting

Outlet Switch Control
• Remote power outlet control ( On/Off, Power Cycle) by individual outlets and outlet groups
• Support multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
• Power-On sequencing – users can set the power on sequence and delay time for each outlet to allow equipment to be turned on in the proper order
• Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices

---

ECO DC Included free with Aten PDUs

The Eco DC energy tracking and reporting program is included at no additional cost with every ATEN PDU, providing users with valuable insights into energy consumption. This program enables real-time monitoring, detailed reporting, and efficient management of power usage, helping organizations optimize performance and reduce unnecessary energy waste—all without requiring extra investment.

Download ECO DC For Free Here

---

---

*Contact ATEN UK support for Serial Number to activate, via [email protected]

---
