15U Wall Mounted Cabinets

These 600mm Deep Wall Mounted Server Racks are ideal for small network installations where both Servers and Patching are require. The additional depth offers increased versatility and the 600mm width gives ample space for cable management.

These cabinets are suitable for holding shallow servers up to a depth of 550mm

Features:

Lockable Glass Front Door in Steel Surround
Removable and Lockable Steel Side Panels
Adjustable 19" Profiles Front & Rear
Cable access holes, with gland plates top and bottom
Earth Bonding Kit
Weight (KGS) 25.8
Static Loading (KGS) 60
Cabinets are finished in Grey.
Accessories are available on the following pages:

PDU's
Shelves
Fans, Blanking Panels and Nuts and Bolts
Please Note: Casters are not compatible with wall mounted cabinets.

These 2 section 600mm deep wall mount data cabinets are designed with versatility in mind. When mounted on the wall, the cabinet can swing open, providing access to the rear of the cabinet for easy installation and maintenance of equipment. Lockable and removable side panels also provide easy access to the cabinet.

Cable entry is provided top and bottom of the cabinet and also in the rear swing section.

Features:

Welded construction
Lockable glass front door in a steel surround (over 180 degree door opening with quick release pins)
19" Adjustable Mounting Profiles front and rear
Cable entry points top and rear with gland plates
Lockable/removable side panels
Weight (KGS) 26
Static Loading (KGS) 60

Product Overview The Environ WR is a range of wall-mounted 600mm wide racks designed for the installation of both cabling and equipment. The WR series of Wall Racks is available in depths of 400mm, 500mm and 600mm and is suitable for multiple applications including local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment. Choice of depths available (400mm, 500mm, 600mm)
Black and Grey colours available
Aesthetically pleasing framed safety glass front door
Quick release doors and side panel
Adjustable front and rear 19'' mounting profiles
Removable cable entry panel in top and base
Rear panel is not removable
Key Features Mounting Profile: Front and rear
Model: With permanent frame
Type of profile rail: L-shaped
Number of doors: 1
Type of ventilation: Passive
Width: 600mm
Depth: 390mm
Technical Specifications Mounting Profile Front and rear Model With permanent frame Type of profile rail L-shaped Number of doors 1 Type of ventilation Passive Width 600mm Number of Rack Units /
Heights Available
6U - 368mm 9U - 501mm 12U - 635mm 15U - 769mm Depth 390mm Modular spacing 19 inch Max. load capacity 63kg With roof plate yes With earthing no With front door yes Side panels included yes Flat-packed no Material Steel Type of surface Powder coated Colours / RAL Number Grey (RAL7035) Black (RAL9004) IP-rating IP20

Images used for illustrative purposes only; product may differ in appearance

The Rax 19” Wall Mounting Cabinet range delivers a practical and space-efficient solution for housing network equipment in smaller environments. Designed for reliability and ease of installation, these cabinets provide a secure and organised structure for data systems while maintaining a clean, professional appearance.

Key Features of Rax 19” Wall Mounting Cabinets Supplied fully assembled for quick installation
Compact design ideal for small networks and workgroups
Adjustable front and rear 19” mounting profiles
Ventilated top and bottom for improved airflow
Lockable glass front door for secure visibility
Removable and lockable side panels for easy access
Cable entry points via top and bottom gland plates
Durable welded steel frame construction
Finished in high-quality black coating
Space-Saving Cabinet Design Built with a compact footprint, these wall-mounted cabinets are well suited for installations where floor space is limited. Their streamlined form allows for efficient placement in offices, comms rooms, and small IT setups without compromising on capacity.

Robust Steel Construction Each cabinet features a strong welded steel frame that ensures durability and long-term structural integrity. The solid build quality provides reliable protection for housed equipment in busy working environments.

Flexible Equipment Mounting With adjustable front and rear 19” mounting profiles, the cabinet allows for flexible installation of a wide range of networking equipment. This adaptability ensures compatibility across different setups and configurations.

Secure and Accessible Design The lockable glass front door offers both security and visibility of internal components, while removable side panels allow for convenient maintenance and equipment access when needed.

Optimised Cable Management Integrated gland plates at both the top and bottom of the cabinet provide structured cable routing options. This helps maintain a tidy installation and improves airflow around critical equipment.

Ventilation for Reliable Performance Strategically placed ventilation slots at the top and bottom support passive airflow, helping to regulate internal temperatures and maintain consistent equipment performance.

Size and Capacity Options Available in a range of U heights, these cabinets cater to varying capacity requirements while maintaining a consistent width and depth.

U Height Dimensions (HxWxD) Net Weight 6U 348 x 550 x 450 mm 14 kg 9U 481 x 550 x 450 mm 17.5 kg 12U 615 x 550 x 450 mm 21 kg 15U 720 x 550 x 450 mm 24.5 kg 18U 881 x 550 x 450 mm 29 kg 21U 1015 x 550 x 450 mm 32.5 kg

Product Overview The Environ WR is a range of wall-mounted 600mm wide racks designed for the installation of both cabling and equipment. The WR series of Wall Racks is available in depths of 390mm, 500mm and 600mm and is suitable for multiple applications including local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment. Choice of depths available (390mm, 500mm, 600mm)
Black and Grey colours available
Aesthetically pleasing framed safety glass front door
Quick release doors and side panel
Adjustable front and rear 19'' mounting profiles
Removable cable entry panel in top and base
Rear panel is not removable
Key Features Mounting Profile: Front and rear
Model: With permanent frame
Type of profile rail: L-shaped
Number of doors: 1
Type of ventilation: Passive
Width: 600mm
Depth: 600mm
Technical Specifications Mounting Profile Front and rear Model With permanent frame Type of profile rail L-shaped Number of doors 1 Type of ventilation Passive Width 600mm Number of Rack Units /
Heights Available
6U - 368mm 9U - 501mm 12U - 635mm 15U - 769mm Depth 600mm Modular spacing 19 inch Max. load capacity 63kg With roof plate yes With earthing no With front door yes Side panels included yes Flat-packed no Material Steel Type of surface Powder coated Colours / RAL Number Grey (RAL7035) Black (RAL9004) IP-rating IP20

The Rax 19” Wall Mounting Cabinets are designed for compact network setups and smaller workgroups. Combining robust construction with a sleek black finish, these cabinets provide secure, ventilated, and easily accessible storage for your networking equipment.

Key Features of Rax 19” Wall Mounting Cabinets Supplied fully assembled for immediate installation
Ventilated top and bottom for efficient airflow
Adjustable front and rear 19” mounting profiles
Lockable glass front door and removable side panels
Cable access via top and bottom gland plates
Durable welded steel frame finished in high-quality black
Maximum internal depth of 540mm
Compact and Fully Assembled Each Rax cabinet comes fully assembled, saving installation time and effort. Its compact design makes it ideal for small networks, offices, or workgroups without compromising on functionality.

Adjustable Mounting and Ventilation The cabinets feature adjustable 19” mounting posts to accommodate a range of equipment sizes. Ventilation slots at the top and bottom ensure consistent airflow, helping to maintain optimal operating temperatures for your hardware.

Secure and Accessible Design With a lockable glass front door and removable side panels, these cabinets provide both security and easy access for maintenance. Cable access is conveniently located at both the top and bottom of the cabinet.

Multiple Sizes to Suit Your Setup The Rax 19” cabinets are available in multiple heights, all with a 550mm width and depth up to 550mm, designed to maximize storage while maintaining a compact footprint.

U Height Dimensions (HxWxD) Weight 6U 348 x 550 x 550 mm 15.5 Kg 9U 481 x 550 x 550 mm 19 Kg 12U 615 x 550 x 550 mm 22.5 Kg 15U 720 x 550 x 550 mm 26 Kg 18U 881 x 550 x 550 mm 29.5 Kg 21U 1015 x 550 x 550 mm 33 Kg

Images for illustrative purposes only; product may differ in appearance

The Racky Rax 600mm wall-mounted data cabinets combine high-spec design with practical installation and maintenance features, making them ideal for any data or voice networking setup. With sizes ranging from 6U to 21U, these cabinets are built to accommodate your equipment while keeping everything organized and accessible.

Key Features of 600mm Wall Mounted Data Cabinet Fully assembled for quick installation
Ventilated top and bottom for airflow
Adjustable front and rear 19” mounting profiles
Removable side panels
Cable entry gland plates on top and bottom
Lockable and removable glass front door
High-quality black finish
Ease of Installation Designed with installers in mind, these cabinets come fully assembled and ready to mount. Lockable glass doors and removable side panels make equipment access simple, while top and bottom gland plates allow neat and easy cable routing.

Ventilation and Equipment Protection Ventilation slots on the top and bottom of the cabinet ensure efficient airflow, helping to keep patch panels, switches, and other devices cool. The lockable glass front door adds an extra layer of security while maintaining visibility of your setup.

Cable Management Options Keep your cabinet organized with optional Cable Tidy solutions and Power Distribution Units, ensuring your networking equipment remains neat and fully powered.

Dimensions and Weight by U Height U Height Dimensions (HxWxD) Weight 6U 325 x 600 x 600 mm 15 Kg 9U 455 x 600 x 600 mm 18 Kg 12U 590 x 600 x 600 mm 21 Kg 15U 720 x 600 x 600 mm 24 Kg 18U 855 x 600 x 600 mm 28 Kg 21U 990 x 600 x 600 mm 31 Kg

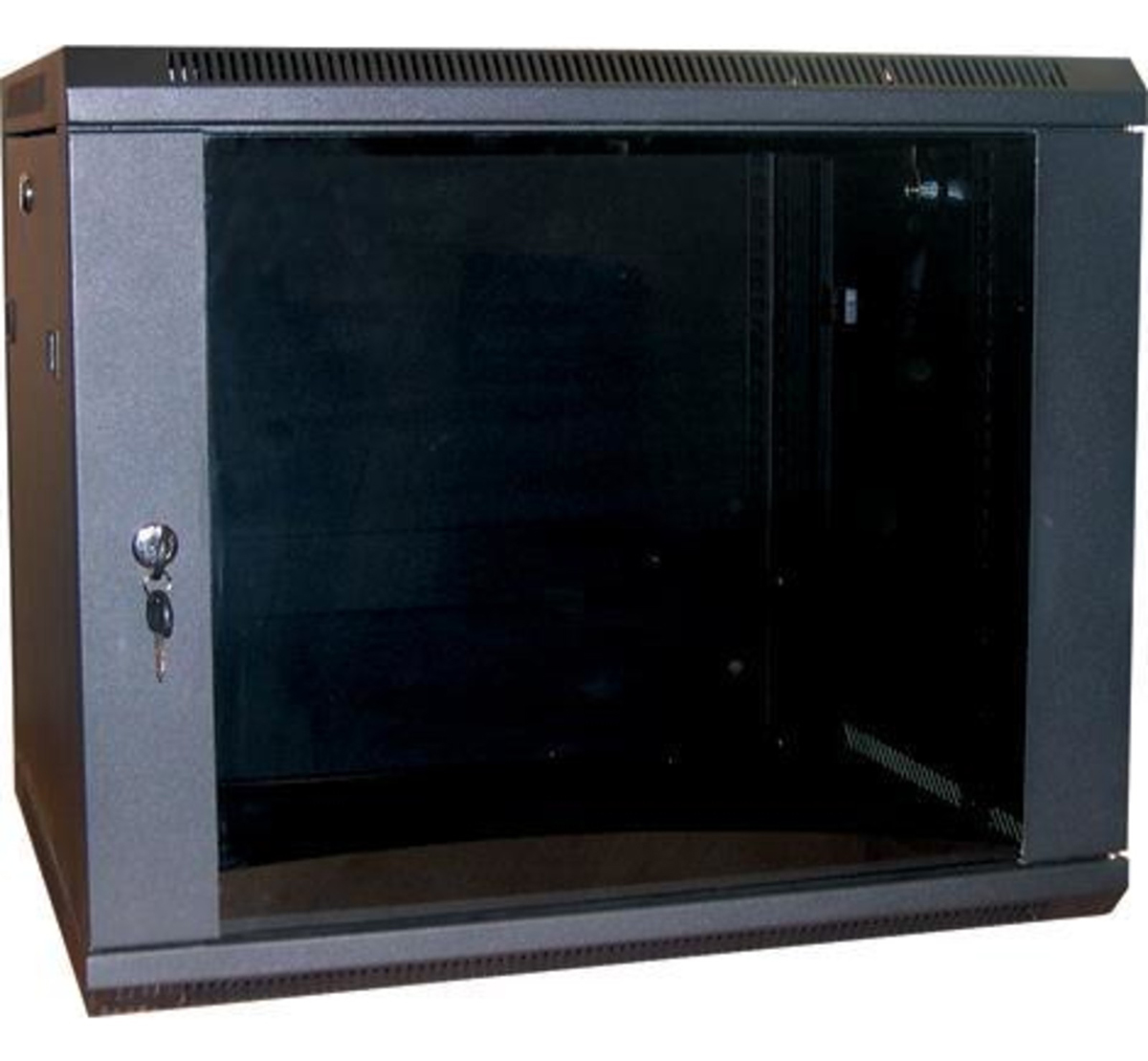

Product Overview The Environ WR is a range of wall-mounted 600mm wide racks designed for the installation of both cabling and equipment. The WR series of Wall Racks is available in depths of 390mm, 500mm and 600mm and is suitable for multiple applications including local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment. Choice of depths available (390mm, 500mm, 600mm)
Black and Grey colours available
Aesthetically pleasing framed safety glass front door
Quick release doors and side panel
Adjustable front and rear 19'' mounting profiles
Removable cable entry panel in top and base
Rear panel is not removable
Key Features Mounting Profile: Front and rear
Model: With permanent frame
Type of profile rail: L-shaped
Number of doors: 1
Type of ventilation: Passive
Width:600 mm
Depth:500 mm
Technical Specifications Mounting Profile Front and rear Model With permanent frame Type of profile rail L-shaped Number of doors 1 Type of ventilation Passive Width 600mm Number of Rack Units /
Heights Available
6U - 368mm 9U - 501mm 12U - 635mm 15U - 769mm Depth 500mm Modular spacing 19 inch Max. load capacity 63kg With roof plate yes With earthing no With front door yes Side panels included yes Flat-packed no Material Steel Type of surface Powder coated Colours / RAL Number Grey (RAL7035) Black (RAL9004) IP-rating IP20

Our range of 500mm deep wall mounted cabinets have been redesigned and refreshed to offer users’ even better value for money, through better access, quicker and easier installation and improved aesthetic.

These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.

Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.

Features: Available in both Grey (RAL7044) and Black (RAL9004)
Quick release front door - Fixed and released using a simple spring loaded pin
Lockable, removeable side panels - Fixed and released using simple slam latch handles
Two sets of adjustable 19” profiles - Allows easy installation of a variety of product, shelves and power distribution
Weight (KGS) 14.4
Static Loading (KGS) 60
Accessories are available on the following pages:

PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.

Highlights



The 15u 500mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)

  Quick Release Side removable and lockable panels on both sides

Adjustable 19 inch front and rear mounting profiles with "u" markings

Top and bottom cable entry for easy patching Alternative Product


15u 390mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 390mm version instead. 9u 390mm 9u 500mm 12u 390mm 12u 500mm 15u 390mm 15u 500mm External Height 503mm 637mm 770mm External Width 600mm External Depth 390mm 500mm 390mm 500mm 390mm 500mm Internal Working Depth (max) 340mm 450mm 340mm 450mm 340mm 450mm Weight 15.2Kgs 17.4Kgs 18.6Kgs 20.8Kgs 21Kgs 24.3Kgs Static Loading (includes weight of cabinet) 60Kg Mounting Profiles Front and Rear
